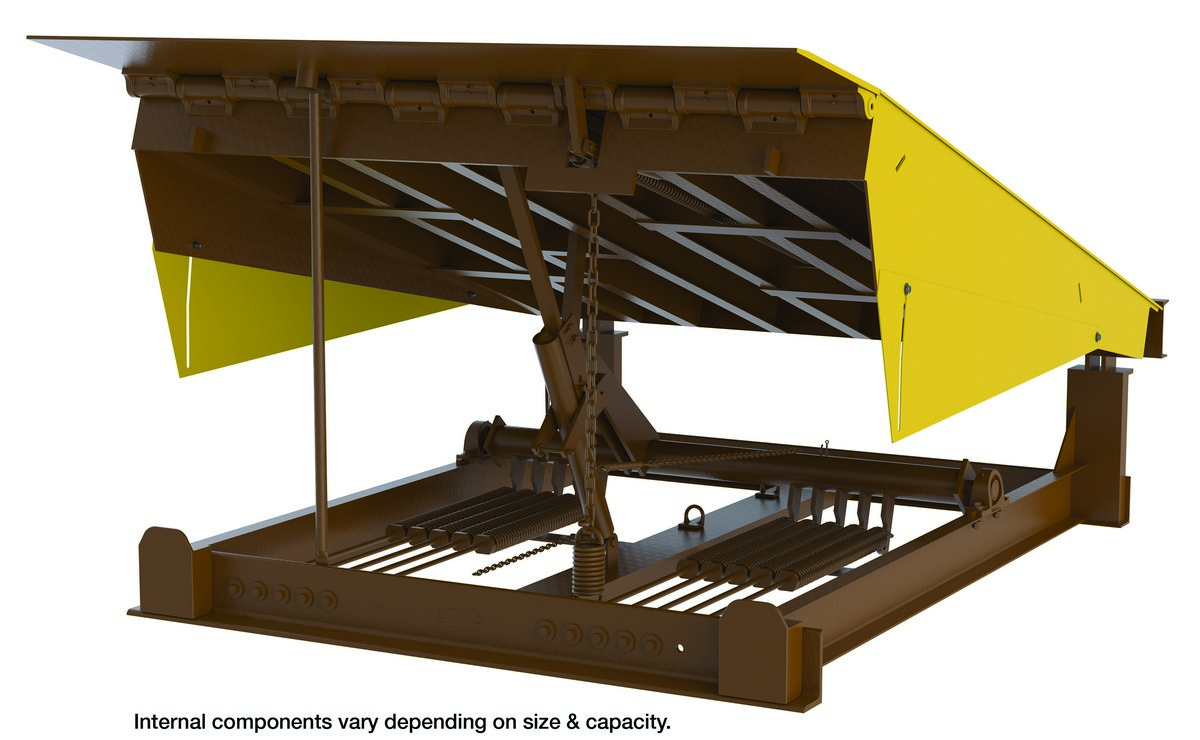

Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/Yellow

Heavy-duty Dock Leveler for Trailer Loading, Dock Access, and Material Transfer, 25,000 lb. Capacity, Brown and Yellow (deck Sides & Toe Guards) Finish – Model RR-75-25
The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation.
Product Status
Available Non-Returnable
Key Features
  • 2 laminated bumpers included
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.15
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dockleveler Weather Stripping   RR Mechanical Dock Leveler Pour In Place Manual   RR series Mechanical Docklevelers Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1763 lbs
Assembled Size 84"W x 64"L x 23.5"H
Total Ship Weight 1812 lbs
Package 1 Size 83"W x 62"D x 24"H
Color / Finish Brown / Yellow (Deck Sides & Toe Guards)
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 25,000
Steel Checkered Plate Deck (in.) 1/4
Steel Checkered Plate Deck (psi) 55,000
Structural Steel Support (in.) 6
Lip Thickness (in.) 1/2
Lip Length (in.) 16
Service Range Above Dock (in.) 12
Service Range Below Dock (in.) 12
Unit Width (in.) 84
Unit Height (in.) 23-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RR-75-25
Product Name
Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/Yellow
UPC
691215128001
GTIN
00691215128001
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dock Levelers
Taxonomy 4
Mechanical
Assembled Depth (in.)
64
Assembled Width(in.)
84
Assembled Height(in.)
23.5
Assembled Weight(lbs.)
1763
Color/Finish
Brown / Yellow (Deck Sides & Toe Guards)
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
62
Package Width (in.)
83
Package Height (in.)
24
Package Weight (in.)
1766
Subclass
1
Freight Class
60
NMFC Code
Ramps (Dockboards) freight dock hinged type
NMFC Number
128140
Package 2 Depth (in.)
24
Package 2 Width (in.)
24
Package 2 Height (in.)
9
Package 2 Weight (lbs.)
46
Package 2 Subclass
3
Package 2 Freight Class
70
Package2 NMFC Number
38650
LTL Freight
LTL Palletized
UNSPSC
24101801
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RR-75-25

RR-75-25

Steel Pull Chain Mechanical Dock Leveler 86"W x 50"L x 24"D Pit Dimensions 25000 Lb. Capacity Brown/Yellow

The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation.

  • 2 laminated bumpers included
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.15

Core Data

Assembled Weight: 1763 Assembled Size: 84"W x 64"L x 23.5"H Color: Brown / Yellow (Deck Sides & Toe Guards)
Total Ship Weight: 1812 Package 1 Size: 83"W x 62"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 25,000
Steel Checkered Plate Deck (in.): 1/4
Steel Checkered Plate Deck (psi): 55,000
Structural Steel Support (in.): 6
Lip Thickness (in.): 1/2
Lip Length (in.): 16
Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 12
Unit Width (in.): 84
Unit Height (in.): 23-1/2
