  All Products   Ergonomic Solutions   Stackers   Rough Terrain Stacker RT-MS-62-AF
Product Image

Visual Reference

RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF
RT-MS-62-AF

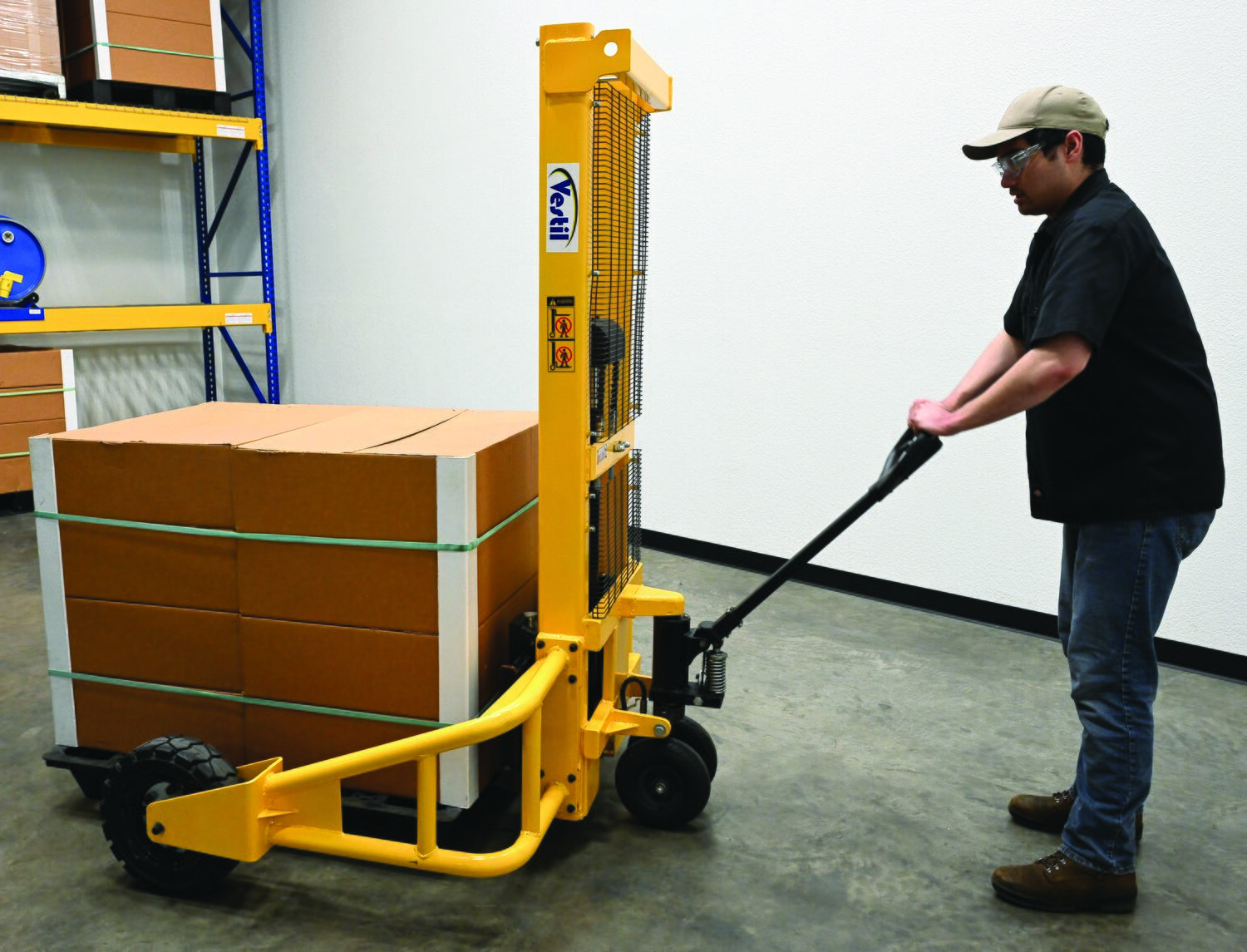

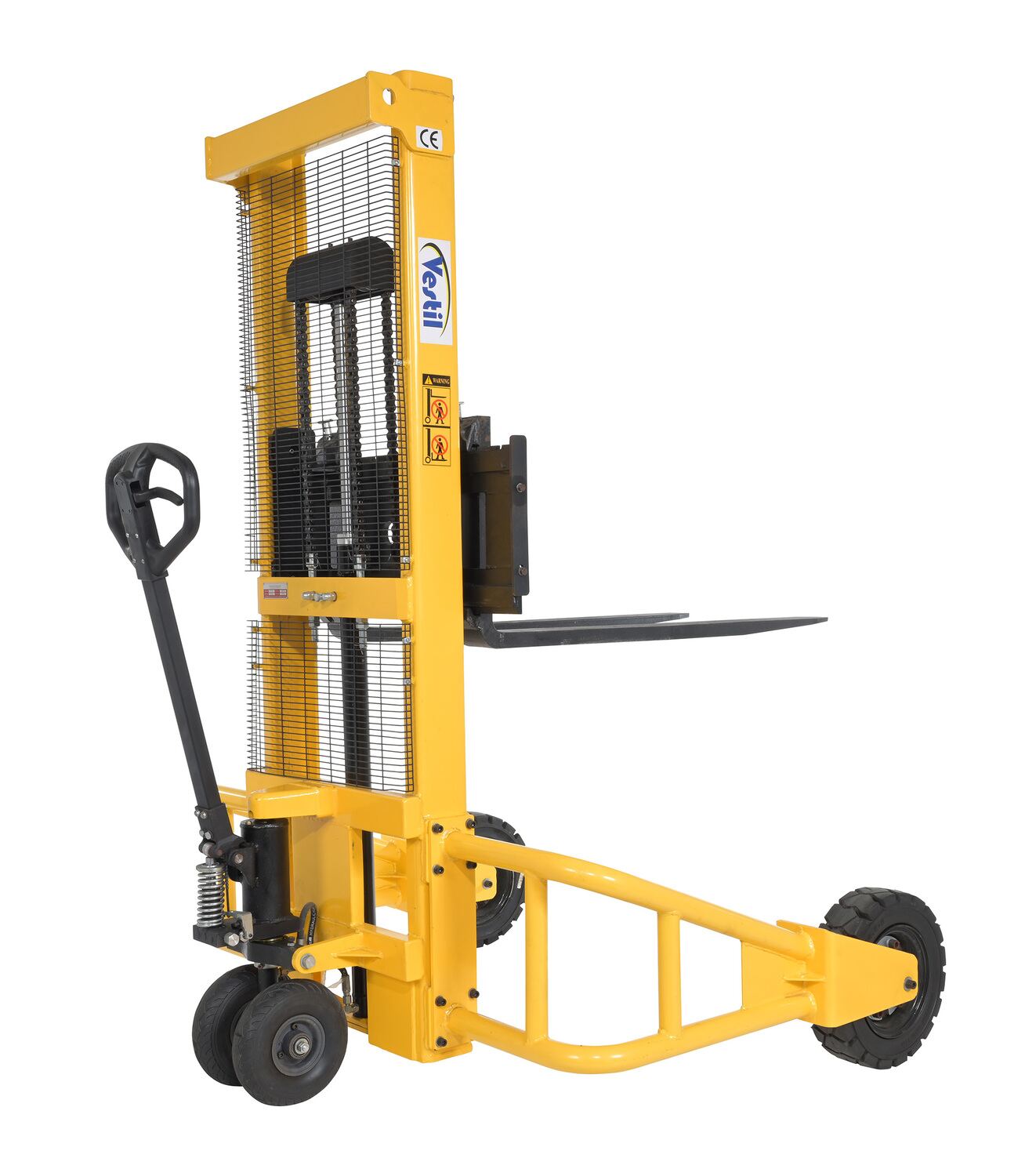

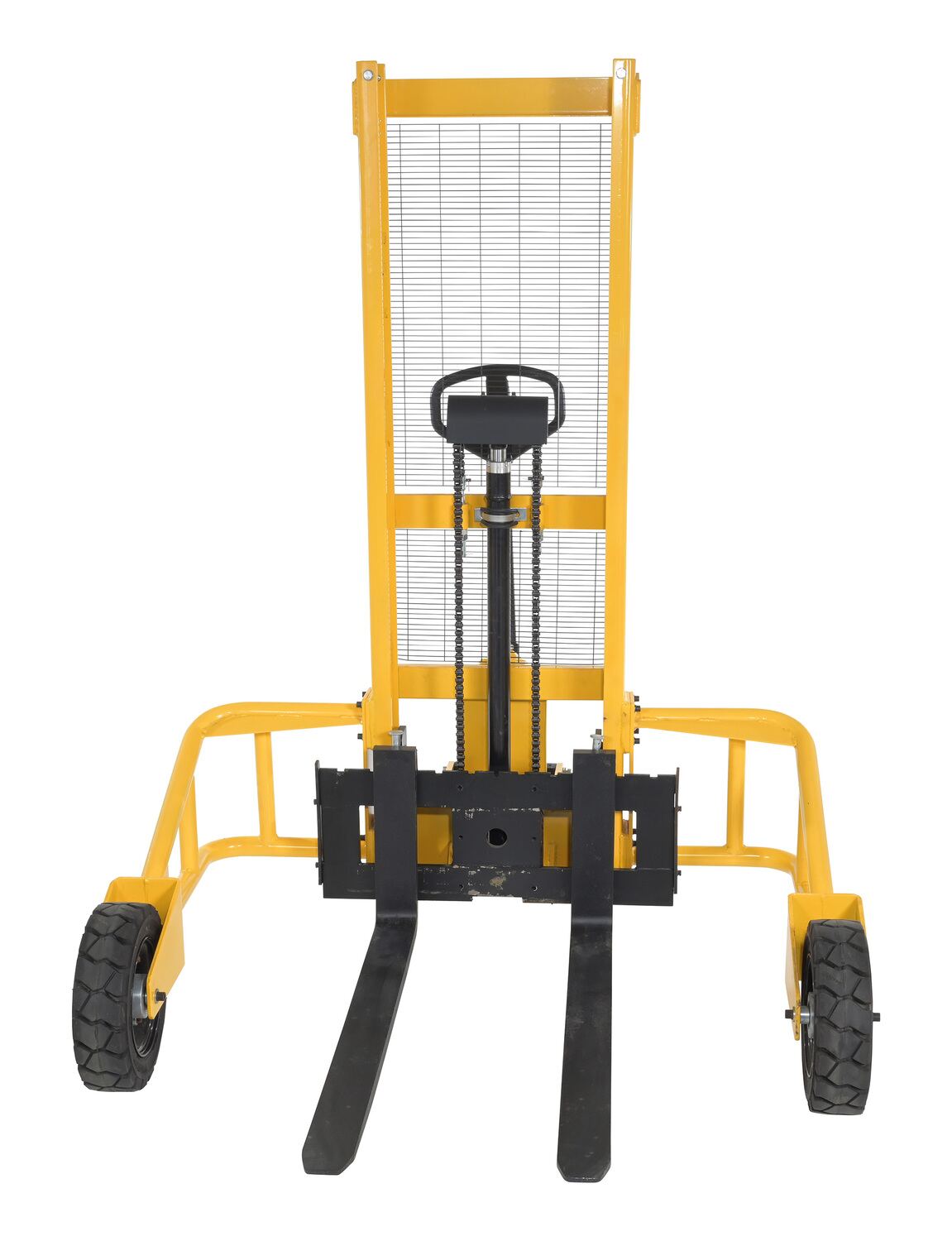

Steel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity Yellow

Manual Stacker for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity with 62 in. Raised Height
A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.
Product Status
Available Non-Returnable
Key Features
  • 2.125" to 62" service range
  • Wide, straddle based design
  • Adjustable forks
  • Full height wire-mesh back guard
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1218 lbs
Assembled Size 63.5"W x 62.5"L x 79.3125"H
Total Ship Weight 868 lbs
Package 1 Size 67"W x 80"D x 84"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Raised Height (in.) 61
Lowered Height (in.) 2-1/4
Fork Size (in.) 4 x 42-1/8
Handle Length (in) 49

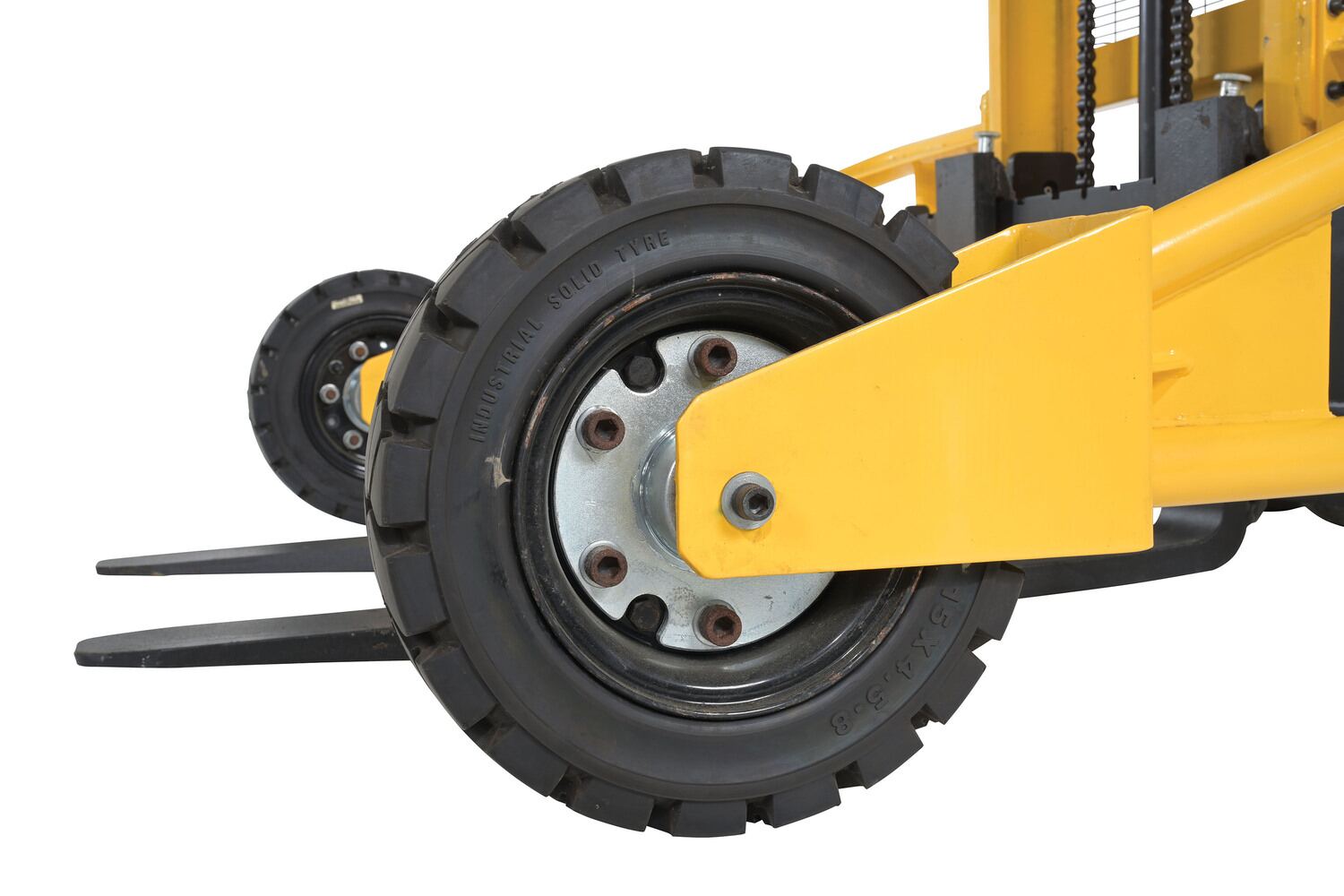

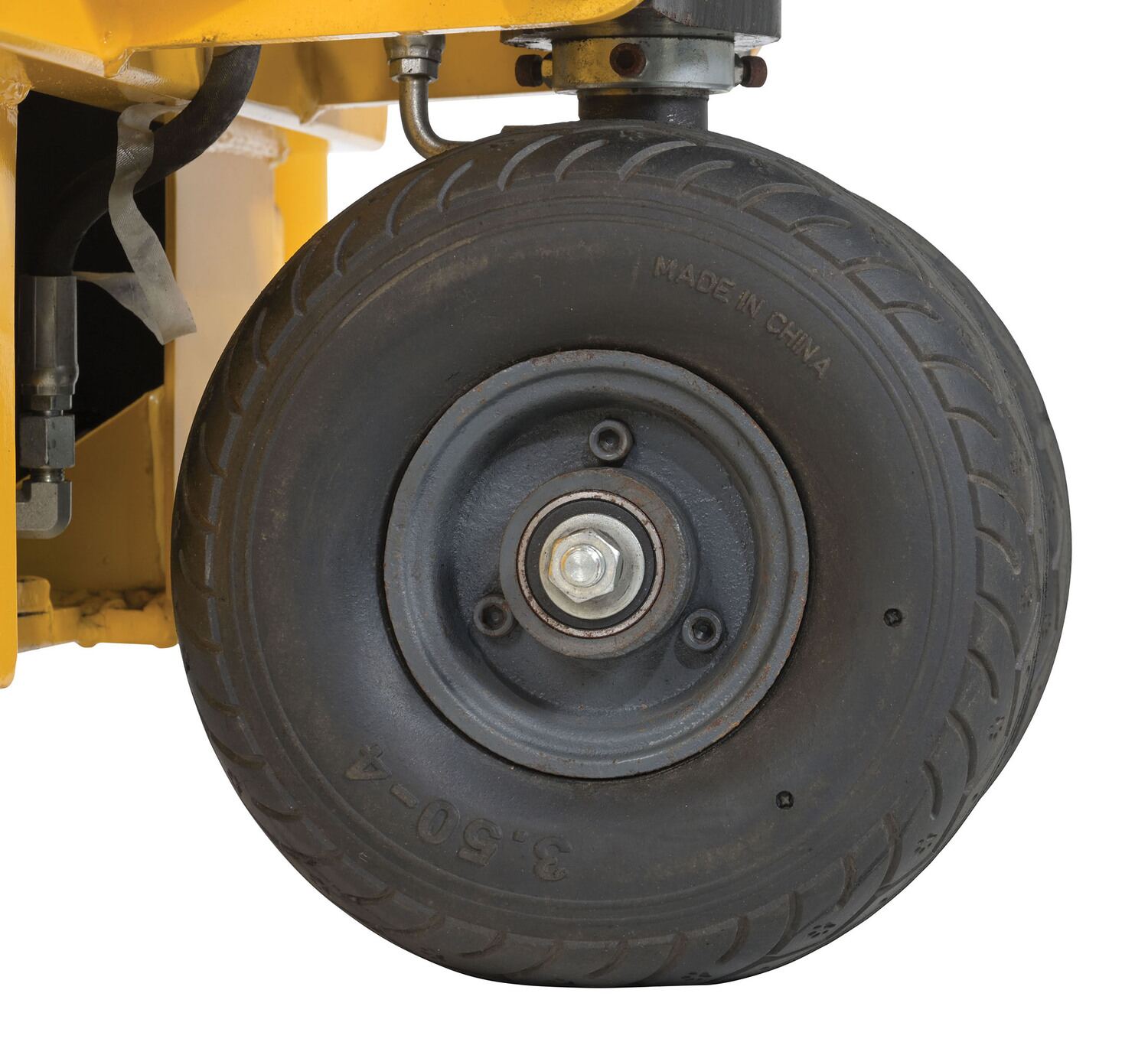

Rubber Drive Wheel (2) 3"x10"
Rubber Front Wheel (2) 4.5"x15"
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RT-MS-62-AF
Product Name
Steel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity Yellow
UPC
691215375719
GTIN
00691215375719
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
62.5
Assembled Width(in.)
63.5
Assembled Height(in.)
79.3125
Assembled Weight(lbs.)
1218
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
80
Package Width (in.)
67
Package Height (in.)
84
Package Weight (in.)
868
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
No
Certification Indicator
No
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RT-MS-62-AF

RT-MS-62-AF

Steel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity Yellow

A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 2.125" to 62" service range
  • Wide, straddle based design
  • Adjustable forks
  • Full height wire-mesh back guard

Core Data

Assembled Weight: 1218 Assembled Size: 63.5"W x 62.5"L x 79.3125"H Color: Yellow
Total Ship Weight: 868 Package 1 Size: 67"W x 80"D x 84"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Raised Height (in.): 61
Lowered Height (in.): 2-1/4
Fork Size (in.): 4 x 42-1/8
Handle Length (in): 49
Rubber Drive Wheel: (2) 3"x10"
Rubber Front Wheel: (2) 4.5"x15"
