Steel Rough Terrain Stacker 35 Raised Height 3000 Lb Capacity

Rough Terrain Stacker for Moving Loads Through Warehouses and Production Areas, 3,000 lb. Capacity
When goods have to be transferred over uneven and rough surfaces, look no further than the electric powered rough terrain stacker. With its large front and back rubber tires this unit can easily be used both indoors and out. Emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator). Forks are adjustable to precisely fit what it being maneuvered. And, even more, the unit is equipped with batteries, integral battery charger, horn and battery level indicator.
Product Status
Out of Stock Non-Returnable
Key Features
  • Infinite speed adjustment
  • Emergency reverse function

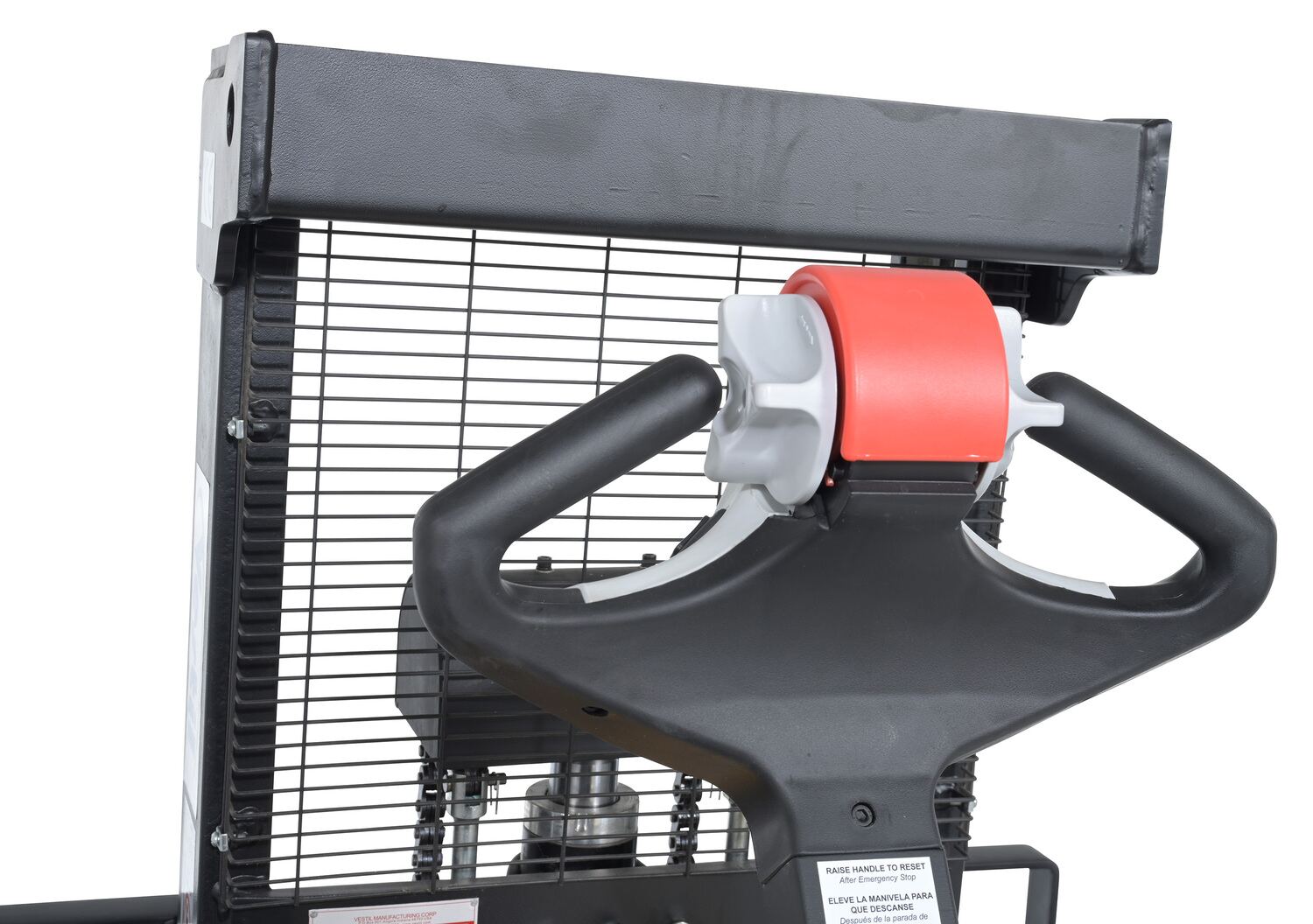

  • Multi-function driving handle
  • Straddle wheel base design
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   Acid Battery SDS   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1218 lbs
Assembled Size 62"W x 70"L x 55"H
Total Ship Weight 1474 lbs
Package 1 Size 67"W x 84"D x 54"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Raised Height 35"
Lowered Height 2-1/8"
Drive Handle Height 50"
Fork (WxL) 4"x42"
Rubber Drive Wheel (1) 5"x11.8125"
Rubber Front Wheel (2) 4.3125"x16"
DC Powered (2) 12V Lead Acid Batteries
Front Wheel Load (lb.) 1,611
Rear/Drive Wheel Load (lb.) 1,362

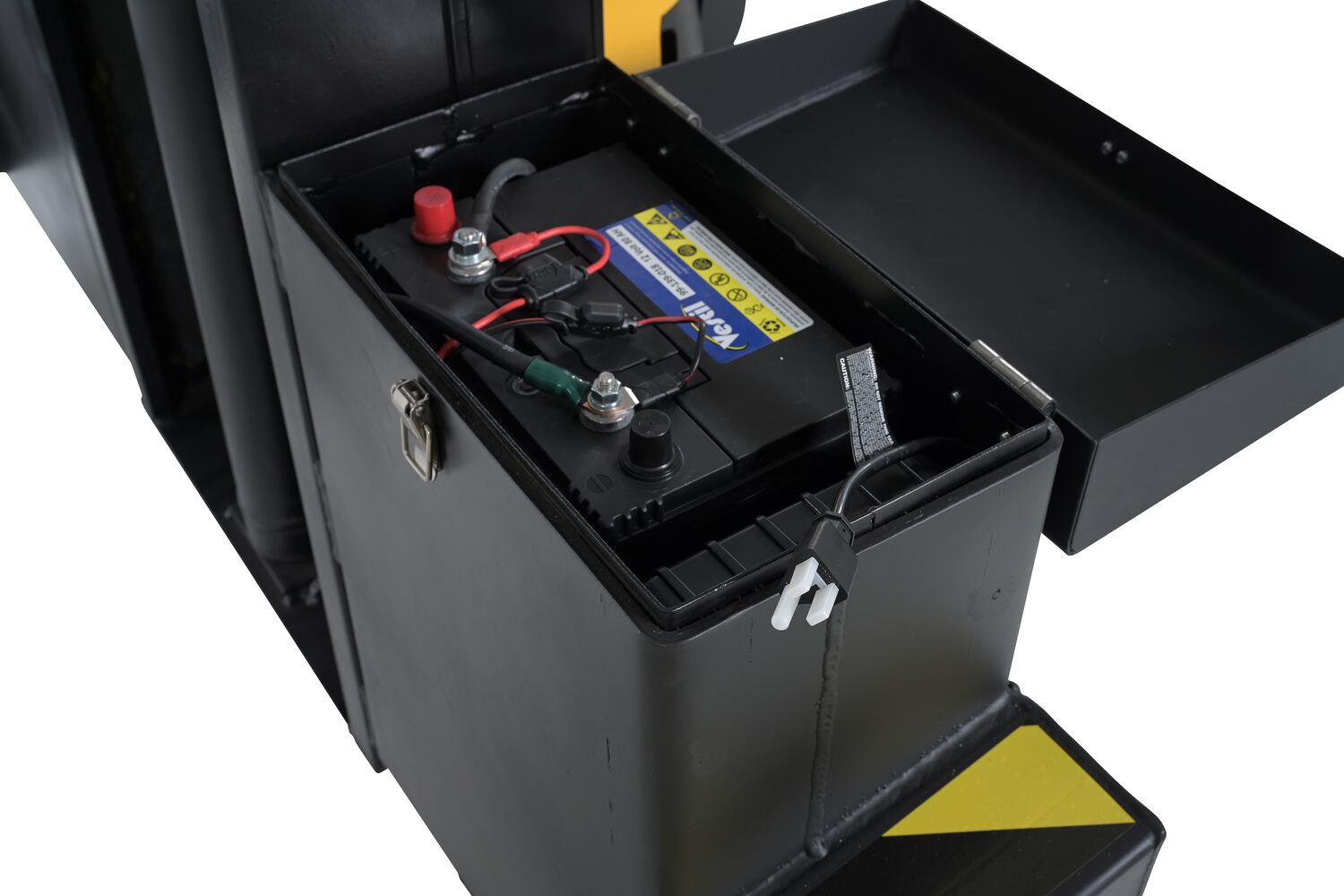

Battery Information

Battery Depth 9
Battery Width 11
Battery Height 7
Battery Weight 78
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED ACID
Battery Subclass 1
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RT-S-35-AF
Product Name
Steel Rough Terrain Stacker 35 Raised Height 3000 Lb Capacity
UPC
691215375764
GTIN
00691215375764
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
70
Assembled Width(in.)
62
Assembled Height(in.)
55
Assembled Weight(lbs.)
1218
Color/Finish
Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled
Compatible Products
RT-EPT-DBH, RT-EPT-MLH, RT-EPT-SDG, STA-ATT-RR, STA-ATT-BAH, STA-ATT-RP, STA-ATT-PRP, STA-ATT-SDG, STA-ATT-FRF-24, STA-ATT-FRF-20, STA-ATT-AFFK-42, STA-ATT-RLFT-30, STA-ATT-BG-23, STA-ATT-DSPIN-20, STA-ATT-FF-30, STA-ATT-SPINR-25, STA-ATT-HDGR, STA-ATT-DGS-55, STA-ATT-DGP-55, STA-ATT-DGP-30

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
84
Package Width (in.)
67
Package Height (in.)
54
Package Weight (in.)
1474
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8427.10.8095
USMCA HS
8427.10
Origin Criterion
No
Certification Indicator
No
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
78
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED ACID
Battery Subclass
1

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RT-S-35-AF

RT-S-35-AF

Steel Rough Terrain Stacker 35 Raised Height 3000 Lb Capacity

When goods have to be transferred over uneven and rough surfaces, look no further than the electric powered rough terrain stacker. With its large front and back rubber tires this unit can easily be used both indoors and out. Emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator). Forks are adjustable to precisely fit what it being maneuvered. And, even more, the unit is equipped with batteries, integral battery charger, horn and battery level indicator.

  • Infinite speed adjustment
  • Emergency reverse function
  • Multi-function driving handle
  • Straddle wheel base design

Core Data

Assembled Weight: 1218 Assembled Size: 62"W x 70"L x 55"H Color: Black
Total Ship Weight: 1474 Package 1 Size: 67"W x 84"D x 54"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Raised Height: 35"
Lowered Height: 2-1/8"
Drive Handle Height: 50"
Fork (WxL): 4"x42"
Rubber Drive Wheel: (1) 5"x11.8125"
Rubber Front Wheel: (2) 4.3125"x16"
DC Powered: (2) 12V Lead Acid Batteries
Front Wheel Load (lb.): 1,611
Rear/Drive Wheel Load (lb.): 1,362
