Molded Rubber Wheel Chock with Handle 18-3/16 In. x 8 In. x 37-1/8 In. Max Load Capacity 15,000 Lbs. Black / Yellow

Ergo-handle Wheel Chock for Vehicle and Wheel Restraint at Loading Areas, 15,000 lb. Capacity with 18-3/16 in. x 8 in. x 37-1/8 in.
The ergo-handle Wheel Chock has an ergonomic design that makes it easy to move wheel chocks in and out of position under trailer wheels. It reduces the risk of back, knee, and foot injuries. The handle is constructed of steel and has a yellow powder coat finish. Hardware included. Assembly required. D-ring provided for attaching security chain. Chain not included.
Product Status
Available QuickShip
Key Features
  • Reinforced rubber resists tearing, abrasion and ozone weathering
  • Functional design is durable in all weather conditions
  • Rubber provides a sure grip on virtually any surface
  • Curved surface contours to fit any tire style
Quick Actions

Product Resources

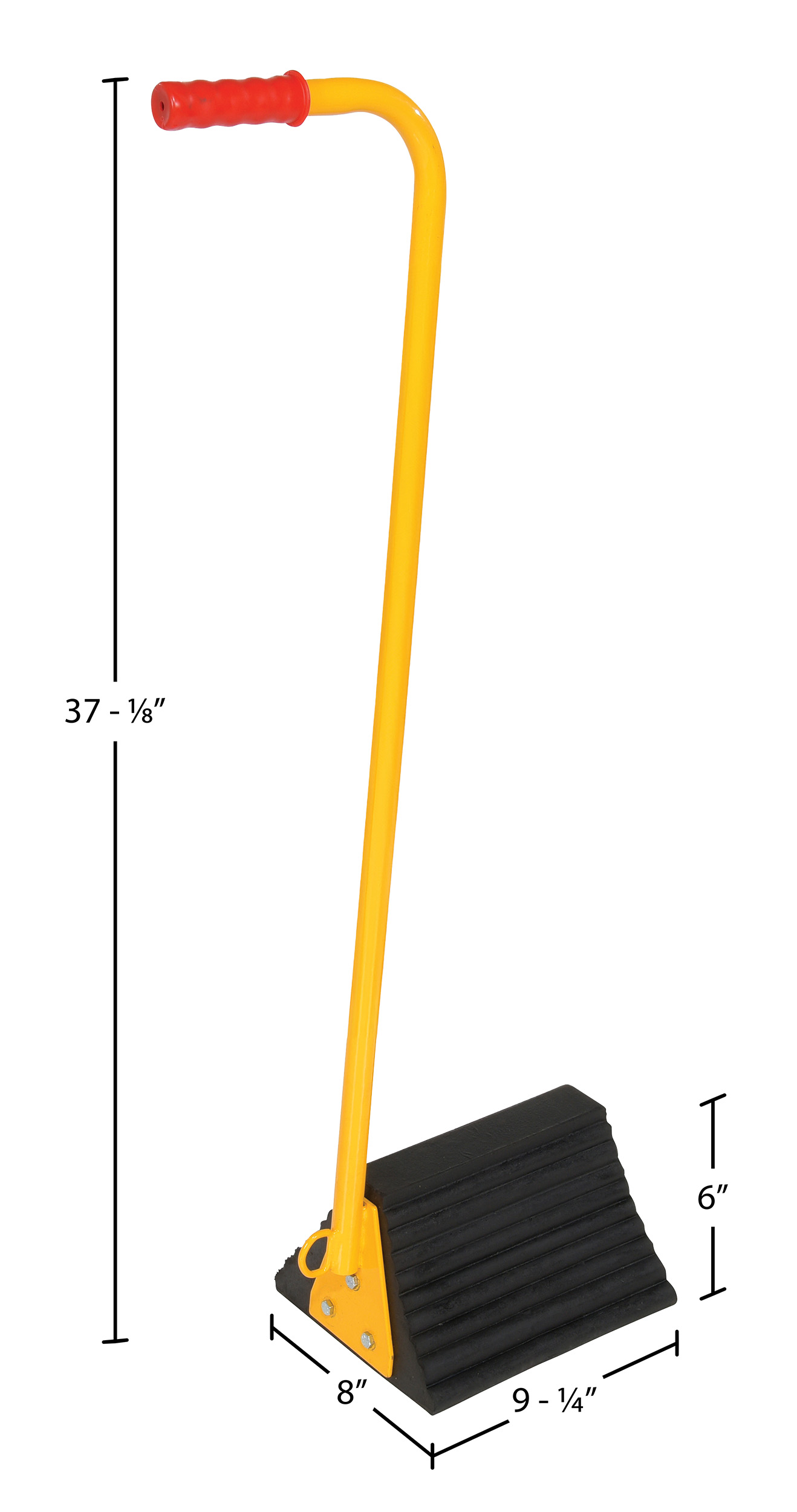

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   RWC Rubber Wheel Chocks Owners Manual   30 Days Warranty
Product Data

Core Data

Assembled Weight 13 lbs
Assembled Size 8"W x 18.1875"L x 37.125"H
Total Ship Weight 13 lbs
Package 1 Size 9"W x 39"D x 6"H
Color / Finish Black / Yellow
Freight Type Parcel

Additional Attributes

Usable Chock Width (in.) 9-1/4
Chock Length (in.) 8
Chock Height (in.) 6
Eyelet I.D. (in.) 7/8
Built-In Handles / Poles Yes
Wheel Chock Connection Tension Pole Assembly
Wheel Chock Usage Multi-Purpose
Wheel Chock Quantity 1
Grip Surface Material Rubber
Overall Chock Length (in.) 18-3/16
Overall Chock Height (in.) 37-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RWC-8-ERGO
Product Name
Molded Rubber Wheel Chock with Handle 18-3/16 In. x 8 In. x 37-1/8 In. Max Load Capacity 15,000 Lbs. Black / Yellow
UPC
691215078429
GTIN
00691215078429
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Wheel & Tire
Taxonomy 4
Wheel Chocks
Assembled Depth (in.)
18.1875
Assembled Width(in.)
8
Assembled Height(in.)
37.125
Assembled Weight(lbs.)
13
Color/Finish
Black / Yellow
Material
Molded Rubber
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
39
Package Width (in.)
9
Package Height (in.)
6
Package Weight (in.)
13
Subclass
7
Freight Class
92.5
NMFC Code
Handle Yokes iron with or without wooden grips
NMFC Number
156500
LTL Freight
Parcel
UNSPSC
24101808
HTSUS Number
4016.99.6050
USMCA HS
4016.99
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RWC-8-ERGO

RWC-8-ERGO

Molded Rubber Wheel Chock with Handle 18-3/16 In. x 8 In. x 37-1/8 In. Max Load Capacity 15,000 Lbs. Black / Yellow

The ergo-handle Wheel Chock has an ergonomic design that makes it easy to move wheel chocks in and out of position under trailer wheels. It reduces the risk of back, knee, and foot injuries. The handle is constructed of steel and has a yellow powder coat finish. Hardware included. Assembly required. D-ring provided for attaching security chain. Chain not included.

  • Reinforced rubber resists tearing, abrasion and ozone weathering
  • Functional design is durable in all weather conditions
  • Rubber provides a sure grip on virtually any surface
  • Curved surface contours to fit any tire style

Core Data

Assembled Weight: 13 Assembled Size: 8"W x 18.1875"L x 37.125"H Color: Black / Yellow
Total Ship Weight: 13 Package 1 Size: 9"W x 39"D x 6"H Freight: Parcel

Specifications

Usable Chock Width (in.): 9-1/4
Chock Length (in.): 8
Chock Height (in.): 6
Eyelet I.D. (in.): 7/8
Built-In Handles / Poles: Yes
Wheel Chock Connection: Tension Pole Assembly
Wheel Chock Usage: Multi-Purpose
Wheel Chock Quantity: 1
Grip Surface Material: Rubber
Overall Chock Length (in.): 18-3/16
Overall Chock Height (in.): 37-1/8
