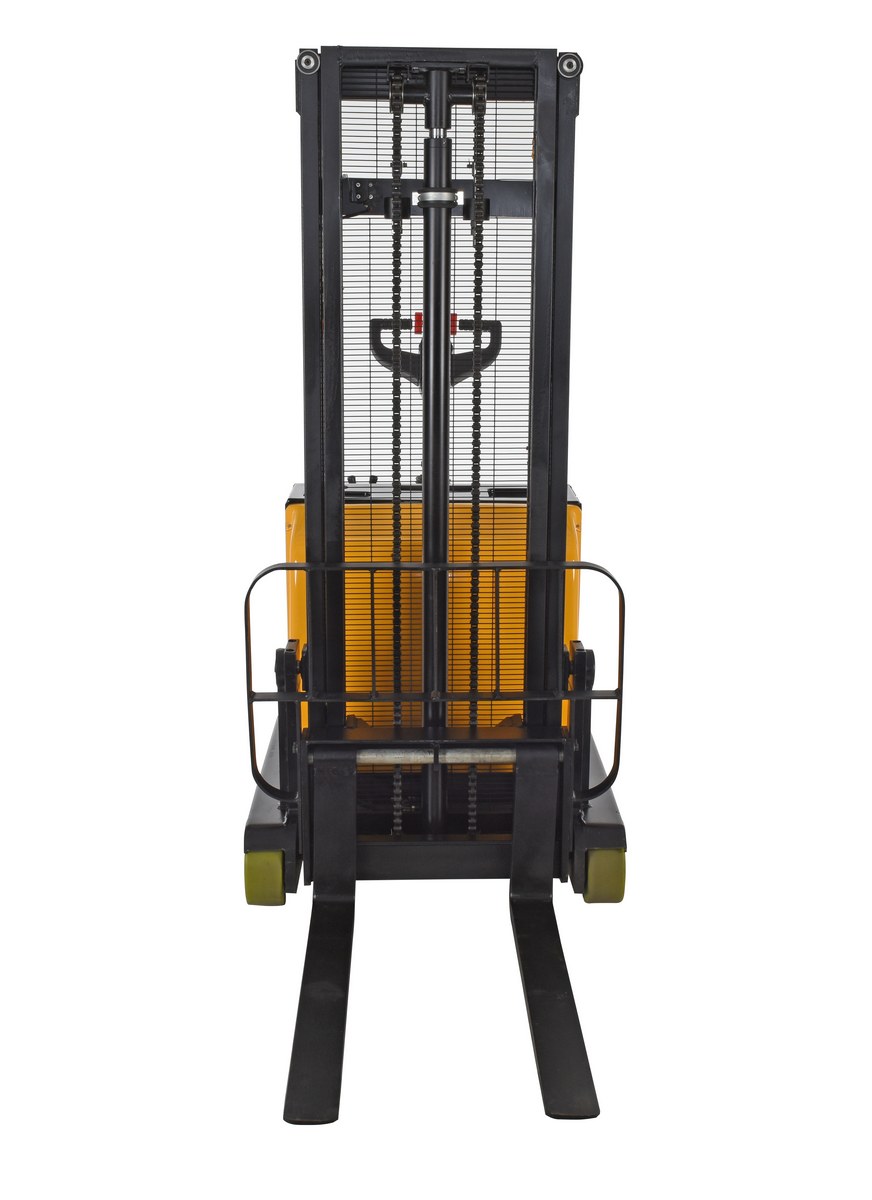

Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Stacker with Powered Lift for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity with 118 in. Raised Height – Model S-2CB-118
Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.
Product Status
Available QuickShip
Key Features
  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   S-2CB Series Counter-Balanced Stackers with Powered Drive Lift Manual   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 2654 lbs
Assembled Size 35.5"W x 110"L x 78"H
Total Ship Weight 2652 lbs
Package 1 Size 36"W x 101"D x 82"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity at 0 - 62" (lb.) 2,000
Uniform Capacity at 62 - 118" (lb.) 1,000
Service Range (in.) 2 to 118
Fork Width/Length (in.) 4 x 36-1/4
Adjustable Fork Spacing (in.) 8-3/8 to 23-1/4
Drive Motor 24V / 1 KW
Lift Motor 24V / 2 KW
Battery (2) 12V / 135 Ah
Battery Charger 24V / 12 amp
Operation Time with Constant Use (hrs.) 3 to 4
Operation Time with Intermittent Use (hrs.) 8
Travel Speed - Unloaded (MPH) 3.43
Travel Speed - Loaded (MPH) 2.8
Platform Ground Clearance (in.) 1-1/2
Load Center (in.) 19
Mast Style Telescopic
Lift Speed w/o Load 5.9" / sec
Lift Speed w/ Load 2.95" / sec
Lower Speed w/o Load 4" / sec
Lower Speed w/ Load 3.15" / sec

Battery Information

Battery Depth 14
Battery Width 14
Battery Height 10
Battery Weight 112
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
S-2CB-118
Product Name
Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow
UPC
691215111539
GTIN
00691215111539
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
110
Assembled Width(in.)
35.5
Assembled Height(in.)
78
Assembled Weight(lbs.)
2654
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
101
Package Width (in.)
36
Package Height (in.)
82
Package Weight (in.)
2652
Subclass
8
Freight Class
77.5
NMFC Code
Cars, Lift Trucks, or Vehicles, NOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
44101712
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
112
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: S-2CB-118

S-2CB-118

Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels

Core Data

Assembled Weight: 2654 Assembled Size: 35.5"W x 110"L x 78"H Color: Black / Yellow
Total Ship Weight: 2652 Package 1 Size: 36"W x 101"D x 82"H Freight: LTL Palletized

Specifications

Uniform Capacity at 0 - 62" (lb.): 2,000
Uniform Capacity at 62 - 118" (lb.): 1,000
Service Range (in.): 2 to 118
Fork Width/Length (in.): 4 x 36-1/4
Adjustable Fork Spacing (in.): 8-3/8 to 23-1/4
Drive Motor: 24V / 1 KW
Lift Motor: 24V / 2 KW
Battery: (2) 12V / 135 Ah
Battery Charger: 24V / 12 amp
Operation Time with Constant Use (hrs.): 3 to 4
Operation Time with Intermittent Use (hrs.): 8
Travel Speed - Unloaded (MPH): 3.43
Travel Speed - Loaded (MPH): 2.8
Platform Ground Clearance (in.): 1-1/2
Load Center (in.): 19
Mast Style: Telescopic
Lift Speed w/o Load: 5.9" / sec
Lift Speed w/ Load: 2.95" / sec
Lower Speed w/o Load: 4" / sec
Lower Speed w/ Load: 3.15" / sec
