Steel Counter Balanced Powered Drive Narrow Mast Stacker 60" Lift 51-9/16"L x 25-9/16"W x 61-13/16"H 600 Lb. Capacity Black / Yellow

"Counter Balanced Powered Drive Narrow Mast Stacker 60"" Lift 51-9/16""L x 25-9/16""W x 61-13/16""H for Moving Loads Through Warehouses and Production Areas, 600 lb. Capacity"
Counter balance stacker with a narrow mast design is ideal for die loading, machine feeding, and for loading and unloading trucks in confined areas. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, and emergency reverse function. Includes an automatic dead-man feature that activates when the user releases the handle. Also included are batteries, an integral battery charger, and battery level gauge. Easy access battery compartment simplifies battery maintenance.
Product Status
Out of Stock
Key Features
  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Poly-on-steel steer and load wheels
  • Ability to raise to high levels of workspace
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Acid Battery SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 780 lbs
Assembled Size 25.5625"W x 51.1875"L x 61.8125"H
Total Ship Weight 815 lbs
Package 1 Size 40"W x 64"D x 67"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (Lbs.) 600
Raised Lift Height (In.) 60
Lowered Lift Height (In.) 8.5
Battery Voltage 24V
Battery Type Lead Acid
Number Of Batteries 2 Spillable
Swivel Casters (1) 10"dia. x 3.125"W
Rigid Casters (2) 6.25"dia. x 2.5"W
Caster Type Red Poly On Steel
Handle Height (In.) 54.125
Handle Diameter (In.) 1.25

Battery Information

Battery Depth 12
Battery Width 7
Battery Height 10
Battery Weight 41
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Extended Product Details

Marketing Specs.

MFG Model # (Series)
S-CB-NM-60
Product Name
Steel Counter Balanced Powered Drive Narrow Mast Stacker 60" Lift 51-9/16"L x 25-9/16"W x 61-13/16"H 600 Lb. Capacity Black / Yellow
UPC
691215375177
GTIN
00691215375177
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
51.1875
Assembled Width(in.)
25.5625
Assembled Height(in.)
61.8125
Assembled Weight(lbs.)
780
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products

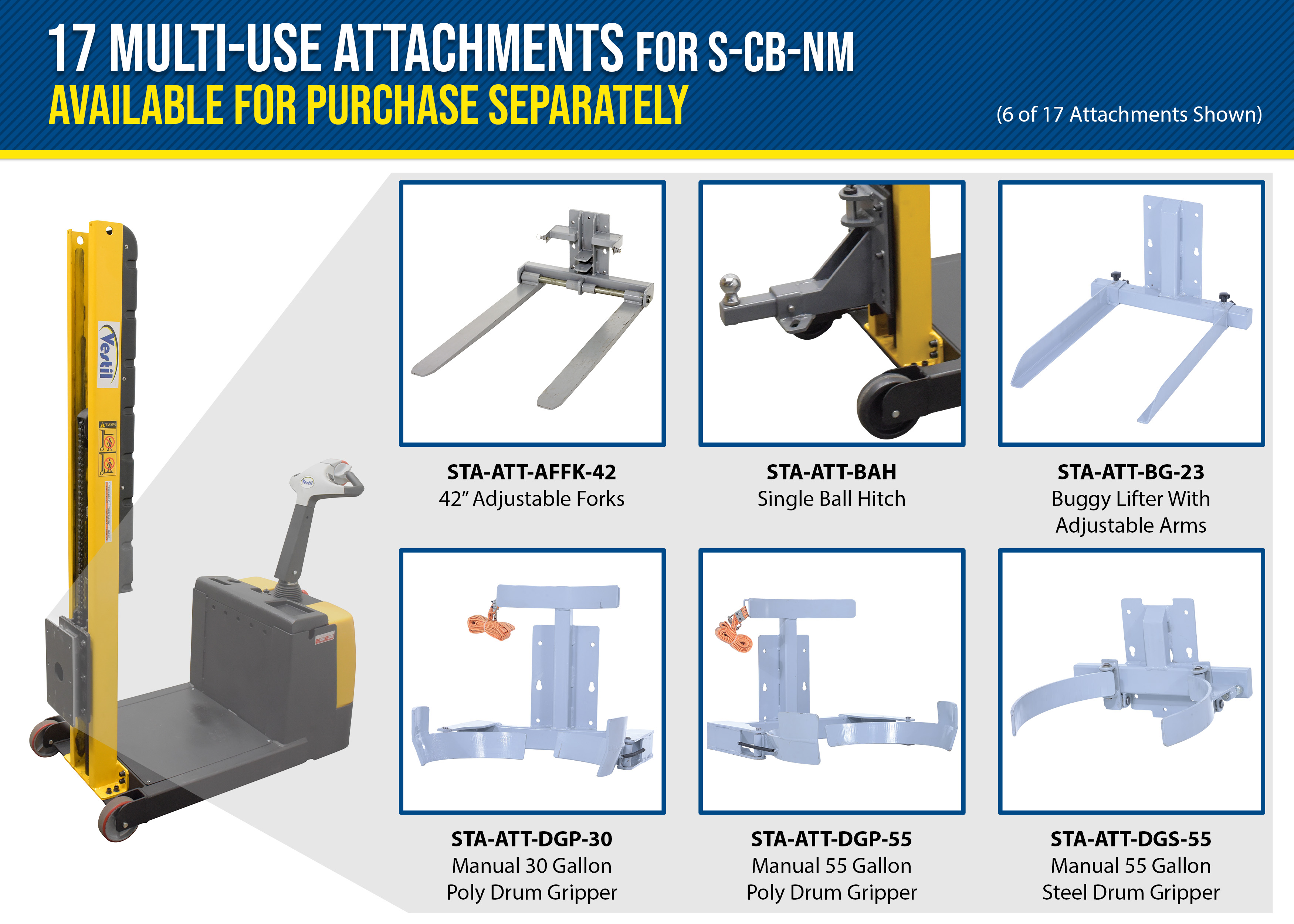

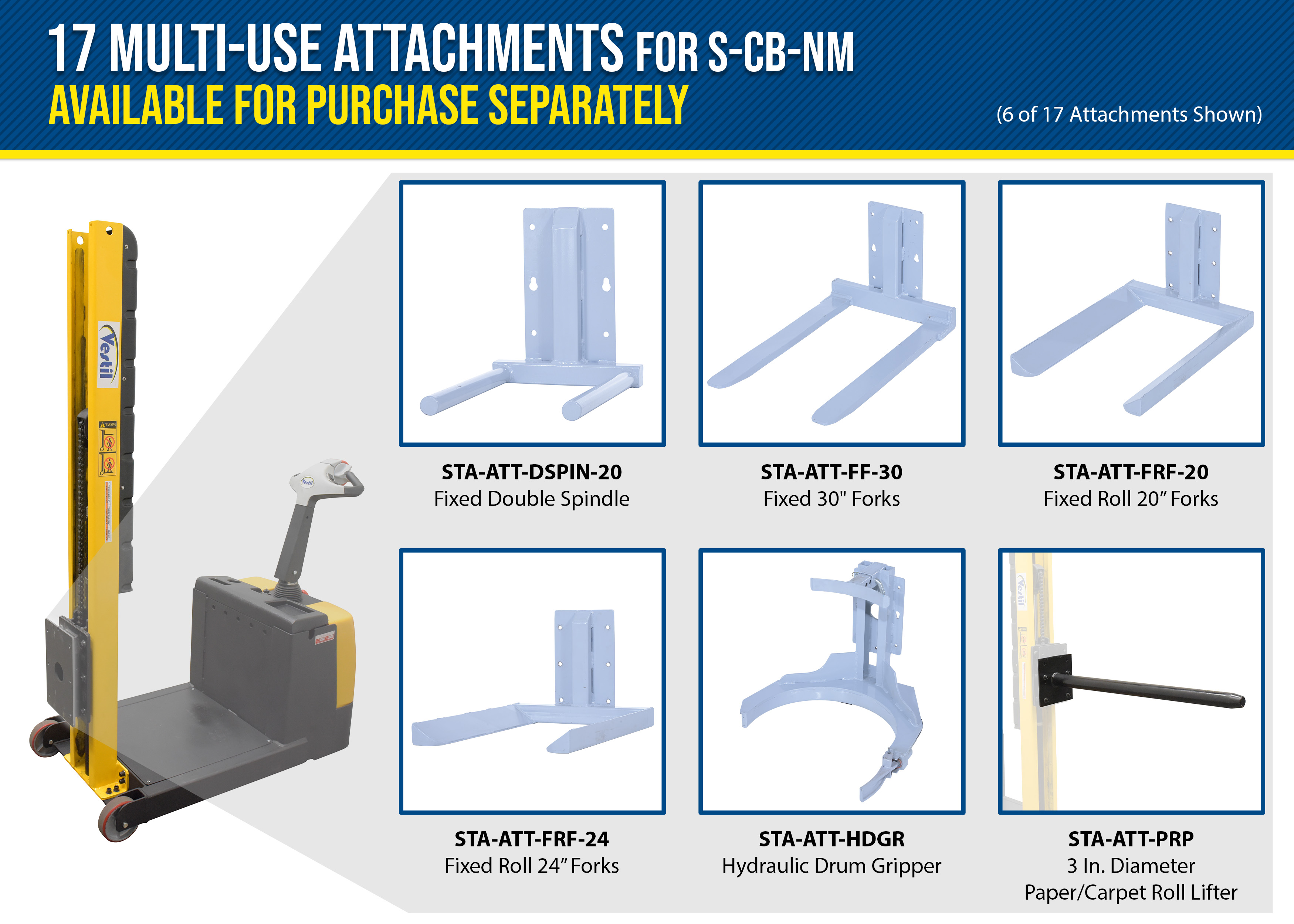

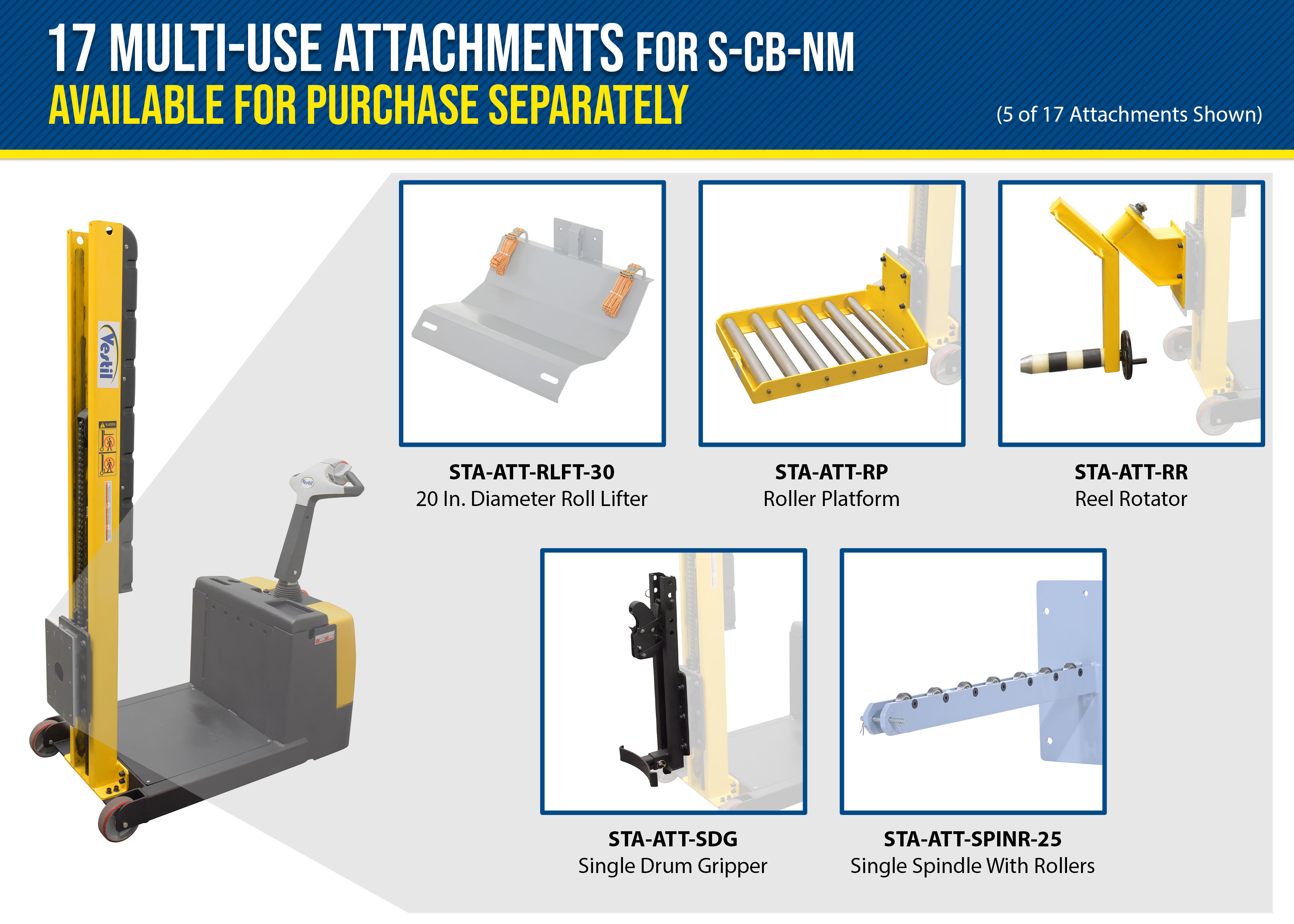

STA-ATT-RR, STA-ATT-BAH, STA-ATT-RP, STA-ATT-PRP, STA-ATT-SDG, STA-ATT-FRF-24, STA-ATT-FRF-20, STA-ATT-AFFK-42, STA-ATT-RLFT-30, STA-ATT-BG-23, STA-ATT-DSPIN-20, STA-ATT-FF-30, STA-ATT-SPINR-25, STA-ATT-HDGR, STA-ATT-DGS-55, STA-ATT-DGP-55, STA-ATT-DGP-30

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
67
Package Weight (in.)
815
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
44101712
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
41
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
