Product Data Sheet

  Print to PDF
  All Products   Fork Truck Attachments   Hoisting Hooks & Hitch   Hoisting Hooks S-FORK-4-AT
Product Image

Visual Reference

S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT
S-FORK-4-AT

Steel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity Yellow

Swivel Fork Lift Hoist Hook for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity, Yellow Finish
Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach hoisting hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and tine lock. Unit has baked-in powder-coated toughness. Hook with shackle included. The auto-tension hoisting hook, offers a unique design and adds tension as weight is added.
Product Status
Available QuickShip
Key Features
  • Hook shackle provides additional versatility to unit
  • Unique design does not require tools to install
  • Safety restraint and tine lock secure unit to fork
  • Baked-in powder-coated toughness
Quick Actions

Product Resources

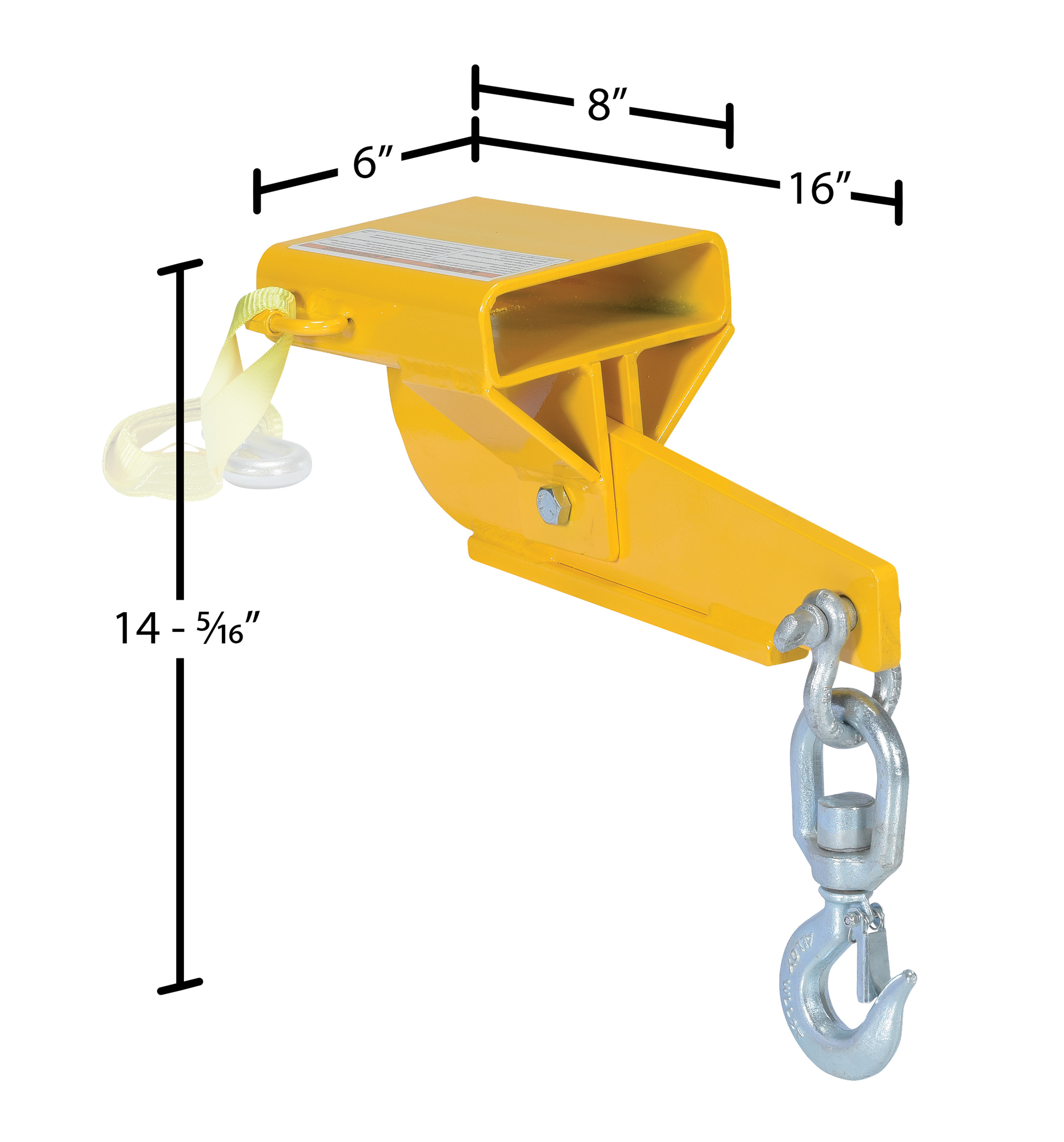

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Single Fork Auto-Tension Hoisting Hook model S-FORK-4-AT Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 24 lbs
Assembled Size 6"W x 16"L x 14.3125"H
Total Ship Weight 24 lbs
Package 1 Size 8"W x 11"D x 5"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 4,000
Safety Restraint Length (in.) 48
Usable Fork Pocket Width (in.) 5-1/2
Usable Fork Pocket Height (in.) 1-1/2
Hook Type Swivel Single Auto Tension
Hook Diameter (in.) 1-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
S-FORK-4-AT
Product Name
Steel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity Yellow
UPC
691215079181
GTIN
00691215079181
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoisting Hooks
Assembled Depth (in.)
16
Assembled Width(in.)
6
Assembled Height(in.)
14.3125
Assembled Weight(lbs.)
24
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
11
Package Width (in.)
8
Package Height (in.)
5
Package Weight (in.)
24
Subclass
9
Freight Class
70
NMFC Code
Tools, or Parts Named
NMFC Number
186600
LTL Freight
Parcel
UNSPSC
31162600
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: S-FORK-4-AT

S-FORK-4-AT

Steel Hoist Single Auto Tension Swivel Hook 16 In x 6 In x 14-5/16 In 4,000 Lb. Capacity Yellow

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach hoisting hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and tine lock. Unit has baked-in powder-coated toughness. Hook with shackle included. The auto-tension hoisting hook, offers a unique design and adds tension as weight is added.

  • Hook shackle provides additional versatility to unit
  • Unique design does not require tools to install
  • Safety restraint and tine lock secure unit to fork
  • Baked-in powder-coated toughness

Core Data

Assembled Weight: 24 Assembled Size: 6"W x 16"L x 14.3125"H Color: Yellow
Total Ship Weight: 24 Package 1 Size: 8"W x 11"D x 5"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 4,000
Safety Restraint Length (in.): 48
Usable Fork Pocket Width (in.): 5-1/2
Usable Fork Pocket Height (in.): 1-1/2
Hook Type: Swivel Single Auto Tension
Hook Diameter (in.): 1-1/4
