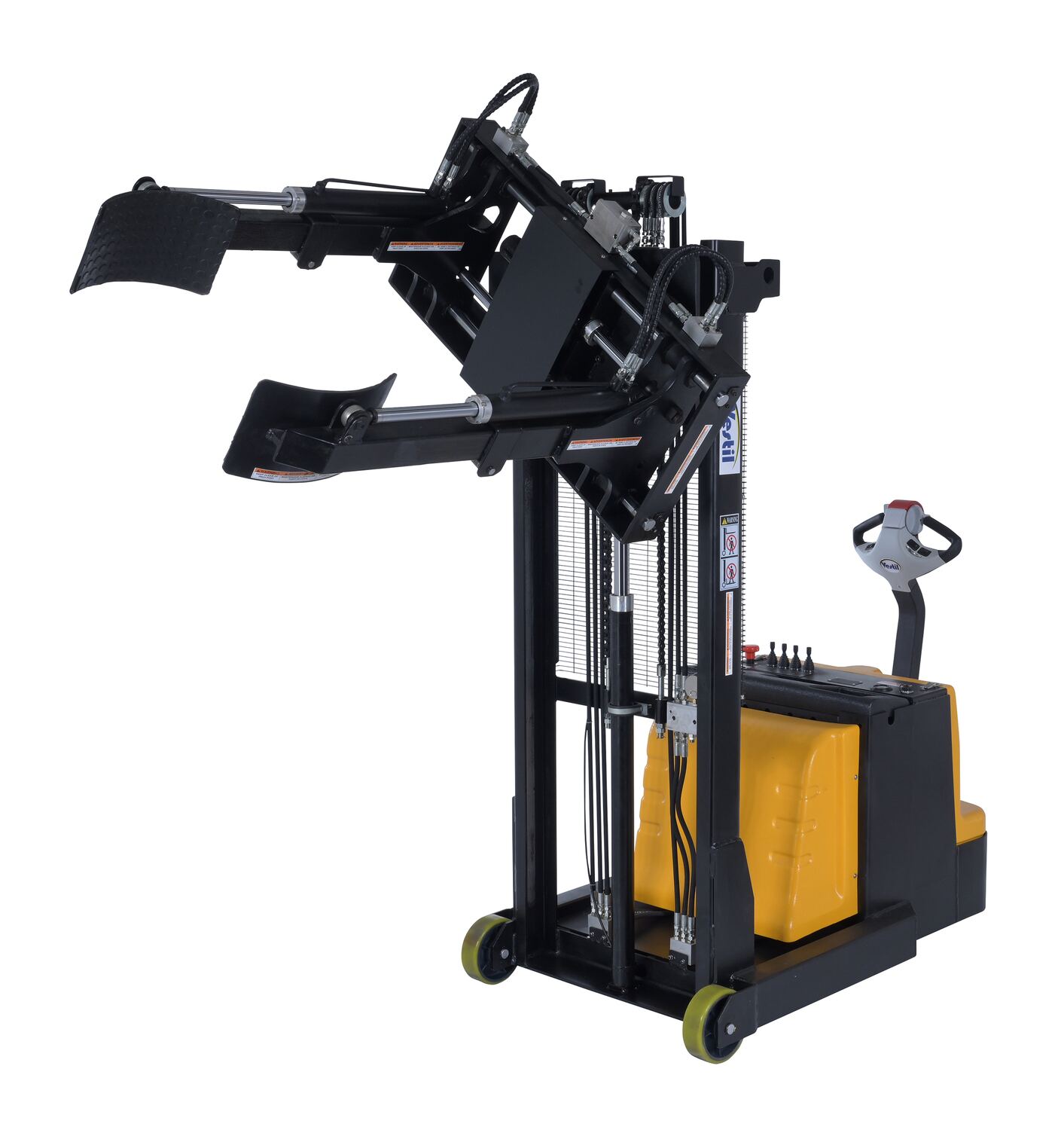

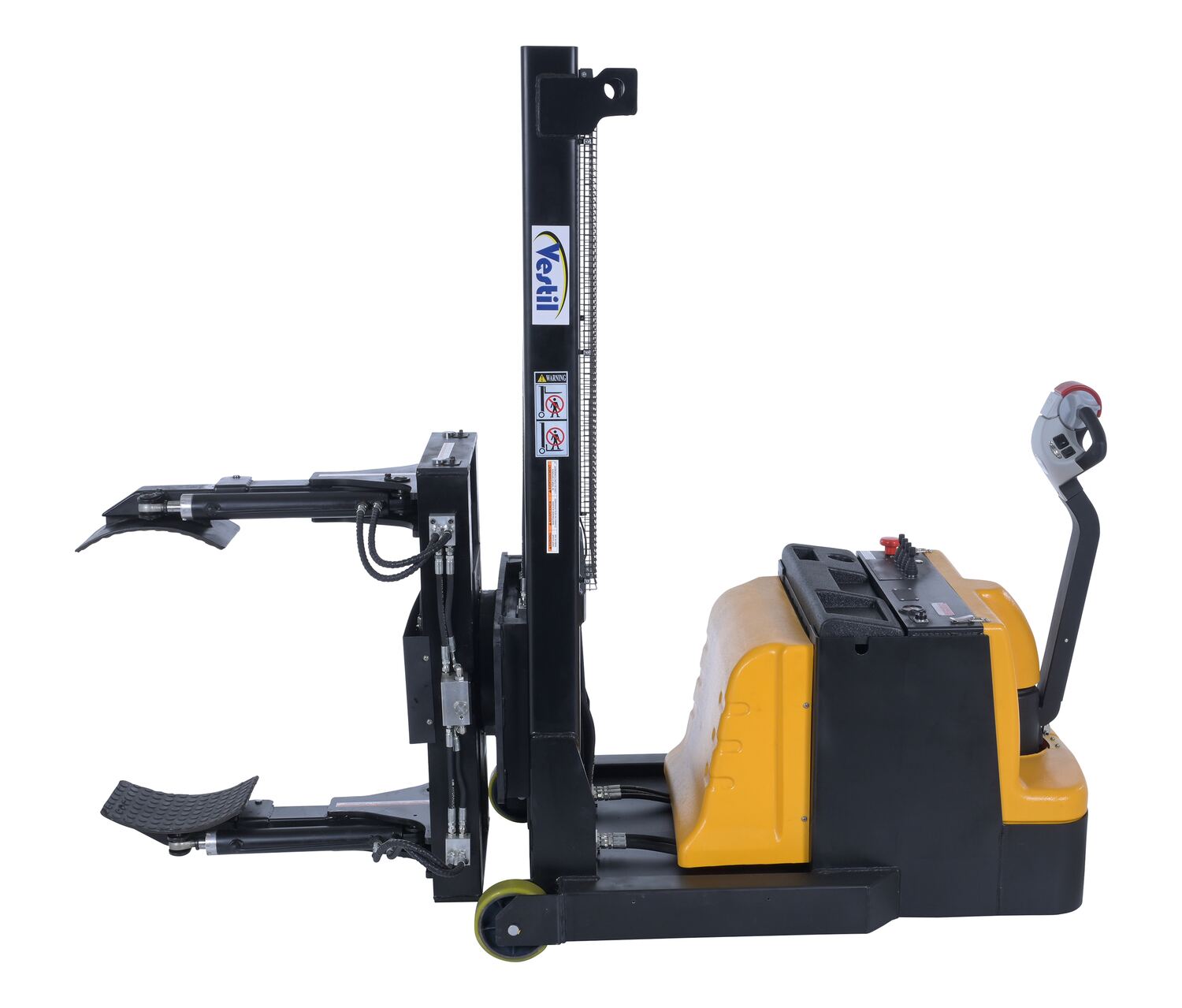

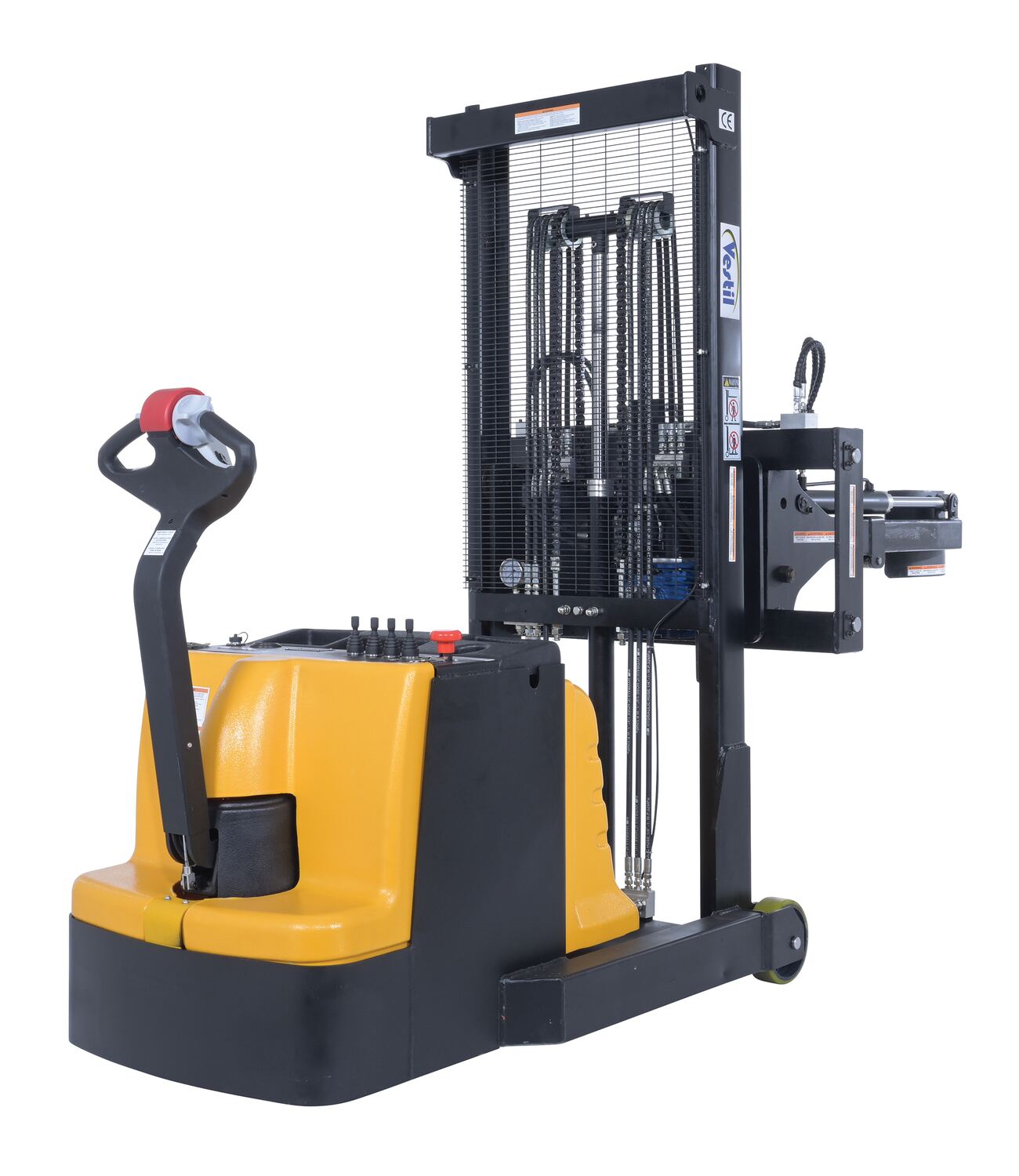

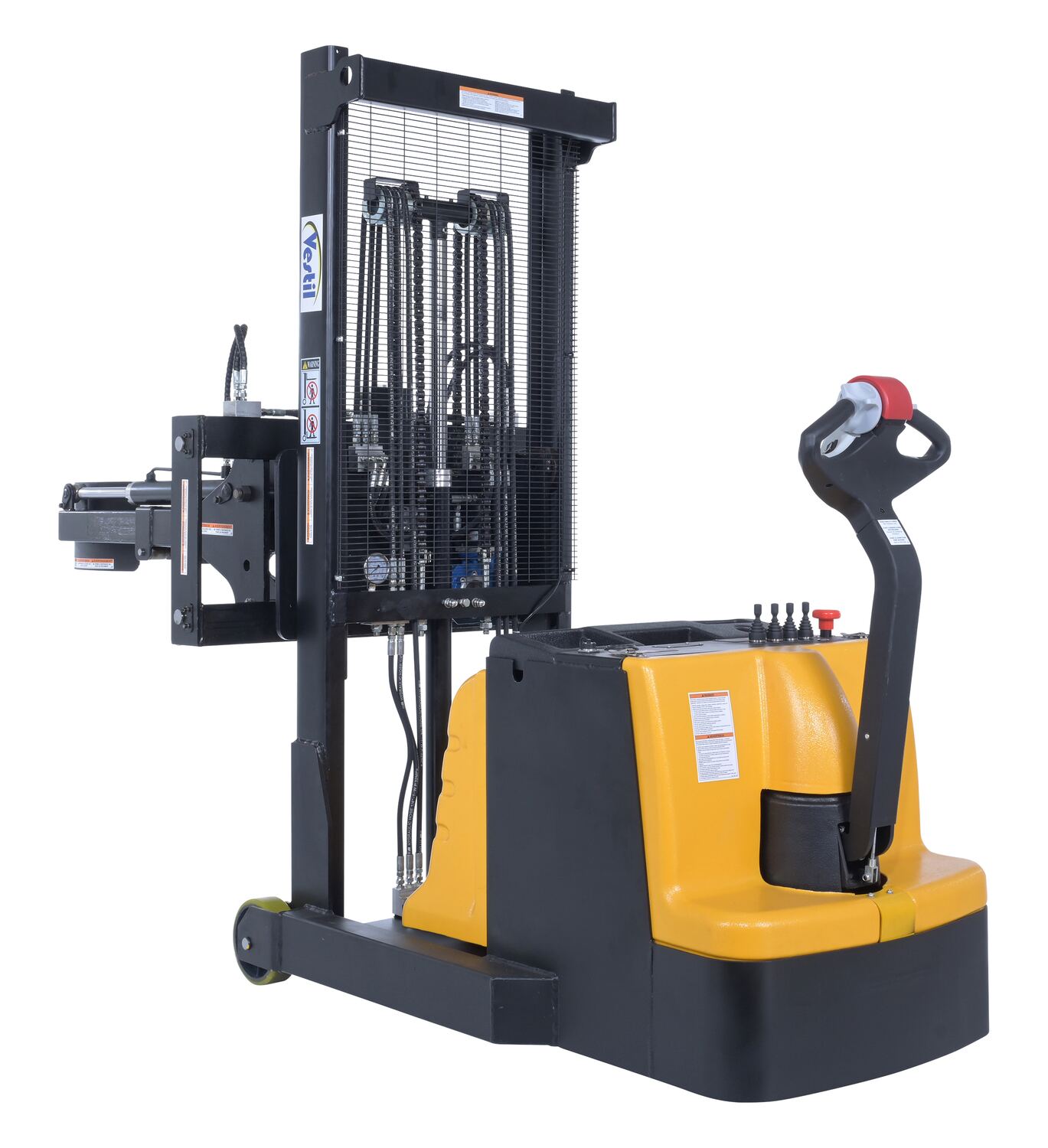

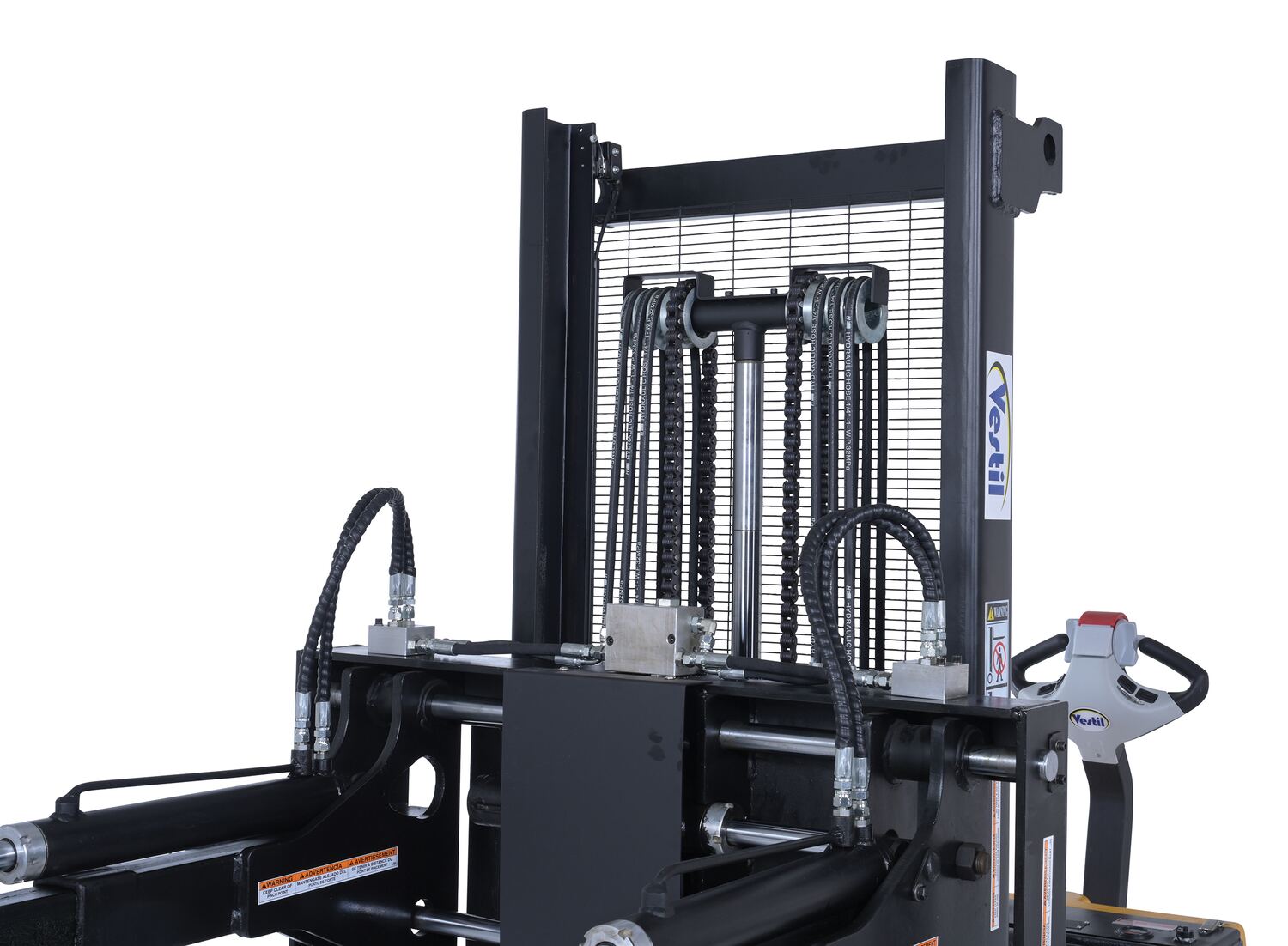

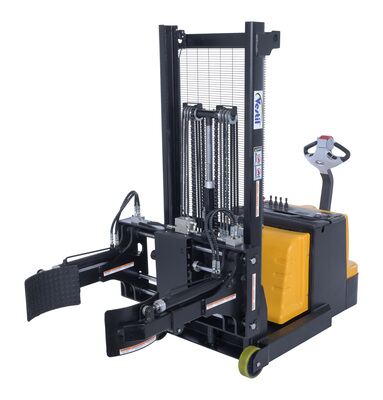

Steel Vertical Drum Gripper/Rotator Stacker With Gripper Max Reach 35.5 In. Dispensing Height 71 In. 800 Lb. Capacity Black / Yellow

Vertical Drum Gripper/rotator Stacker with Gripper Max Reach for Opening, Moving, and Handling Industrial Drums and Barrels, 800 lb. Capacity with 35.5 in.

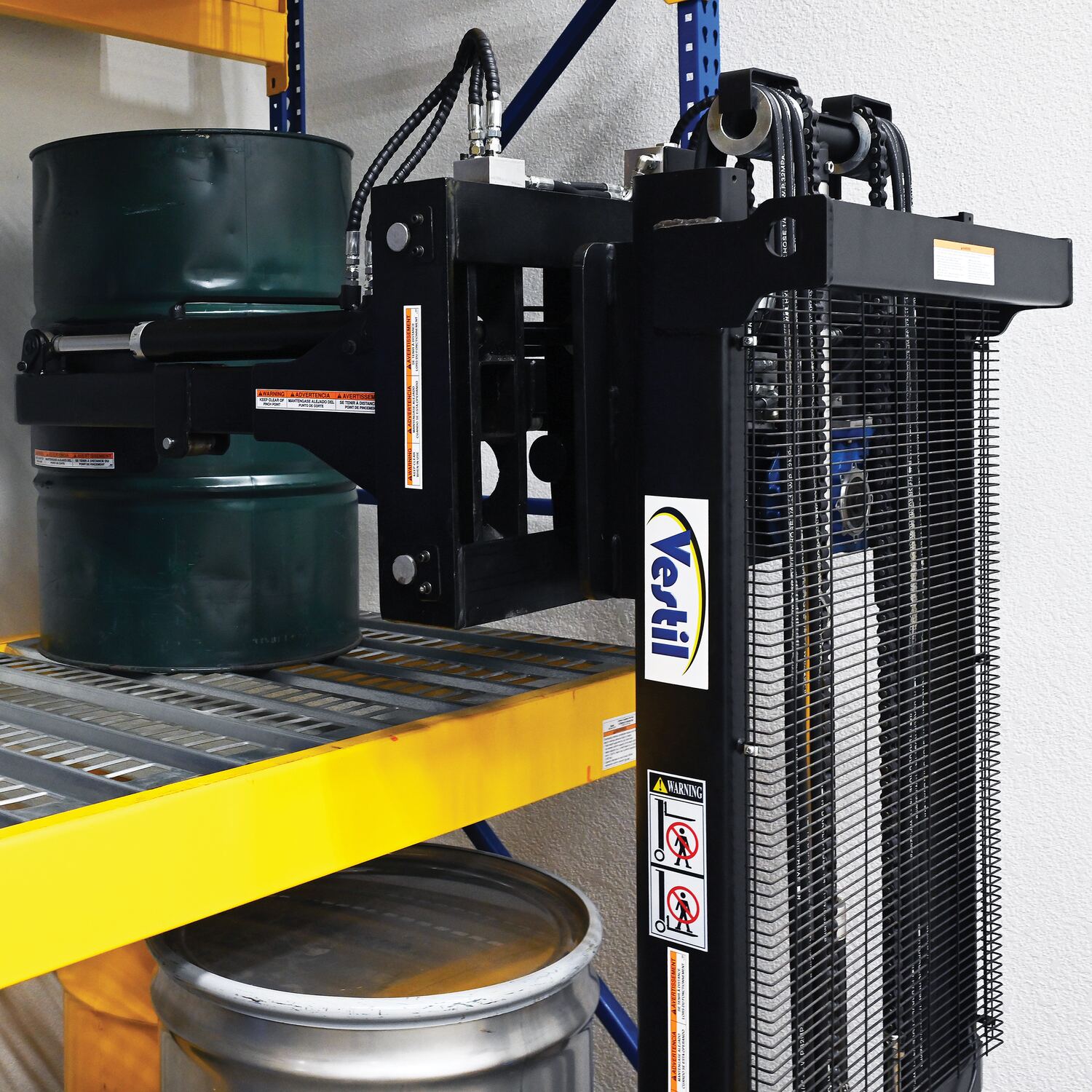

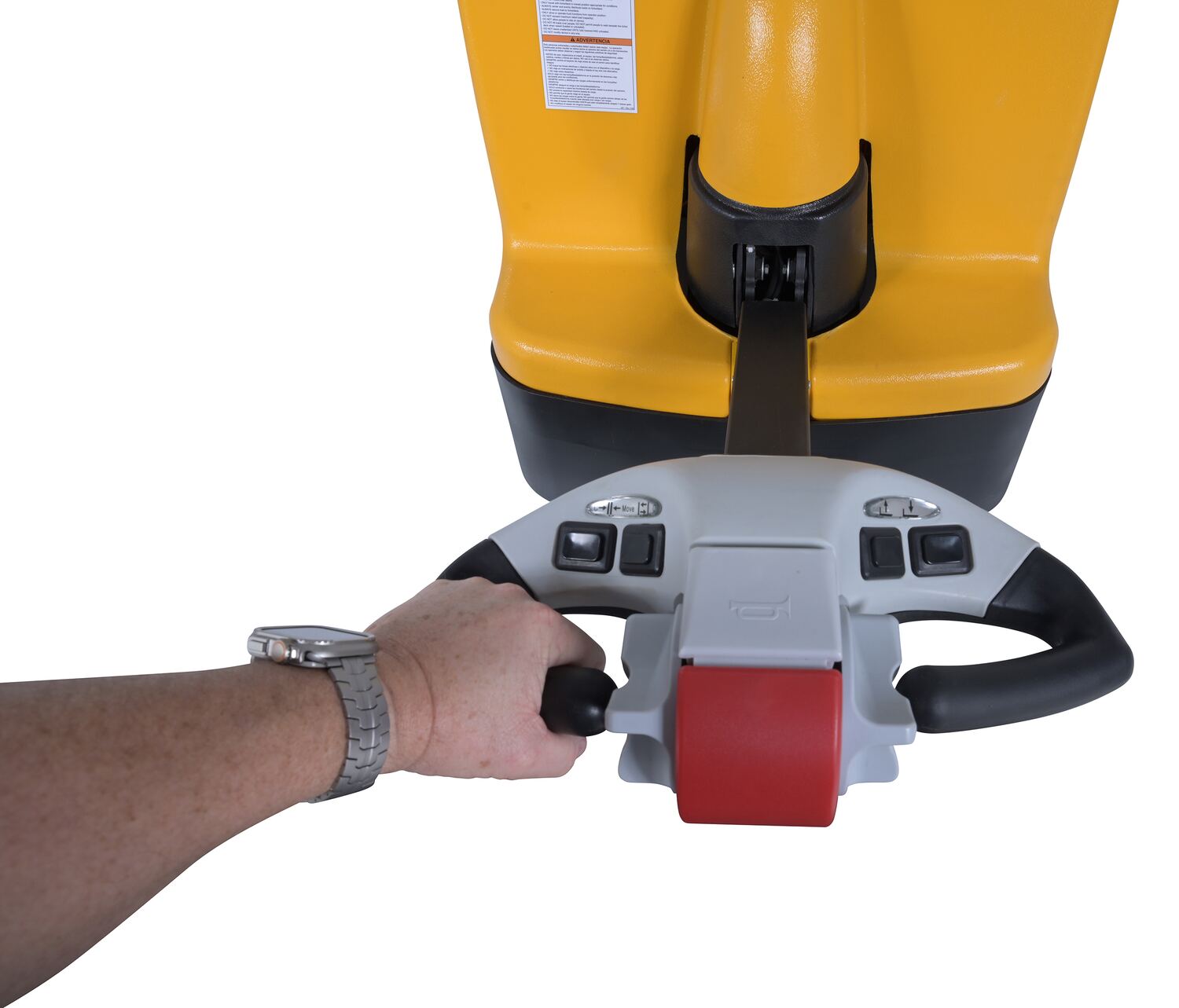

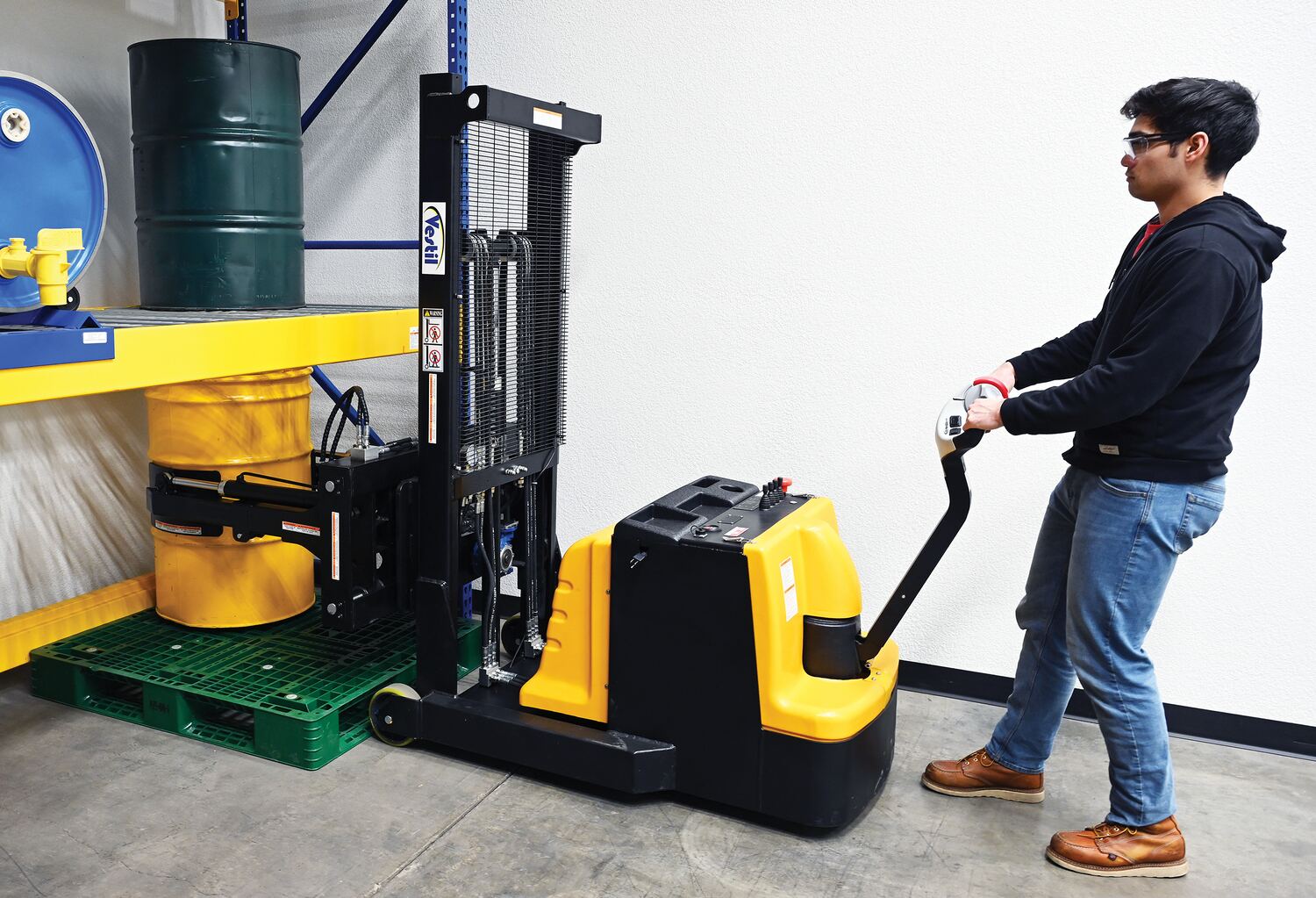

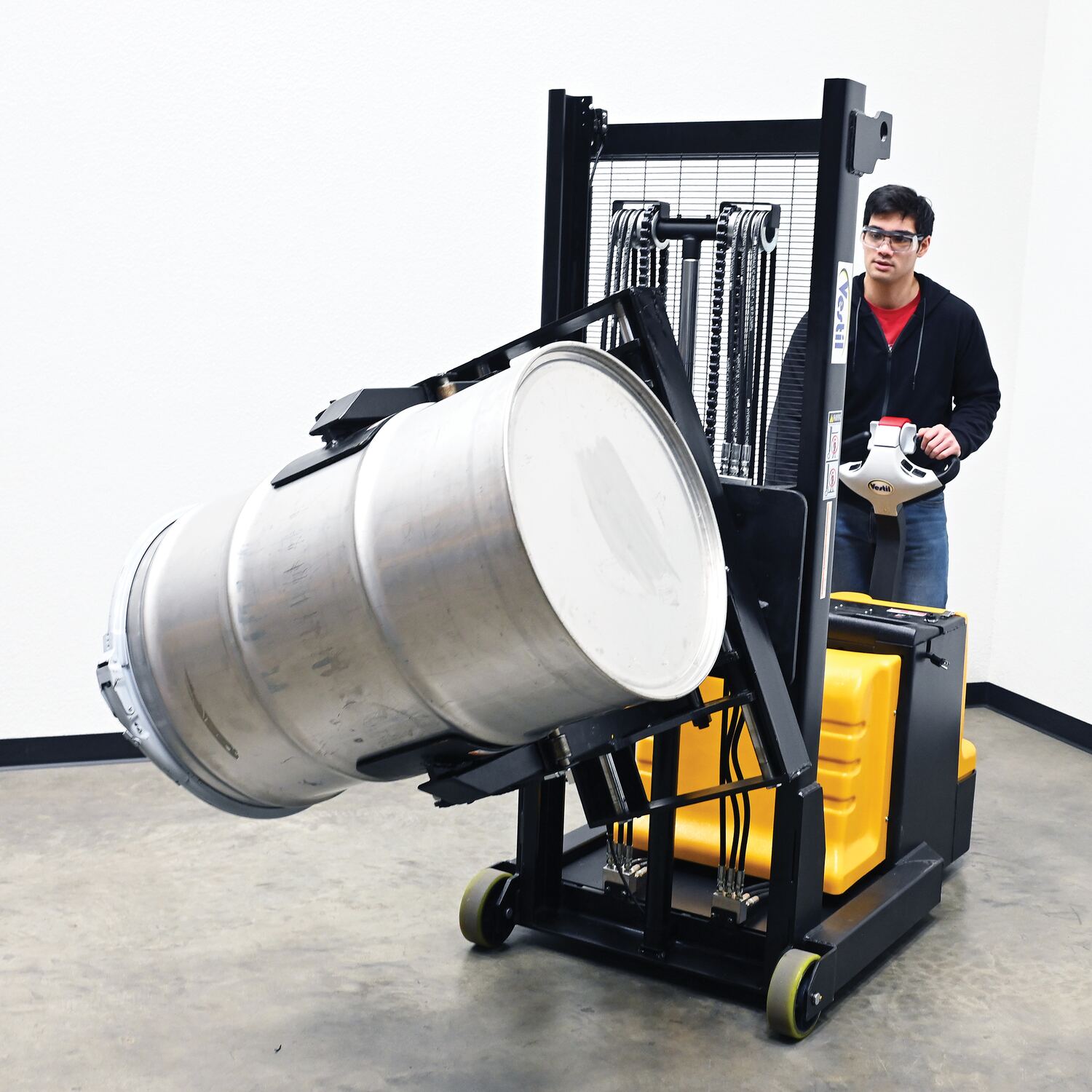

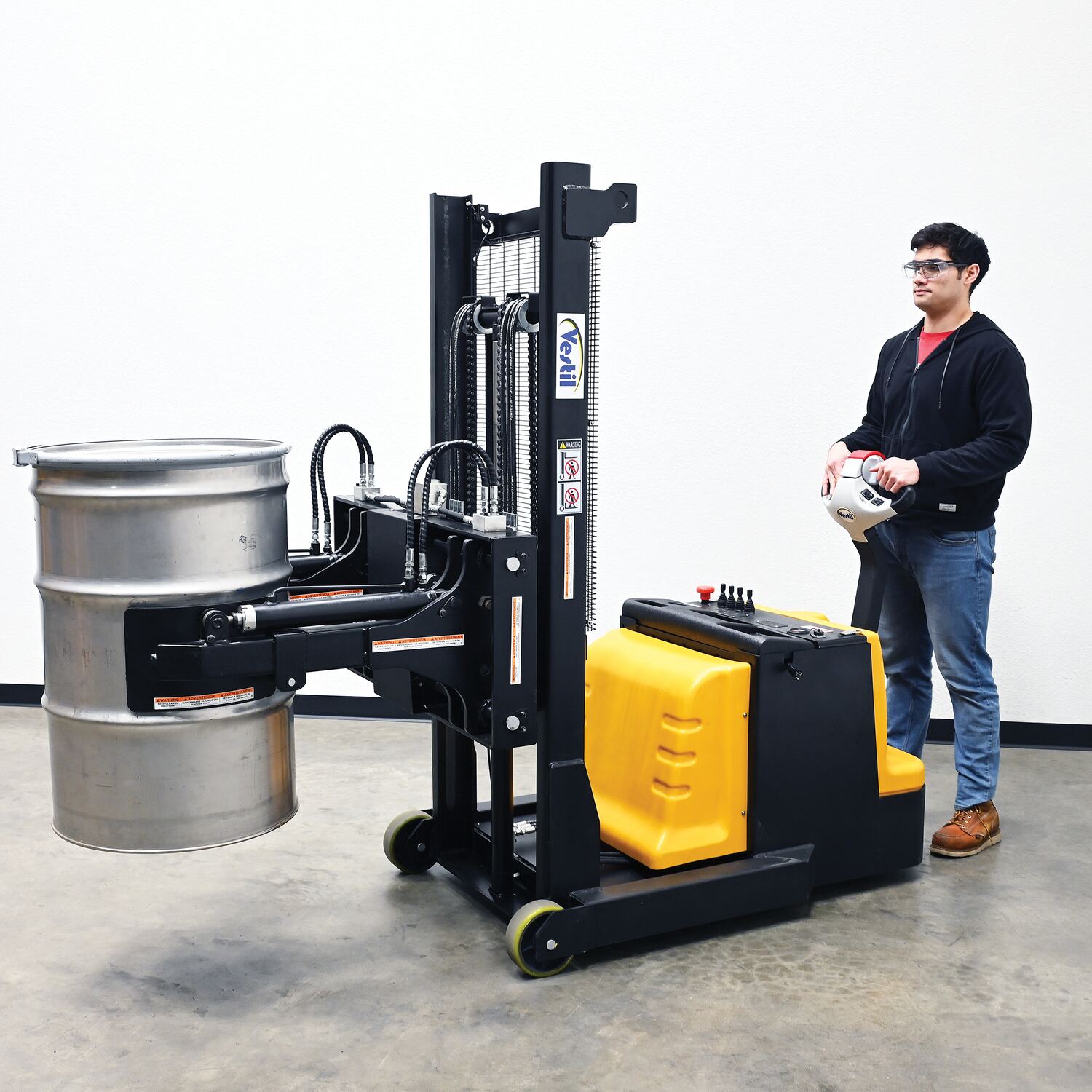

The fully powered vertical drum gripper/rotator is a great asset for the manufacturing and distributing industries. The shortened length allows for use in very tight areas, while the extendable reach helps load and unload places where access is limited, such as pallets and skids. A walk behind design with a max unloaded speed of over 3 mph and a single handle control makes maneuvering into the desired position easy, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime.
Product Status
Out of Stock Non-Returnable
Key Features
  • 800 lb. lifting capacity
  • Compatible with 16, 20, 30 & 55 gallon drums
  • Battery charger and level gauge included
  • 35.5" maximum reach
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   model S-MU-VDGR-64 Fully Powered Drum Gripper Rotator Owners Manual   Label Page PDF   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1691 lbs
Assembled Size 39"W x 94"L x 79.75"H
Total Ship Weight 2040 lbs
Package 1 Size 43"W x 99"D x 82"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Retracted Capacity (lb.) 800
Extended Capacity (lb.) 550
Lowered Height (in.) 15-1/4
Raised Height (in.) 71
Acceptable Drum Types 16, 20, 30 & 55 Gallon Steel Drums
Drum Dispense Height (in.) 71
Batteries (2) 12V / 70-85 AH
Drive Motor 24V / 0.7 KW
Lift Motor 24V / 2.0 KW
Charger 24V / 12 AMP
Maximum Reach (in.) 35-1/2
Front Roller Caster Qty./Diameter/Width (in.) (2) 6 x 2
Driver Caster Qty./Diameter/Width (in.) (2) 10 x 3-1/8
Caster Material Polyurethane-on-Steel
Handle Height (in.) 50
Handle Diameter (in.) 1-1/8
Travel Speed w/o Load (MPH) 3.43
Travel Speed w/ Load (MPH) 2.8
Lift Speed w/o Load (inches per second) 5.9
Lift Speed w/ Load (inches per second) 2.95
Lower Down Speed w/o Load (inches per second) 4
Lower Down Speed w/ Load (inches per second) 3.15

Battery Information

Battery Depth 6.75
Battery Width 11.0625
Battery Height 9.25
Battery Weight 41
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
S-MU-VDGR-64-REACH
Product Name
Steel Vertical Drum Gripper/Rotator Stacker With Gripper Max Reach 35.5 In. Dispensing Height 71 In. 800 Lb. Capacity Black / Yellow
UPC
691215378642
GTIN
00691215378642
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers Electric
Assembled Depth (in.)
94
Assembled Width(in.)
39
Assembled Height(in.)
79.75
Assembled Weight(lbs.)
1691
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
99
Package Width (in.)
43
Package Height (in.)
82
Package Weight (in.)
2040
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks, or Vehicles, NOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101902
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
41
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning
