  All Products   Ergonomic Solutions   Stackers   Double Mast Stackers with Powered Drive and Powered Lift S3-SDG-RF
Product Image

Visual Reference

S3-SDG-RF
S3-SDG-RF
S3-SDG-RF

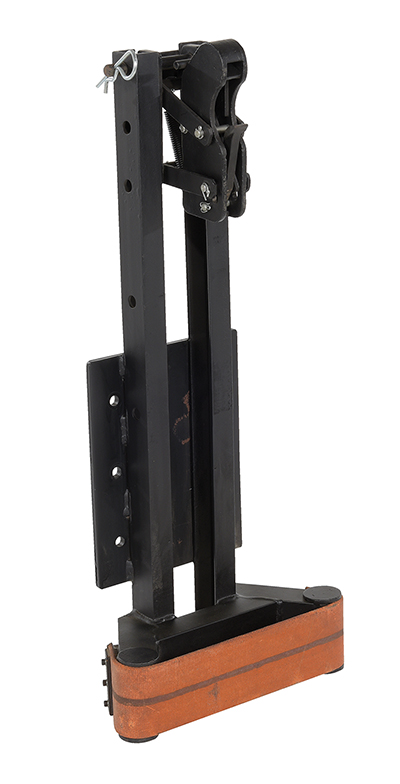

Steel Single Drum Gripper Attachment 700 Lb. Capacity Black

Drum Attachment for Moving Loads Through Warehouses and Production Areas, 700 lb. Capacity
Sometimes different jobs call for different attachments. With the compact stacker single drum grab attachment, lifting drums is simple. A quick connection to a new or existing compact stacker lets the user start picking up and maneuvering drums almost immediately. A strong steel construction gives the ability to lift drums of a variety of weights. Powder coated for built in toughness.
Product Status
Temporarily Unavailable - Please Contact Sales QuickShip
Key Features
  • Secure connection to drums
  • Simple attachment for quick use
  • Sleek finish to limit abrasions
  • Design minimizes manual lifting
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   S3 Series Double Mast Stacker with Powered Drive and Powered Lift Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 62 lbs
Assembled Size 11"W x 10"L x 22"H
Total Ship Weight 62 lbs
Package 1 Size 12"W x 12"D x 24"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Uniform Capacity (Lbs.) 700
Overall Length (in.) 32
Overall Width (in.) 14
Overall Height (in.) 8-1/2
Acceptable Drums (gal.) 30 & 55
Acceptable Drums (material) Steel and Poly
Extended Product Details

Marketing Specs.

MFG Model # (Series)
S3-SDG-RF
Product Name
Steel Single Drum Gripper Attachment 700 Lb. Capacity Black
UPC
691215340465
GTIN
00691215340465
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Accessories
Taxonomy 5
Attachment Positioners
Assembled Depth (in.)
10
Assembled Width(in.)
11
Assembled Height(in.)
22
Assembled Weight(lbs.)
62
Color/Finish
Black
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
S3-43-AA

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
12
Package Height (in.)
24
Package Weight (in.)
62
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
Parcel
UNSPSC
24101900
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: S3-SDG-RF

S3-SDG-RF

Steel Single Drum Gripper Attachment 700 Lb. Capacity Black

Sometimes different jobs call for different attachments. With the compact stacker single drum grab attachment, lifting drums is simple. A quick connection to a new or existing compact stacker lets the user start picking up and maneuvering drums almost immediately. A strong steel construction gives the ability to lift drums of a variety of weights. Powder coated for built in toughness.

  • Secure connection to drums
  • Simple attachment for quick use
  • Sleek finish to limit abrasions
  • Design minimizes manual lifting

Core Data

Assembled Weight: 62 Assembled Size: 11"W x 10"L x 22"H Color: Black
Total Ship Weight: 62 Package 1 Size: 12"W x 12"D x 24"H Freight: Parcel

Specifications

Uniform Capacity (Lbs.): 700
Overall Length (in.): 32
Overall Width (in.): 14
Overall Height (in.): 8-1/2
Acceptable Drums (gal.): 30 & 55
Acceptable Drums (material): Steel and Poly
