Steel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity Blue

Crane Spreader Beam for Commercial and Industrial Spreader Beams Use, 1,000 lb. Capacity, Blue Finish – Model SBM-10-4-ML
This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and adds durability to the unit's longevity.
Product Status
Available
Key Features
  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
Quick Actions

Product Resources

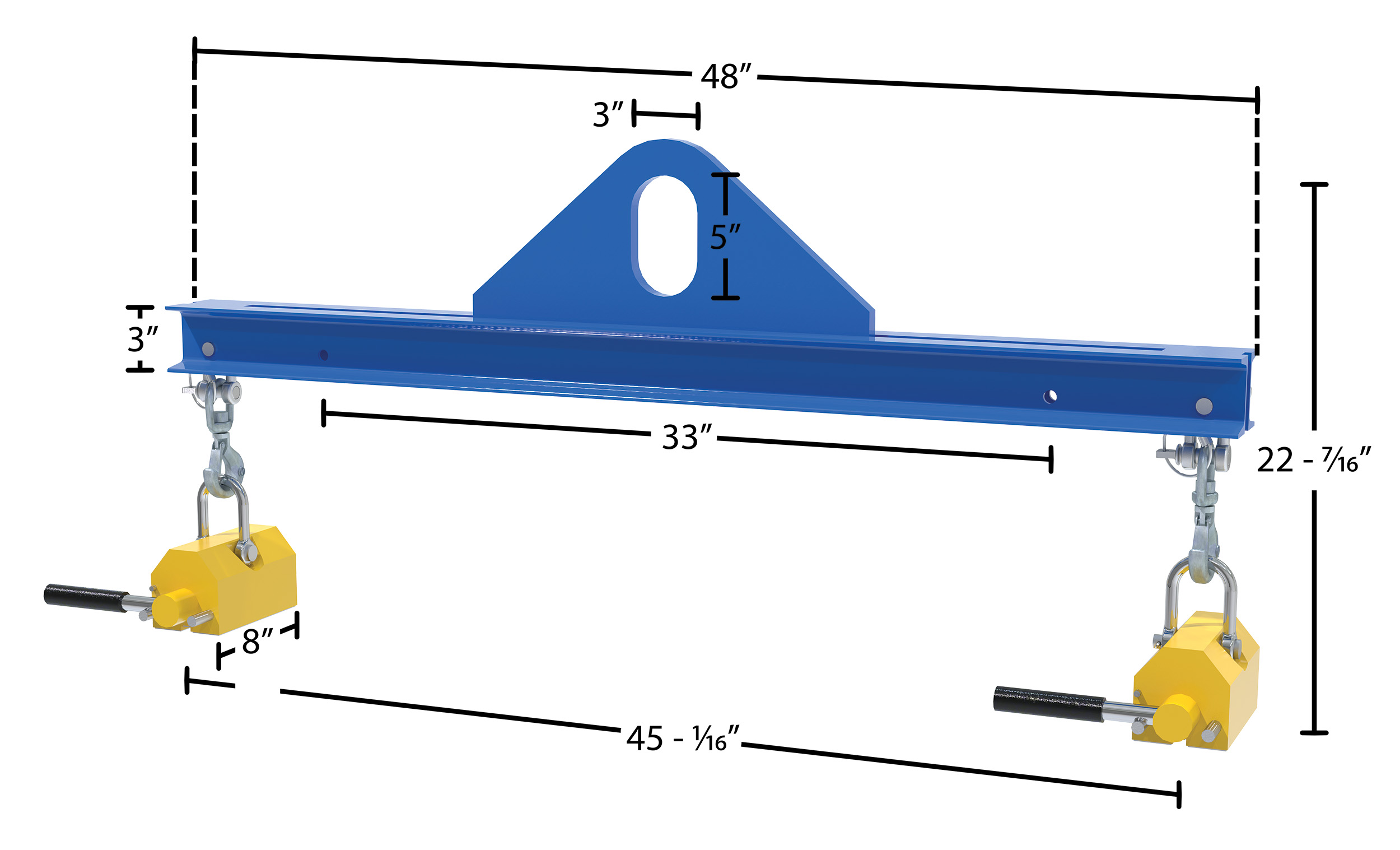

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Magnetic Spreader Beams   Spreader Beam Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 114 lbs
Assembled Size 8"W x 53.8125"L x 22.4375"H
Total Ship Weight 183 lbs
Package 1 Size 40"W x 48"D x 14"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 1000
Headroom (in.) 20-15/16"
Minimum Spread 33"
Maximum Spread 45-1/16"
Overall Length (in.) 53-13/16
Overall Height (in.) 22-7/16
1/8" Flat Material Capacity Per Magnet (lb.) 260
1/8" Flat Material Capacity Per Unit (lb.) 520
1/4" Flat Material Capacity Per Magnet (lb.) 460
1/4" Flat Material Capacity Per Unit (lb.) 520
3/8" Flat Material Capacity Per Magnet (lb.) 500
3/8" Flat Material Capacity Per Unit (lb.) 1000
3/8" Round Material Capacity Per Magnet (lb.) 200
3/8" Round Material Capacity Per Unit (lb.) 400
Overall Width (in.) 8
Usable Bail WxH (in.) 3 x 5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SBM-10-4-ML
Product Name
Steel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity Blue
UPC
691215329330
GTIN
00691215329330
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Accessories
Taxonomy 5
Spreader Beams
Assembled Depth (in.)
53.8125
Assembled Width(in.)
8
Assembled Height(in.)
22.4375
Assembled Weight(lbs.)
114
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
14
Package Weight (in.)
136
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
Package 2 Depth (in.)
12
Package 2 Width (in.)
10
Package 2 Height (in.)
20
Package 2 Weight (lbs.)
47
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
30101700
HTSUS Number
8431.49.1080
USMCA HS
8431.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SBM-10-4-ML

SBM-10-4-ML

Steel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity Blue

This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and adds durability to the unit's longevity.

  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance

Core Data

Assembled Weight: 114 Assembled Size: 8"W x 53.8125"L x 22.4375"H Color: Blue
Total Ship Weight: 183 Package 1 Size: 40"W x 48"D x 14"H Freight: LTL Palletized

Specifications

Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Minimum Spread: 33"
Maximum Spread: 45-1/16"
Overall Length (in.): 53-13/16
Overall Height (in.): 22-7/16
1/8" Flat Material Capacity Per Magnet (lb.): 260
1/8" Flat Material Capacity Per Unit (lb.): 520
1/4" Flat Material Capacity Per Magnet (lb.): 460
1/4" Flat Material Capacity Per Unit (lb.): 520
3/8" Flat Material Capacity Per Magnet (lb.): 500
3/8" Flat Material Capacity Per Unit (lb.): 1000
3/8" Round Material Capacity Per Magnet (lb.): 200
3/8" Round Material Capacity Per Unit (lb.): 400
Overall Width (in.): 8
Usable Bail WxH (in.): 3 x 5
