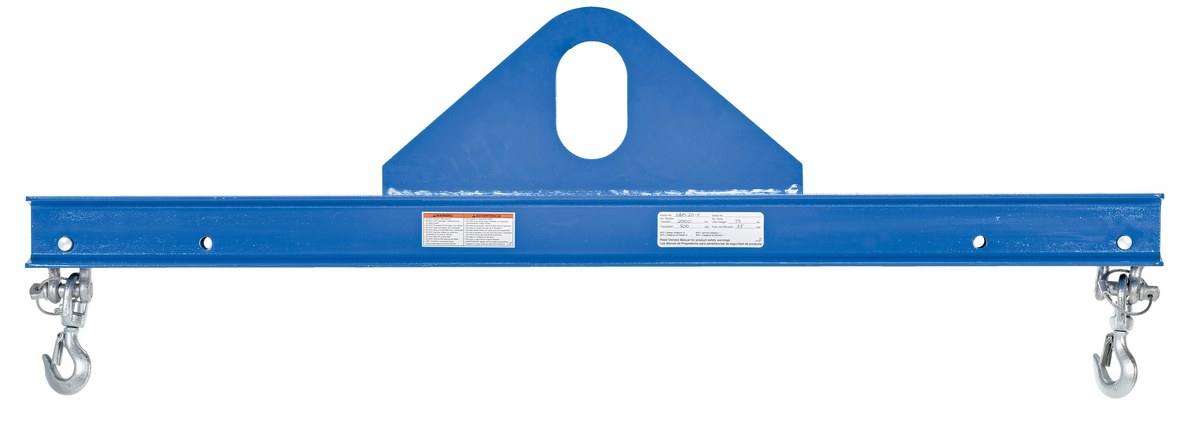

Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity Blue

Crane Spreader Beam for Commercial and Industrial Spreader Beams Use, 2,000 lb. Capacity, Blue Finish – Model SBM-20-4
This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached swivel hooks allow for easy lifting and transferring of products from workstation to workstation.
Product Status
Available
Key Features
  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Spreader Beam Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 61 lbs
Assembled Size 3.5625"W x 48"L x 16.25"H
Total Ship Weight 64 lbs
Package 1 Size 4"W x 48"D x 11"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 2,000
Headroom (in.) 14
Usable Bail Width/Height (in.) 3 x 5
Upper Bail Thickness (in.) 3/4
Minimum/Maximum Spread (in.) 33/45
Swivel Hook Quantity 2
Swivel Hook Size (ton) 1/2
ASME B30.20-1993
Overall Width (in.) 3-9/16
Overall Height (in.) 16-1/4
Overall Length (in.) 48
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SBM-20-4
Product Name
Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity Blue
UPC
691215054966
GTIN
00691215054966
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Accessories
Taxonomy 5
Spreader Beams
Assembled Depth (in.)
48
Assembled Width(in.)
3.5625
Assembled Height(in.)
16.25
Assembled Weight(lbs.)
61
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
4
Package Height (in.)
11
Package Weight (in.)
61
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
Package 2 Depth (in.)
7
Package 2 Width (in.)
5
Package 2 Height (in.)
3
Package 2 Weight (lbs.)
3
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
Parcel
UNSPSC
30101700
HTSUS Number
8431.49.1080
USMCA HS
8431.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SBM-20-4

SBM-20-4

Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached swivel hooks allow for easy lifting and transferring of products from workstation to workstation.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance

Core Data

Assembled Weight: 61 Assembled Size: 3.5625"W x 48"L x 16.25"H Color: Blue
Total Ship Weight: 64 Package 1 Size: 4"W x 48"D x 11"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 2,000
Headroom (in.): 14
Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 3/4
Minimum/Maximum Spread (in.): 33/45
Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1/2
ASME: B30.20-1993
Overall Width (in.): 3-9/16
Overall Height (in.): 16-1/4
Overall Length (in.): 48
