Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

Adjustable Crane Spreader Beam for Commercial and Industrial Spreader Beams Use, 10,000 lb. Capacity, Blue Finish – Model SBM-BFB-100-10
An adjustable spreader beam lifts uneven loads, all while keeping them level. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.
Product Status
Available
Key Features
  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small
Quick Actions

Product Resources

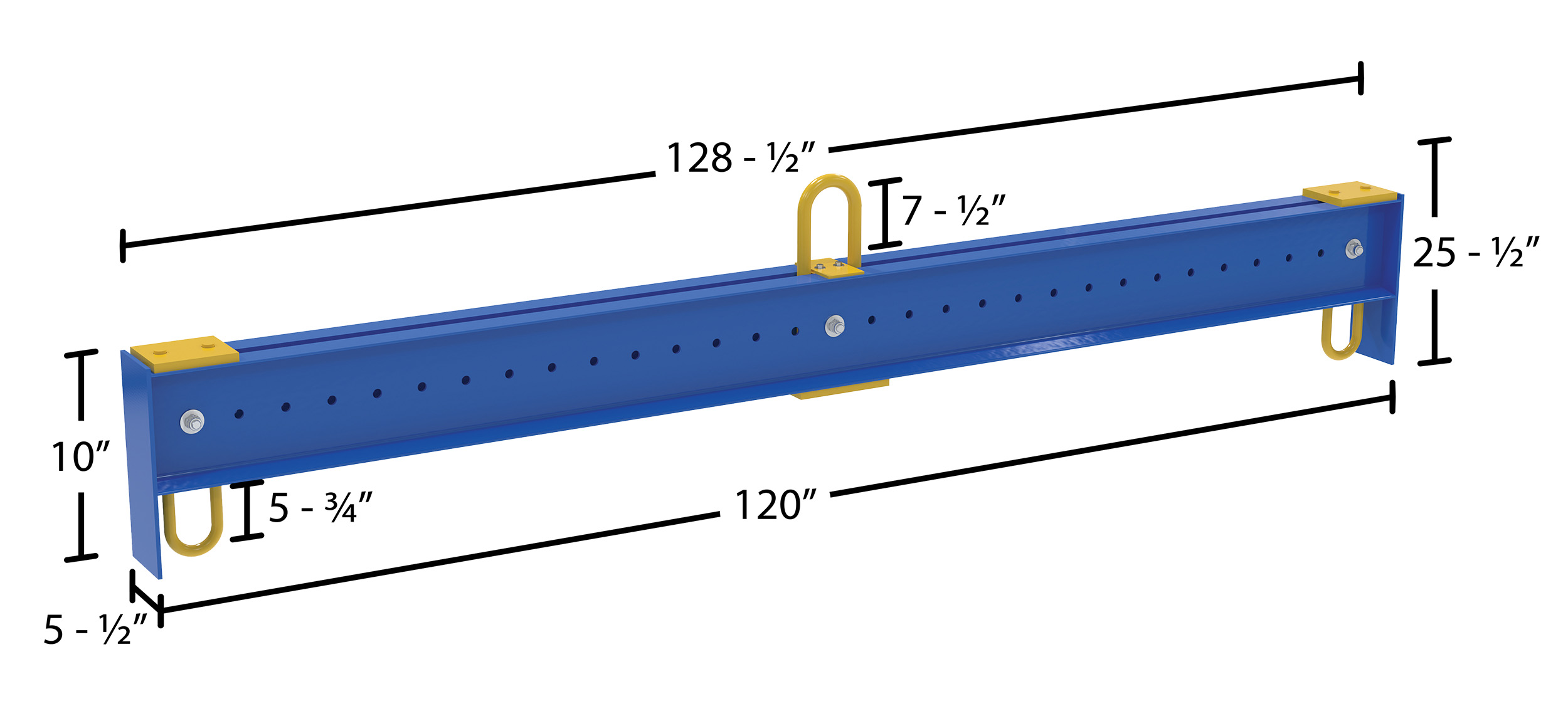

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Spreader Beam Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 431 lbs
Assembled Size 6.75"W x 128.5"L x 25.5"H
Total Ship Weight 508 lbs
Package 1 Size 48"W x 151"D x 13"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 10,000
Lower Bail Width (in) 3
Lower Bail Height (in) 5-3/4"
Upper Bail Width (in) 4"
Upper Bail Height (in) 7-1/2"
Headroom (in.) 25-1/2"
Minimum Spread (in.) 24"
Maximum Spread (in.) 120
Bail Adjustable In Increments (in.) 4
Overall Width (in.) 17-3/4
Overall Length (in.) 128-1/2
Overall Height (in.) 25-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SBM-BFB-100-10
Product Name
Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue
UPC
691215328043
GTIN
00691215328043
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Accessories
Taxonomy 5
Spreader Beams
Assembled Depth (in.)
128.5
Assembled Width(in.)
6.75
Assembled Height(in.)
25.5
Assembled Weight(lbs.)
431
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
151
Package Width (in.)
48
Package Height (in.)
13
Package Weight (in.)
508
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
LTL Freight
LTL Palletized
UNSPSC
30101700
HTSUS Number
8431.49.1080
USMCA HS
8431.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SBM-BFB-100-10

SBM-BFB-100-10

Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

An adjustable spreader beam lifts uneven loads, all while keeping them level. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.

  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small

Core Data

Assembled Weight: 431 Assembled Size: 6.75"W x 128.5"L x 25.5"H Color: Blue
Total Ship Weight: 508 Package 1 Size: 48"W x 151"D x 13"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 10,000
Lower Bail Width (in): 3
Lower Bail Height (in): 5-3/4"
Upper Bail Width (in): 4"
Upper Bail Height (in): 7-1/2"
Headroom (in.): 25-1/2"
Minimum Spread (in.): 24"
Maximum Spread (in.): 120
Bail Adjustable In Increments (in.): 4
Overall Width (in.): 17-3/4
Overall Length (in.): 128-1/2
Overall Height (in.): 25-1/2
