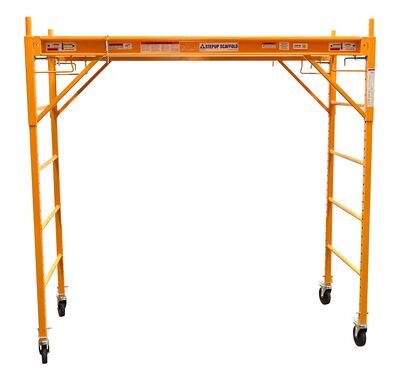

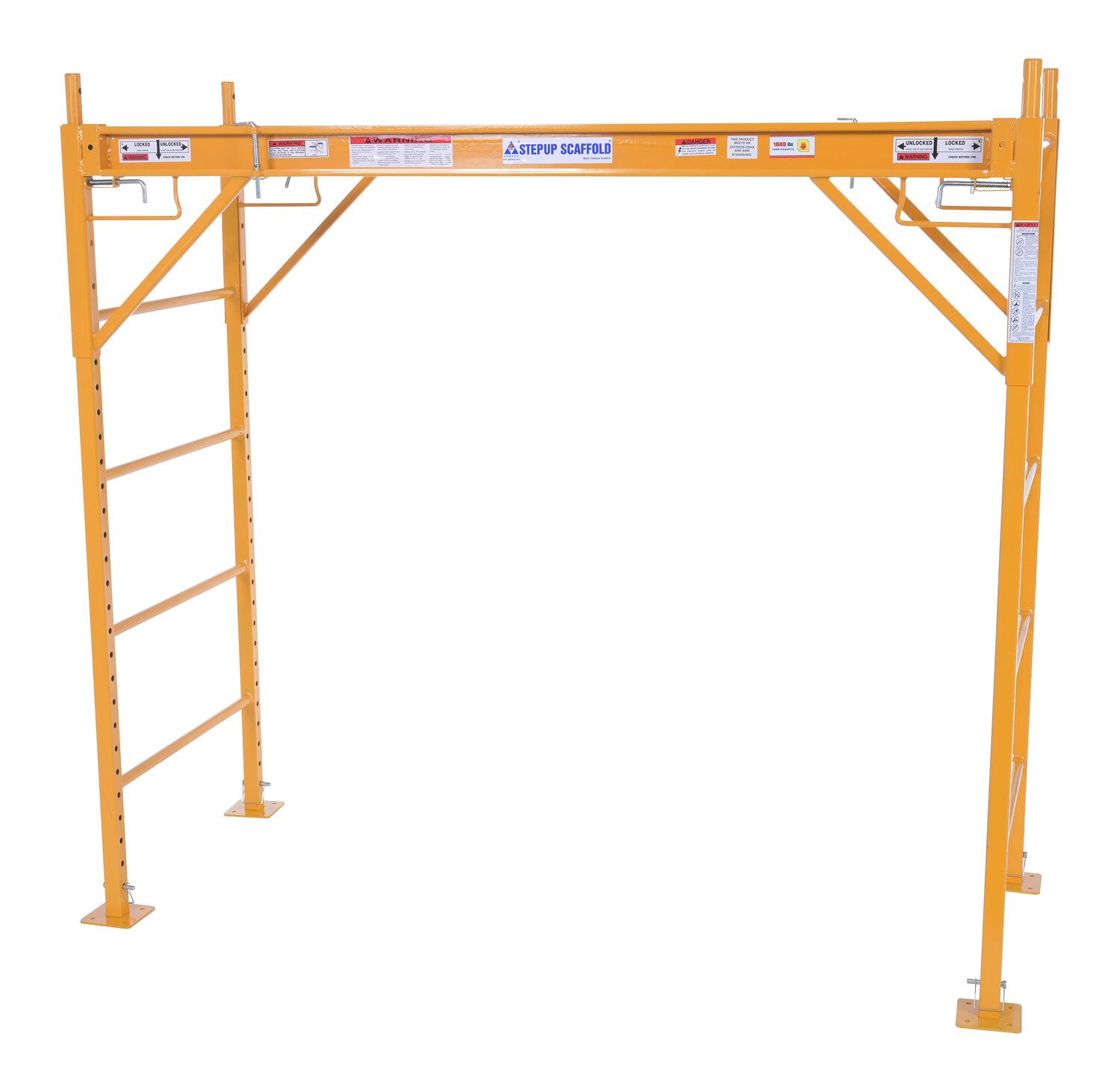

1 Tier Multifunction Scaffold 74 In. x 29-1/2 In. x 75 In. 1,000 Lb. Capacity Yellow

1 Tier Multifunction Scaffold for Safer Elevated Access in Industrial Work Areas, 1,000 lb. Capacity with 74 in. x 29-1/2 in. x 75 in.

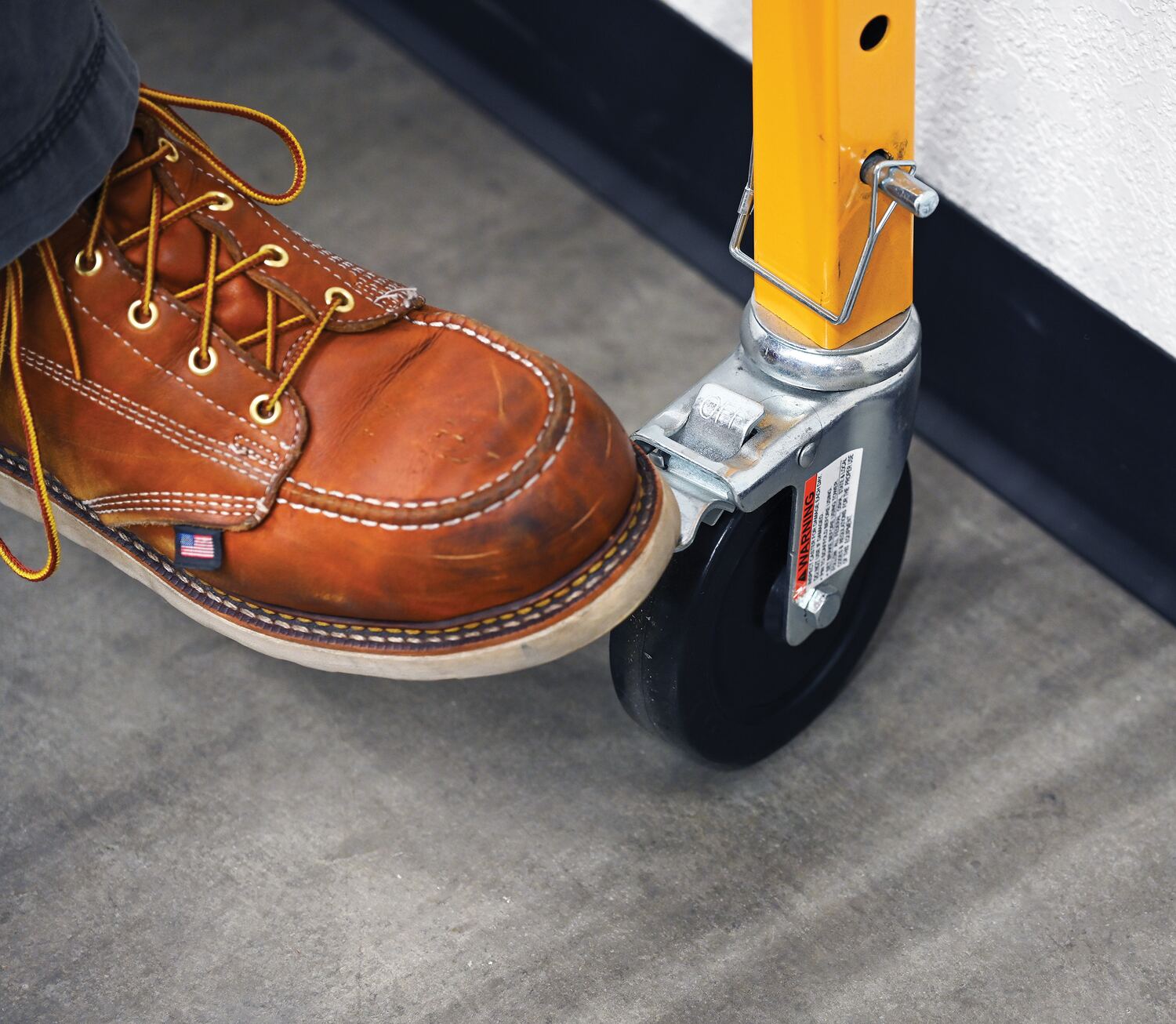

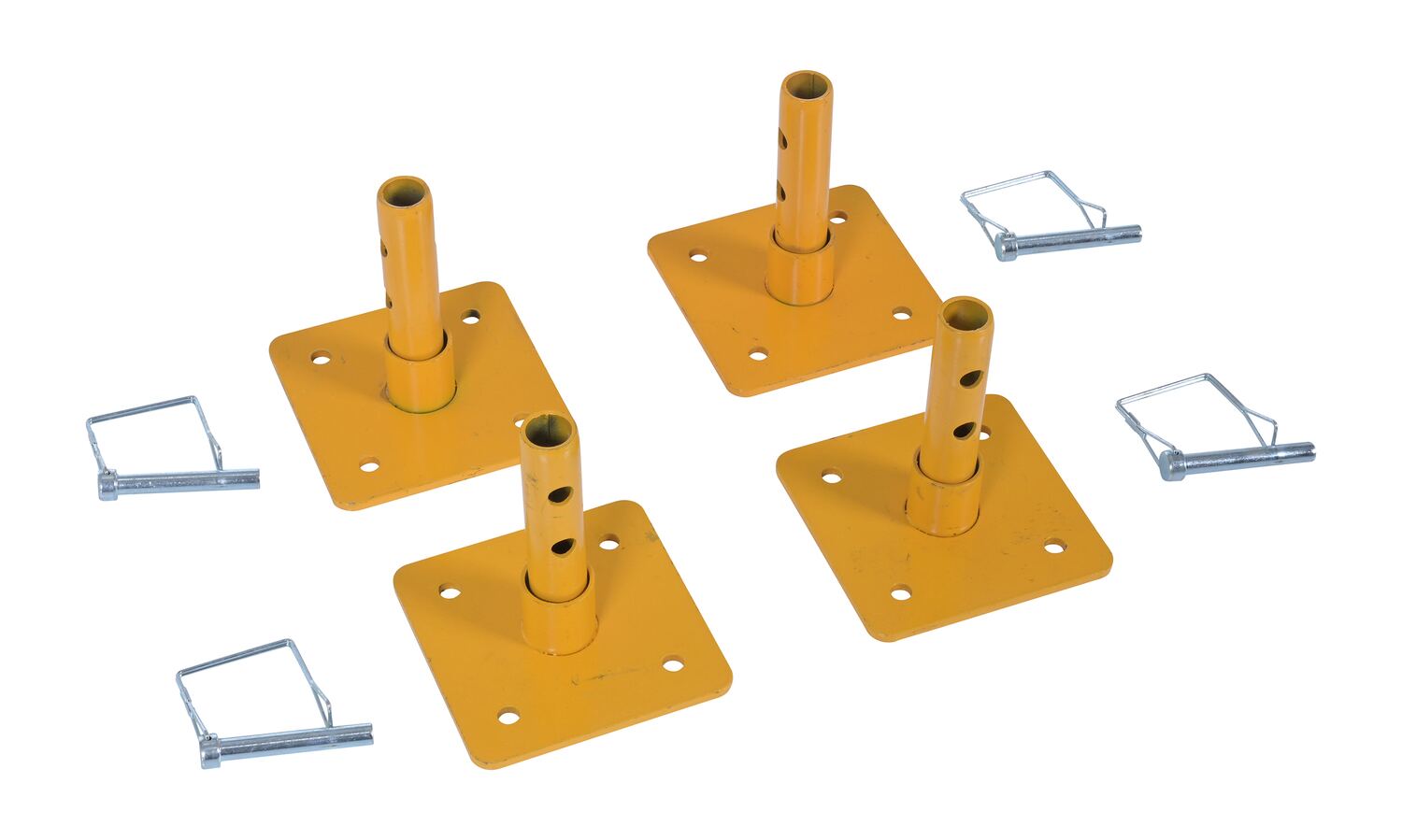

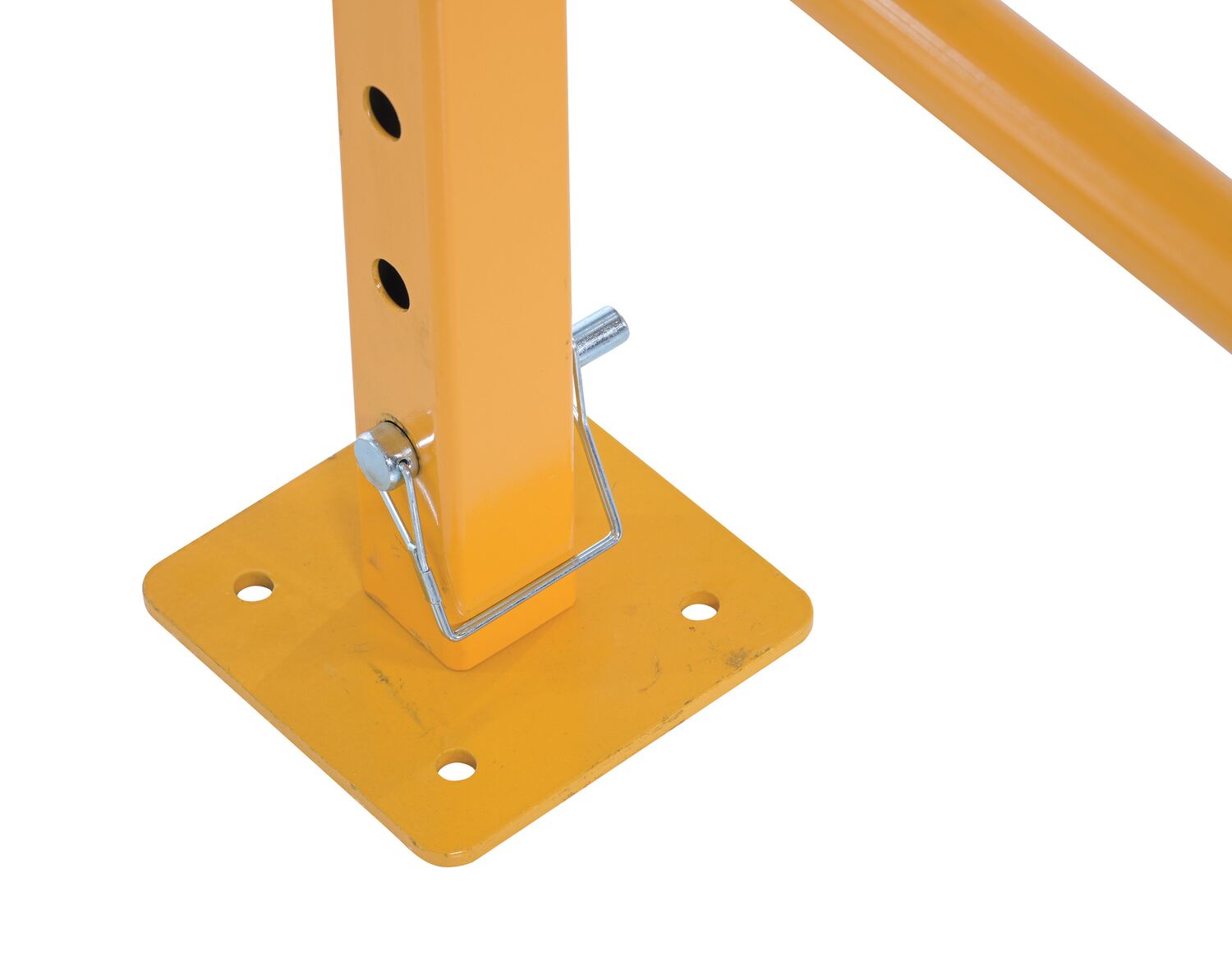

Working at elevated heights can be a dangerous job. That's why safety needs to always be a priority! With a multi-function scaffolding that safety and security is all around! For those projects remaining in the same location for an extended period of time, a set of four (4) base plates is included to keep the scaffolding grounded and secured. And for those days when you are on the move, casters are included to make the scaffolding a portable rolling unit! Anytime scaffolding is stacked, the use of an outrigger is required.
Product Status
Quote Required Ships from Atlanta, GA 30134 Non-Returnable
Key Features
  • Includes one multi-function scaffold
  • Scaffold end ladder frames allow simple entry and exit
  • High strength steel frame
  • Perfect for residential and industrial work locations
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  MULTIFUNCTION SCAFFOLD   90 Days Warranty
Product Data

Core Data

Assembled Weight 148 lbs
Assembled Size 29.5"W x 74"L x 75"H
Total Ship Weight 178 lbs
Package 1 Size 40"W x 76"D x 18"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lbs) 1,000
Adjustable Platform Height (in.) 18 to 75
Caster Qty./Type (4) Swivel
Caster Diameter/Width (in.) 5 x 1-1/4
Hardware Included? Yes
Platform Height Adjustment Increment (in.) 1-1/2
Rung Qty. 5 per Side, 10 Total
Rung Length (in.) 26
Rung Diameter (in.) 1
Leg Base Plate (Qty.) 4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SCAF-MF-1
Product Name
1 Tier Multifunction Scaffold 74 In. x 29-1/2 In. x 75 In. 1,000 Lb. Capacity Yellow
UPC
691215378406
GTIN
00691215378406
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Folding Scaffolding
Assembled Depth (in.)
74
Assembled Width(in.)
29.5
Assembled Height(in.)
75
Assembled Weight(lbs.)
148
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CO
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
76
Package Width (in.)
40
Package Height (in.)
18
Package Weight (in.)
178
Subclass
8
Freight Class
110
NMFC Code
Scaffolding or Scaffolds; Builders' or Maintenance Horses; or Components or Parts thereof
NMFC Number
172521
LTL Freight
LTL Palletized
UNSPSC
30191502
HTSUS Number
7308.40.0000
USMCA HS
7308.40
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Atlanta, GA
Supplier Postal Code
30134
Hazardous Material? Yes/No
No
MSDS? Yes/No
NO
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SCAF-MF-1

SCAF-MF-1

1 Tier Multifunction Scaffold 74 In. x 29-1/2 In. x 75 In. 1,000 Lb. Capacity Yellow

Working at elevated heights can be a dangerous job. That's why safety needs to always be a priority! With a multi-function scaffolding that safety and security is all around! For those projects remaining in the same location for an extended period of time, a set of four (4) base plates is included to keep the scaffolding grounded and secured. And for those days when you are on the move, casters are included to make the scaffolding a portable rolling unit! Anytime scaffolding is stacked, the use of an outrigger is required.

  • Includes one multi-function scaffold
  • Scaffold end ladder frames allow simple entry and exit
  • High strength steel frame
  • Perfect for residential and industrial work locations

Core Data

Assembled Weight: 148 Assembled Size: 29.5"W x 74"L x 75"H Color: Yellow
Total Ship Weight: 178 Package 1 Size: 40"W x 76"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lbs): 1,000
Adjustable Platform Height (in.): 18 to 75
Caster Qty./Type: (4) Swivel
Caster Diameter/Width (in.): 5 x 1-1/4
Hardware Included?: Yes
Platform Height Adjustment Increment (in.): 1-1/2
Rung Qty.: 5 per Side, 10 Total
Rung Length (in.): 26
Rung Diameter (in.): 1
Leg Base Plate (Qty.): 4
