  All Products   Industrial Ladders   Step Stands   Serrated Steel Fold-Up Steps SFS-149-SL
Product Image

Visual Reference

SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL
SFS-149-SL

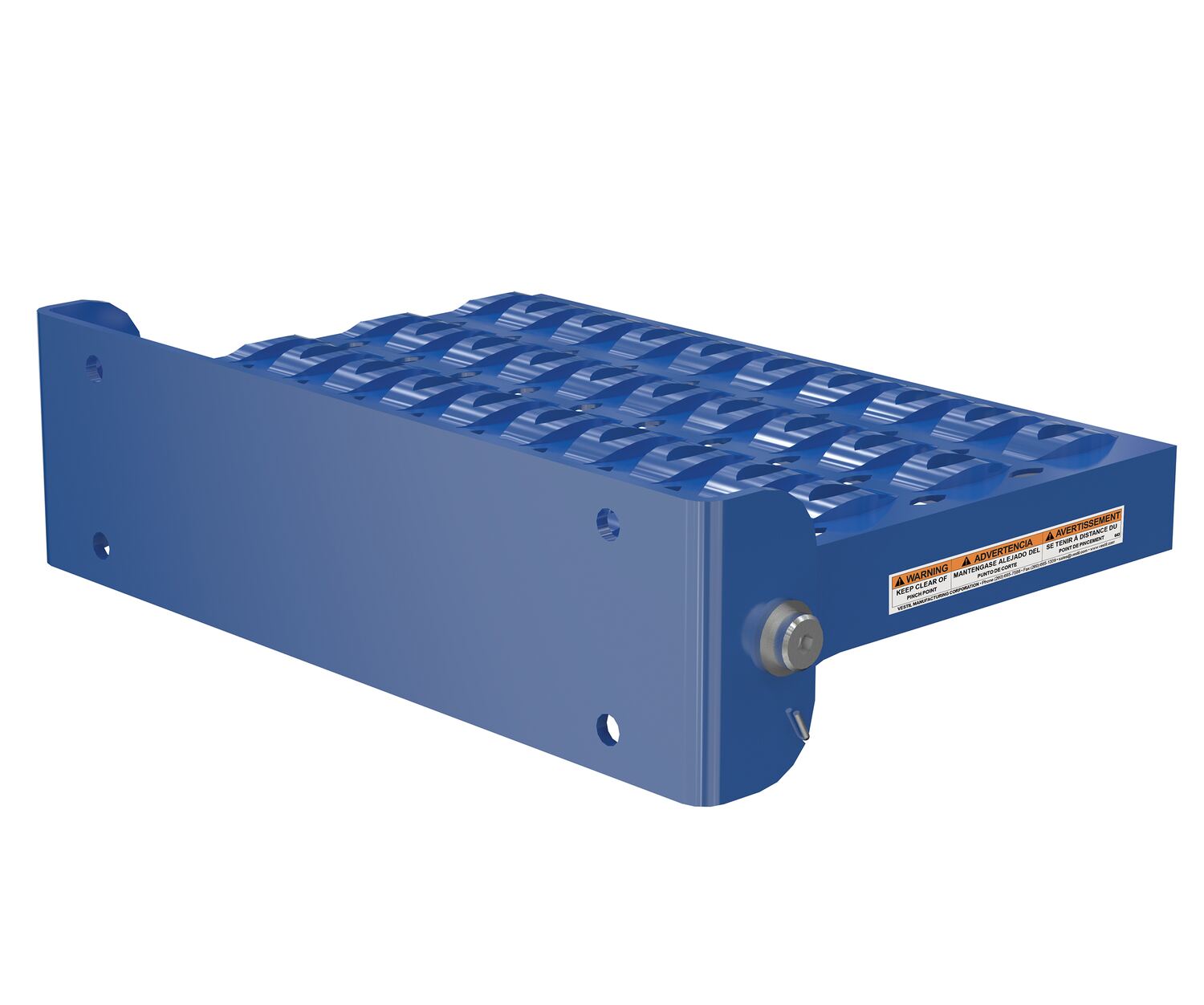

Steel Serrated Fold Up Step Spring Loaded 10-5/16 In. x 15-9/16 In. x 4 In. 350 Lb. Capacity Blue

Serrated Steel Fold-up Step for Safer Elevated Access in Industrial Work Areas, 350 lb. Capacity with 10-5/16 in. x 15-9/16 in. x 4 in.
The spring loaded Serrated steel fold-up step automatically returns to vertical position when not in use. Steel construction with a serrated surface for traction and powder coat blue finish. Mounting holes are pre drilled, fasteners are not included.
Product Status
Available QuickShip
Key Features

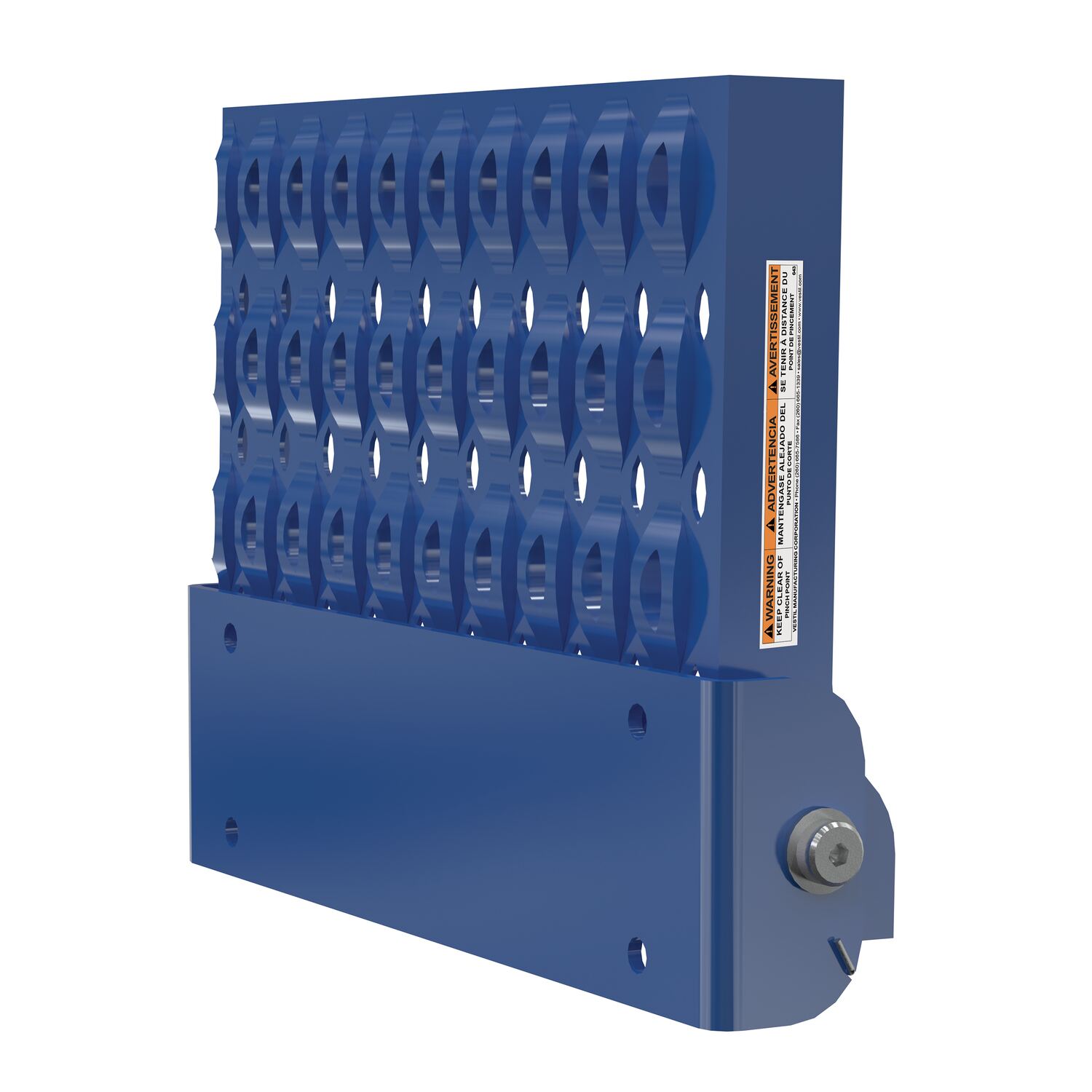

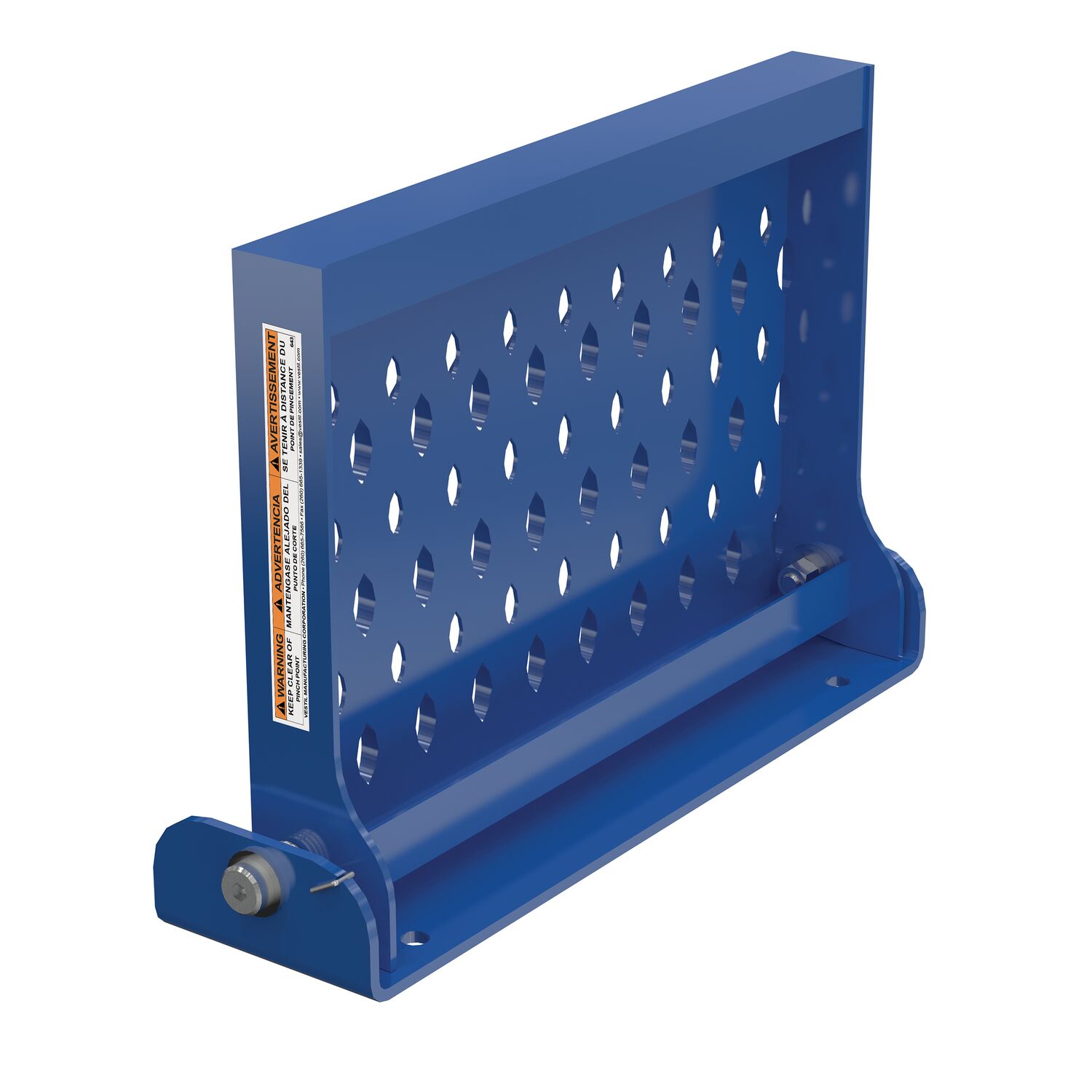

  • Step easily rotates to vertical position when not in use
  • Serrated steel surface provides extra traction to reduce potential slipping
  • Solid steel construction provides long lasting rugged use
  • Pre-drilled mounting holes make installation quick and easy
Quick Actions

Product Resources

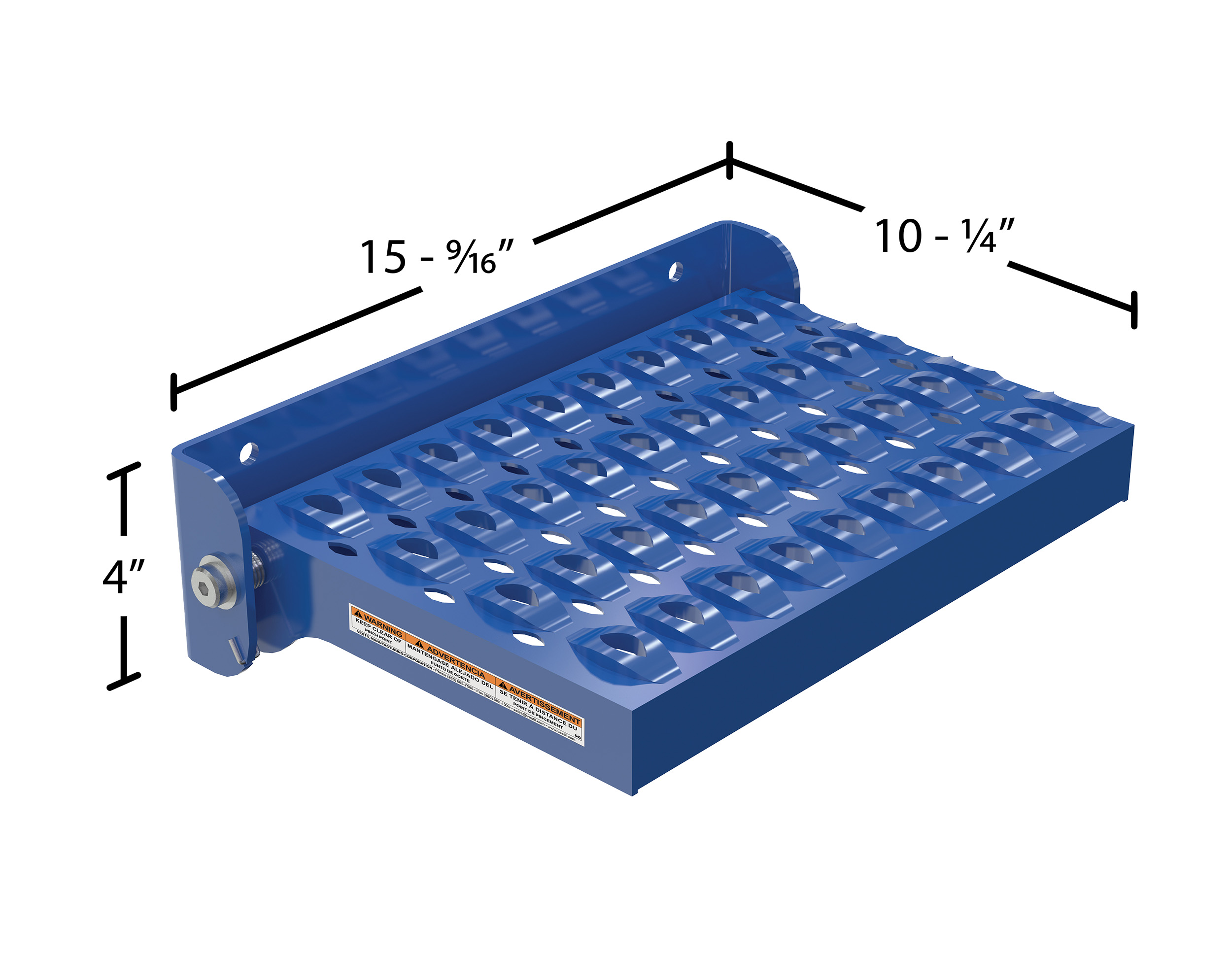

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   SFS-149, SFS-149-SL Serrated Steel Fold-Up Steps   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 11 lbs
Assembled Size 15.5625"W x 10.3125"L x 4"H
Total Ship Weight 11 lbs
Package 1 Size 12"W x 17"D x 4"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 350
Step Width (in.) 13-11/16
Step Depth (in.) 9-1/2
Mounting Hole Diameter (in.) 7/16
Fold Up Step Style Spring Loaded
Gauge 14
Steel Grade Steel A36
Overall Width (in.) 15-9/16
Overall Length (in.) 10-1/4
Overall Height (in.) 4
Folded Height (in.) 10-7/8
Folded Width (in.) 3-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SFS-149-SL
Product Name
Steel Serrated Fold Up Step Spring Loaded 10-5/16 In. x 15-9/16 In. x 4 In. 350 Lb. Capacity Blue
UPC
691215063845
GTIN
00691215063845
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Folding Step Platforms
Assembled Depth (in.)
10.3125
Assembled Width(in.)
15.5625
Assembled Height(in.)
4
Assembled Weight(lbs.)
11
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
17
Package Width (in.)
12
Package Height (in.)
4
Package Weight (in.)
11
Freight Class
70
NMFC Code
Step Stools steel folded thickness
NMFC Number
108840
LTL Freight
Parcel
UNSPSC
30191505
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SFS-149-SL

SFS-149-SL

Steel Serrated Fold Up Step Spring Loaded 10-5/16 In. x 15-9/16 In. x 4 In. 350 Lb. Capacity Blue

The spring loaded Serrated steel fold-up step automatically returns to vertical position when not in use. Steel construction with a serrated surface for traction and powder coat blue finish. Mounting holes are pre drilled, fasteners are not included.

  • Step easily rotates to vertical position when not in use
  • Serrated steel surface provides extra traction to reduce potential slipping
  • Solid steel construction provides long lasting rugged use
  • Pre-drilled mounting holes make installation quick and easy

Core Data

Assembled Weight: 11 Assembled Size: 15.5625"W x 10.3125"L x 4"H Color: Blue
Total Ship Weight: 11 Package 1 Size: 12"W x 17"D x 4"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 350
Step Width (in.): 13-11/16
Step Depth (in.): 9-1/2
Mounting Hole Diameter (in.): 7/16
Fold Up Step Style: Spring Loaded
Gauge: 14
Steel Grade: Steel A36
Overall Width (in.): 15-9/16
Overall Length (in.): 10-1/4
Overall Height (in.): 4
Folded Height (in.): 10-7/8
Folded Width (in.): 3-1/8
