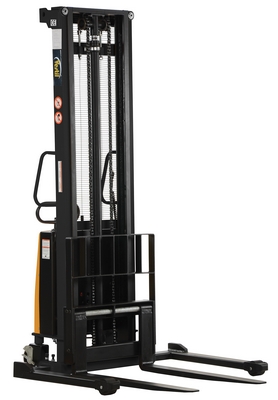

Steel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Adjustable Stacker with Powered Lift for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity with 150 in. Raised Height – Model SL-150-AA
The stacker powered lift is a semi-electric stacker with a powered lift that will raise and lower loads quickly and easily. The manual push operation stacker is made using high quality material and parts. The stacker is easily maneuvered using the standard pulling handle with adjustable forks and adjustable support legs. The stacker is highly efficient and durable while working with pallets or skids. It features an integral battery charger and battery level gauge.
Product Status
Available QuickShip
Key Features
  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   SL Series Stackers with Powered Lift   Label Page PDF   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1188 lbs
Assembled Size 57.875"W x 66.125"L x 94"H
Total Ship Weight 1266 lbs
Package 1 Size 65"W x 74"D x 102"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity at 0 - 63" (lb.) 2,000
Uniform Capacity at 63 - 118" (lb.) 1,500
Uniform Capacity at 118 - 137" (lb.) 1,000
Uniform Capacity at 137 - 150" (lb.) 750
Service Range (in.) 2-1/8 to 150
Fork Width/Length (in.) 4 x 42-1/8
Adjustable Fork Spacing (in.) 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.) 49-1/4 to 57-7/8 (OD)
Overall Mast Height (in.) 171-13/16
Lift Motor DC 12V / 2.0 KW
Battery (1) 12V / 2.0 KW
Battery Charger 120 - 240V Input, 12V/5 amp
Mast Double
Safety Shield? Yes
Steering Wheel (in.) 7 x 2

Battery Information

Battery Depth 14
Battery Width 7
Battery Height 10
Battery Weight 56
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SL-150-AA
Product Name
Steel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / Yellow
UPC
691215078863
GTIN
00691215078863
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
66.125
Assembled Width(in.)
57.875
Assembled Height(in.)
94
Assembled Weight(lbs.)
1188
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
STA-ATT-RR, STA-ATT-BAH, STA-ATT-RP, STA-ATT-PRP, STA-ATT-SDG, STA-ATT-FRF-24, STA-ATT-FRF-20, STA-ATT-AFFK-42, STA-ATT-RLFT-30, STA-ATT-BG-23, STA-ATT-DSPIN-20, STA-ATT-FF-30, STA-ATT-SPINR-25, STA-ATT-HDGR, STA-ATT-DGS-55, STA-ATT-DGP-55, STA-ATT-DGP-30

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
74
Package Width (in.)
65
Package Height (in.)
102
Package Weight (in.)
1266
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
56
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SL-150-AA

SL-150-AA

Steel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The stacker powered lift is a semi-electric stacker with a powered lift that will raise and lower loads quickly and easily. The manual push operation stacker is made using high quality material and parts. The stacker is easily maneuvered using the standard pulling handle with adjustable forks and adjustable support legs. The stacker is highly efficient and durable while working with pallets or skids. It features an integral battery charger and battery level gauge.

  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use

Core Data

Assembled Weight: 1188 Assembled Size: 57.875"W x 66.125"L x 94"H Color: Black / Yellow
Total Ship Weight: 1266 Package 1 Size: 65"W x 74"D x 102"H Freight: LTL Palletized

Specifications

Uniform Capacity at 0 - 63" (lb.): 2,000
Uniform Capacity at 63 - 118" (lb.): 1,500
Uniform Capacity at 118 - 137" (lb.): 1,000
Uniform Capacity at 137 - 150" (lb.): 750
Service Range (in.): 2-1/8 to 150
Fork Width/Length (in.): 4 x 42-1/8
Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 49-1/4 to 57-7/8 (OD)
Overall Mast Height (in.): 171-13/16
Lift Motor: DC 12V / 2.0 KW
Battery: (1) 12V / 2.0 KW
Battery Charger: 120 - 240V Input, 12V/5 amp
Mast: Double
Safety Shield?: Yes
Steering Wheel (in.): 7 x 2
