Steel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity Black

Adjustable Stacker with Powered Lift for Moving Loads Through Warehouses and Production Areas, 3,000 lb. Capacity with 36 in. Raised Height

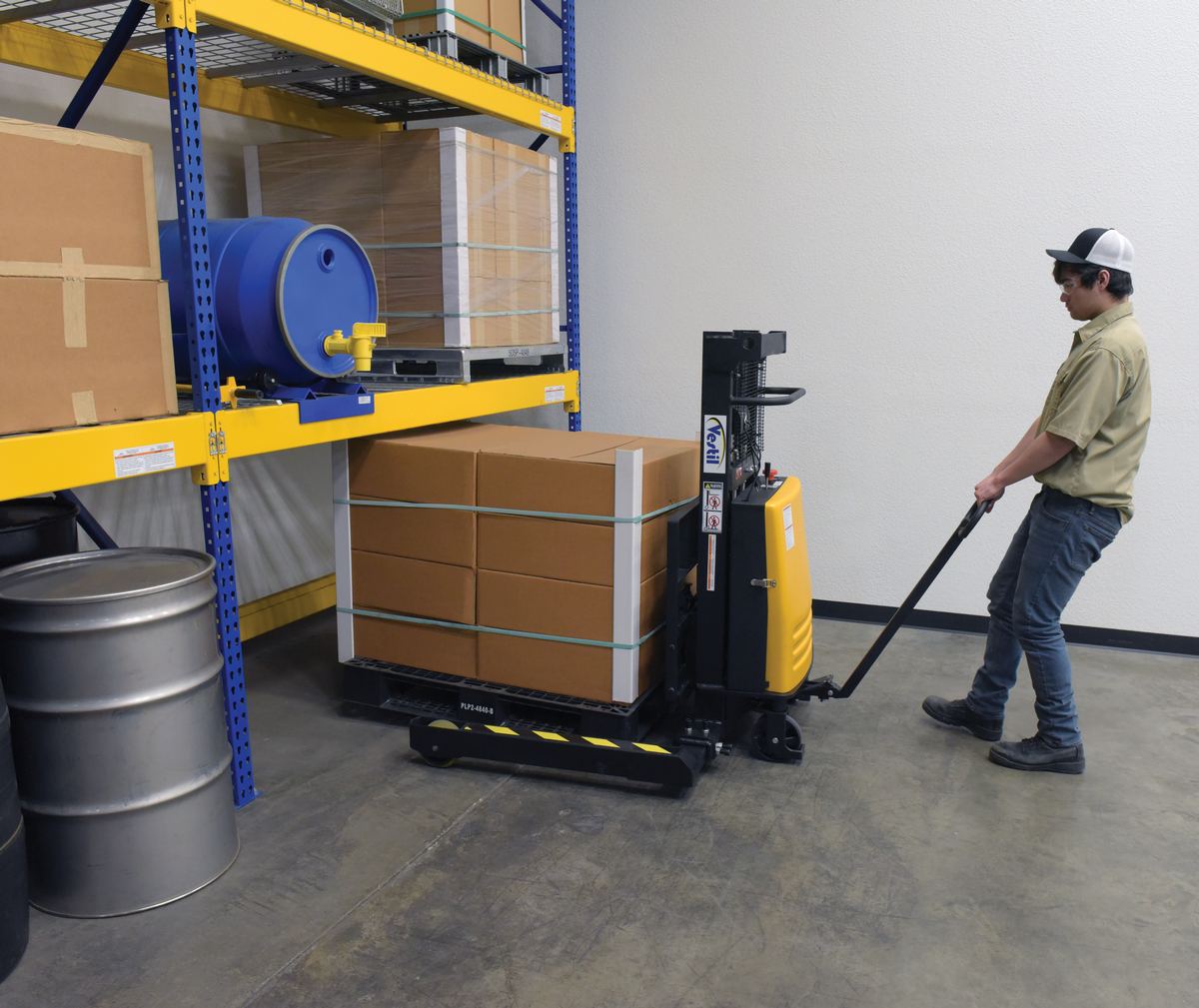

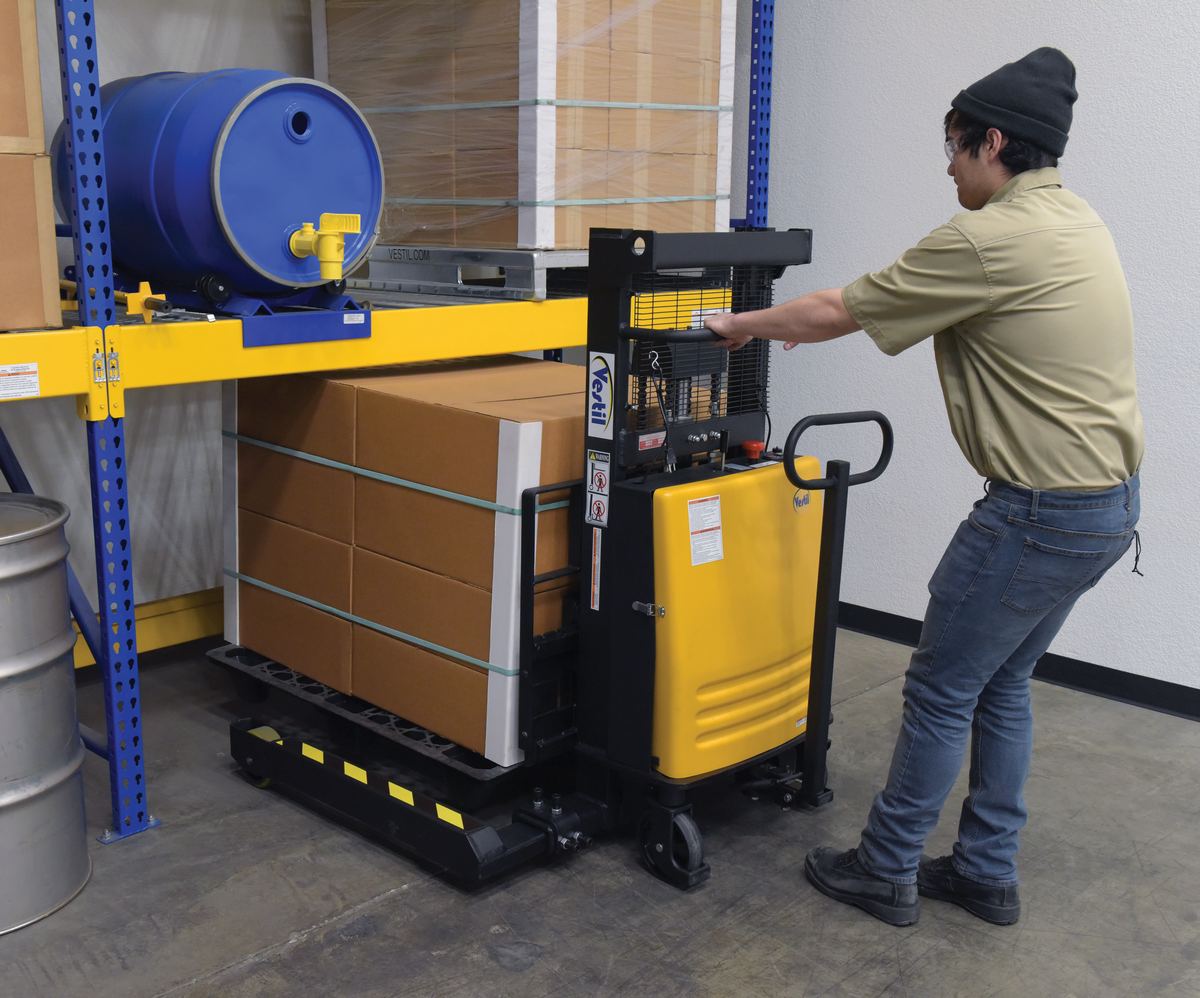

An adjustable stacker is one of the most efficient ways to move items, both large and small. With a 12V DC powered lift, items can easily be placed at a more ergonomically friendly height that diminishes bending and twisting . When moving the unit from area to area, the dual handles are well positioned to give the user control and stability. The legs of the unit are adjustable to allow the stacker to fit in a variety of settings. Stacker includes a baked in powder coat finish for added toughness.
Product Status
Available QuickShip
Key Features
  • Manually maneuvered between areas
  • Pivoting steering handle for compact spaces
  • Powered lifting and lowering of items
  • Adjustable forks to fit a variety of sizes
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   SL Series Stackers with Powered Lift   Label Page PDF   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 800 lbs
Assembled Size 72"W x 47"L x 60"H
Total Ship Weight 1090 lbs
Package 1 Size 65"W x 83"D x 64"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Service Range (in.) 2-1/8 to 36
Fork Spacing (in.) 42
Individual Fork Width (in.) 4

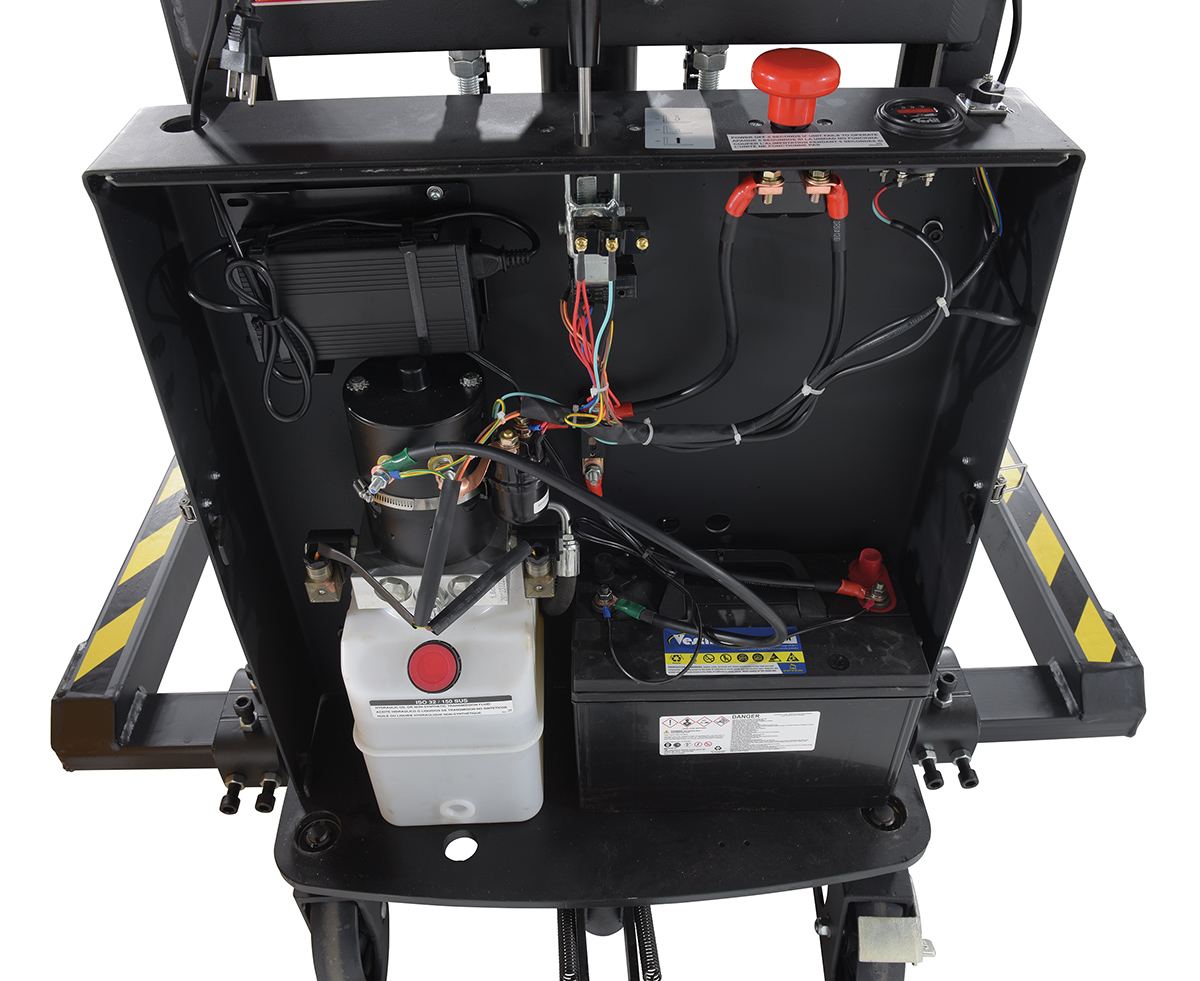

Battery (1) 12V Lead Acid
Front Caster Type Rigid
Front Caster Qty./Diameter/Width (in.) (2) 4 x 3
Rear Caster Type Swivel w/ Brake
Rear Caster Qty./Diameter/Width (in.) (2) 7 x 2
Caster Material Polyurethane
Carriage Size (in.) 33 x 13
Class Class I

Battery Information

Battery Depth 14
Battery Width 7
Battery Height 10
Battery Weight 56
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SL3-36-AA
Product Name
Steel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity Black
UPC
691215356220
GTIN
00691215356220
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
47
Assembled Width(in.)
72
Assembled Height(in.)
60
Assembled Weight(lbs.)
800
Color/Finish
Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
83
Package Width (in.)
65
Package Height (in.)
64
Package Weight (in.)
1090
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
56
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SL3-36-AA

SL3-36-AA

Steel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity Black

An adjustable stacker is one of the most efficient ways to move items, both large and small. With a 12V DC powered lift, items can easily be placed at a more ergonomically friendly height that diminishes bending and twisting . When moving the unit from area to area, the dual handles are well positioned to give the user control and stability. The legs of the unit are adjustable to allow the stacker to fit in a variety of settings. Stacker includes a baked in powder coat finish for added toughness.

  • Manually maneuvered between areas
  • Pivoting steering handle for compact spaces
  • Powered lifting and lowering of items
  • Adjustable forks to fit a variety of sizes

Core Data

Assembled Weight: 800 Assembled Size: 72"W x 47"L x 60"H Color: Black
Total Ship Weight: 1090 Package 1 Size: 65"W x 83"D x 64"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Service Range (in.): 2-1/8 to 36
Fork Spacing (in.): 42
Individual Fork Width (in.): 4
Battery: (1) 12V Lead Acid
Front Caster Type: Rigid
Front Caster Qty./Diameter/Width (in.): (2) 4 x 3
Rear Caster Type: Swivel w/ Brake
Rear Caster Qty./Diameter/Width (in.): (2) 7 x 2
Caster Material: Polyurethane
Carriage Size (in.): 33 x 13
Class: Class I
