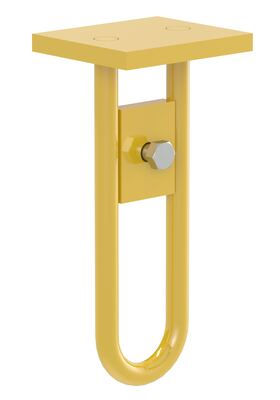

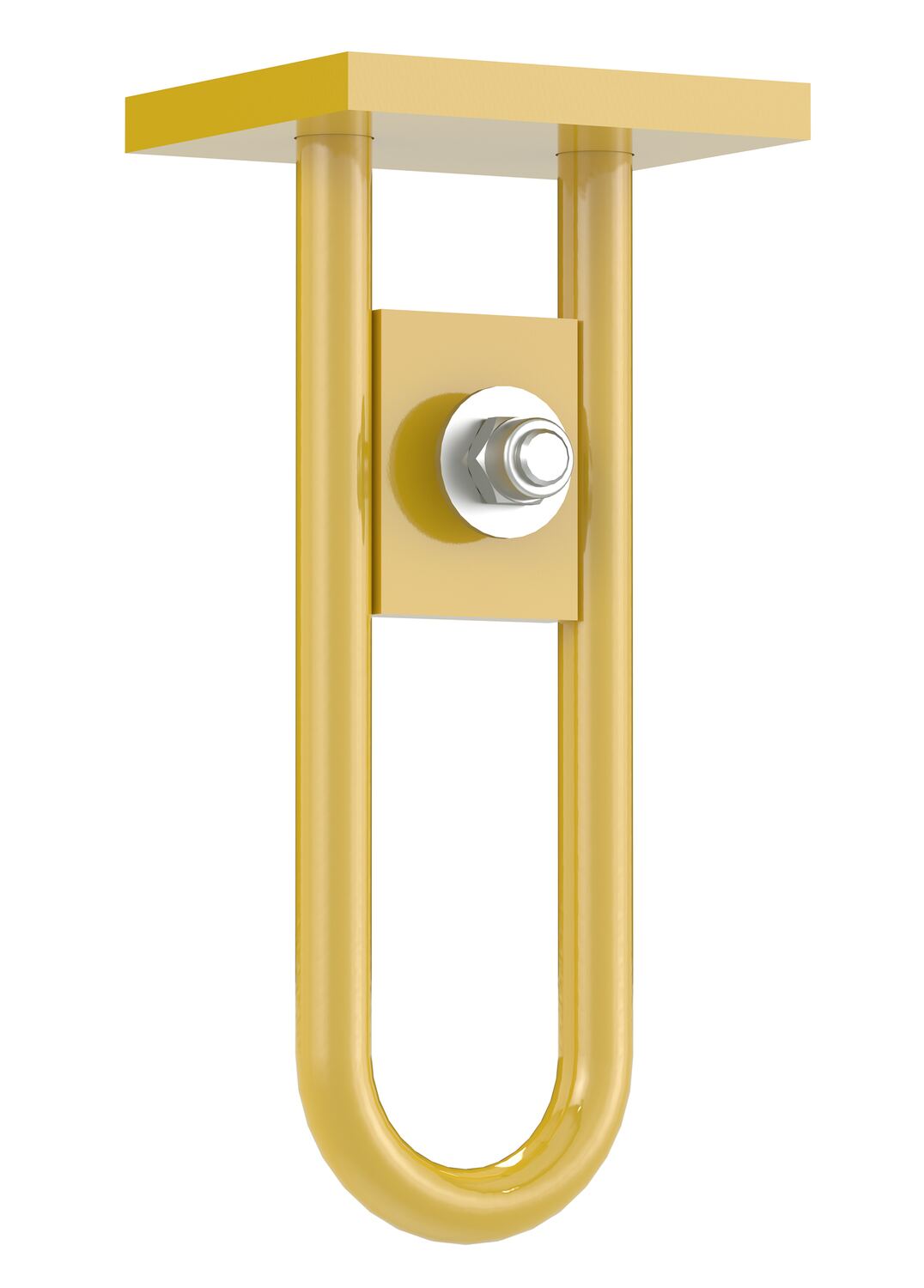

Steel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 7 X 17.75 10,000 Lb. Capacity Yellow

Adjustable Spreader Beam for Commercial and Industrial Spreader Beams Use, 10,000 lb. Capacity, Yellow Finish – Model SM-LB-BFB-100

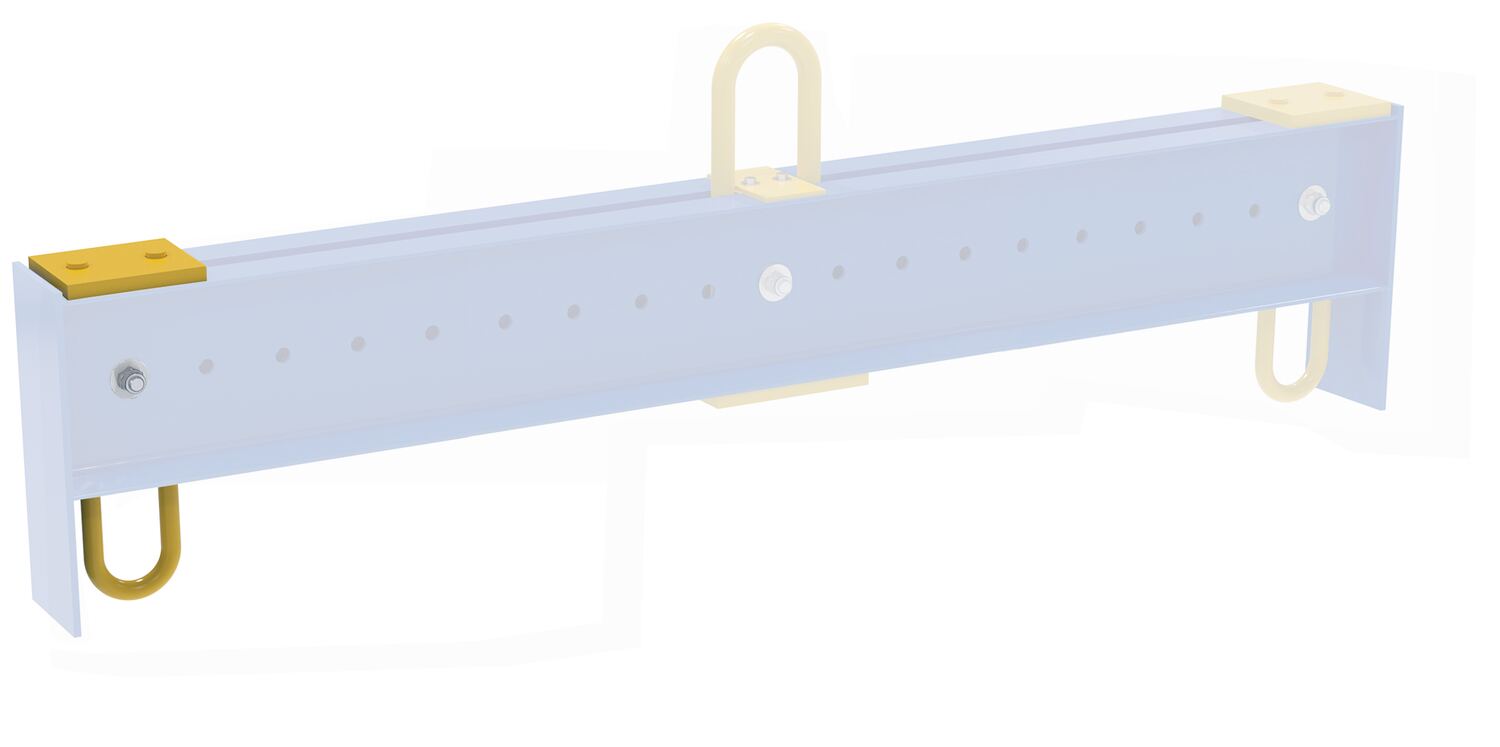

Bail is great for an addition to the adjustable spreader beam. Bail is simple to attach and can be immediately utilized. Large loop can accommodate robust object hooks.
Product Status
Available
Key Features
  • Solid steel construction provides rugged lasting use
  • Powder coat yellow offers a durable finish
  • Removable bolt for proper positioning
  • Rounded bail design
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Spreader Beam Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 7"W x 6"L x 17.75"H
Total Ship Weight 22 lbs
Package 1 Size 8"W x 6"D x 18"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Chain Size Maximum Capacity 4 In.
Maximum Capacity (lb.) 10000
Overall Width (in.) 7
Overall Length (in.) 6
Overall Height (in.) 17-3/4
Removable Bolt for Positioning (in.) 3/4
Connection Style Direct Connect
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SM-LB-BFB-100
Product Name
Steel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 7 X 17.75 10,000 Lb. Capacity Yellow
UPC
691215378031
GTIN
00691215378031
Taxonomy 1
Material Handling
Taxonomy 2
Rigging
Taxonomy 3
Rigging Hardware
Taxonomy 4
Links & Rings
Assembled Depth (in.)
6
Assembled Width(in.)
7
Assembled Height(in.)
17.75
Assembled Weight(lbs.)
20
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
SBM-BFB-100-6 & SBM-BFB-100-10

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
6
Package Width (in.)
8
Package Height (in.)
18
Package Weight (in.)
22
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
LTL Freight
Parcel
UNSPSC
30101700
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
