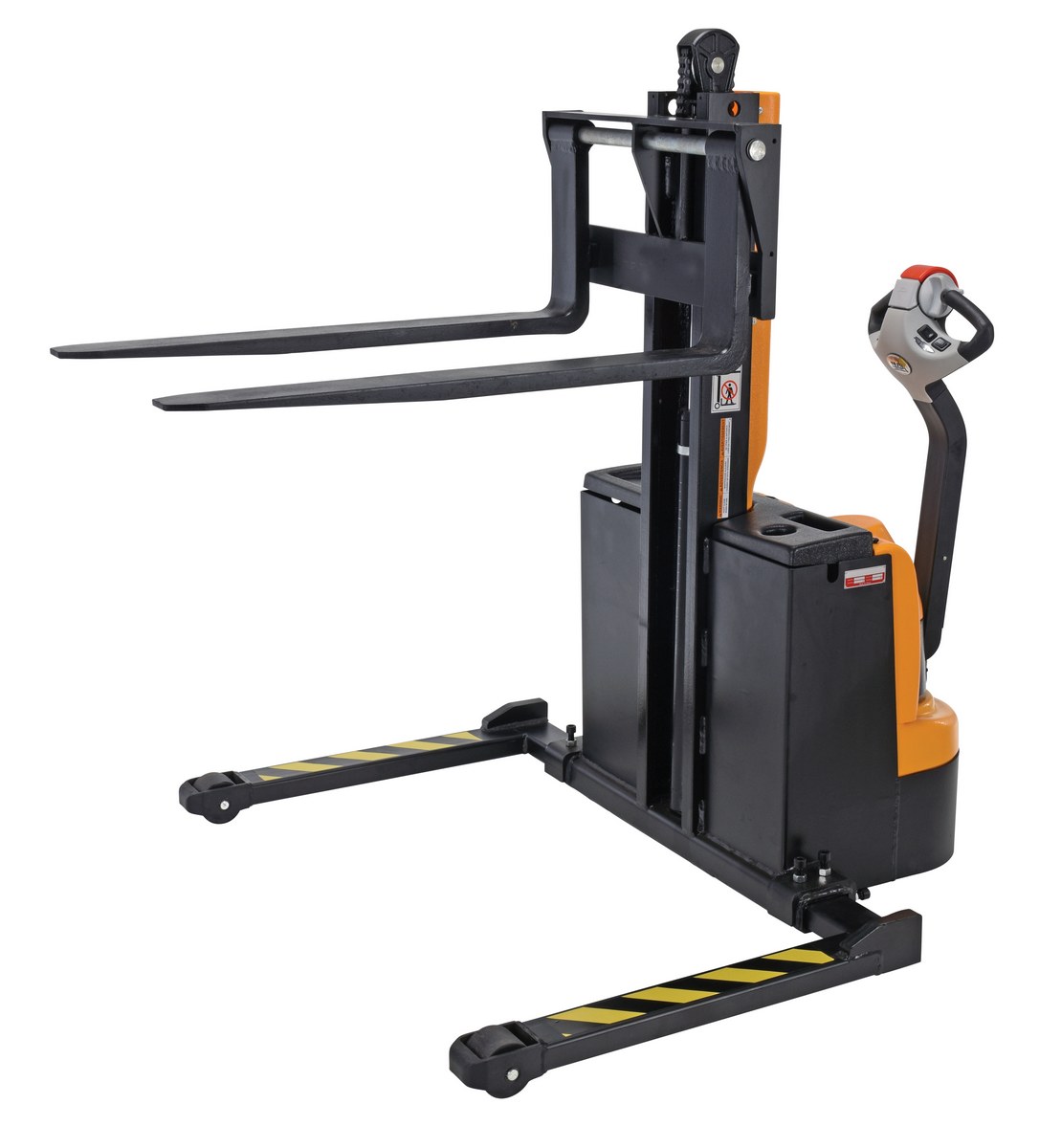

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow

DC-Powered Adjustable Stacker with Powered Lift for Moving Loads Through Warehouses and Production Areas, 3,000 lb. Capacity with 43 in. Raised Height
The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.
Product Status
Available
Key Features
  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1150 lbs
Assembled Size 57"W x 67"L x 63.25"H
Total Ship Weight 1121 lbs
Package 1 Size 60"W x 74"D x 67"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Service Range (in.) 2 to 43-3/10
Fork Width/Length (in.) 4 x 42-1/8
Adjustable Fork Spacing (in.) 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.) 40-1/8 to 50 (ID)
Overall Mast Height (in.) 62-3/4
Drive Motor DC 24V / 1.0 KW
Lift Motor DC 24V / 2.0 KW
Battery (2) 12V / 80 Ah
Battery Charger 24V / 12 amp
Raise Time w/ Load 5.9" / sec
Raise Time w/o Load 4" / sec
Lower Time w/ Load 2.95" / sec
Lower Time w/o Load 3.15" / sec
Travel Speed - Loaded (MPH) 2.79
Travel Speed - Unloaded (MPH) 3.4
Operation Time with Constant Use (hrs.) 3 to 4
Operation Time with Intermittent Use (hrs.) 8

Battery Information

Battery Depth 11
Battery Width 14
Battery Height 9
Battery Weight 84
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SNM3-43-AA
Product Name
Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow
UPC
691215114684
GTIN
00691215114684
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
67
Assembled Width(in.)
57
Assembled Height(in.)
63.25
Assembled Weight(lbs.)
1150
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
74
Package Width (in.)
60
Package Height (in.)
67
Package Weight (in.)
1121
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
84
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SNM3-43-AA

SNM3-43-AA

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency

Core Data

Assembled Weight: 1150 Assembled Size: 57"W x 67"L x 63.25"H Color: Black / Yellow
Total Ship Weight: 1121 Package 1 Size: 60"W x 74"D x 67"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Service Range (in.): 2 to 43-3/10
Fork Width/Length (in.): 4 x 42-1/8
Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID)
Overall Mast Height (in.): 62-3/4
Drive Motor: DC 24V / 1.0 KW
Lift Motor: DC 24V / 2.0 KW
Battery: (2) 12V / 80 Ah
Battery Charger: 24V / 12 amp
Raise Time w/ Load: 5.9" / sec
Raise Time w/o Load: 4" / sec
Lower Time w/ Load: 2.95" / sec
Lower Time w/o Load: 3.15" / sec
Travel Speed - Loaded (MPH): 2.79
Travel Speed - Unloaded (MPH): 3.4
Operation Time with Constant Use (hrs.): 3 to 4
Operation Time with Intermittent Use (hrs.): 8
