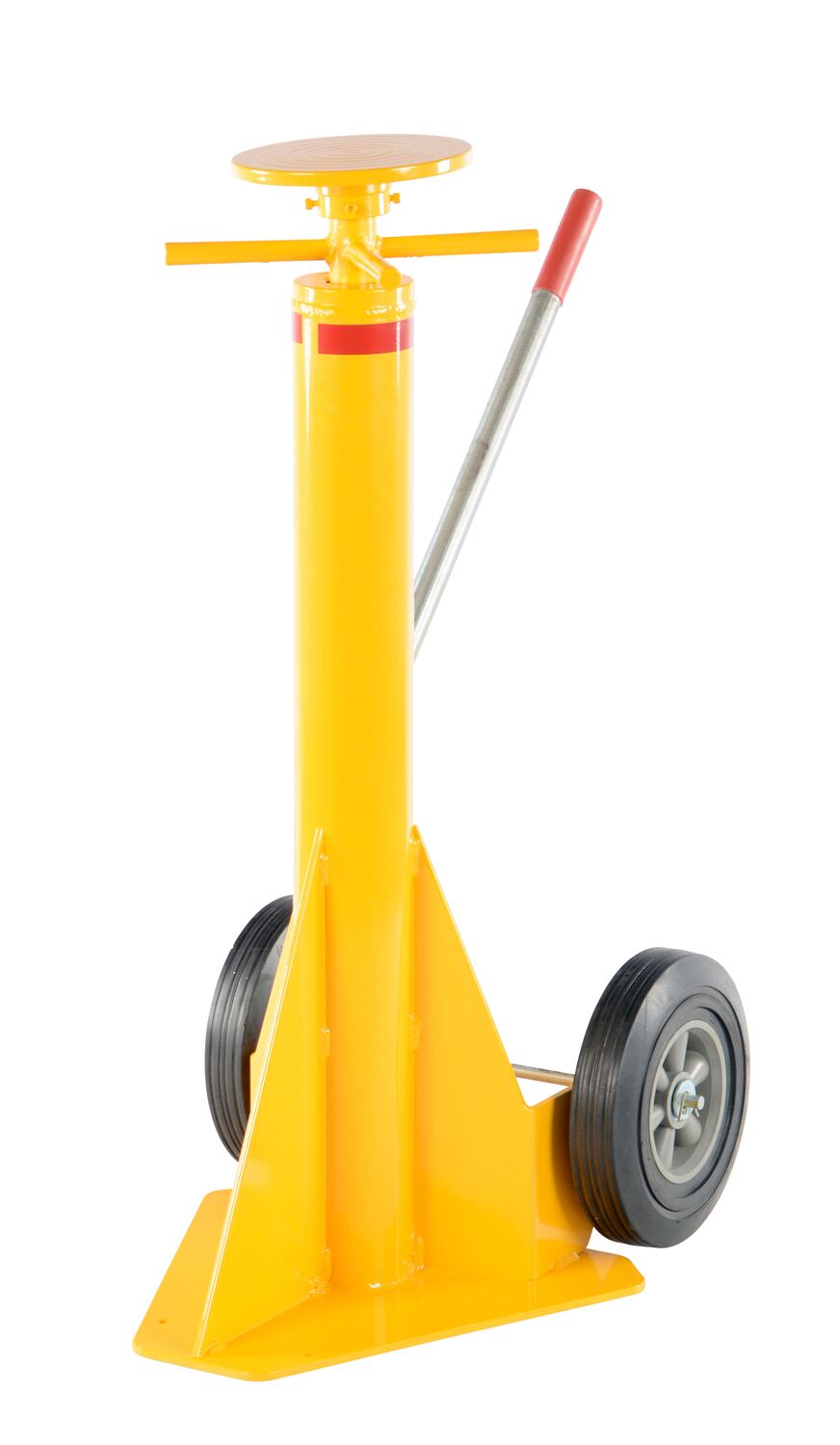

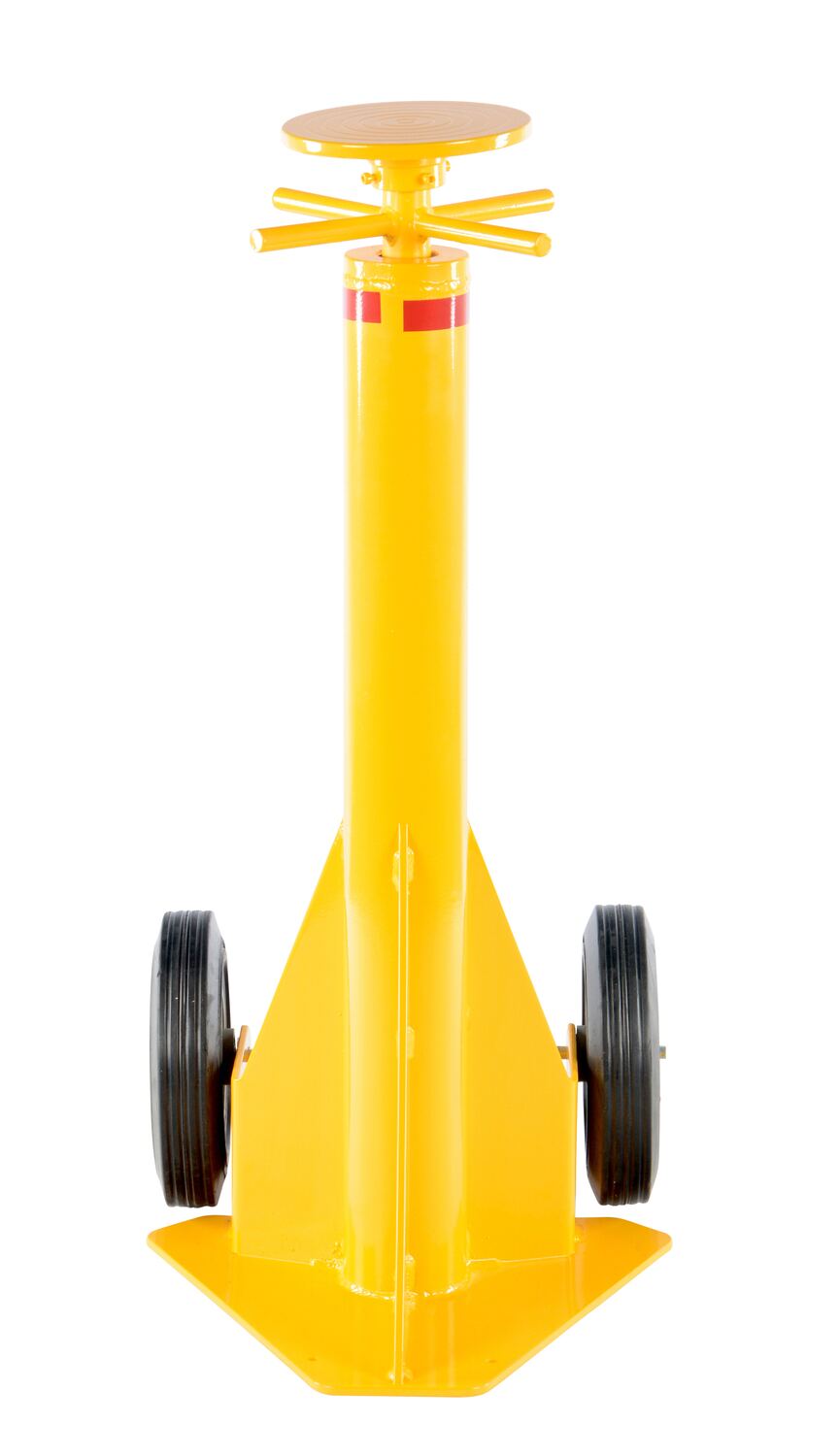

Steel Trailer Stabilizing Spin Top Jack 26-5/8 In. x 17-5/8 In. x 39-1/2 In. 100,000 Lb. Static Capacity Yellow

Trailer Jack Stand for Lifting, Leveling, and Supporting Heavy Loads, 100,000 lb. Capacity with 26-5/8 in. x 17-5/8 in. x 39-1/2 in.
Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish and a reflective collar for visibility at night are both included. Each jack meets OSHA regulations when used with wheel chocks. **The color of handles included with models may vary between red and black**.
Product Status
Available QuickShip
Key Features
  • Meets OSHA regulations when used with wheel chocks
  • Round top plate
  • Manual raising and lowering mechanism
  • Reflective collar for great visibility at night
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Trailer Stabilizing Jacks Use & Maintenance Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 100 lbs

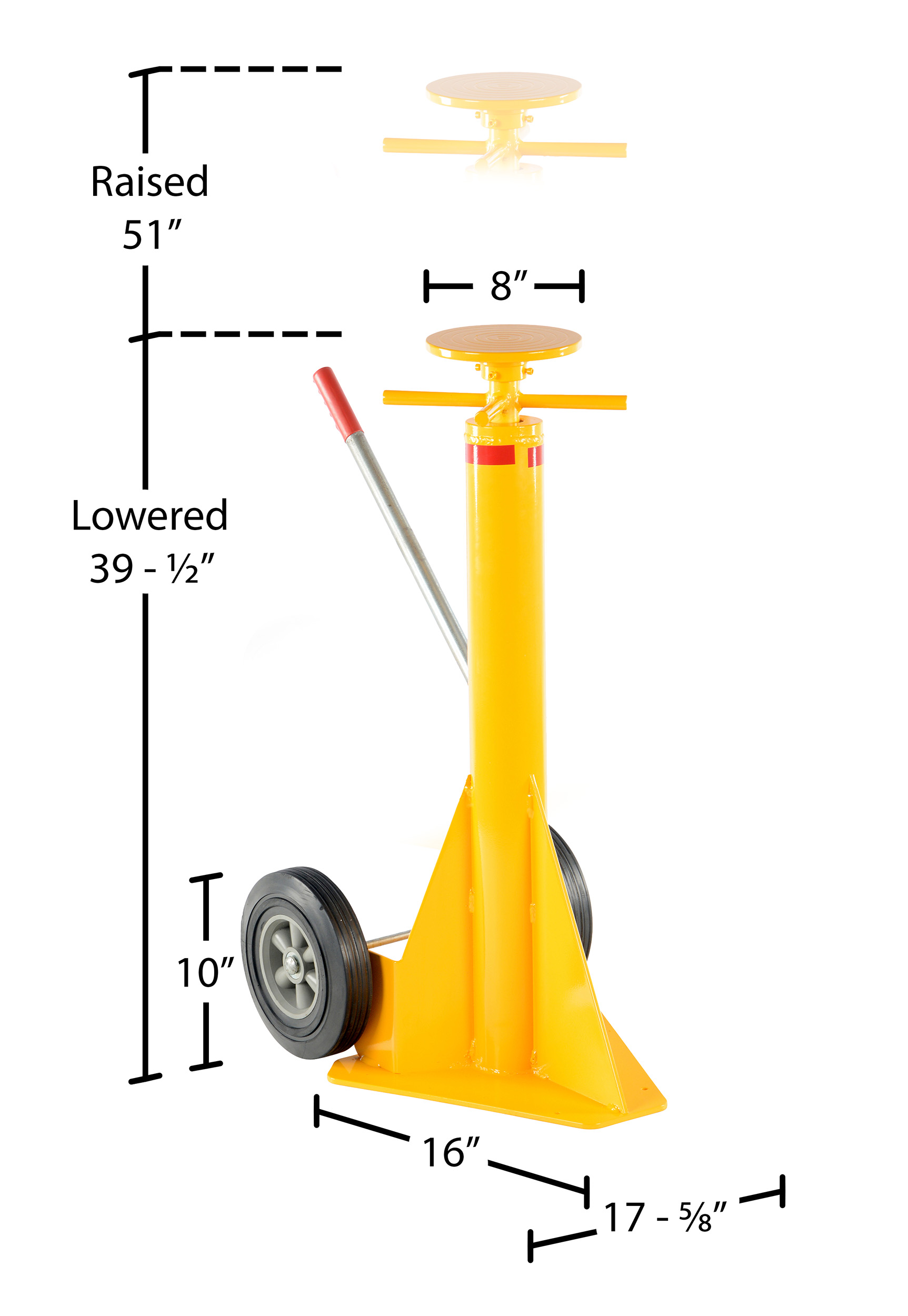

Assembled Size 17.625"W x 26.625"L x 39.5"H
Total Ship Weight 112 lbs
Package 1 Size 30"W x 36"D x 45"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 100,000
Uniform Lifting Capacity (lb.) 40,000
Lowered Height (in.) 39-1/2
Raised Height (in.) 51
Wheel Size (in.) 10
Wheel Type Hard Rubber
Top Cap Diameter (in.) 8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SP-TOP
Product Name
Steel Trailer Stabilizing Spin Top Jack 26-5/8 In. x 17-5/8 In. x 39-1/2 In. 100,000 Lb. Static Capacity Yellow
UPC
691215036948
GTIN
00691215036948
Taxonomy 1
Building Supplies
Taxonomy 2
Industrial Jacks
Taxonomy 3
Trailer Stabilizing Jacks
Assembled Depth (in.)
26.625
Assembled Width(in.)
17.625
Assembled Height(in.)
39.5
Assembled Weight(lbs.)
100
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
36
Package Width (in.)
30
Package Height (in.)
45
Package Weight (in.)
112
Subclass
3
Freight Class
250
NMFC Code
Tools, or Parts Named
NMFC Number
186600
LTL Freight
LTL Palletized
UNSPSC
24101612
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
