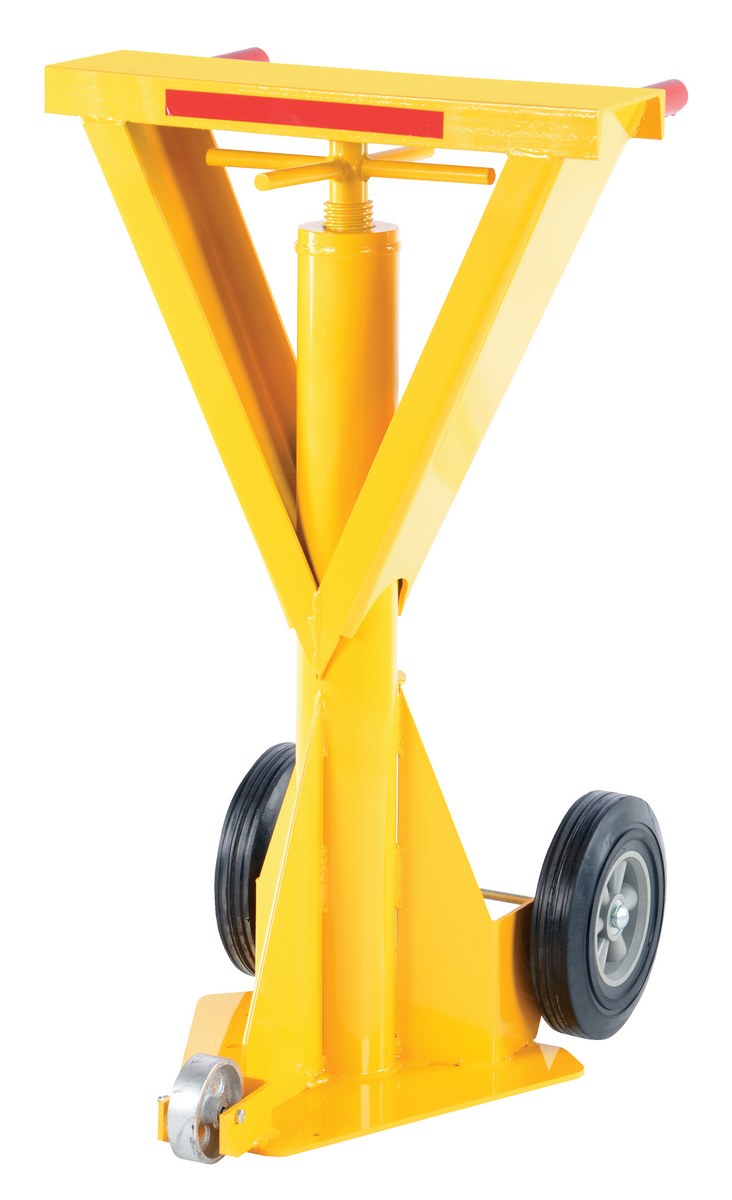

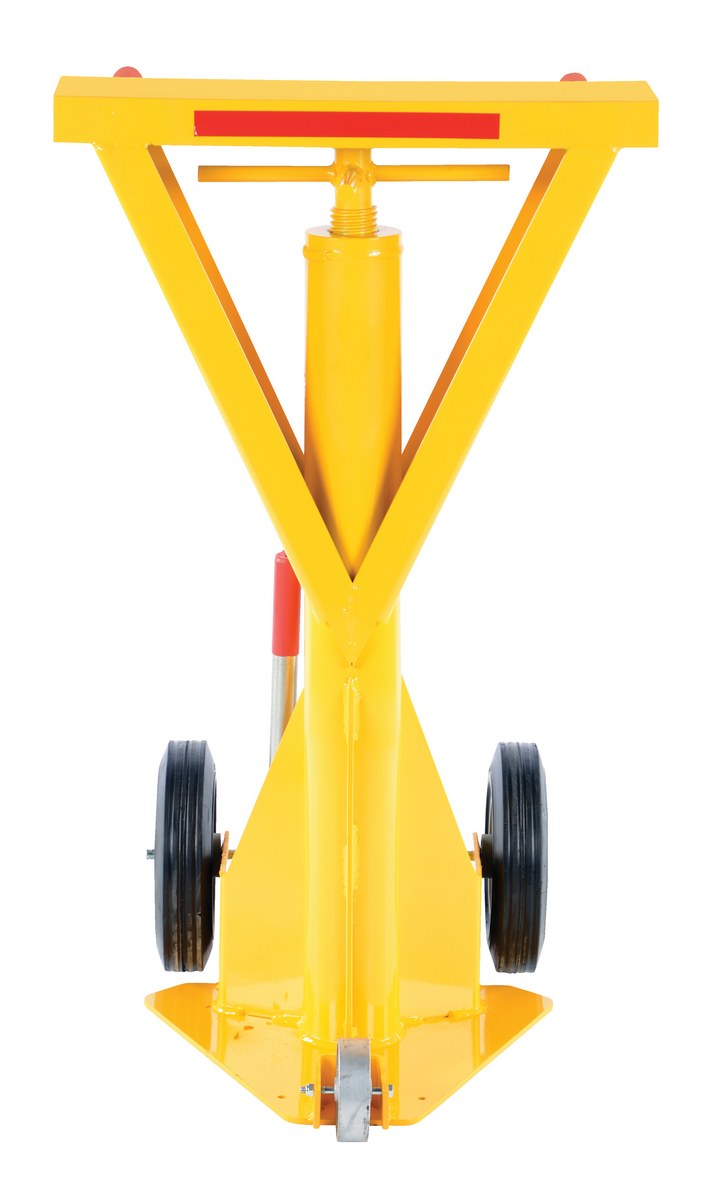

Steel Trailer Stabilizing Spin Top Beam Jack 26-11/16 In. x 23-3/4 In. x 40 In. 100,000 Lb. Static Capacity Yellow

Trailer Jack Stand for Lifting, Leveling, and Supporting Heavy Loads, 100,000 lb. Capacity with 26-11/16 in. x 23-3/4 in. x 40 in.
Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.
Product Status
Available QuickShip
Key Features
  • Meets OSHA regulations when used with wheel chocks
  • Manual raising and lowering mechanism
  • Rectangle top plate
  • Reflective collar for great visibility at night
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Trailer Stabilizing Jacks Use & Maintenance Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 147 lbs
Assembled Size 23.75"W x 26.6875"L x 40"H
Total Ship Weight 200 lbs
Package 1 Size 40"W x 48"D x 45"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 100,000
Uniform Lifting Capacity (lb.) 40,000
Lowered Height (in.) 40
Raised Height (in.) 51
Wheel Quantity/Diameter/Width (in.) (2) 10 x 2
Wheel Type Hard Rubber
Front Wheel Quantity/Diameter/Width (in.) (1) 4 x 1-1/2
Front Wheel Type Steel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SP-TOP-BEAM
Product Name
Steel Trailer Stabilizing Spin Top Beam Jack 26-11/16 In. x 23-3/4 In. x 40 In. 100,000 Lb. Static Capacity Yellow
UPC
691215078917
GTIN
00691215078917
Taxonomy 1
Building Supplies
Taxonomy 2
Industrial Jacks
Taxonomy 3
Trailer Stabilizing Jacks
Assembled Depth (in.)
26.6875
Assembled Width(in.)
23.75
Assembled Height(in.)
40
Assembled Weight(lbs.)
147
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
45
Package Weight (in.)
200
Subclass
4
Freight Class
175
NMFC Code
Jacks or Jackscrews, lifting, NOI, hydraulic, mechanical or pneumatic, wheeled or not wheeled
NMFC Number
186600
LTL Freight
LTL Palletized
UNSPSC
24101612
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SP-TOP-BEAM

SP-TOP-BEAM

Steel Trailer Stabilizing Spin Top Beam Jack 26-11/16 In. x 23-3/4 In. x 40 In. 100,000 Lb. Static Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.

  • Meets OSHA regulations when used with wheel chocks
  • Manual raising and lowering mechanism
  • Rectangle top plate
  • Reflective collar for great visibility at night

Core Data

Assembled Weight: 147 Assembled Size: 23.75"W x 26.6875"L x 40"H Color: Yellow
Total Ship Weight: 200 Package 1 Size: 40"W x 48"D x 45"H Freight: LTL Palletized

Specifications

Uniform Static Capacity (lb.): 100,000
Uniform Lifting Capacity (lb.): 40,000
Lowered Height (in.): 40
Raised Height (in.): 51
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2
Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/2
Front Wheel Type: Steel
