Product Data Sheet

  Print to PDF
  All Products   Protective Barriers   Safety Railing   Self-Closing Steel Gates (Adjustable Width) SPG-26-G
Product Image

Visual Reference

SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G
SPG-26-G

Galvanized Steel Self-Closing Gate 16 In. to 26 In. Opening Gray

Galvanized Safety Lifting Gate for Controlled Access and Fall Protection in Work Areas, 16 in.
Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Galvanized finish. (Railing and base not included.).
Product Status
Available QuickShip
Key Features
  • Spring-loaded safety gate protects openings in railings
  • Perfect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements
Quick Actions

Product Resources

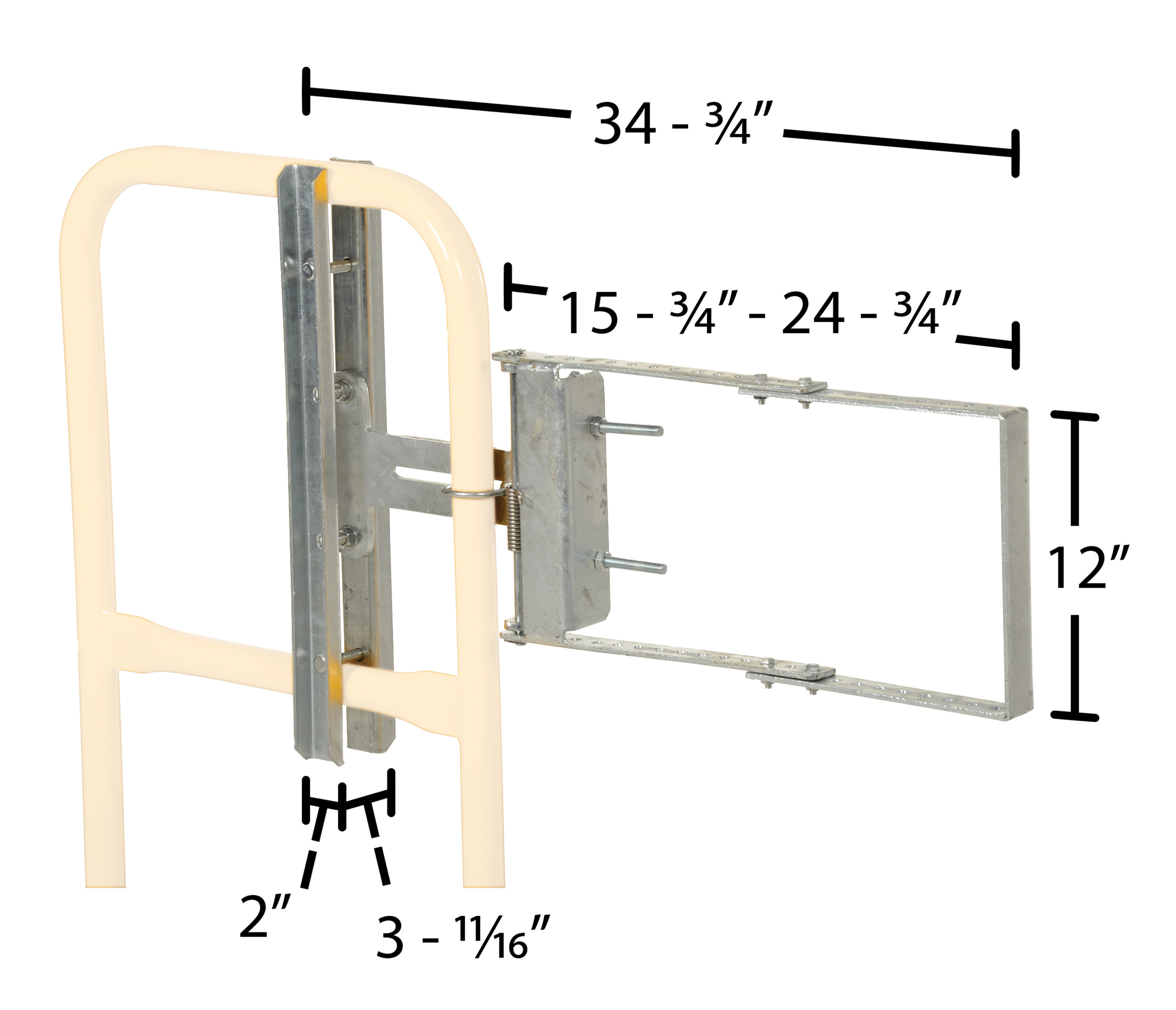

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Self-Closing Steel Gates   90 Days Warranty
Product Data

Core Data

Assembled Weight 30 lbs
Assembled Size 3.6875"W x 34.75"L x 24"H
Total Ship Weight 30 lbs
Package 1 Size 14"W x 28"D x 4"H
Color / Finish Gray
Freight Type Parcel

Additional Attributes

Minimum Opening (in.) 16
Maximum Opening Width (in.) 26
Mount to Rail, Maximum Diameter (in.) 2
Mount Rail Spacing Center to Center (in.) 10 to 21
Gate Height (in.) 12
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SPG-26-G
Product Name
Galvanized Steel Self-Closing Gate 16 In. to 26 In. Opening Gray
UPC
691215062619
GTIN
00691215062619
Taxonomy 1
Building Supplies
Taxonomy 2
Fencing
Taxonomy 3
Metal
Taxonomy 4
Gates
Assembled Depth (in.)
34.75
Assembled Width(in.)
3.6875
Assembled Height(in.)
24
Assembled Weight(lbs.)
30
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
28
Package Width (in.)
14
Package Height (in.)
4
Package Weight (in.)
30
Subclass
8
Freight Class
65
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
Parcel
UNSPSC
30172000
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SPG-26-G

SPG-26-G

Galvanized Steel Self-Closing Gate 16 In. to 26 In. Opening Gray

Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Galvanized finish. (Railing and base not included.).

  • Spring-loaded safety gate protects openings in railings
  • Perfect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements

Core Data

Assembled Weight: 30 Assembled Size: 3.6875"W x 34.75"L x 24"H Color: Gray
Total Ship Weight: 30 Package 1 Size: 14"W x 28"D x 4"H Freight: Parcel

Specifications

Minimum Opening (in.): 16
Maximum Opening Width (in.): 26
Mount to Rail, Maximum Diameter (in.): 2
Mount Rail Spacing Center to Center (in.): 10 to 21
Gate Height (in.): 12
