  All Products   Industrial Ladders   Step Stools   Step Poly Nestable SPN-3-YL-HR-BR-PO
Product Image

Visual Reference

SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO
SPN-3-YL-HR-BR-PO

Polyethylene Nestable with Hand and Back Rails Casters 3 Step 500 Lb. Capacity Yellow

Poly Step Stool for Safe Low-Level Access in Warehouses and Work Areas, 500 lb. Capacity, Yellow Finish – Model SPN-3-YL-HR-BR-PO
A poly step stool is a great asset for on the go or in a permanent setting. A lightweight design with front and side cutout handles, allow the user to easily transfer the stool to a preferred spot. The taped step surfaces ensure safe footing while traversing up and down the steps. Includes bolt on back rail, handrail, and casters. The hand rails height allows the unit to be pushed or pulled into the desired position, minimizing bending and twisting by the user. Steps can be nested to minimize footprint when not in use.
Product Status
Available QuickShip
Key Features
  • Anti-slip step surface
  • Low density polyethylene construction
  • Easily maneuvered with attached casters
  • Colored yellow for added safety and awareness
Quick Actions

Product Resources

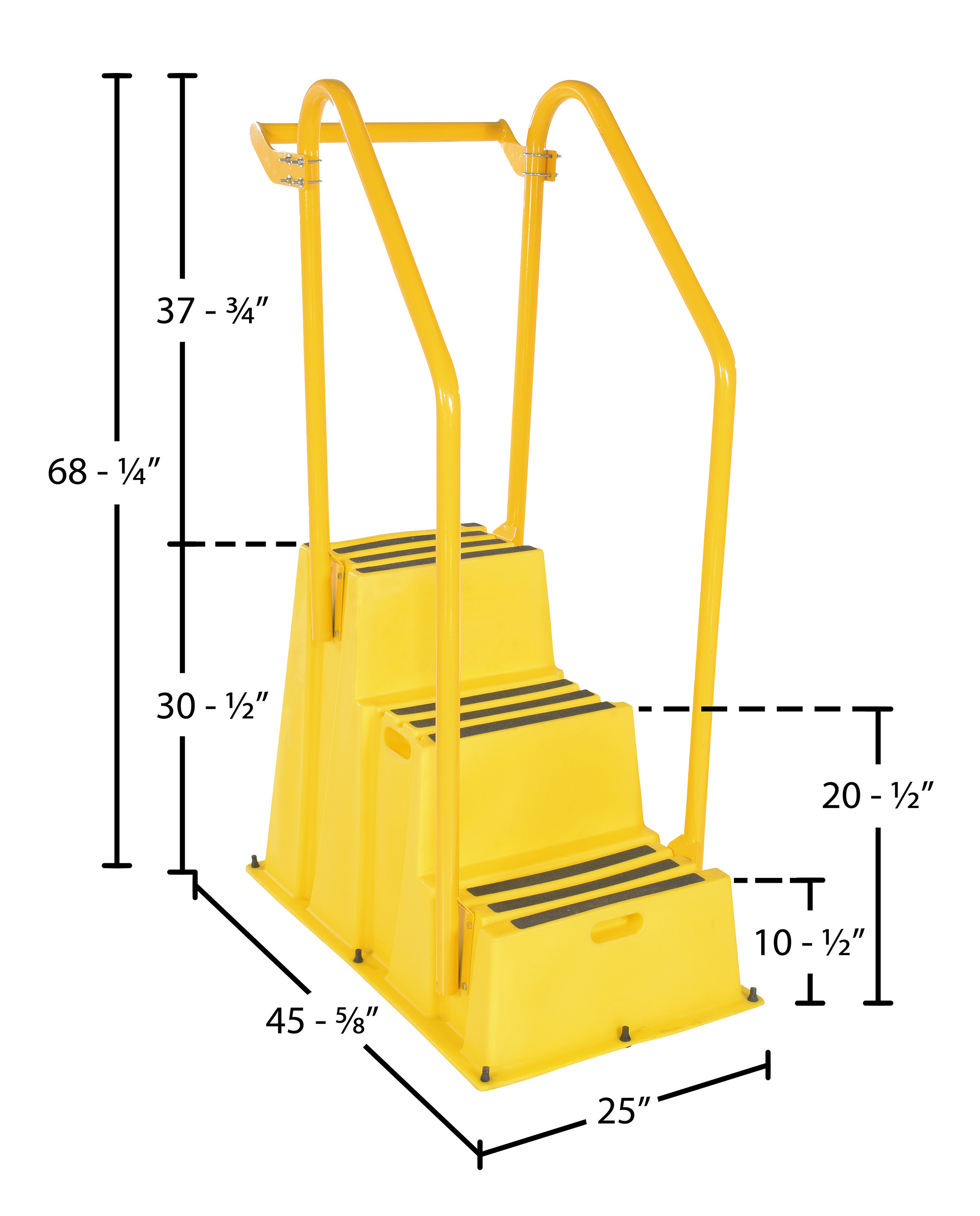

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 88 lbs
Assembled Size 25"W x 45.625"L x 68.25"H
Total Ship Weight 126 lbs
Package 1 Size 40"W x 64"D x 36"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Duty Rating (lbs) 500
Number of Steps 3
Distance Between Rung/Steps (in) 10-1/2
Step Depth (in) 10-7/8
Top Step Height From Ground (in) 30-1/2
ANSI Approved No
ANSI Ladder Rating Not Rated
CSA Certified No
OSHA Approved No
Handrail Included Yes
Handrail Height (in) 37-3/4
Spring Loaded No
Number of Casters / Wheels 2
Caster / Wheel Material Hard Rubber
Wheel Width (in) 1
Wheel Diameter (in) 3
Overall Width (in.) 25
Overall Length (in.) 45-5/8
Overall Height (in.) 68-1/4
First Step Height (in.) 10-1/2
Second Step Height (in.) 20-1/2
First Step Width (in.) 20-3/16
Second Step Width (in.) 18-7/16
Third Step Width (in.) 16-11/16
Material Polyethylene
Handrail, Back Rail and Caster Attachment Method Bolt-On
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SPN-3-YL-HR-BR-PO
Product Name
Polyethylene Nestable with Hand and Back Rails Casters 3 Step 500 Lb. Capacity Yellow
UPC
691215322065
GTIN
00691215322065
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Portable Rolling
Assembled Depth (in.)
45.625
Assembled Width(in.)
25
Assembled Height(in.)
68.25
Assembled Weight(lbs.)
88
Color/Finish
Yellow
Material
Polyethylene
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
36
Package Weight (in.)
126
Subclass
3
Freight Class
250
NMFC Code
Step Stools Plastic
NMFC Number
79300
LTL Freight
LTL Palletized
UNSPSC
30191505
HTSUS Number
3926.90.9989
USMCA HS
3926.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SPN-3-YL-HR-BR-PO

SPN-3-YL-HR-BR-PO

Polyethylene Nestable with Hand and Back Rails Casters 3 Step 500 Lb. Capacity Yellow

A poly step stool is a great asset for on the go or in a permanent setting. A lightweight design with front and side cutout handles, allow the user to easily transfer the stool to a preferred spot. The taped step surfaces ensure safe footing while traversing up and down the steps. Includes bolt on back rail, handrail, and casters. The hand rails height allows the unit to be pushed or pulled into the desired position, minimizing bending and twisting by the user. Steps can be nested to minimize footprint when not in use.

  • Anti-slip step surface
  • Low density polyethylene construction
  • Easily maneuvered with attached casters
  • Colored yellow for added safety and awareness

Core Data

Assembled Weight: 88 Assembled Size: 25"W x 45.625"L x 68.25"H Color: Yellow
Total Ship Weight: 126 Package 1 Size: 40"W x 64"D x 36"H Freight: LTL Palletized

Specifications

Duty Rating (lbs): 500
Number of Steps: 3
Distance Between Rung/Steps (in): 10-1/2
Step Depth (in): 10-7/8
Top Step Height From Ground (in): 30-1/2
ANSI Approved: No
ANSI Ladder Rating: Not Rated
CSA Certified: No
OSHA Approved: No
Handrail Included: Yes
Handrail Height (in): 37-3/4
Spring Loaded: No
Number of Casters / Wheels: 2
Caster / Wheel Material: Hard Rubber
Wheel Width (in): 1
Wheel Diameter (in): 3
Overall Width (in.): 25
Overall Length (in.): 45-5/8
Overall Height (in.): 68-1/4
First Step Height (in.): 10-1/2
Second Step Height (in.): 20-1/2
First Step Width (in.): 20-3/16
Second Step Width (in.): 18-7/16
Third Step Width (in.): 16-11/16
Material: Polyethylene
Handrail, Back Rail and Caster Attachment Method: Bolt-On
