  All Products   Protective Barriers   Safety Railing   Square Safety Handrails SQ-108-TB
Product Image

Visual Reference

SQ-108-TB
SQ-108-TB
SQ-108-TB
SQ-108-TB
SQ-108-TB
SQ-108-TB

Steel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. Yellow

Steel Square Safety Handrail with Toeboard for Warehouse Traffic Control and Collision Protection, 110-1/2 in. x 4 in. x 42 in.
Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.
Product Status
Available
Key Features
  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability
Quick Actions

Product Resources

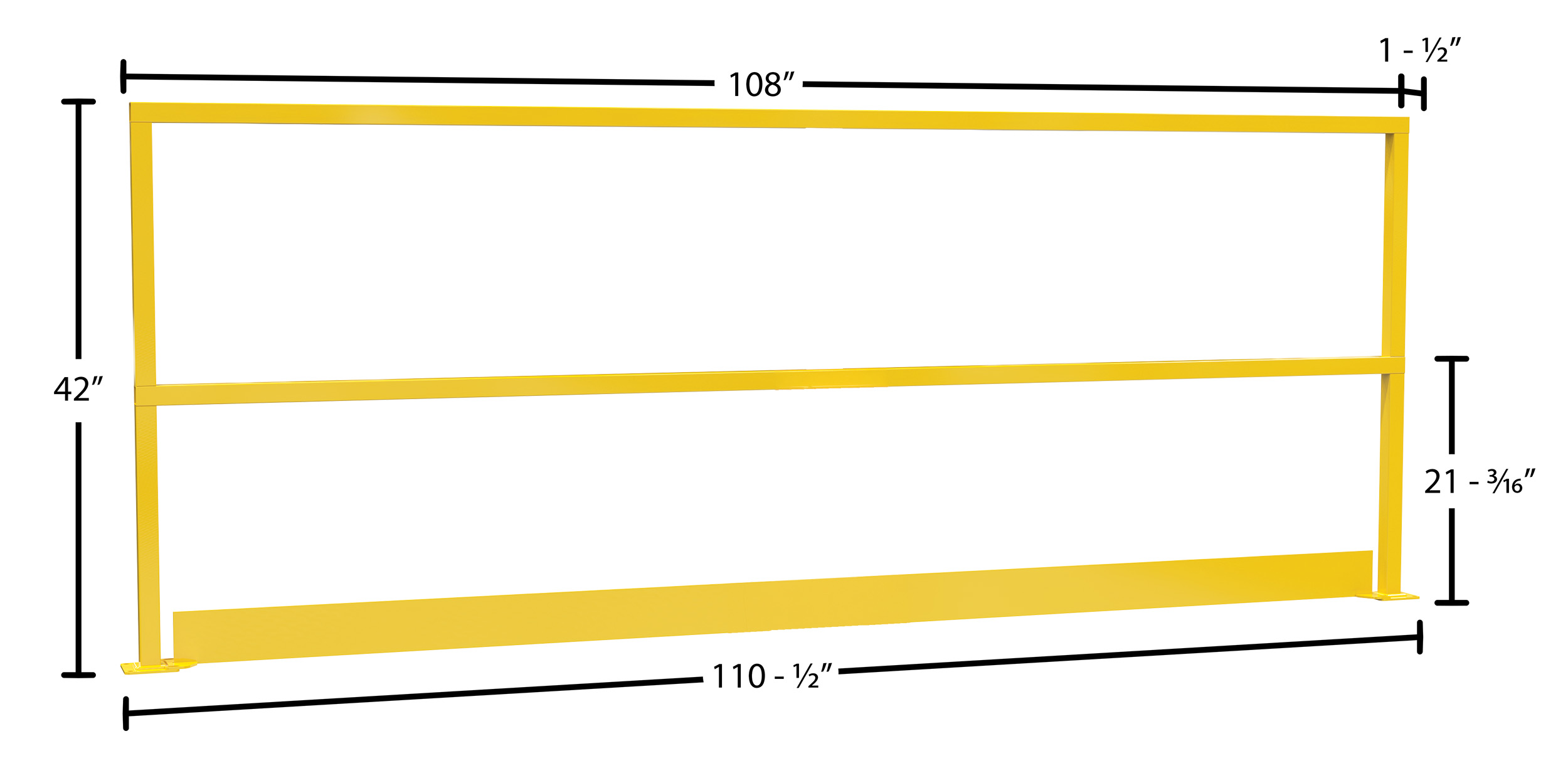

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 70 lbs
Assembled Size 4"W x 110.5"L x 42"H
Total Ship Weight 106 lbs
Package 1 Size 44"W x 109"D x 10"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Square Tube O.D.(in.) 1-1/2
Mid-Rail Height (in.) 21-3/16
Usable Length (in.) 108
Section Style Rigid with Toeboard
Bolt Holes (qty.) 12
Toeboard Height (in.) 4
OSHA 1910.23
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SQ-108-TB
Product Name
Steel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. Yellow
UPC
691215062695
GTIN
00691215062695
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Safety Barricades
Assembled Depth (in.)
110.5
Assembled Width(in.)
4
Assembled Height(in.)
42
Assembled Weight(lbs.)
70
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
109
Package Width (in.)
44
Package Height (in.)
10
Package Weight (in.)
106
Subclass
2
Freight Class
300
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
LTL Palletized
UNSPSC
46151505
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SQ-108-TB

SQ-108-TB

Steel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Core Data

Assembled Weight: 70 Assembled Size: 4"W x 110.5"L x 42"H Color: Yellow
Total Ship Weight: 106 Package 1 Size: 44"W x 109"D x 10"H Freight: LTL Palletized

Specifications

Square Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16
Usable Length (in.): 108
Section Style: Rigid with Toeboard
Bolt Holes (qty.): 12
Toeboard Height (in.): 4
OSHA: 1910.23
