Steel Wall Mounted Material Rack 18-5/16 In. x 2-3/16 In. x 60 In. 1,000 Lb. Capacity Silver

Economical Material Racks for Organized Warehouse Storage and Material Support, 1,000 lb. Capacity with 18-5/16 in. x 2-3/16 in. x 60 in.
This economical material rack is a wall mounted unit with dual supports. It comes with three (3) long arms and four (4) short arms. The bright zinc plating provides a long term, attractive appearance.
Product Status
Available QuickShip
Key Features
  • Wall-mounted horizontal rack
  • Back sloping arm limits roll offs
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance
Quick Actions

Product Resources

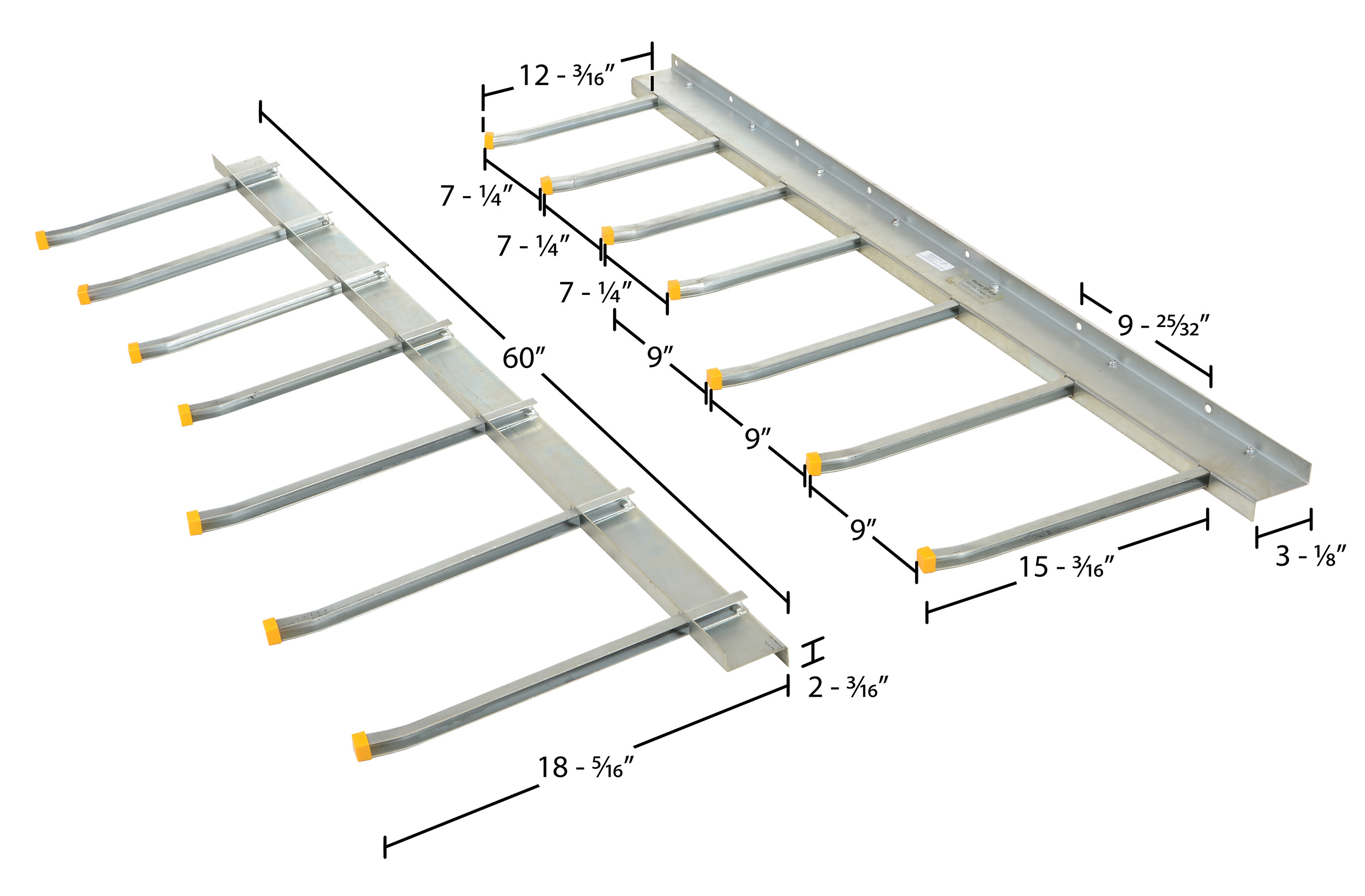

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Economical Material Racks   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 24 lbs
Assembled Size 2.1875"W x 18.3125"L x 60"H
Total Ship Weight 24 lbs
Package 1 Size 5"W x 63"D x 4"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Includes Assembly Hardware
Arms (qty.) 14
Arm Design Straight w/ slight curve
Bays (qty.) 7
Design Wall Mount
Long Arm Clearance Height (in.) 9
Long Arm Quantity/Length (in.) (3) 18
Short Arm Quantity/Length (in.) (4) 15
Distance Between Top 3 Bays (in.) 7-1/4
Distance Between Bottom 3 Bays (in.) 9
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SR-WM
Product Name
Steel Wall Mounted Material Rack 18-5/16 In. x 2-3/16 In. x 60 In. 1,000 Lb. Capacity Silver
UPC
691215037136
GTIN
00691215037136
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Bar Racks
Assembled Depth (in.)
18.3125
Assembled Width(in.)
2.1875
Assembled Height(in.)
60
Assembled Weight(lbs.)
24
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
63
Package Width (in.)
5
Package Height (in.)
4
Package Weight (in.)
24
Subclass
6
Freight Class
65
NMFC Code
Racks Pallet or Warehouse metal
NMFC Number
164340
LTL Freight
Parcel
UNSPSC
24102004
HTSUS Number
9403.20.0090
USMCA HS
9403.20
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SR-WM

SR-WM

Steel Wall Mounted Material Rack 18-5/16 In. x 2-3/16 In. x 60 In. 1,000 Lb. Capacity Silver

This economical material rack is a wall mounted unit with dual supports. It comes with three (3) long arms and four (4) short arms. The bright zinc plating provides a long term, attractive appearance.

  • Wall-mounted horizontal rack
  • Back sloping arm limits roll offs
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance

Core Data

Assembled Weight: 24 Assembled Size: 2.1875"W x 18.3125"L x 60"H Color: Silver
Total Ship Weight: 24 Package 1 Size: 5"W x 63"D x 4"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Includes: Assembly Hardware
Arms (qty.): 14
Arm Design: Straight w/ slight curve
Bays (qty.): 7
Design: Wall Mount
Long Arm Clearance Height (in.): 9
Long Arm Quantity/Length (in.): (3) 18
Short Arm Quantity/Length (in.): (4) 15
Distance Between Top 3 Bays (in.): 7-1/4
Distance Between Bottom 3 Bays (in.): 9
