Product Data Sheet

  Print to PDF
  All Products   Ergonomic Solutions   Self-Elevating Tables   Spring Scissor Tables SST-45-ST-ACC-4-CI
Product Image

Visual Reference

SST-45-ST-ACC-4-CI
SST-45-ST-ACC-4-CI
SST-45-ST-ACC-4-CI

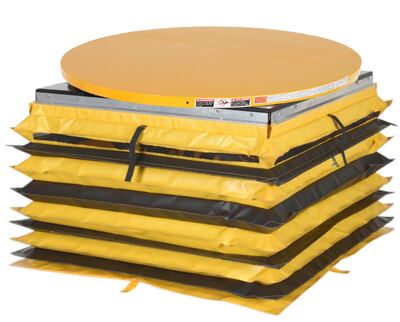

Steel Solid Manual Carousel Top Spring Scissor Table With Vinyl Field Installed Accordion Skirt 4,500 Lb. Capacity Yellow

Manual Round Spring Table for Ergonomic Load Lifting and Workstation Positioning, 4,500 lb. Capacity, Yellow Finish – Model SST-45-ST-ACC-4-CI
The spring scissor table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. The scissor mechanism raises the unit to the desired height, while the round top can be manually maneuvered for improved packaging and handling capabilities.
Product Status
Available Non-Returnable
Key Features
  • Accordion skirt diminishes pinch point risks
  • Internal spring for lifting support
  • 360 degree rotation
  • Customer installed accordion skirt
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   "SST-45 Self-Leveling Scissor Table Assembly, Use, and Maintenance Manual"   1 Year Warranty
Product Data

Core Data

Assembled Weight 449 lbs
Assembled Size 43.625"W x 43.625"L x 27.75"H
Total Ship Weight 474 lbs
Package 1 Size 44"W x 48"D x 41"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400 to 4,500
Platform Diameter (in.) 43-5/8
Base Width (in.) 36
Base Length (in.) 36-3/4
Service Range (in.) 9 to 27-3/4
Rotation Degree 360
Fork Pocket Width (in.) 6-3/4
Fork Pocket Height (in.) 1-1/2
Fork Pocket Center (in.) 18
Style Solid Top
Skirt Attachment Method Customer Installed - Velcro Strips and Straps
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SST-45-ST-ACC-4-CI
Product Name
Steel Solid Manual Carousel Top Spring Scissor Table With Vinyl Field Installed Accordion Skirt 4,500 Lb. Capacity Yellow
UPC
691215378475
GTIN
00691215378475
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Scissor Lift Table
Taxonomy 5
Manual
Assembled Depth (in.)
43.625
Assembled Width(in.)
43.625
Assembled Height(in.)
27.75
Assembled Weight(lbs.)
449
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
44
Package Height (in.)
41
Package Weight (in.)
474
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101617
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
NO
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SST-45-ST-ACC-4-CI

SST-45-ST-ACC-4-CI

Steel Solid Manual Carousel Top Spring Scissor Table With Vinyl Field Installed Accordion Skirt 4,500 Lb. Capacity Yellow

The spring scissor table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. The scissor mechanism raises the unit to the desired height, while the round top can be manually maneuvered for improved packaging and handling capabilities.

  • Accordion skirt diminishes pinch point risks
  • Internal spring for lifting support
  • 360 degree rotation
  • Customer installed accordion skirt

Core Data

Assembled Weight: 449 Assembled Size: 43.625"W x 43.625"L x 27.75"H Color: Yellow
Total Ship Weight: 474 Package 1 Size: 44"W x 48"D x 41"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400 to 4,500
Platform Diameter (in.): 43-5/8
Base Width (in.): 36
Base Length (in.): 36-3/4
Service Range (in.): 9 to 27-3/4
Rotation Degree: 360
Fork Pocket Width (in.): 6-3/4
Fork Pocket Height (in.): 1-1/2
Fork Pocket Center (in.): 18
Style: Solid Top
Skirt Attachment Method: Customer Installed - Velcro Strips and Straps
