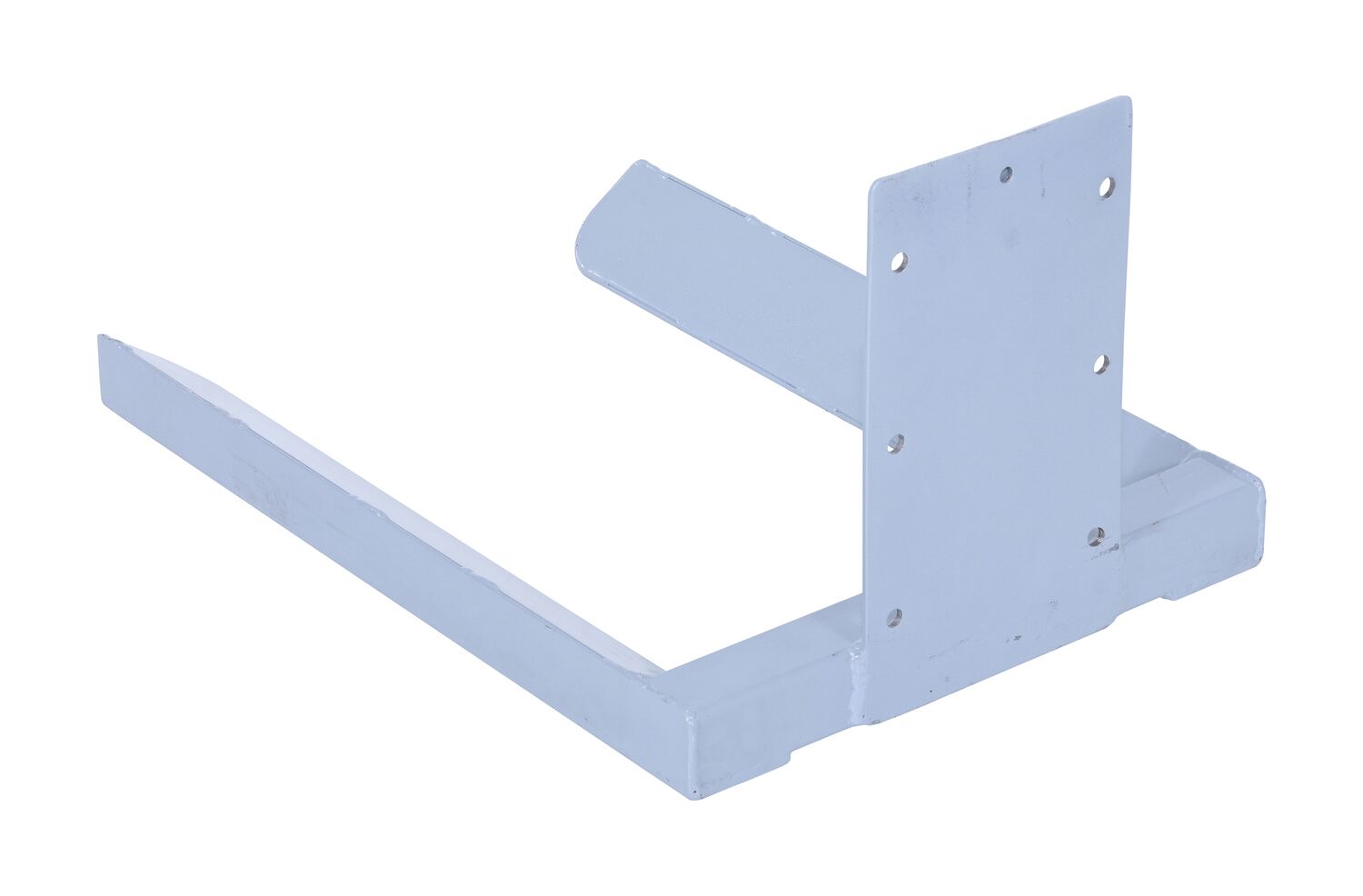

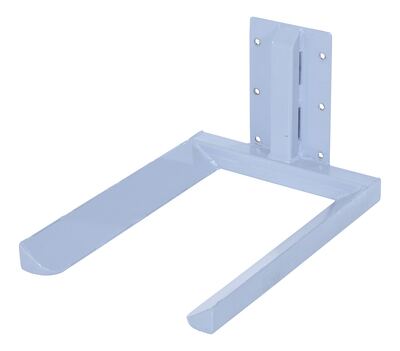

Steel Counter Balanced Power Lift Fixed Roll Fork, 20 " Fork Attachment 600 Lb. Capacity Gray

Stacker Attachment for Moving Loads Through Warehouses and Production Areas, 600 lb. Capacity

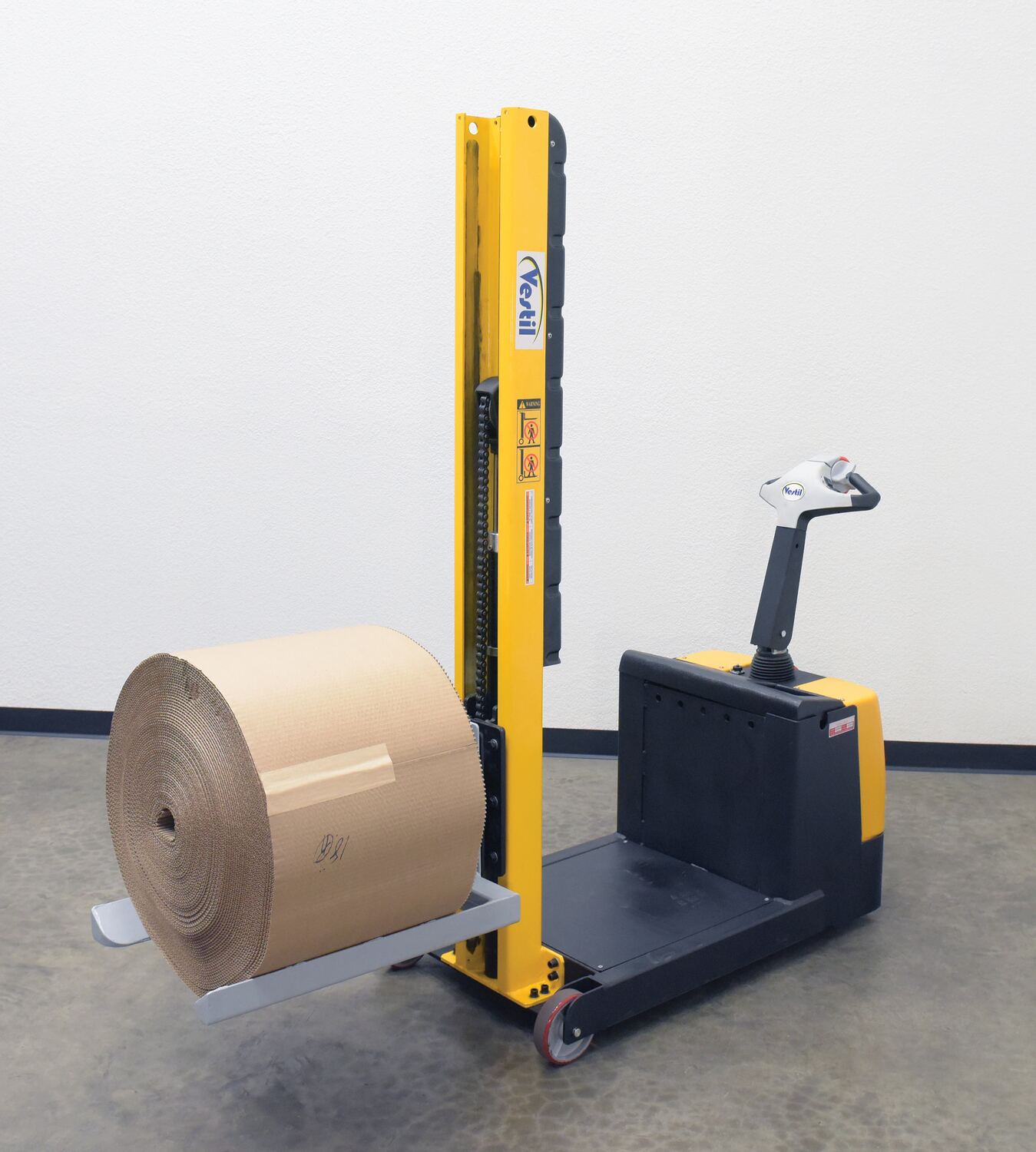

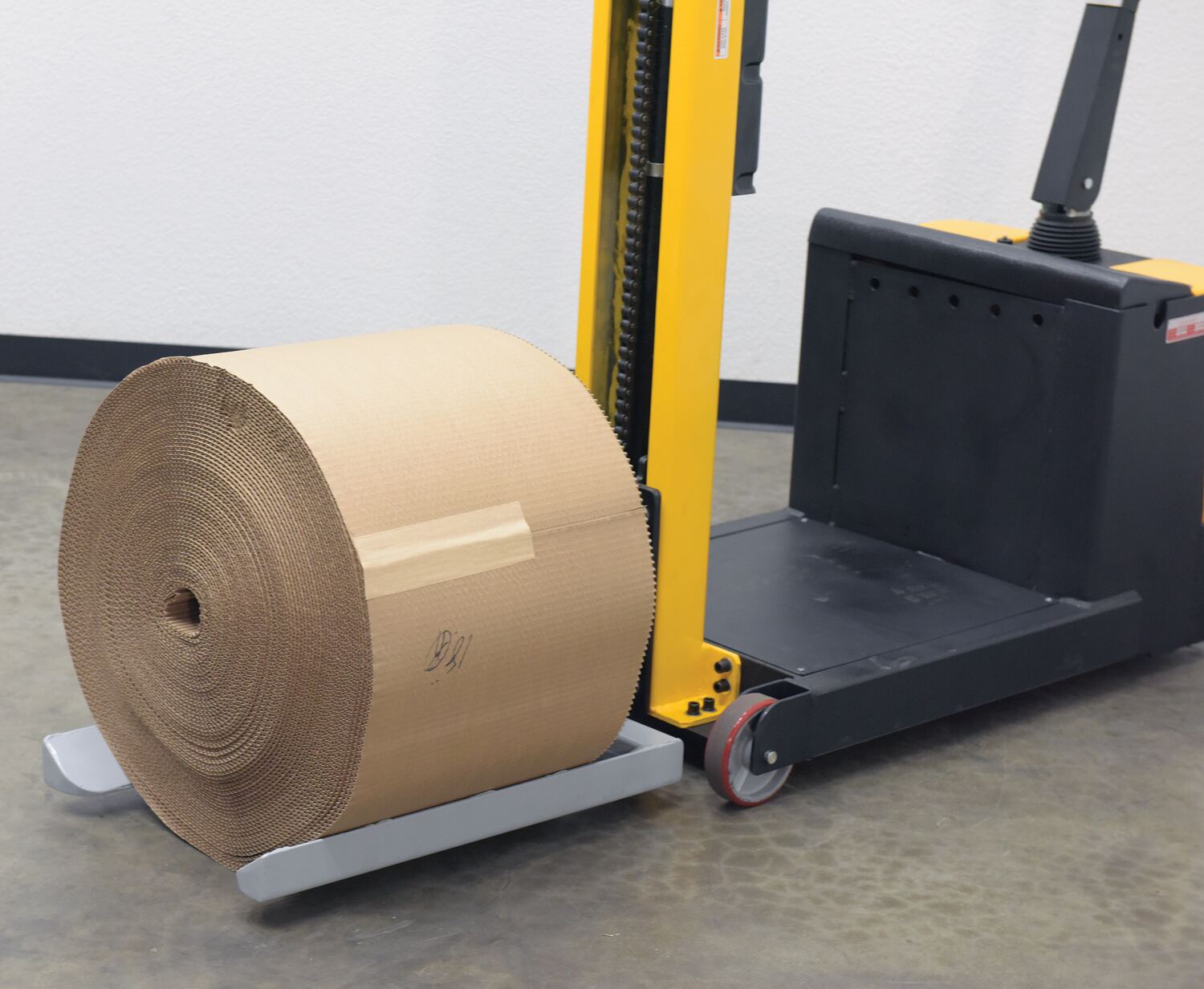

Large rolls can be difficult to maneuver and lift, but with the roll lifter stacker attachment that chore just became a joy! The forks on this attachment are fixed, so there is no hassle of adjusting the fork span before or between loads. With a unique design, the roll sits in a cradle like support system which keeps the roll secure during transport.
Product Status
Available
Key Features
  • Powder coated gray

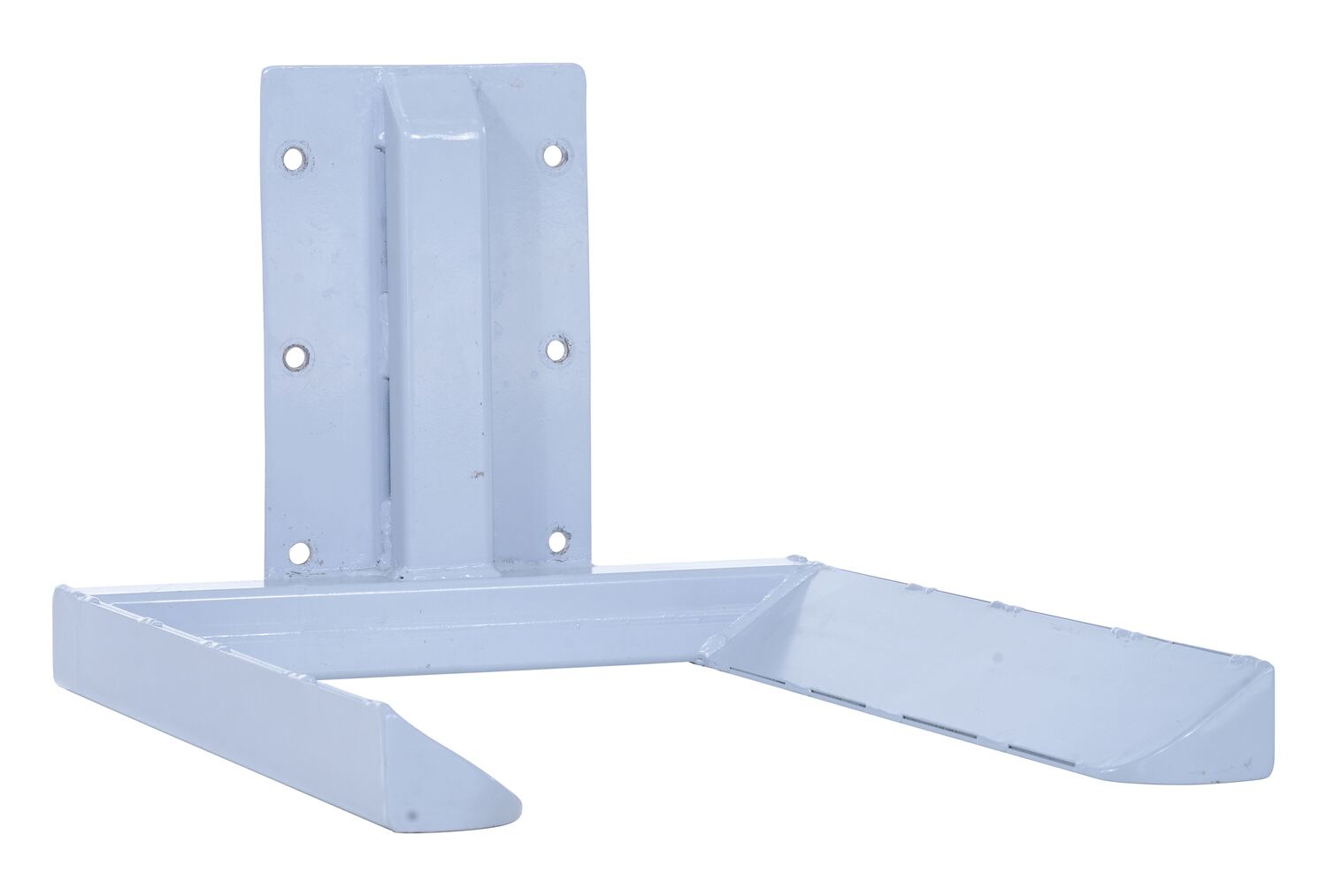

  • Concave design

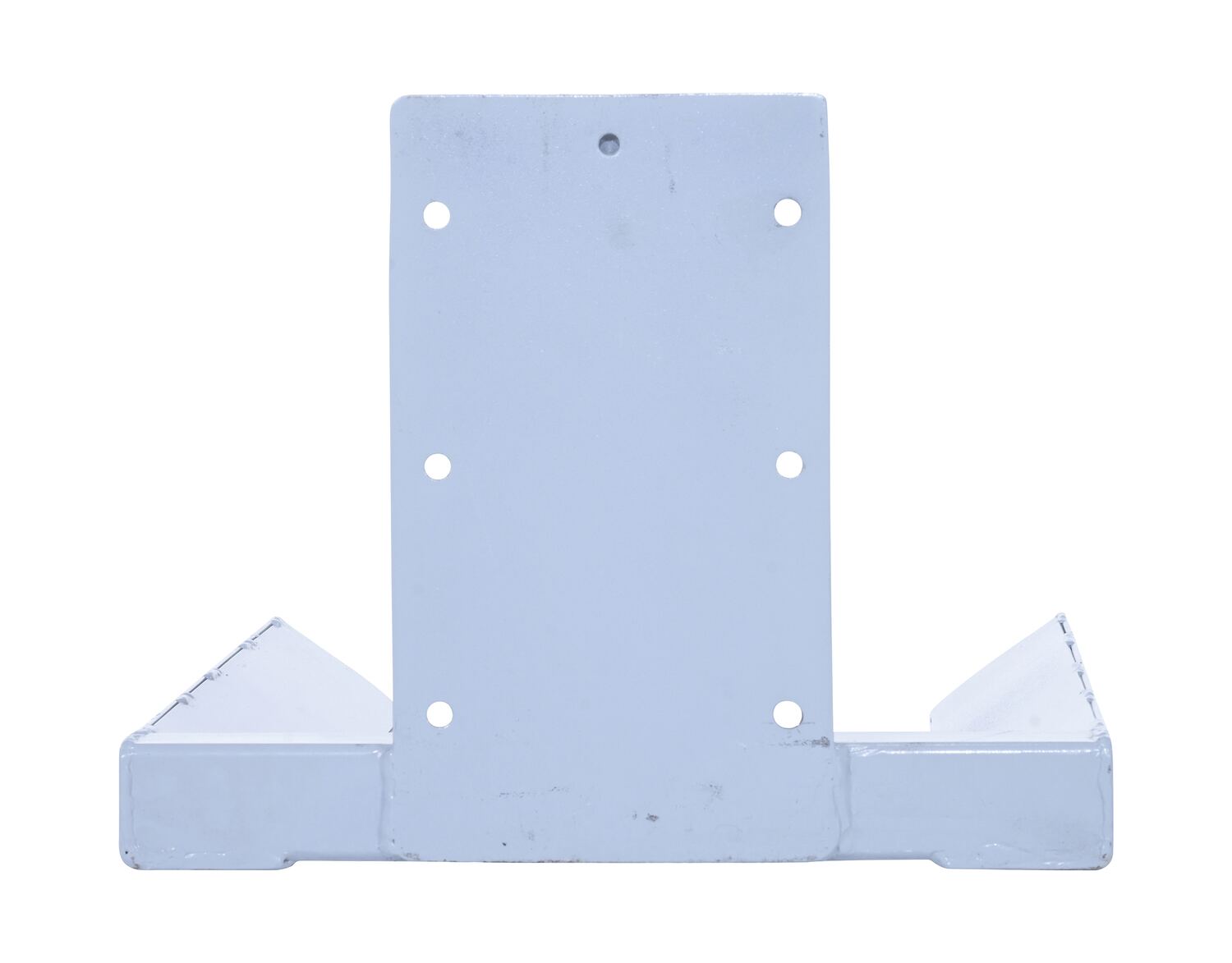

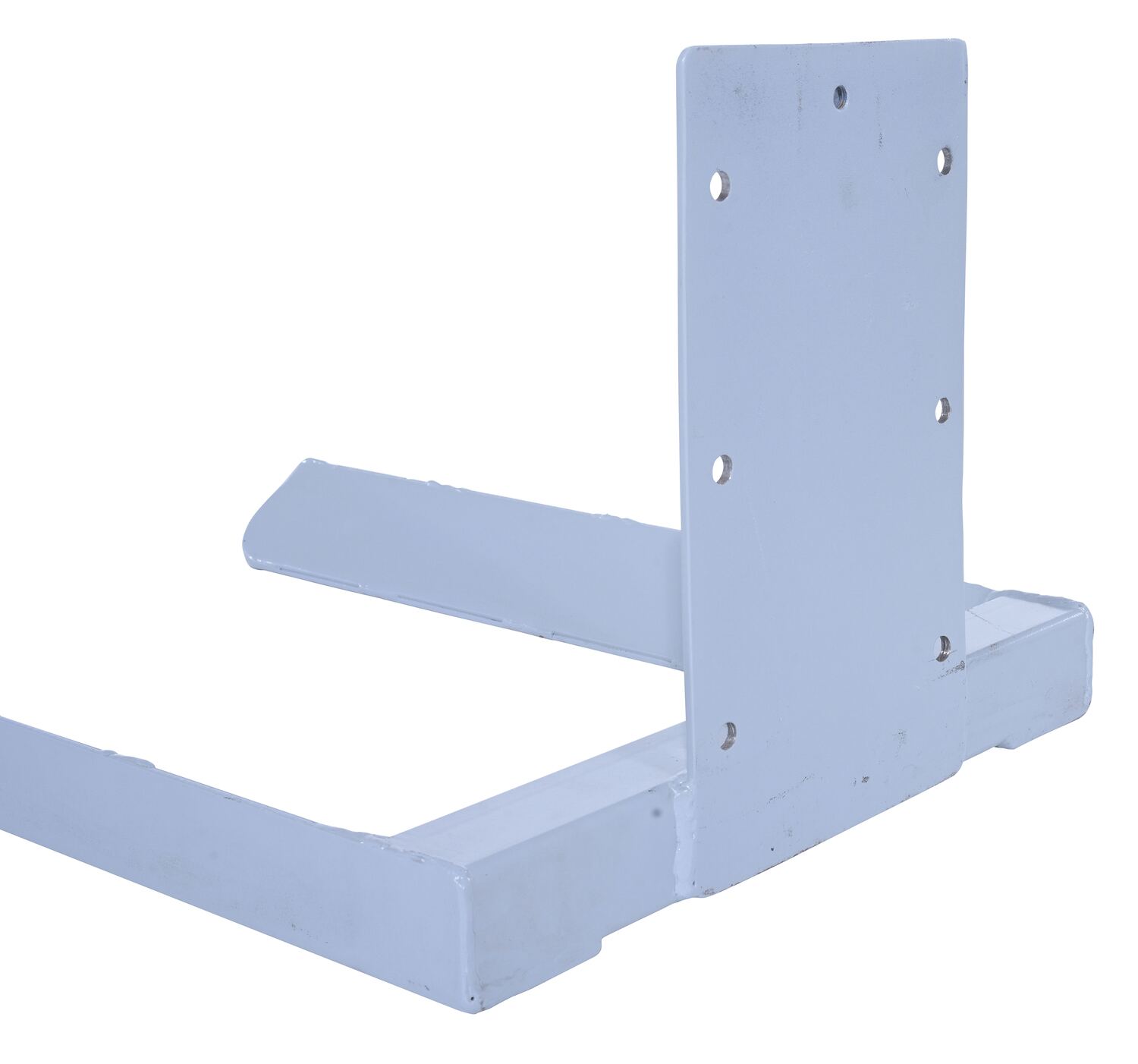

  • Pre-drilled mounting holes

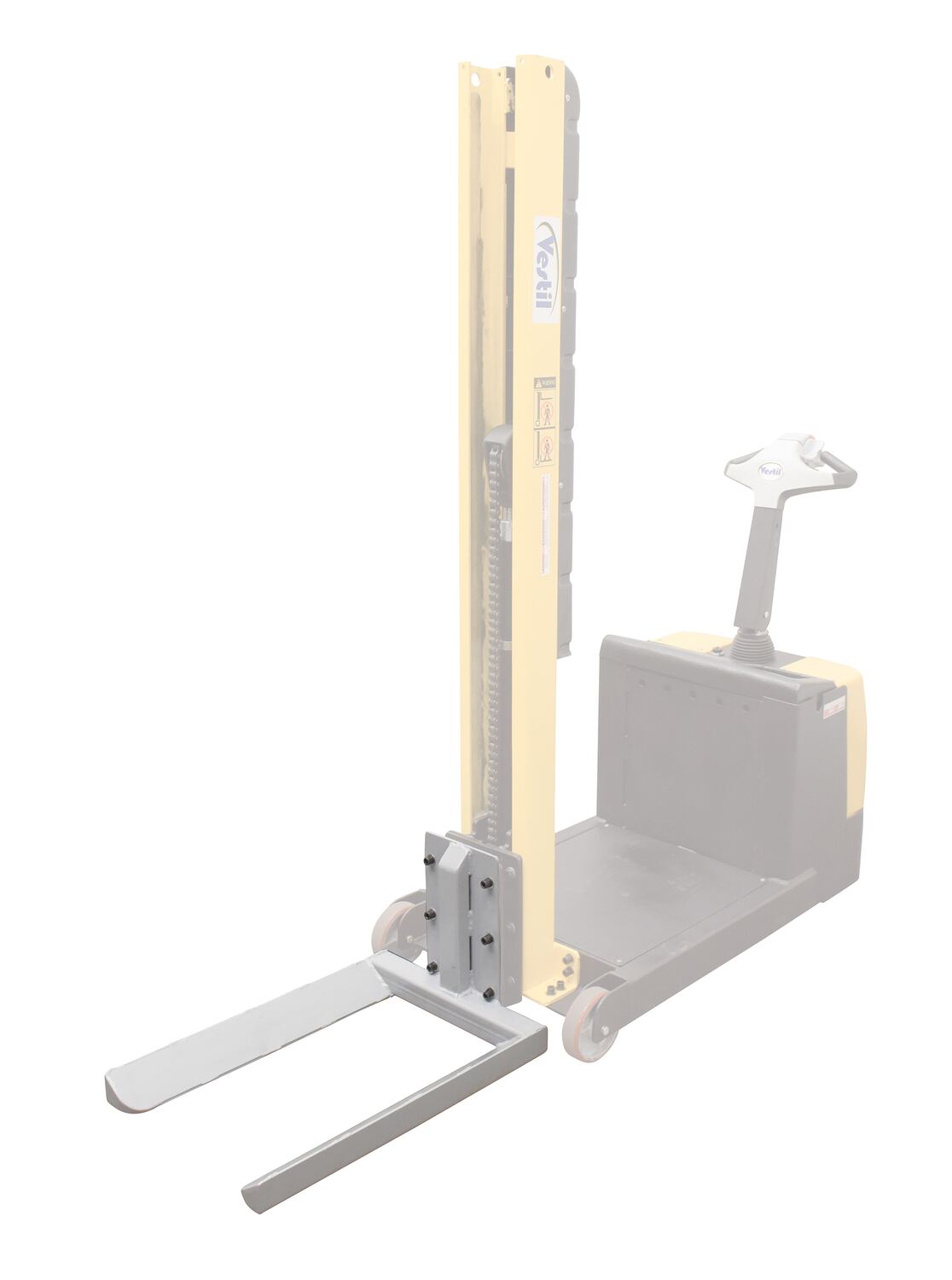

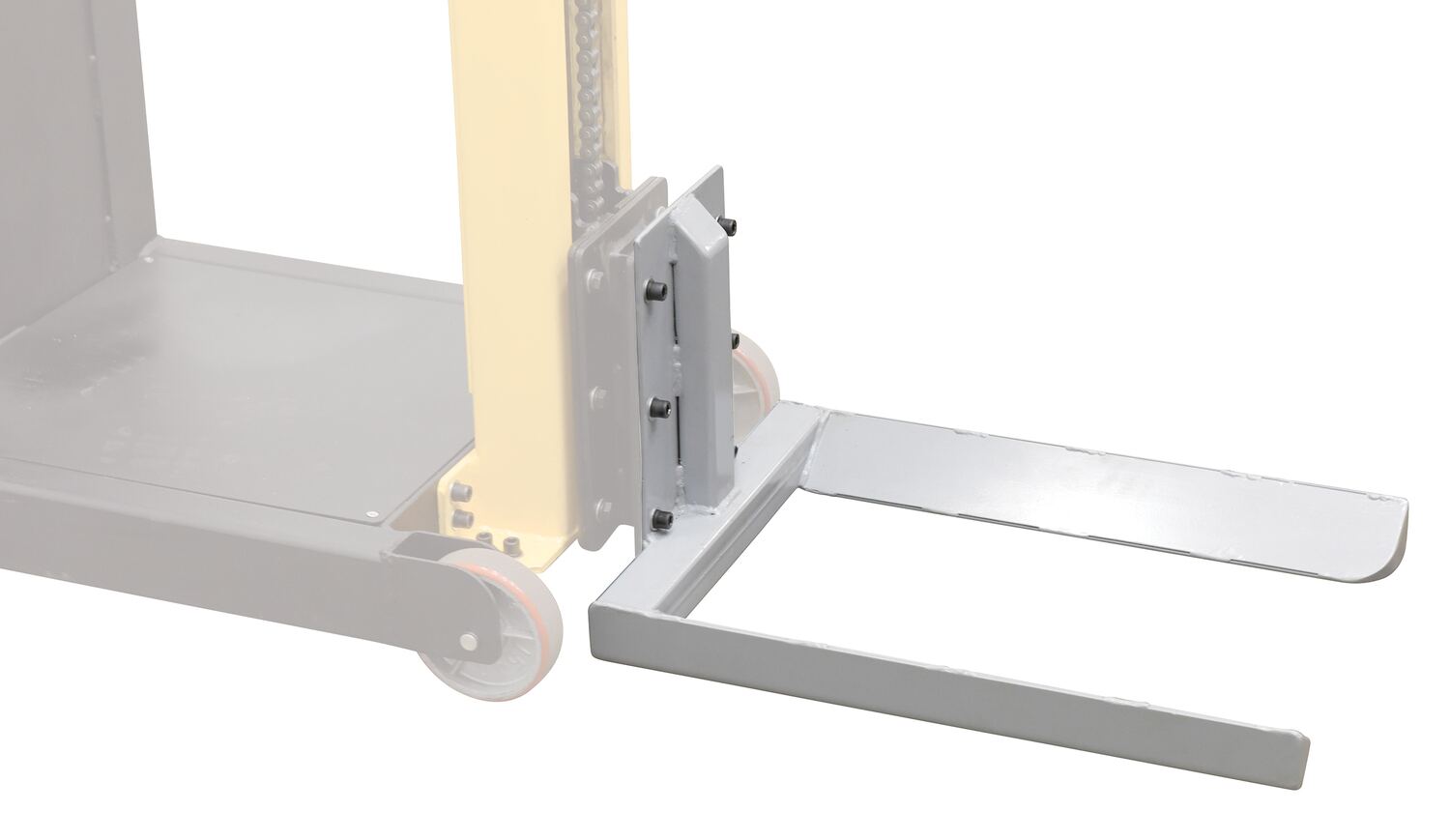

  • Secured directly to stacker mast
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 62 lbs
Assembled Size 20"W x 24"L x 15.5"H
Total Ship Weight 64 lbs
Package 1 Size 22"W x 26"D x 18"H
Color / Finish GRAY
Freight Type Parcel

Additional Attributes

Uniform Capacity (Lbs.) 600
Fork Length (In.) 20
Fork Type Fixed Roll Forks
Extended Product Details

Marketing Specs.

MFG Model # (Series)
STA-ATT-FRF-20
Product Name
Steel Counter Balanced Power Lift Fixed Roll Fork, 20 " Fork Attachment 600 Lb. Capacity Gray
UPC
691215375245
GTIN
00691215375245
Taxonomy 1
Material Handling
Taxonomy 2
Forklifts
Taxonomy 3
Parts & Accessories
Taxonomy 4
Masts & Accessories
Taxonomy 5
Attachments
Assembled Depth (in.)
24
Assembled Width(in.)
20
Assembled Height(in.)
15.5
Assembled Weight(lbs.)
62
Color/Finish
GRAY
Material
STEEL
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
S-CB-NM-60, DRLT-CB-54-MDML, DRLT-CB-54-MDPL, DRLT-CB-54-PDPL, SL-63-AA, SL-118-AA, SL-137-AA, SL-150-AA, S-101-AA-DM, S-118-AA-DM, S-125-AA-DM, S-150-AA-DM, S3-118-AA, S3-125-AA, S3-43-AA, S3-62-AA, S-CB-118, S-CB-62, RT-EPT-2-48, RT-EPT-3-24, RT-EPT-3-48, RT-S-35-AF, RT-S-62-AF

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
26
Package Width (in.)
22
Package Height (in.)
18
Package Weight (in.)
64
Subclass
7
Freight Class
92.5
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, steel
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101600
HTSUS Number
8431.31.0060
USMCA HS
8431.31
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
