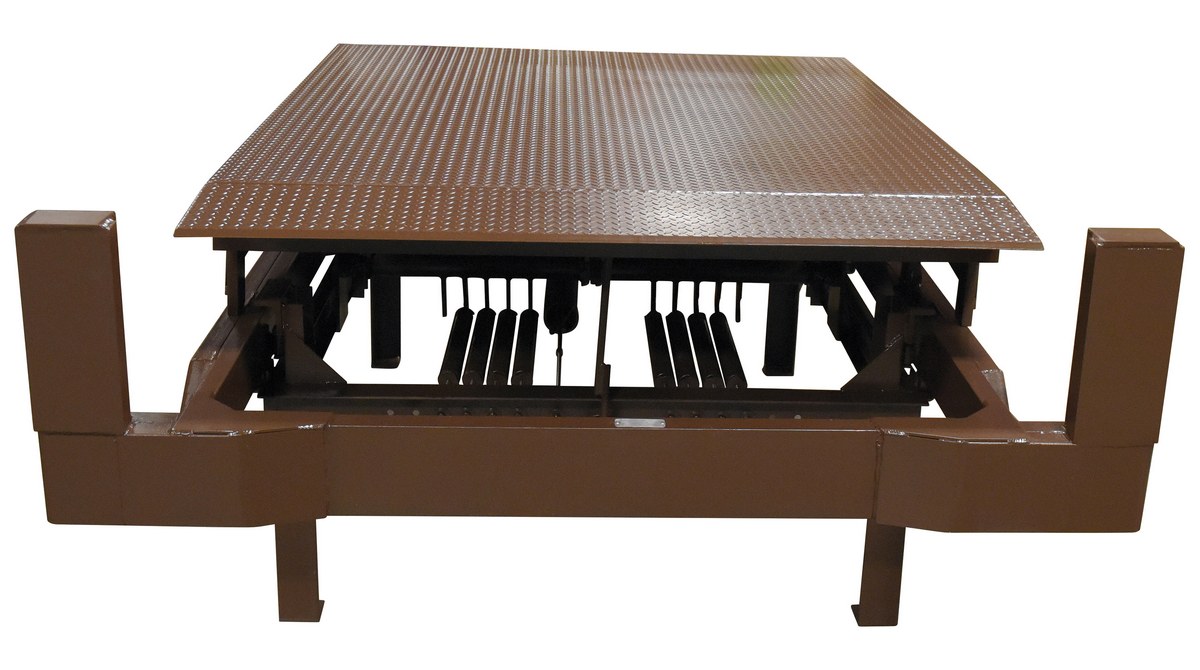

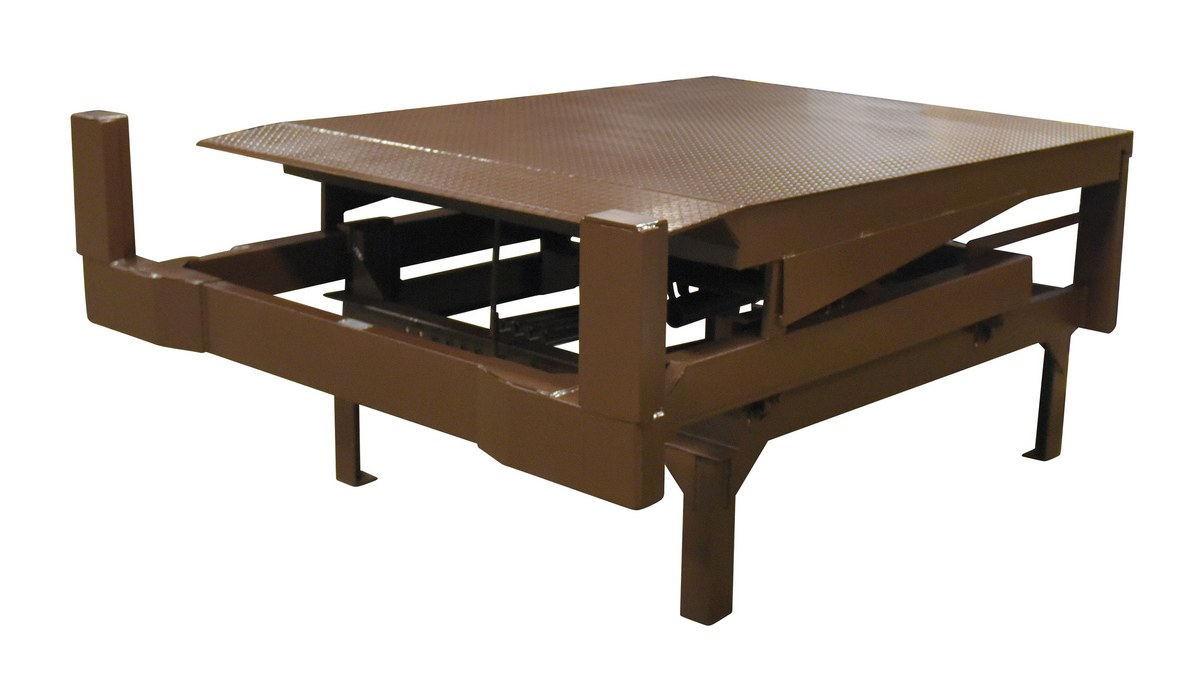

Steel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity Brown

Actuated Dock Leveler for Trailer Loading, Dock Access, and Material Transfer, 20,000 lb. Capacity with 107-1/4 in. x 88 in.
This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with legs needing a full 48 (in.) deep pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.
Product Status
Temporarily Unavailable - Please Contact Sales Non-Returnable
Key Features
  • Fully automatic loading ramp where no dock attendant needed
  • It consists of a lift by-pass for safety and toe guards on each side
  • Dock and trailer must be raised for the process to work
  • Deck floats down to rest on trailer
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dockleveler Weather Stripping   RU, PU & SU series Truck Actuated Dockleveler Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 2516 lbs
Assembled Size 88"W x 107.25"L x 48.375"H
Total Ship Weight 2516 lbs
Package 1 Size 89"W x 107"D x 49"H
Color / Finish Brown
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 20,000
Molded Bumper Width (in.) 5
Molded Bumper Height (in.) 16
Molded Bumper Depth (in.) 2
PSI Checker Plated Deck 55,000
Service Range Above Dock (in.) 12
Service Range Below Dock (in.) 8
Long Lip (in.) 12 (extends 6-1/2 (in.) into truck)
Pit Width (in.) 74
Pit Length (in.) 80-1/2
Pit Depth (in.) 48
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SU-800-SCB
Product Name
Steel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity Brown
UPC
691215037952
GTIN
00691215037952
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dock Levelers
Taxonomy 4
Truck Actuated
Assembled Depth (in.)
107.25
Assembled Width(in.)
88
Assembled Height(in.)
48.375
Assembled Weight(lbs.)
2516
Color/Finish
Brown
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
107
Package Width (in.)
89
Package Height (in.)
49
Package Weight (in.)
2516
Subclass
1
Freight Class
60
NMFC Code
Ramps (Dockboards) freight dock hinged type
NMFC Number
128140
LTL Freight
LTL Loose
UNSPSC
24101801
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SU-800-SCB

SU-800-SCB

Steel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity Brown

This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with legs needing a full 48 (in.) deep pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • Fully automatic loading ramp where no dock attendant needed
  • It consists of a lift by-pass for safety and toe guards on each side
  • Dock and trailer must be raised for the process to work
  • Deck floats down to rest on trailer

Core Data

Assembled Weight: 2516 Assembled Size: 88"W x 107.25"L x 48.375"H Color: Brown
Total Ship Weight: 2516 Package 1 Size: 89"W x 107"D x 49"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Molded Bumper Height (in.): 16
Molded Bumper Depth (in.): 2
PSI Checker Plated Deck: 55,000
Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 8
Long Lip (in.): 12 (extends 6-1/2 (in.) into truck)
Pit Width (in.): 74
Pit Length (in.): 80-1/2
Pit Depth (in.): 48
