  All Products   Packaging Equipment   Stretch Wrap Machines   Medium Duty Powered Stretch Wrap Machines SWA-PMO-RF
Product Image

Visual Reference

SWA-PMO-RF
SWA-PMO-RF
SWA-PMO-RF
SWA-PMO-RF
SWA-PMO-RF
SWA-PMO-RF
SWA-PMO-RF

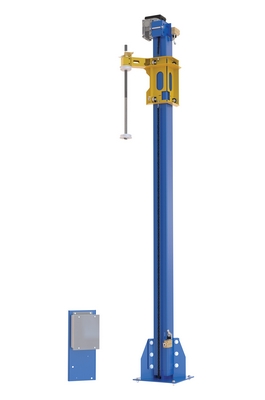

Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow

Semi-automatic Stretch Wrap Machine Option for Securing Palletized Loads for Storage and Shipment, 80-13/16 in., Blue and Yellow Finish – Model SWA-PMO-RF
Optional 115 Volt powered mass (retrofit-field installed) is available with a twenty-four (24) Volt hand control to work with those taller loads. The hand held control is used to raise/lower the film.
Product Status
Available
Key Features
  • Powered mast makes stretch wrapping simple
  • Mast design makes wrapping taller loads easy
  • Hand held control makes operation simple
  • Steel construction provides a long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Model SWA-54 Medium Duty Powered Stretch Wrap Machine Installation Manual   Model SWA-60 Medium Duty Powered Stretch Wrap Machine Installation Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 133 lbs
Assembled Size 16.1875"W x 19.75"L x 97.5625"H
Total Ship Weight 194 lbs
Package 1 Size 22"W x 12"D x 70"H
Color / Finish Blue / Yellow
Freight Type LTL Palletized

Additional Attributes

Wrap Height (in.) 80-13/16
Motor Voltage/Phase 115/1
Hand Control Voltage 24
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SWA-PMO-RF
Product Name
Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow
UPC
691215038102
GTIN
00691215038102
Taxonomy 1
Material Handling
Taxonomy 2
Stretch Wrap Equipment
Taxonomy 3
Accessories
Taxonomy 4
Power Masts
Assembled Depth (in.)
19.75
Assembled Width(in.)
16.1875
Assembled Height(in.)
97.5625
Assembled Weight(lbs.)
133
Color/Finish
Blue / Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
SWA-54, SWA-60

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
22
Package Height (in.)
70
Package Weight (in.)
194
Freight Class
150
NMFC Code
Stretch Wrapping Machines
NMFC Number
130530
LTL Freight
LTL Palletized
UNSPSC
24000000
HTSUS Number
8422.90.9160
USMCA HS
8422.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SWA-PMO-RF

SWA-PMO-RF

Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow

Optional 115 Volt powered mass (retrofit-field installed) is available with a twenty-four (24) Volt hand control to work with those taller loads. The hand held control is used to raise/lower the film.

  • Powered mast makes stretch wrapping simple
  • Mast design makes wrapping taller loads easy
  • Hand held control makes operation simple
  • Steel construction provides a long lasting rugged use

Core Data

Assembled Weight: 133 Assembled Size: 16.1875"W x 19.75"L x 97.5625"H Color: Blue / Yellow
Total Ship Weight: 194 Package 1 Size: 22"W x 12"D x 70"H Freight: LTL Palletized

Specifications

Wrap Height (in.): 80-13/16
Motor Voltage/Phase: 115/1
Hand Control Voltage: 24
