Product Data Sheet

  Print to PDF
  All Products   Loading Dock Equipment   Wheel Risers   Steel Wheel Risers SWR-CPL-SM
Product Image

Visual Reference

SWR-CPL-SM
SWR-CPL-SM
SWR-CPL-SM

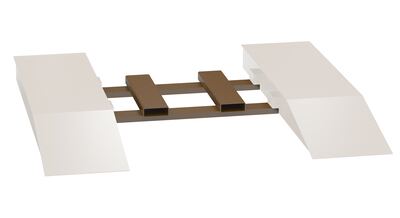

Factory Installed Pickup Loop 25 In. x 54-5/8 In. Connects Steel Wheel Riser Units

Wheel Riser for Raising Trucks and Trailers to Dock Height, 25 in. x 54-5/8 in.
This central pick-up loop connects two (2) wheel risers allowing a fork truck to easily position and move risers as one.
Product Status
Available Non-Returnable
Key Features
  • Factory installed
  • Raised diamond tread plate surface provides a non-slip grip
  • Brown liquid paint finish
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 38
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 54 lbs
Assembled Size 54.625"W x 25"L x 5.4375"H
Total Ship Weight 55 lbs
Package 1 Size 102"W x 8"D x 3"H
Color / Finish Brown
Freight Type LTL Palletized

Additional Attributes

Overall Width (in.) 54-5/8
Width Between Risers When Installed (in.) 53-1/8
Overall Height (in.) 5-7/16
Height from Ground to Top of Side Loops When Installed (in.) 5-11/16
Overall Depth (in.) 25
Fork Pocket Width (in.) 7-1/2
Fork Pocket Height (in.) 2-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SWR-CPL-SM
Product Name
Factory Installed Pickup Loop 25 In. x 54-5/8 In. Connects Steel Wheel Riser Units
UPC
691215319591
GTIN
00691215319591
Taxonomy 1
Automotive
Taxonomy 2
Accessories
Taxonomy 3
Truck & Towing
Taxonomy 4
Light Truck & Van
Taxonomy 5
Loading Ramps
Taxonomy 6
Loading Ramp Hardware
Assembled Depth (in.)
25
Assembled Width(in.)
54.625
Assembled Height(in.)
5.4375
Assembled Weight(lbs.)
54
Color/Finish
Brown
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
SWR-18-6-48, SWR-24-6-48

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
8
Package Width (in.)
102
Package Height (in.)
3
Package Weight (in.)
55
Subclass
1
Freight Class
65
NMFC Code
Hardware Group Hdwr in boxes crates drums etc
NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
31162801
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SWR-CPL-SM

SWR-CPL-SM

Factory Installed Pickup Loop 25 In. x 54-5/8 In. Connects Steel Wheel Riser Units

This central pick-up loop connects two (2) wheel risers allowing a fork truck to easily position and move risers as one.

  • Factory installed
  • Raised diamond tread plate surface provides a non-slip grip
  • Brown liquid paint finish
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 38

Core Data

Assembled Weight: 54 Assembled Size: 54.625"W x 25"L x 5.4375"H Color: Brown
Total Ship Weight: 55 Package 1 Size: 102"W x 8"D x 3"H Freight: LTL Palletized

Specifications

Overall Width (in.): 54-5/8
Width Between Risers When Installed (in.): 53-1/8
Overall Height (in.): 5-7/16
Height from Ground to Top of Side Loops When Installed (in.): 5-11/16
Overall Depth (in.): 25
Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-1/2
