Carbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity Blue

Forklift Attachment for Opening, Moving, and Handling Industrial Drums and Barrels, 1,200 lb. Capacity, Blue Finish – Model TDR-55
Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.
Product Status
Available QuickShip
Key Features
  • Tilting drum ring transport steel drums with a fork truck for ideal operation
  • Pivoting fork pockets allow for manual rotation of drums to dispense
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   TDR series Tilting Drum Ring Instruction Manual   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 37.9375"W x 25.8125"L x 5"H
Total Ship Weight 25 lbs
Package 1 Size 25"W x 37"D x 4"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,200

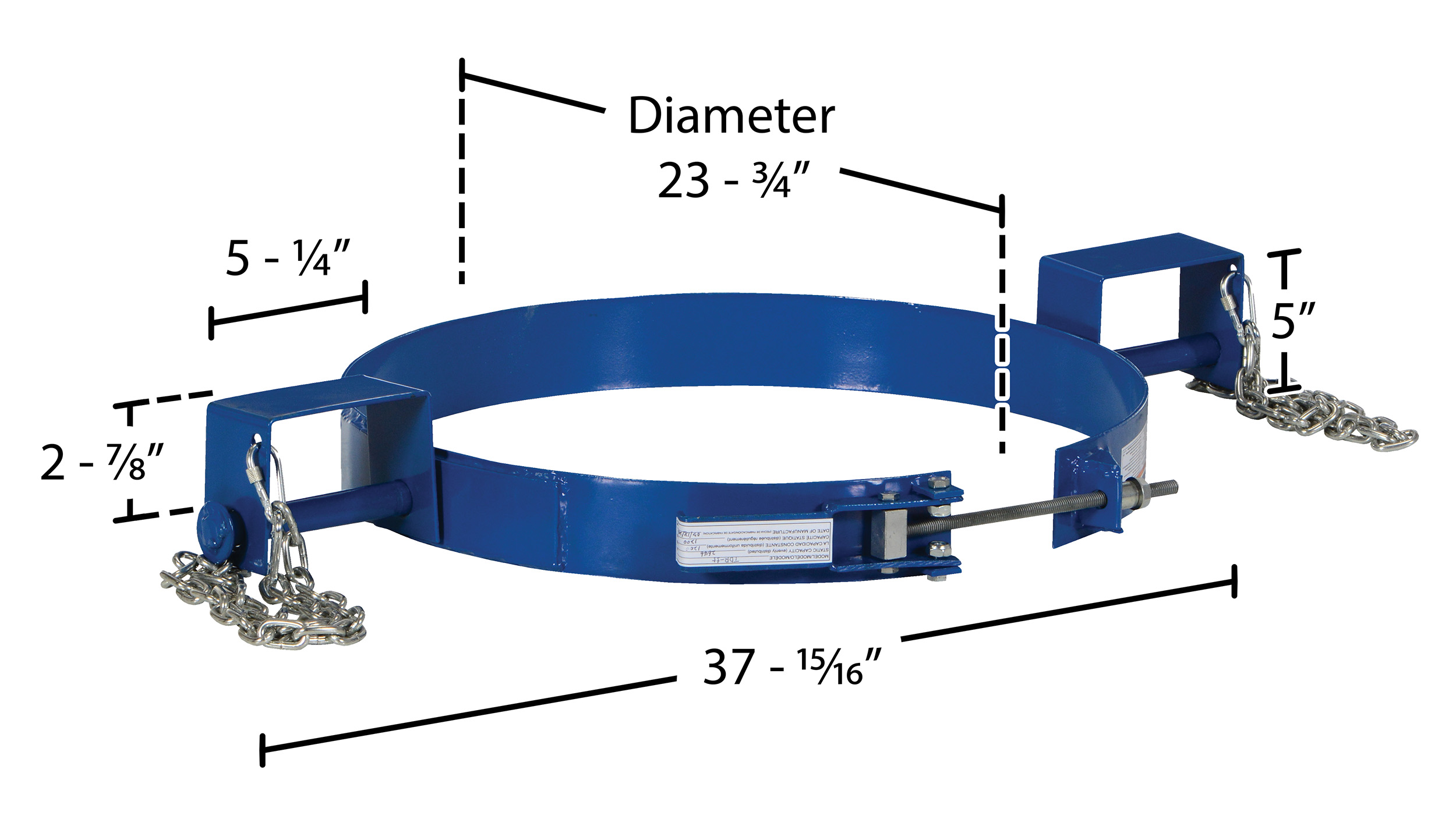

Usable Fork Opening Width (in.) 5-1/4
Usable Fork Opening Height (in.) 2-7/8
Usable Drum Size (gal.) 55
Fork Pocket Center Maximum (in.) 31-1/2
Rotation (deg.) 180
Overall Width (in.) 37-15/16
Overall Height (in.) 5
Inner Diameter (in.) 23-3/4
Chain Quantity 2
Chain Length (in.) 42
Material Carbon Steel
Overall Depth (in.) 25-13/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TDR-55
Product Name
Carbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity Blue
UPC
691215039710
GTIN
00691215039710
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Drum Attachments
Taxonomy 4
Drum Rings
Assembled Depth (in.)
25.8125
Assembled Width(in.)
37.9375
Assembled Height(in.)
5
Assembled Weight(lbs.)
20
Color/Finish
Blue
Material
Carbon Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
37
Package Width (in.)
25
Package Height (in.)
4
Package Weight (in.)
25
Subclass
7
Freight Class
92.5
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101902
HTSUS Number
8431.39.0080
USMCA HS
8431.39
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TDR-55

TDR-55

Carbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity Blue

Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.

  • Tilting drum ring transport steel drums with a fork truck for ideal operation
  • Pivoting fork pockets allow for manual rotation of drums to dispense
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 20 Assembled Size: 37.9375"W x 25.8125"L x 5"H Color: Blue
Total Ship Weight: 25 Package 1 Size: 25"W x 37"D x 4"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Usable Fork Opening Height (in.): 2-7/8
Usable Drum Size (gal.): 55
Fork Pocket Center Maximum (in.): 31-1/2
Rotation (deg.): 180
Overall Width (in.): 37-15/16
Overall Height (in.): 5
Inner Diameter (in.): 23-3/4
Chain Quantity: 2
Chain Length (in.): 42
Material: Carbon Steel
Overall Depth (in.): 25-13/16
