Steel Tilt Master DC Powered Foot Control 12 Volt 4,000 Lb. Capacity Blue

DC-Powered Ergonomic Pallet Lift for Commercial and Industrial Tilters Use, 4,000 lb. Capacity with 12 Volt, Blue Finish – Model TM-40-DC-FC

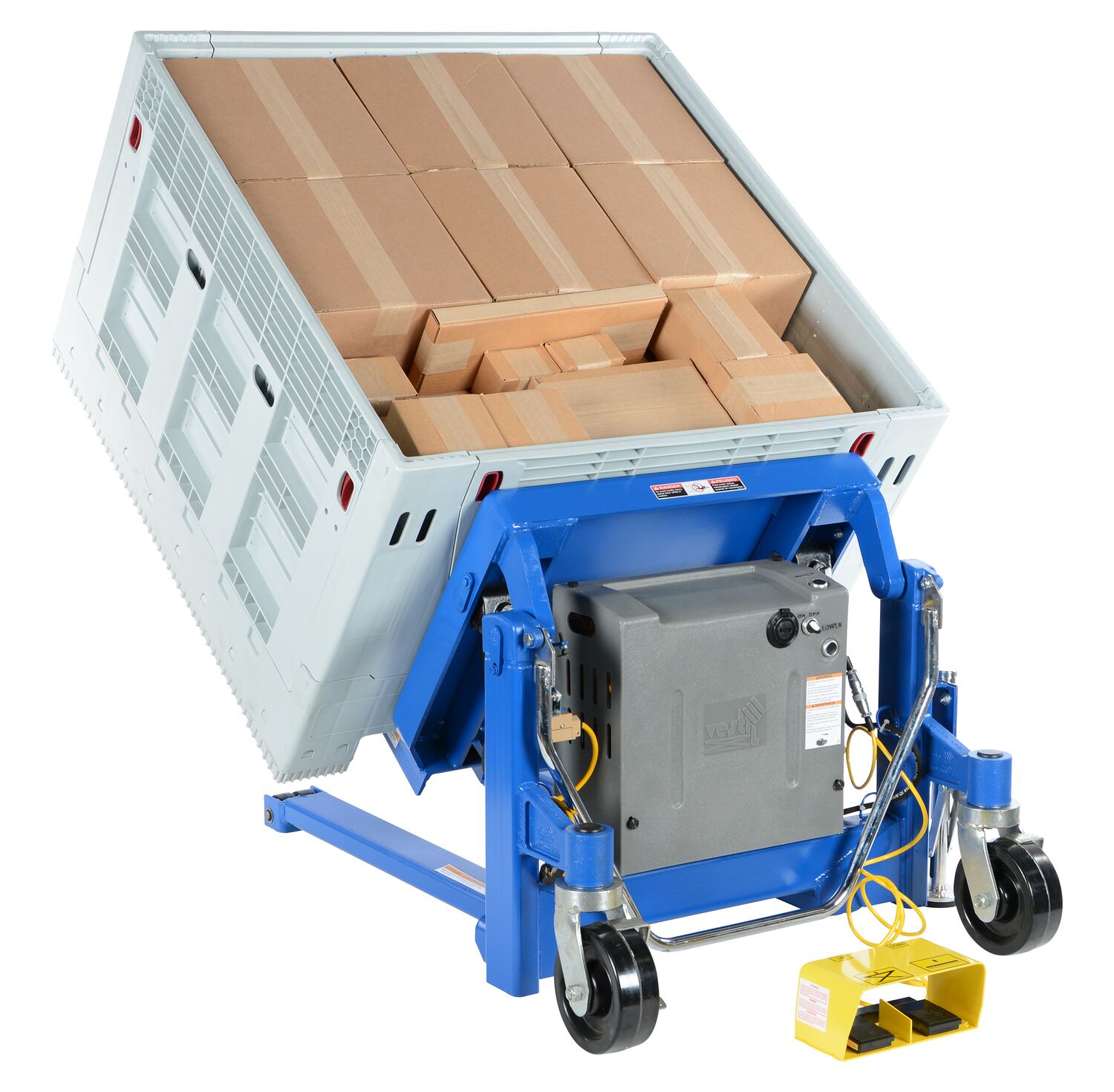

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with open bottom pallets or skids. The unit is powered by a DC electric motor that includes an on-board battery charger, battery charge indicator gauge and foot control.
Product Status
Available QuickShip
Key Features
  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Foot pedal control for quick lifting and lowering
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   series TM & series TMS Tilt Master Instruction Manual   Label Page PDF   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 701 lbs
Assembled Size 41.0625"W x 75.5625"L x 28.3125"H
Total Ship Weight 699 lbs
Package 1 Size 40"W x 68"D x 29"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Fixed Fork Spacing (in.) 26
Operator Reach (in.) 7-1/4
Fork Width (in.) 6
Fork Length (in.) 38-1/8
Fully Rotated Fork Height (in.) 76-5/16
Lowered Height (in.) 3-5/8
Maximum Tilt Degree 90
Power 12V DC
Wheel Diameter (in.) 8
Wheel Width (in.) 3
Wheel Type Phenolic
Folding Handle Length (in.) 20
Load Center (in.) 20
Fully Rotated Mast Height (in.) 33

Battery Information

Battery Depth 11
Battery Width 7
Battery Height 9
Battery Weight 42
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TM-40-DC-FC
Product Name
Steel Tilt Master DC Powered Foot Control 12 Volt 4,000 Lb. Capacity Blue
UPC
691215055482
GTIN
00691215055482
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Skid Movers
Assembled Depth (in.)
75.5625
Assembled Width(in.)
41.0625
Assembled Height(in.)
28.3125
Assembled Weight(lbs.)
701
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
68
Package Width (in.)
40
Package Height (in.)
29
Package Weight (in.)
699
Subclass
8
Freight Class
77.5
NMFC Code
Cars, Lift Trucks, or Vehicles, NOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101600
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
42
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
