  All Products   Protective Barriers   Safety Railing   Square Safety Handrails TOE-B-60-N
Product Image

Visual Reference

TOE-B-60-N
TOE-B-60-N
TOE-B-60-N
TOE-B-60-N
TOE-B-60-N

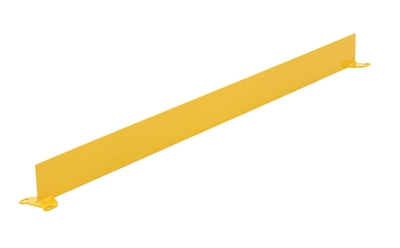

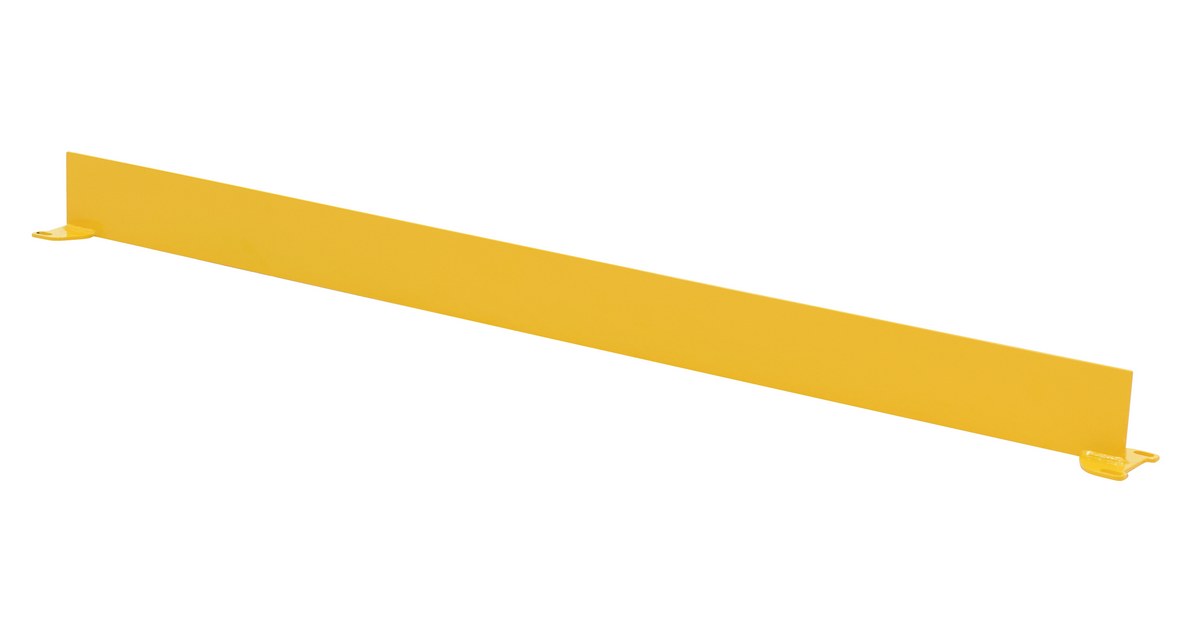

Steel Square Safety Handrail Toe Board 56-5/8 In. x 3-7/8 In. x 4 In. Yellow

Toeboard for Steel Square Safety Handrails for Warehouse Traffic Control and Collision Protection, 56-5/8 in. x 3-7/8 in. x 4 in.
Steel square safety Handrail optional toe board provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow.
Product Status
Available
Key Features
  • Economical design protects people and machinery
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Unique design is easily installed
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 12 lbs
Assembled Size 3.875"W x 56.625"L x 4"H
Total Ship Weight 12 lbs
Package 1 Size 12"W x 65"D x 5"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Anchor Plate (qty.) 2
Anchor Plate Width (in.) 3-7/8
Anchor Plate Thickness (in.) 3/16
Mounting Hole Slotted (in.) 7/16 x 7/8
Usable Length (in.) 55
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TOE-B-60-N
Product Name
Steel Square Safety Handrail Toe Board 56-5/8 In. x 3-7/8 In. x 4 In. Yellow
UPC
691215064422
GTIN
00691215064422
Taxonomy 1
Building Supplies
Taxonomy 2
Stairs & Railings
Taxonomy 3
Stair & Railing Hardware
Taxonomy 4
Handrail Hardware
Assembled Depth (in.)
56.625
Assembled Width(in.)
3.875
Assembled Height(in.)
4
Assembled Weight(lbs.)
12
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
SQ-60

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
12
Package Height (in.)
5
Package Weight (in.)
12
Subclass
6
Freight Class
300
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
Parcel
UNSPSC
46151500
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TOE-B-60-N

TOE-B-60-N

Steel Square Safety Handrail Toe Board 56-5/8 In. x 3-7/8 In. x 4 In. Yellow

Steel square safety Handrail optional toe board provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow.

  • Economical design protects people and machinery
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Unique design is easily installed

Core Data

Assembled Weight: 12 Assembled Size: 3.875"W x 56.625"L x 4"H Color: Yellow
Total Ship Weight: 12 Package 1 Size: 12"W x 65"D x 5"H Freight: Parcel

Specifications

Anchor Plate (qty.): 2
Anchor Plate Width (in.): 3-7/8
Anchor Plate Thickness (in.): 3/16
Mounting Hole Slotted (in.): 7/16 x 7/8
Usable Length (in.): 55
