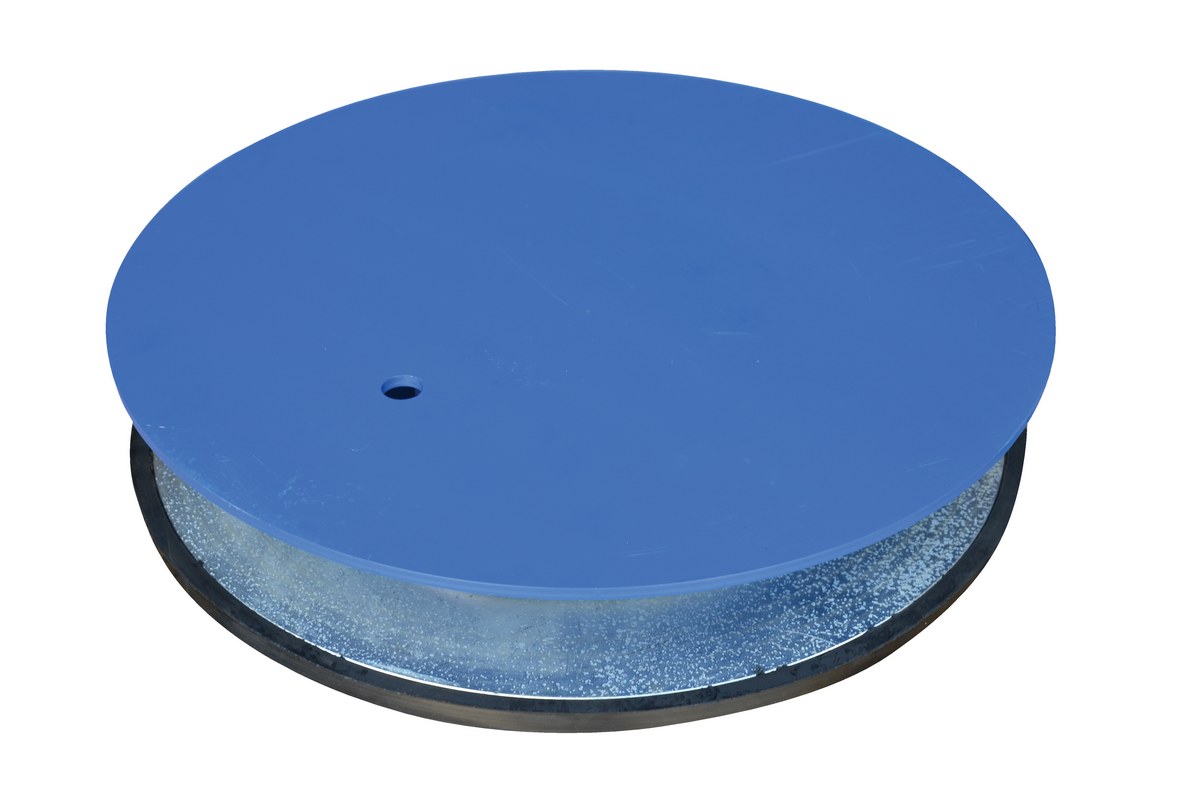

Steel Turntable 18 In. Diameter 3-7/16 In. Height 500 Lb. Capacity

Heavy-duty Manual Turntable for Ergonomic Workstation Rotation and Load Positioning, 500 lb. Capacity with 18 in. Diameter
The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts.
Product Status
Available QuickShip
Key Features
  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability

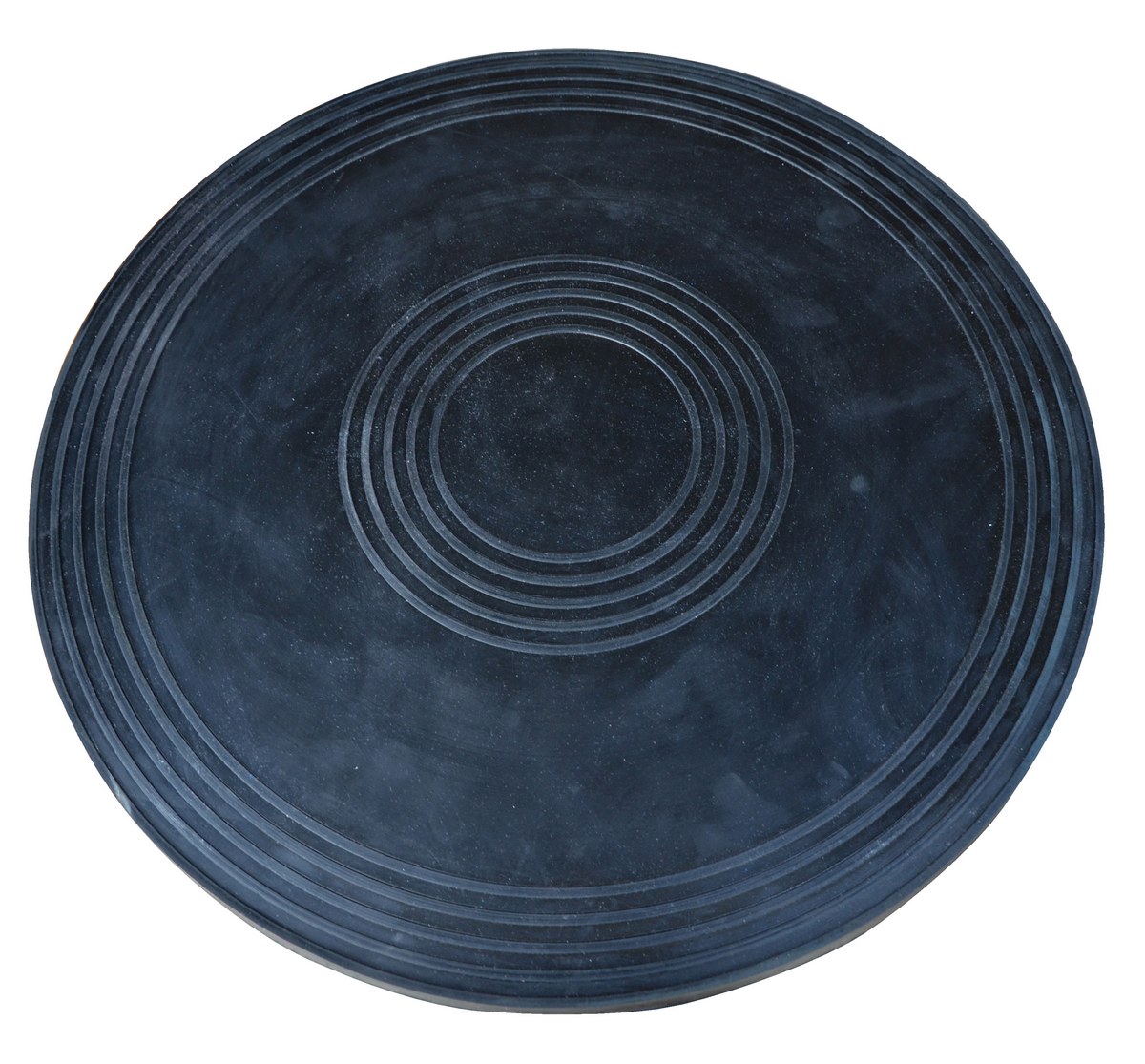

  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Benchtop Turntable TT series Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 55 lbs
Assembled Size 18"W x 18"L x 3.4375"H
Total Ship Weight 75 lbs
Package 1 Size 30"W x 36"D x 9"H
Color / Finish Black / Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 500
Turntable Diameter (in.) 18
Height Range Fixed (in.) 3-7/16
Steel Plate Height (in.) 5/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TT-18-4
Product Name
Steel Turntable 18 In. Diameter 3-7/16 In. Height 500 Lb. Capacity
UPC
691215044172
GTIN
00691215044172
Taxonomy 1
Material Handling
Taxonomy 2
Turntables
Taxonomy 3
Manual
Assembled Depth (in.)
18
Assembled Width(in.)
18
Assembled Height(in.)
3.4375
Assembled Weight(lbs.)
55
Color/Finish
Black / Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
36
Package Width (in.)
30
Package Height (in.)
9
Package Weight (in.)
75
Subclass
8
Freight Class
85
NMFC Code
Swivels (Revolving Fixtures or Turntables)
NMFC Number
95190
LTL Freight
Parcel
UNSPSC
24101711
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TT-18-4

TT-18-4

Steel Turntable 18 In. Diameter 3-7/16 In. Height 500 Lb. Capacity

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around

Core Data

Assembled Weight: 55 Assembled Size: 18"W x 18"L x 3.4375"H Color: Black / Silver
Total Ship Weight: 75 Package 1 Size: 30"W x 36"D x 9"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 500
Turntable Diameter (in.): 18
Height Range Fixed (in.): 3-7/16
Steel Plate Height (in.): 5/16
