TT-18-CDPED
TT-18-CDPED
TT-18-CDPED

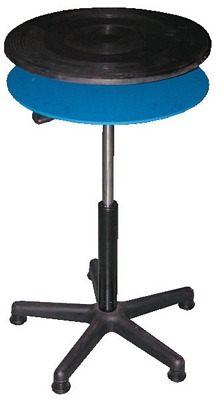

Steel Turntable 18 In. Diameter Gas Cylinder 24-34 In. Height Adjustment 300 Lb. Capacity Black/Blue

Heavy-duty Manual Turntable for Ergonomic Workstation Rotation and Load Positioning, 300 lb. Capacity with 18 in. Diameter, Black and Blue Finish
The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. This unit features a gas cylinder up and down mechanism (similar design as office chair) and a stationary shelf for storing parts and tools.
Product Status
Available
Key Features
  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Benchtop Turntable TT series Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 68 lbs
Assembled Size 21.3125"W x 21.3125"L x 23.25"H
Total Ship Weight 118 lbs
Package 1 Size 25"W x 25"D x 7"H
Color / Finish Black/Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 300
Turntable Diameter (in.) 18
Height Range Minimum (in.) 23-1/4
Height Range Maximum (in.) 33-1/4
Steel Plate Height (in.) 5/16
Height Adjustment Gas Cylinder
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TT-18-CDPED
Product Name
Steel Turntable 18 In. Diameter Gas Cylinder 24-34 In. Height Adjustment 300 Lb. Capacity Black/Blue
UPC
691215044196
GTIN
00691215044196
Taxonomy 1
Material Handling
Taxonomy 2
Turntables
Taxonomy 3
Manual
Assembled Depth (in.)
21.3125
Assembled Width(in.)
21.3125
Assembled Height(in.)
23.25
Assembled Weight(lbs.)
68
Color/Finish
Black/Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
25
Package Height (in.)
7
Package Weight (in.)
112
Subclass
12
Freight Class
55
NMFC Code
Swivels (Revolving Fixtures or Turntables)
NMFC Number
95190
Package 2 Depth (in.)
15
Package 2 Width (in.)
19
Package 2 Height (in.)
7
Package 2 Weight (lbs.)
6
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
24101711
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TT-18-CDPED

TT-18-CDPED

Steel Turntable 18 In. Diameter Gas Cylinder 24-34 In. Height Adjustment 300 Lb. Capacity Black/Blue

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. This unit features a gas cylinder up and down mechanism (similar design as office chair) and a stationary shelf for storing parts and tools.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around

Core Data

Assembled Weight: 68 Assembled Size: 21.3125"W x 21.3125"L x 23.25"H Color: Black/Blue
Total Ship Weight: 118 Package 1 Size: 25"W x 25"D x 7"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 300
Turntable Diameter (in.): 18
Height Range Minimum (in.): 23-1/4
Height Range Maximum (in.): 33-1/4
Steel Plate Height (in.): 5/16
Height Adjustment: Gas Cylinder
