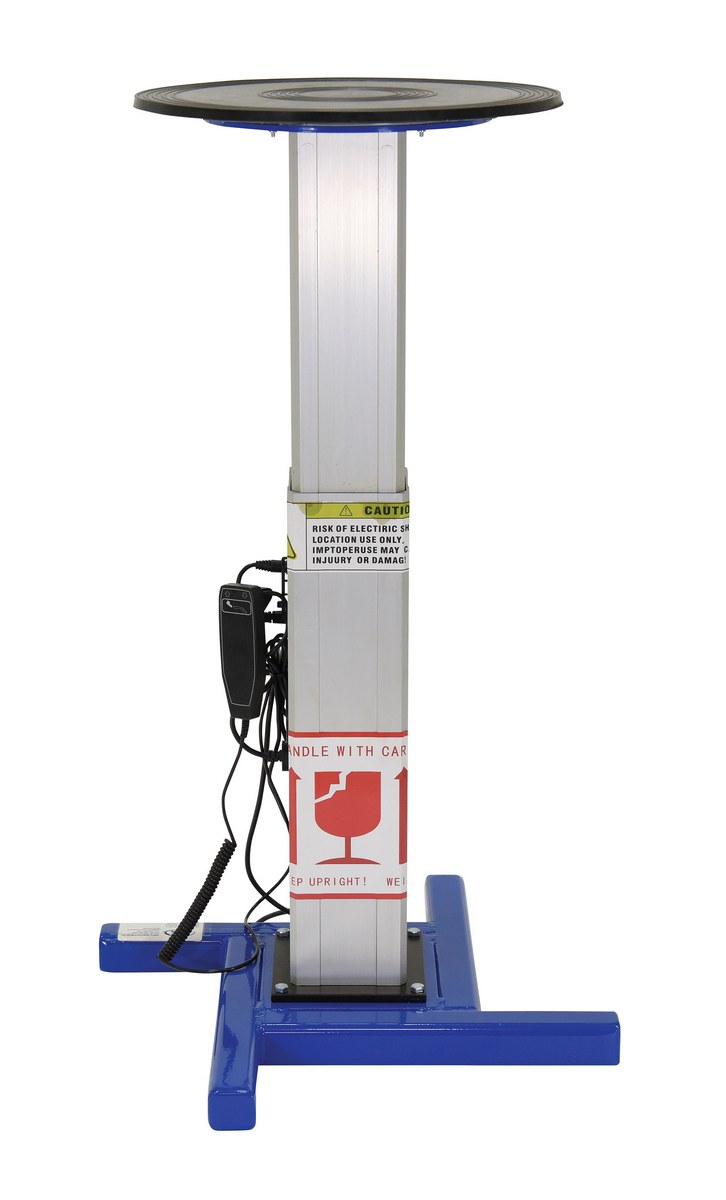

Steel Turntable 18 In. Diameter DC Powered 27-43 In. Height Adjustment 24V 750 Lb. Capacity Blue

DC-Powered Turntable with Powered Height Adjustment for Ergonomic Workstation Rotation and Load Positioning, 750 lb. Capacity with 18 in. Diameter
The turntable with powered height adjustment allows the operator to raise or lower turntable to an ergonomic height. This unit has a manual turntable and is DC powered with hand control for height adjustment. Hand held pendant control connects to power unit with a coil cord. Height is adjusted with an electric linear-actuator.
Product Status
Out of Stock
Key Features
  • 24V Power
  • On-Board battery charger
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Linear Actuated Benchtop Turntable TT-LA series Manual   Label Page PDF   Lithium Ion Rechargeable Battery Cell SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 104 lbs
Assembled Size 23.25"W x 23.25"L x 26.9375"H
Total Ship Weight 234 lbs
Package 1 Size 40"W x 48"D x 32"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 750
Turntable Diameter (in.) 18
Height Range Minimum (in.) 26-15/16
Height Range Maximum (in.) 42-15/16
Steel Plate Height (in.) 5/16
Turntable Degree 360
DC Power 24V
Coil Cord (ft.) 6

Battery Information

Battery Depth 7
Battery Width 4
Battery Height 9
Battery Weight 12
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
TT-18-LA
Product Name
Steel Turntable 18 In. Diameter DC Powered 27-43 In. Height Adjustment 24V 750 Lb. Capacity Blue
UPC
691215044226
GTIN
00691215044226
Taxonomy 1
Material Handling
Taxonomy 2
Turntables
Taxonomy 3
Electric
Assembled Depth (in.)
23.25
Assembled Width(in.)
23.25
Assembled Height(in.)
26.9375
Assembled Weight(lbs.)
104
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
32
Package Weight (in.)
234
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101711
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
12
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TT-18-LA

TT-18-LA

Steel Turntable 18 In. Diameter DC Powered 27-43 In. Height Adjustment 24V 750 Lb. Capacity Blue

The turntable with powered height adjustment allows the operator to raise or lower turntable to an ergonomic height. This unit has a manual turntable and is DC powered with hand control for height adjustment. Hand held pendant control connects to power unit with a coil cord. Height is adjusted with an electric linear-actuator.

  • 24V Power
  • On-Board battery charger
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around

Core Data

Assembled Weight: 104 Assembled Size: 23.25"W x 23.25"L x 26.9375"H Color: Blue
Total Ship Weight: 234 Package 1 Size: 40"W x 48"D x 32"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 750
Turntable Diameter (in.): 18
Height Range Minimum (in.): 26-15/16
Height Range Maximum (in.): 42-15/16
Steel Plate Height (in.): 5/16
Turntable Degree: 360
DC Power: 24V
Coil Cord (ft.): 6
