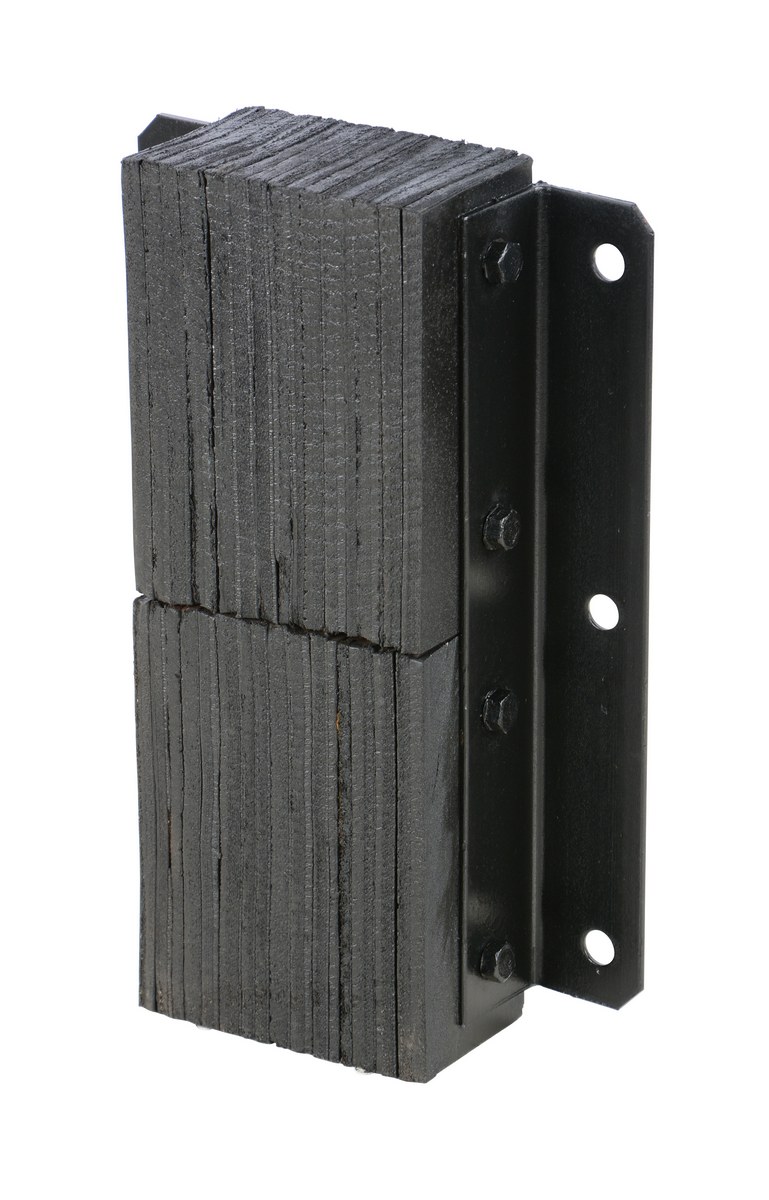

Rubber Laminated Dock Bumper 20 In. x 7-1/4 In. x 4-1/2 In. Bumper Size Black

Dock Bumper Guard for Commercial Dock Access and Waterfront Operations, 20 in. x 7-1/4 in. x 4-1/2 in.
The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. Unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. Installation is quick and easy by bolting or welding unit to the dock. Width is bolt hole center to bolt hole center. The installation hardware is available separately.
Product Status
Available QuickShip
Key Features
  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   1 Year Warranty
Product Data

Core Data

Assembled Weight 41 lbs
Assembled Size 13.25"W x 4.5"L x 20"H
Total Ship Weight 41 lbs
Package 1 Size 14"W x 20"D x 5"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Rubber Height (in.) 20
Rubber Width (in.) 7-1/4
Bolt Hole Center to Bolt Hole Center Width (in.) 11
Rubber Projection (in.) 4-1/2
Steel Tie Rod Diameter (in.) 3/4
Bolt Hole Diameter (in.) 7/8
Mounting Holes (qty.) 6
Overall Width (In.) 13-1/4
Overall Length (in.) 4-1/2
Overall Height (in.) 20
Extended Product Details

Marketing Specs.

MFG Model # (Series)
V-1120-4.5
Product Name
Rubber Laminated Dock Bumper 20 In. x 7-1/4 In. x 4-1/2 In. Bumper Size Black
UPC
691215044592
GTIN
00691215044592
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Bumpers
Assembled Depth (in.)
4.5
Assembled Width(in.)
13.25
Assembled Height(in.)
20
Assembled Weight(lbs.)
41
Color/Finish
Black
Material
Laminated Rubber
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
20
Package Width (in.)
14
Package Height (in.)
5
Package Weight (in.)
41
Subclass
9
Freight Class
70
NMFC Code
Bumpers or Fenders
NMFC Number
38655
LTL Freight
Parcel
UNSPSC
24101805
HTSUS Number
4003.00.0000
USMCA HS
4003.00
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: V-1120-4.5

V-1120-4.5

Rubber Laminated Dock Bumper 20 In. x 7-1/4 In. x 4-1/2 In. Bumper Size Black

The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. Unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. Installation is quick and easy by bolting or welding unit to the dock. Width is bolt hole center to bolt hole center. The installation hardware is available separately.

  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use

Core Data

Assembled Weight: 41 Assembled Size: 13.25"W x 4.5"L x 20"H Color: Black
Total Ship Weight: 41 Package 1 Size: 14"W x 20"D x 5"H Freight: Parcel

Specifications

Rubber Height (in.): 20
Rubber Width (in.): 7-1/4
Bolt Hole Center to Bolt Hole Center Width (in.): 11
Rubber Projection (in.): 4-1/2
Steel Tie Rod Diameter (in.): 3/4
Bolt Hole Diameter (in.): 7/8
Mounting Holes (qty.): 6
Overall Width (In.): 13-1/4
Overall Length (in.): 4-1/2
Overall Height (in.): 20
