  All Products   Protective Barriers   Safety Railing   Steel Safety Railings w/ Welded Baseplate VDKR-6-BP-TB
Product Image

Visual Reference

VDKR-6-BP-TB
VDKR-6-BP-TB
VDKR-6-BP-TB

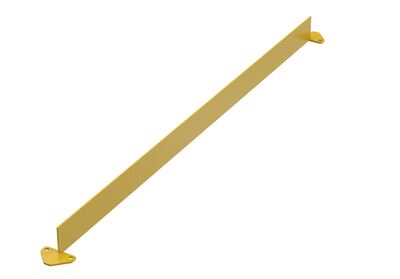

Steel Toe Board for VDKR W/Base Plates, 72" Yellow

Toe Board for Warehouse Traffic Control and Collision Protection, Yellow Finish with Steel Construction – Model VDKR-6-BP-TB
With well-being always at the forefront of everyone’s mind, a toe board is a natural addition to a safety railing. Through an extended height and length, the toe board maximizes pedestrian protection. Its simple design safeguards against falls and unnecessary injuries!
Product Status
Available
Key Features
  • Pre-drilled mounting holes
  • Made of 0.1875" thick steel
  • Powder coat yellow finish
  • Rigid upright design
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 16 lbs
Assembled Size 4.625"W x 72.5"L x 4"H
Total Ship Weight 17 lbs
Package 1 Size 5"W x 75"D x 5"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Overall Length (in.) 72.5
Overall Width (in.) 4.625
Overall Height (in.) 4
Overall Weight (lb.) 16
Gauge/Thickness (in.) 0.1875
Base Plate Width (in.) 4.625
Base Plate Length (in.) 3
Base Plate Number of Mounting Holes 3
Base Plate Hole Diameter (in.) 0.5625
Base Plate Thickness (in.) 0.25
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VDKR-6-BP-TB
Product Name
Steel Toe Board for VDKR W/Base Plates, 72" Yellow
UPC
691215375856
GTIN
00691215375856
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Barricade Bases / Feet
Assembled Depth (in.)
72.5
Assembled Width(in.)
4.625
Assembled Height(in.)
4
Assembled Weight(lbs.)
16
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
VDKR-6-BP

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
75
Package Width (in.)
5
Package Height (in.)
5
Package Weight (in.)
17
Subclass
8
Freight Class
65
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
Parcel
UNSPSC
46151500
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-6-BP-TB

VDKR-6-BP-TB

Steel Toe Board for VDKR W/Base Plates, 72" Yellow

With well-being always at the forefront of everyone’s mind, a toe board is a natural addition to a safety railing. Through an extended height and length, the toe board maximizes pedestrian protection. Its simple design safeguards against falls and unnecessary injuries!

  • Pre-drilled mounting holes
  • Made of 0.1875" thick steel
  • Powder coat yellow finish
  • Rigid upright design

Core Data

Assembled Weight: 16 Assembled Size: 4.625"W x 72.5"L x 4"H Color: Yellow
Total Ship Weight: 17 Package 1 Size: 5"W x 75"D x 5"H Freight: Parcel

Specifications

Overall Length (in.): 72.5
Overall Width (in.): 4.625
Overall Height (in.): 4
Overall Weight (lb.): 16
Gauge/Thickness (in.): 0.1875
Base Plate Width (in.): 4.625
Base Plate Length (in.): 3
Base Plate Number of Mounting Holes: 3
Base Plate Hole Diameter (in.): 0.5625
Base Plate Thickness (in.): 0.25
