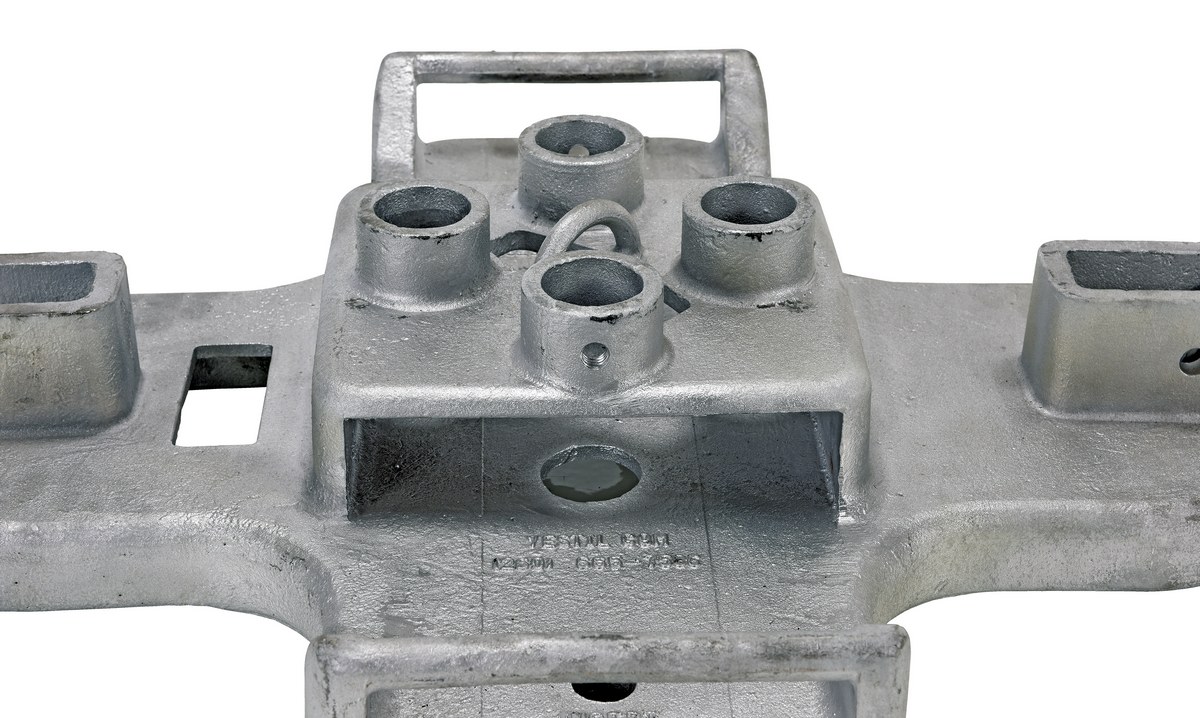

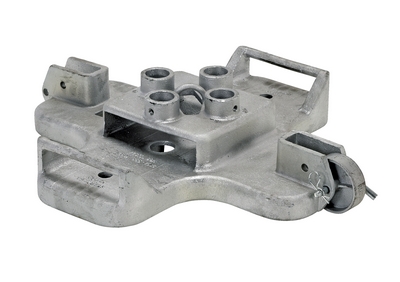

Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray

Pipe Safety Railing Socket for Warehouse Traffic Control and Collision Protection, 2.13 in. x 28.5 in. x 5.7 in.
The cast steel base is the perfect accessory for the pipe safety railing. The unit allows the pipe railing to be secured to a central location, while diminishing the chances of personal injuries. When the unit need to be moved, the base includes a caster for smooth rolling from area to area. Great for both indoor and outdoor use.
Product Status
Available QuickShip
Key Features
  • Robust construction for use in harsh conditions
  • Great for both permanent and portable uses
  • Pre-drilled lag down points saves time with installation
  • Attached caster for simple transference
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 102 lbs
Assembled Size 25.125"W x 28.5625"L x 5.6875"H
Total Ship Weight 137 lbs
Package 1 Size 24"W x 24"D x 12"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Wood Toe Board Length (in.) 2
Wood Toe Board Height (in.) 4 or 5
Lag Down Hole (qty.) 2
Bolt Holes (qty.) 4
Lag Down Mounting Hole Diameter (in.) 1
Rigid Caster (qty.) 1
Caster Width (in.) 1-1/4
Caster Diameter (in.) 4
OSHA 1926.5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VDKR-BASE
Product Name
Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray
UPC
691215054034
GTIN
00691215054034
Taxonomy 1
Building Supplies
Taxonomy 2
Stairs & Railings
Taxonomy 3
Stair & Railing Hardware
Taxonomy 4
Handrail Hardware
Assembled Depth (in.)
28.5625
Assembled Width(in.)
25.125
Assembled Height(in.)
5.6875
Assembled Weight(lbs.)
102
Color/Finish
Silver
Material
Cast Iron
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Steel Safety Railings, Aluminum Safety Railings

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
24
Package Width (in.)
24
Package Height (in.)
12
Package Weight (in.)
137
Freight Class
50
NMFC Code
Fixtures wire fence post iron or steel Caps or tops
NMFC Number
68035
LTL Freight
LTL Palletized
UNSPSC
46151500
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-BASE

VDKR-BASE

Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray

The cast steel base is the perfect accessory for the pipe safety railing. The unit allows the pipe railing to be secured to a central location, while diminishing the chances of personal injuries. When the unit need to be moved, the base includes a caster for smooth rolling from area to area. Great for both indoor and outdoor use.

  • Robust construction for use in harsh conditions
  • Great for both permanent and portable uses
  • Pre-drilled lag down points saves time with installation
  • Attached caster for simple transference

Core Data

Assembled Weight: 102 Assembled Size: 25.125"W x 28.5625"L x 5.6875"H Color: Silver
Total Ship Weight: 137 Package 1 Size: 24"W x 24"D x 12"H Freight: LTL Palletized

Specifications

Wood Toe Board Length (in.): 2
Wood Toe Board Height (in.): 4 or 5
Lag Down Hole (qty.): 2
Bolt Holes (qty.): 4
Lag Down Mounting Hole Diameter (in.): 1
Rigid Caster (qty.): 1
Caster Width (in.): 1-1/4
Caster Diameter (in.): 4
OSHA: 1926.5
