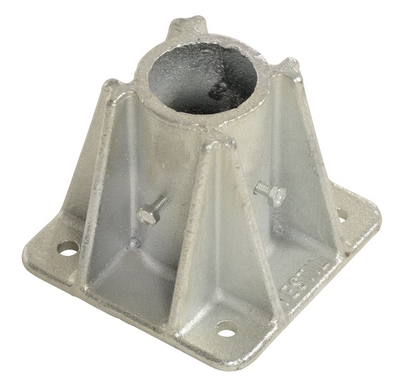

Cast Steel Single Socket For Pipe Safety Railing Silver

Pipe Safety Railing Socket for Warehouse Traffic Control and Collision Protection, Silver Finish, Cast Steel Construction – Model VDKR-P101
Cast steel single socket option for pipe safety railing. Accepts wood when a toe board is required.
Product Status
Available QuickShip
Key Features
  • Single socket design makes installing railing easy
  • Design accepts wood when toe board is required
  • Heavy-duty cast steel provides durable use
  • Pre drilled lag down bolts make installing easy
Quick Actions

Product Resources

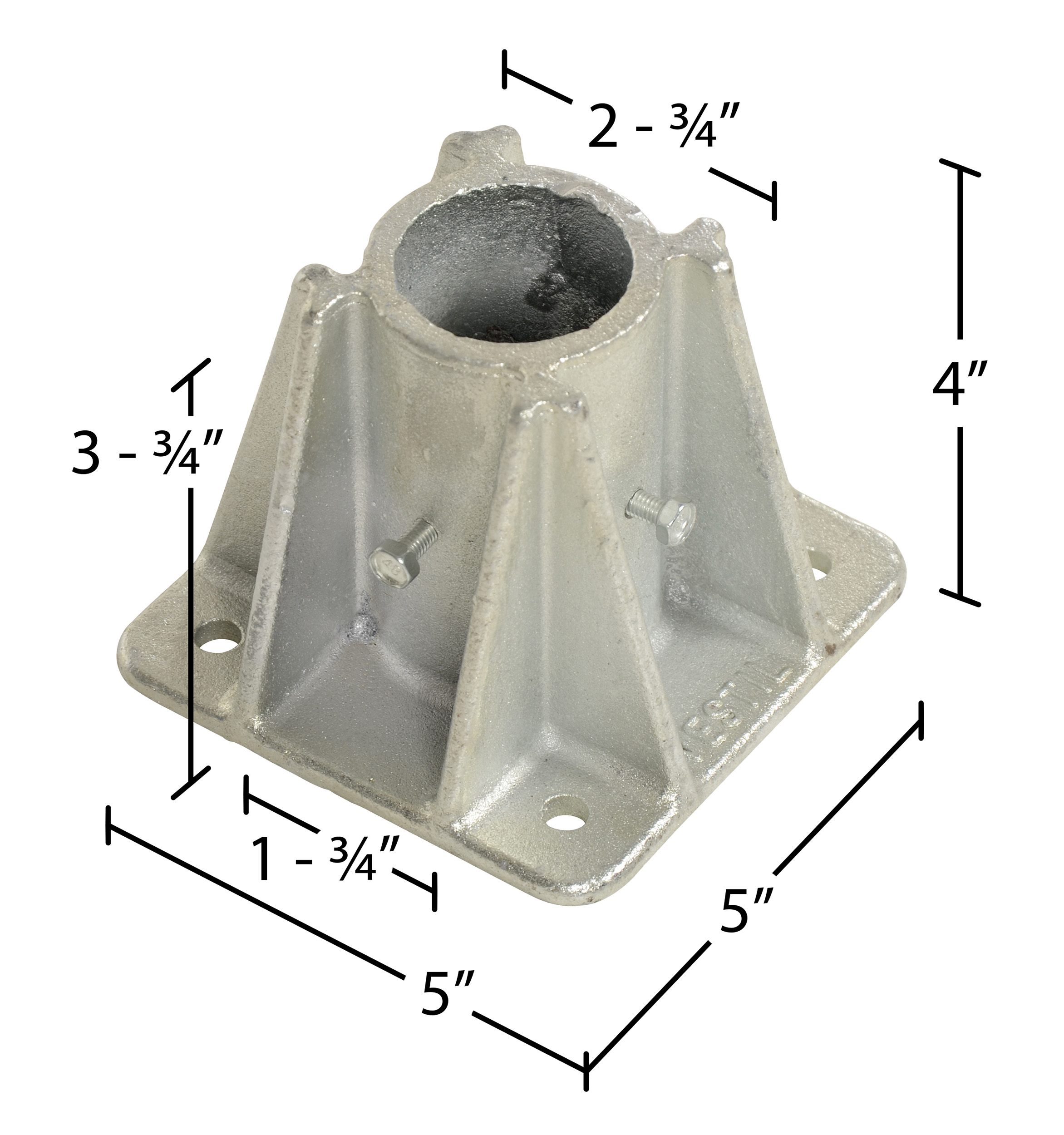

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 6 lbs
Assembled Size 5"W x 5"L x 4"H
Total Ship Weight 6 lbs
Package 1 Size 7"W x 7"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Bolt Hole (qty.) 4
Bolt Hole Diameter (in.) 3/8
Toe Board Slot Width/Height (in.) 1-3/4 x 3-3/4
Bottom Plate Thickness (in.) 1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VDKR-P101
Product Name
Cast Steel Single Socket For Pipe Safety Railing Silver
UPC
691215045100
GTIN
00691215045100
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Barricade Bases / Feet
Assembled Depth (in.)
5
Assembled Width(in.)
5
Assembled Height(in.)
4
Assembled Weight(lbs.)
6
Color/Finish
Silver
Material
Cast Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Steel Safety Railings, Aluminum Safety Railings

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
7
Package Width (in.)
7
Package Height (in.)
6
Package Weight (in.)
6
Freight Class
50
NMFC Code
Fixtures wire fence post iron or steel Caps or tops
NMFC Number
68035
LTL Freight
Parcel
UNSPSC
46151500
HTSUS Number
7325.10.0080
USMCA HS
7325.10
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-P101

VDKR-P101

Cast Steel Single Socket For Pipe Safety Railing Silver

Cast steel single socket option for pipe safety railing. Accepts wood when a toe board is required.

  • Single socket design makes installing railing easy
  • Design accepts wood when toe board is required
  • Heavy-duty cast steel provides durable use
  • Pre drilled lag down bolts make installing easy

Core Data

Assembled Weight: 6 Assembled Size: 5"W x 5"L x 4"H Color: Silver
Total Ship Weight: 6 Package 1 Size: 7"W x 7"D x 6"H Freight: Parcel

Specifications

Bolt Hole (qty.): 4
Bolt Hole Diameter (in.): 3/8
Toe Board Slot Width/Height (in.): 1-3/4 x 3-3/4
Bottom Plate Thickness (in.): 1/4
