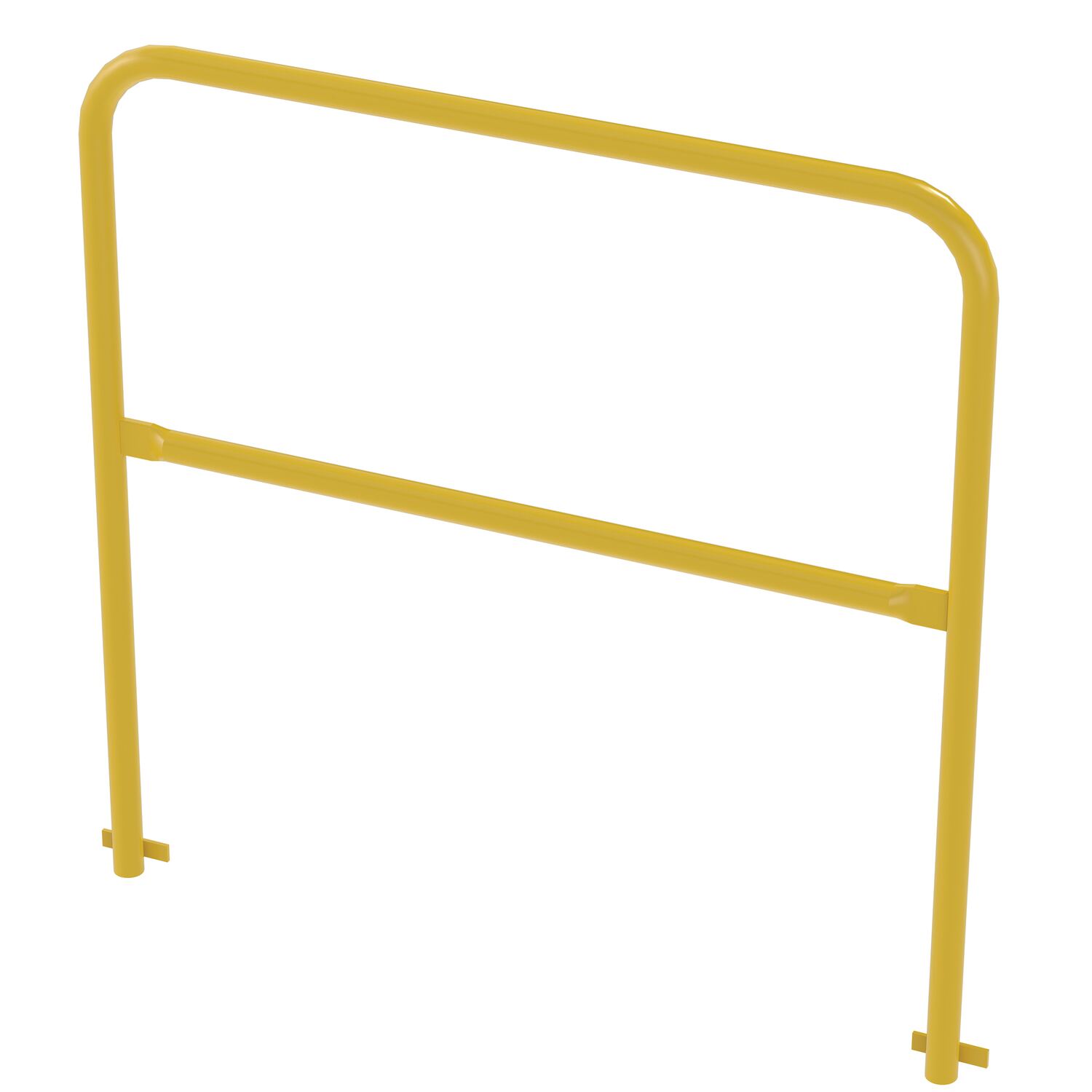

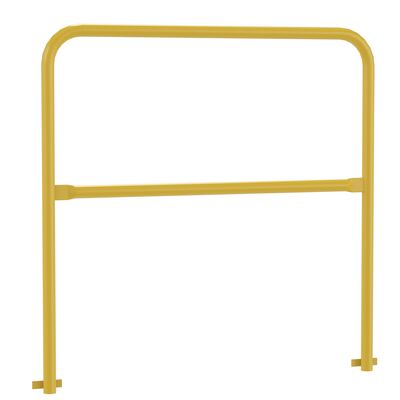

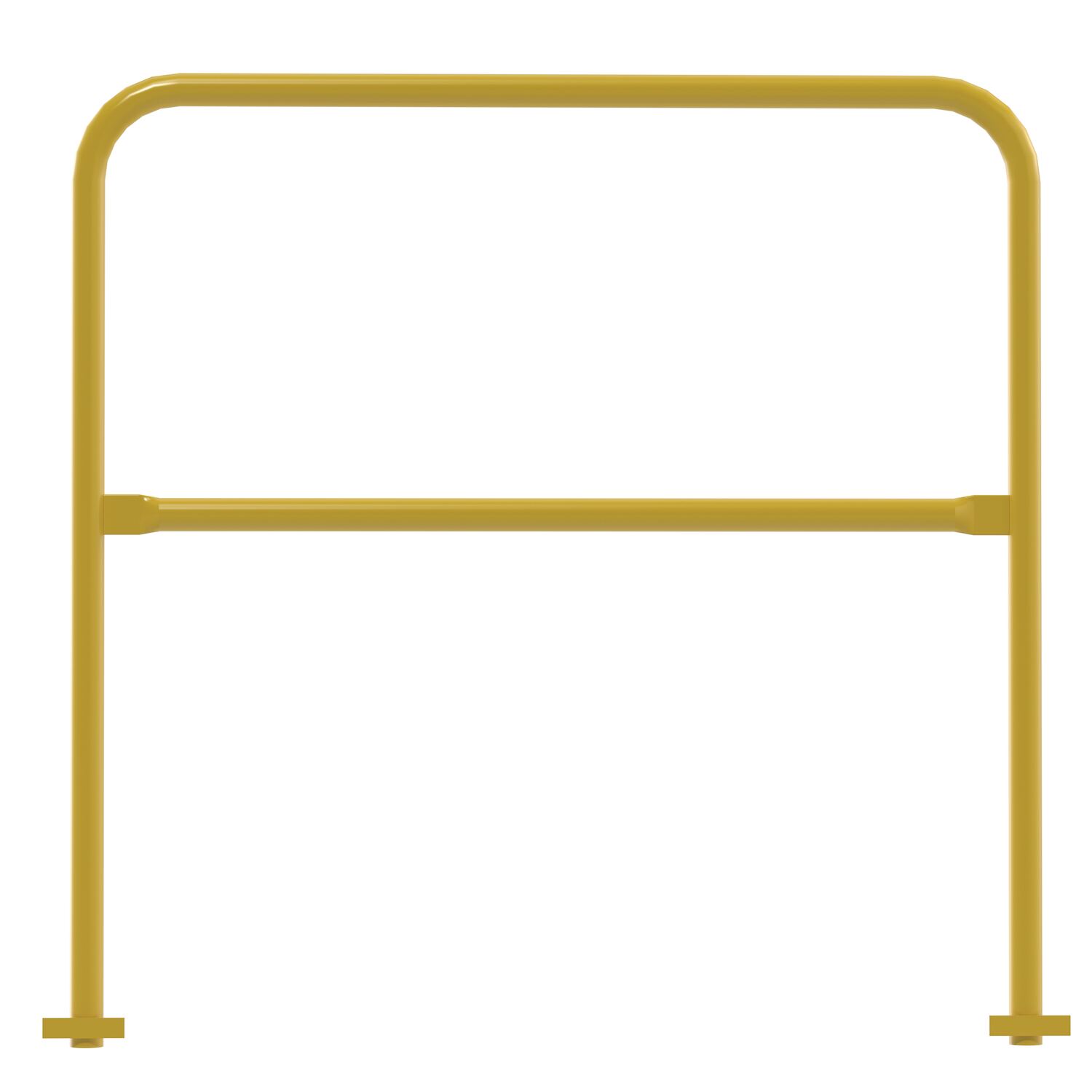

Steel Safety Railing Pour in Place 4 Ft. Length Yellow

Safety Railing Pour in Place for Warehouse Traffic Control and Collision Protection, 4 ft. Length
Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General industry requirements for guardrail systems in 29 CFR 1910.29.
Product Status
Available Non-Returnable
Key Features
  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 28 lbs
Assembled Size 1.9062"W x 50.5"L x 48"H
Total Ship Weight 29 lbs
Package 1 Size 49"W x 49"D x 3"H
Color / Finish YELLOW
Freight Type Parcel

Additional Attributes

Overall Length (in.) 50-1/2
Overall Width (in.) 1-1/4
Overall Height (in.) 48
Usable Length (in.) 48
Usable Height (in.) 42
Overall Mid Rail Height (in.) 27
Usable Mid Rail Height (in.) 21
Handrail Diameter (in.) 1-5/8
Steel Gauge 10
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VDKR-PP-4
Product Name
Steel Safety Railing Pour in Place 4 Ft. Length Yellow
UPC
691215378543
GTIN
00691215378543
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Safety Barricades
Assembled Depth (in.)
50.5
Assembled Width(in.)
1.9062
Assembled Height(in.)
48
Assembled Weight(lbs.)
28
Color/Finish
YELLOW
Material
STEEL
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
49
Package Height (in.)
3
Package Weight (in.)
29
Subclass
6
Freight Class
300
NMFC Code
Barricades pedestrian iron steel and or alum combined
NMFC Number
68005
LTL Freight
Parcel
UNSPSC
46151500
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-PP-4

VDKR-PP-4

Steel Safety Railing Pour in Place 4 Ft. Length Yellow

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish

Core Data

Assembled Weight: 28 Assembled Size: 1.9062"W x 50.5"L x 48"H Color: YELLOW
Total Ship Weight: 29 Package 1 Size: 49"W x 49"D x 3"H Freight: Parcel

Specifications

Overall Length (in.): 50-1/2
Overall Width (in.): 1-1/4
Overall Height (in.): 48
Usable Length (in.): 48
Usable Height (in.): 42
Overall Mid Rail Height (in.): 27
Usable Mid Rail Height (in.): 21
Handrail Diameter (in.): 1-5/8
Steel Gauge: 10
