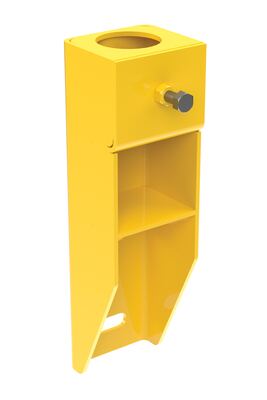

Steel Vertical Wall Mount Handrail Socket Single Pocket

Vertical Wall Mount Handrail Socket Single Pocket for Warehouse Traffic Control and Collision Protection, Yellow Finish
The vertical wall mount handrail socket allows the user to place the unit in a safe position without having an additional platform socket decreasing pathway space. All VDKR and ADKR rails are compatible with this mounting. Yellow powder coat finish. Mounting hardware not included.
Product Status
Available QuickShip
Key Features
  • Single handrail capacity
  • To be used with a 1-5/8" handrail
  • Pre drilled mounting holes
  • 0.1345" steel plate
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 5 lbs
Assembled Size 3"W x 3"L x 10.25"H
Total Ship Weight 6 lbs
Package 1 Size 4"W x 4"D x 11"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Mounting Hole Slotted Quantity/Width/Length (in.) (2) 1/2 x 1
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VDKR-VM1
Product Name
Steel Vertical Wall Mount Handrail Socket Single Pocket
UPC
691215375665
GTIN
00691215375665
Taxonomy 1
Building Supplies
Taxonomy 2
Stairs & Railings
Taxonomy 3
Stair & Railing Hardware
Taxonomy 4
Handrail Hardware
Assembled Depth (in.)
3
Assembled Width(in.)
3
Assembled Height(in.)
10.25
Assembled Weight(lbs.)
5
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
4
Package Width (in.)
4
Package Height (in.)
11
Package Weight (in.)
6
Freight Class
50
NMFC Code
Fixtures, wire-fence post, iron or steel in package
NMFC Number
68035
LTL Freight
Parcel
UNSPSC
31163100
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-VM1

VDKR-VM1

Steel Vertical Wall Mount Handrail Socket Single Pocket

The vertical wall mount handrail socket allows the user to place the unit in a safe position without having an additional platform socket decreasing pathway space. All VDKR and ADKR rails are compatible with this mounting. Yellow powder coat finish. Mounting hardware not included.

  • Single handrail capacity
  • To be used with a 1-5/8" handrail
  • Pre drilled mounting holes
  • 0.1345" steel plate

Core Data

Assembled Weight: 5 Assembled Size: 3"W x 3"L x 10.25"H Color: Yellow
Total Ship Weight: 6 Package 1 Size: 4"W x 4"D x 11"H Freight: Parcel

Specifications

Mounting Hole Slotted Quantity/Width/Length (in.): (2) 1/2 x 1
