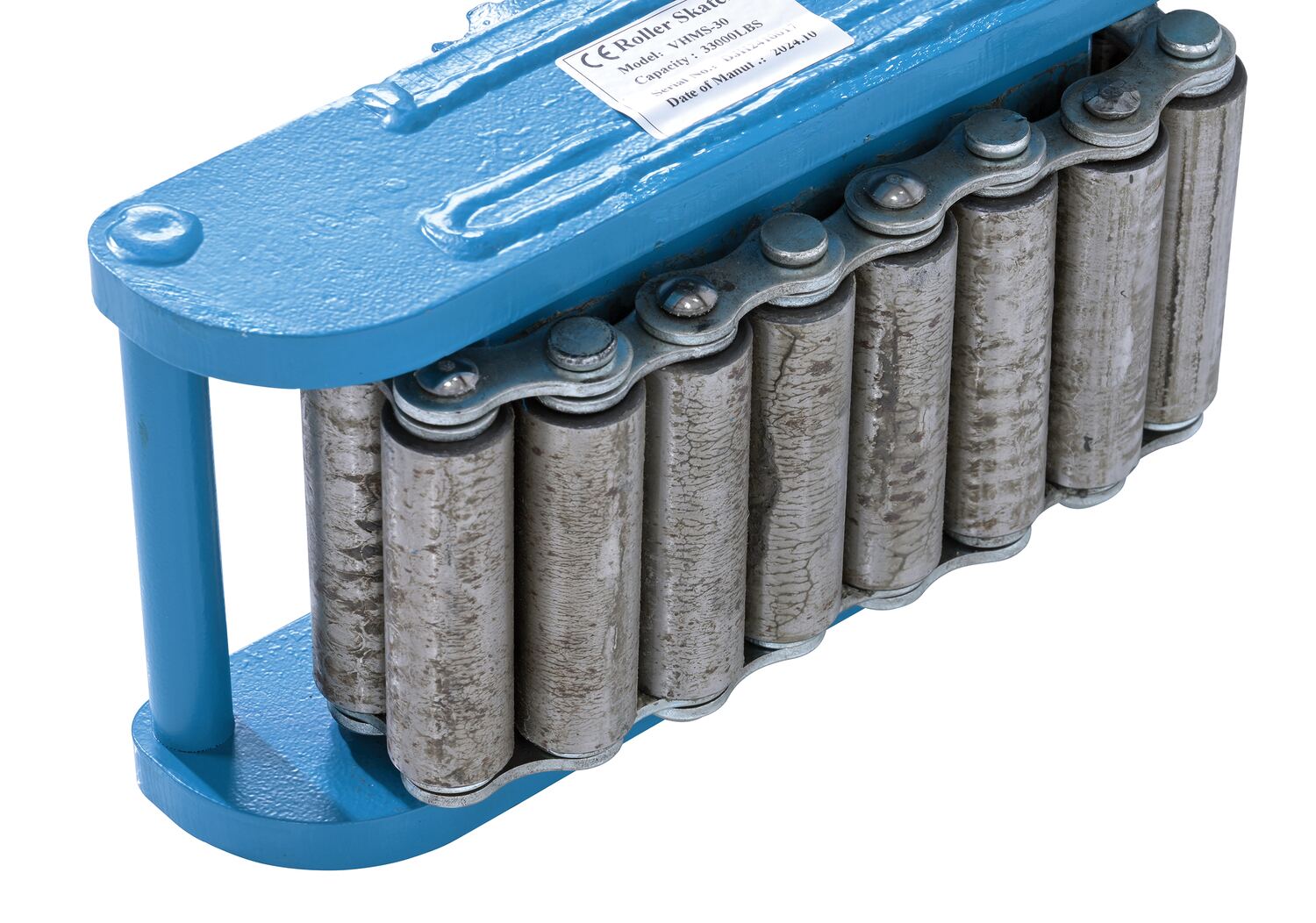

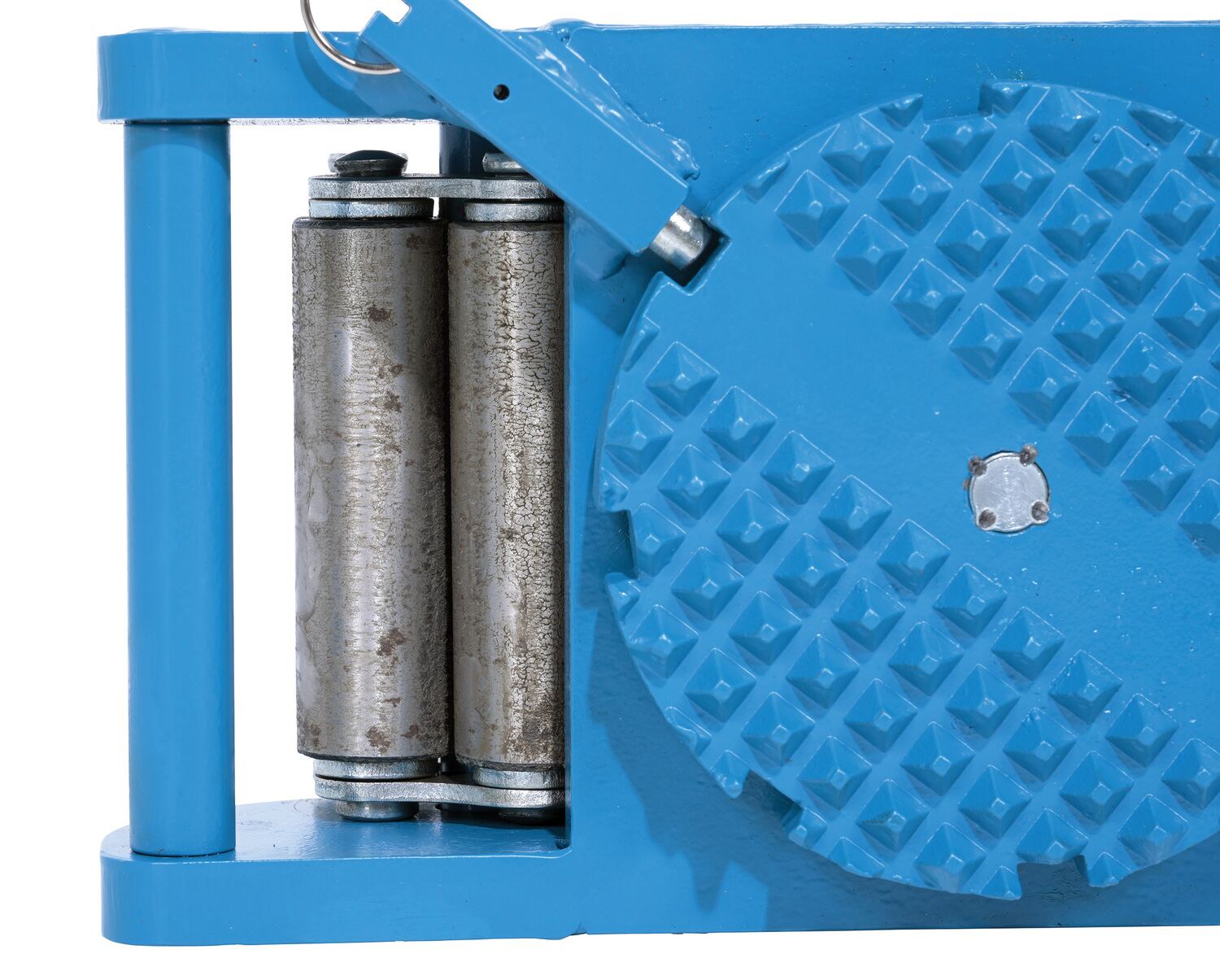

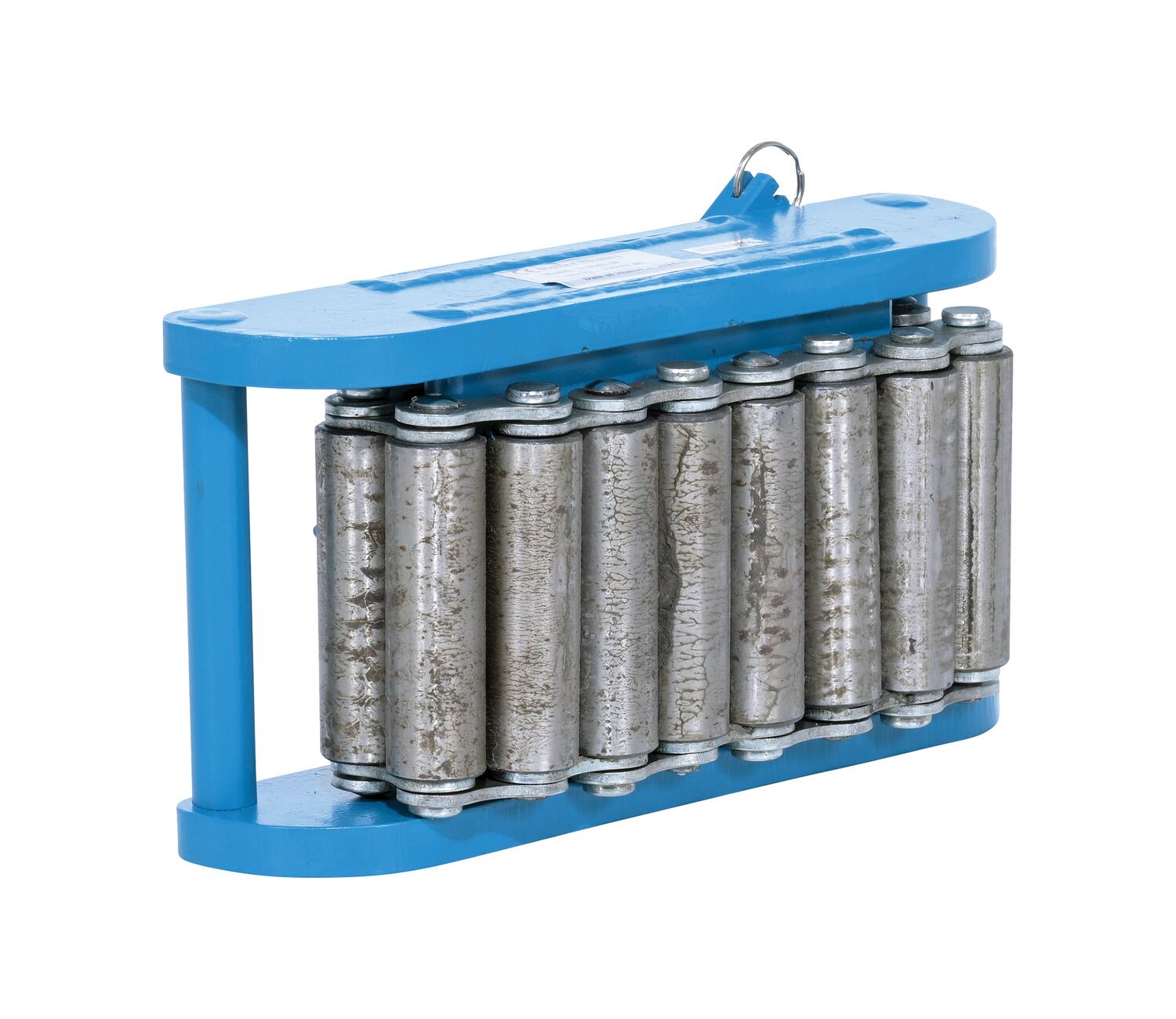

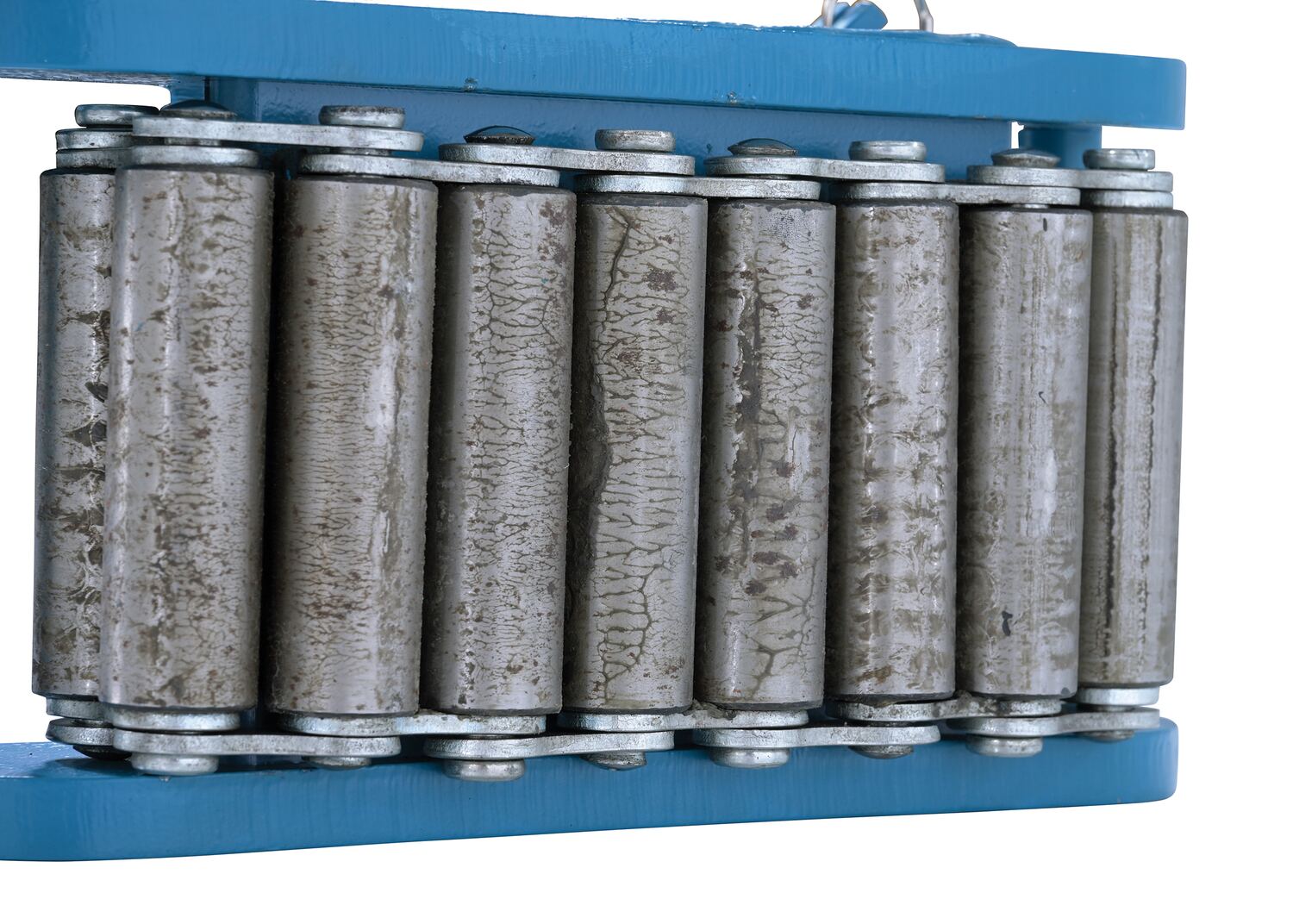

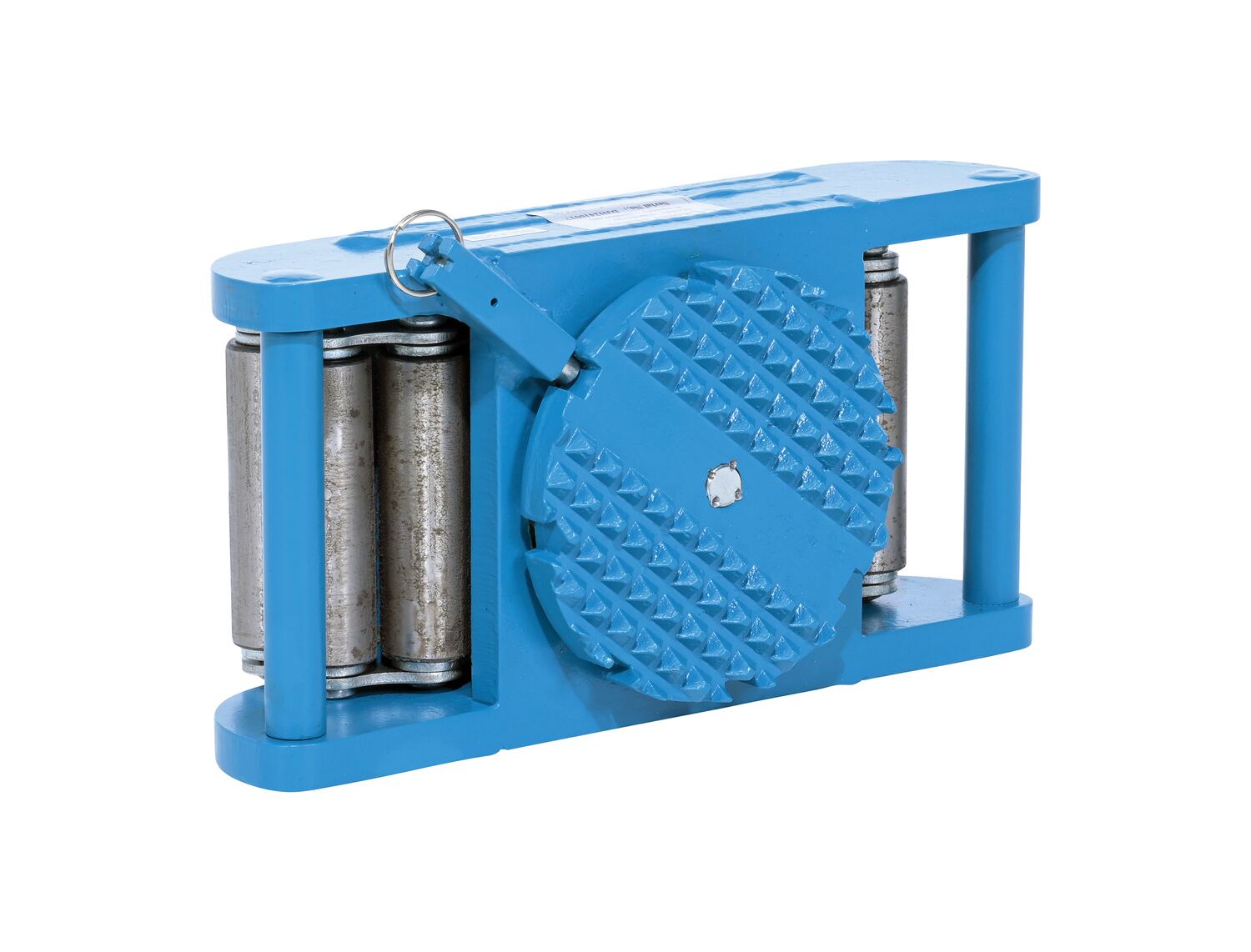

Steel Machine Roller 33,000 Lb. Capacity Blue

Machine Skate for Commercial and Industrial Machine Rollers & Lifts Use, 33,000 lb. Capacity
Made of high-strength annealed ductile iron, this steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. This unit is virtually maintenance free.
Product Status
Available QuickShip
Key Features
  • Rollers revolve around center load bearing plate in frame to provide maximum maneuverability
  • Load weight is transferred directly from the load bearing plate to the rollers requiring less power to start and move
  • High-strength annealed ductile iron provides a tough long lasting unit
  • Unit construction is virtually maintenance free
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 49 lbs
Assembled Size 6.5"W x 12.75"L x 5"H
Total Ship Weight 51 lbs
Package 1 Size 7"W x 13"D x 6"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 33000
Component Machine Roller
Steel Roller Height (in.) 3/4
Steel Roller Length (in.) 3-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VHMS-30
Product Name
Steel Machine Roller 33,000 Lb. Capacity Blue
UPC
691215045353
GTIN
00691215045353
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Cargo / Moving Dollies
Assembled Depth (in.)
12.75
Assembled Width(in.)
6.5
Assembled Height(in.)
5
Assembled Weight(lbs.)
49
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
13
Package Width (in.)
7
Package Height (in.)
6
Package Weight (in.)
51
Freight Class
70
NMFC Code
Dollie material handling NOI wood and or steel
NMFC Number
189035
LTL Freight
Parcel
UNSPSC
24101502
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHMS-30

VHMS-30

Steel Machine Roller 33,000 Lb. Capacity Blue

Made of high-strength annealed ductile iron, this steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. This unit is virtually maintenance free.

  • Rollers revolve around center load bearing plate in frame to provide maximum maneuverability
  • Load weight is transferred directly from the load bearing plate to the rollers requiring less power to start and move
  • High-strength annealed ductile iron provides a tough long lasting unit
  • Unit construction is virtually maintenance free

Core Data

Assembled Weight: 49 Assembled Size: 6.5"W x 12.75"L x 5"H Color: Blue
Total Ship Weight: 51 Package 1 Size: 7"W x 13"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 33000
Component: Machine Roller
Steel Roller Height (in.): 3/4
Steel Roller Length (in.): 3-1/4
