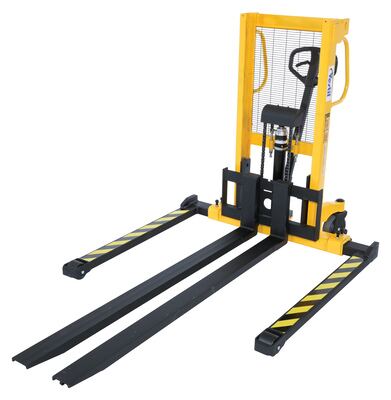

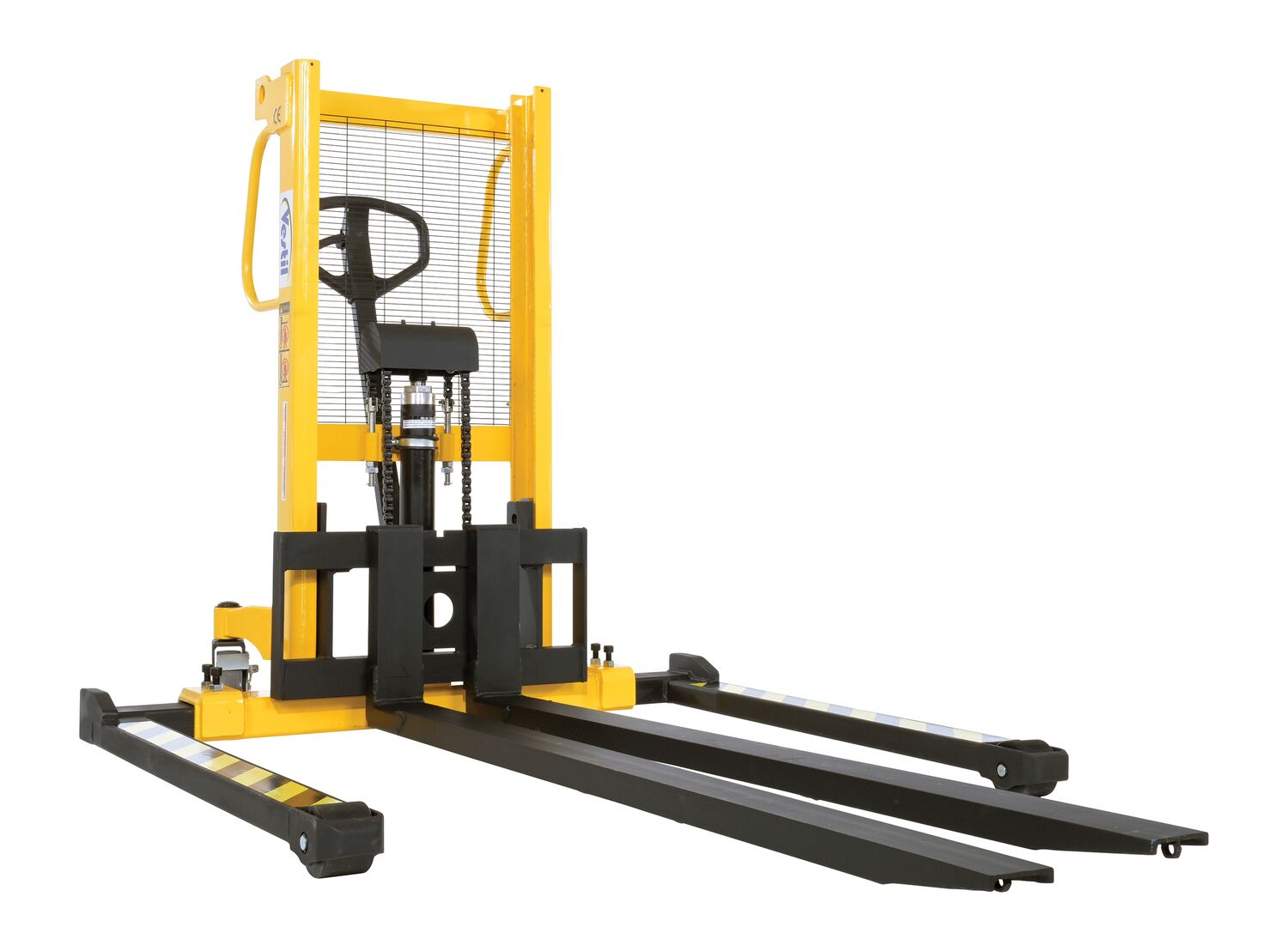

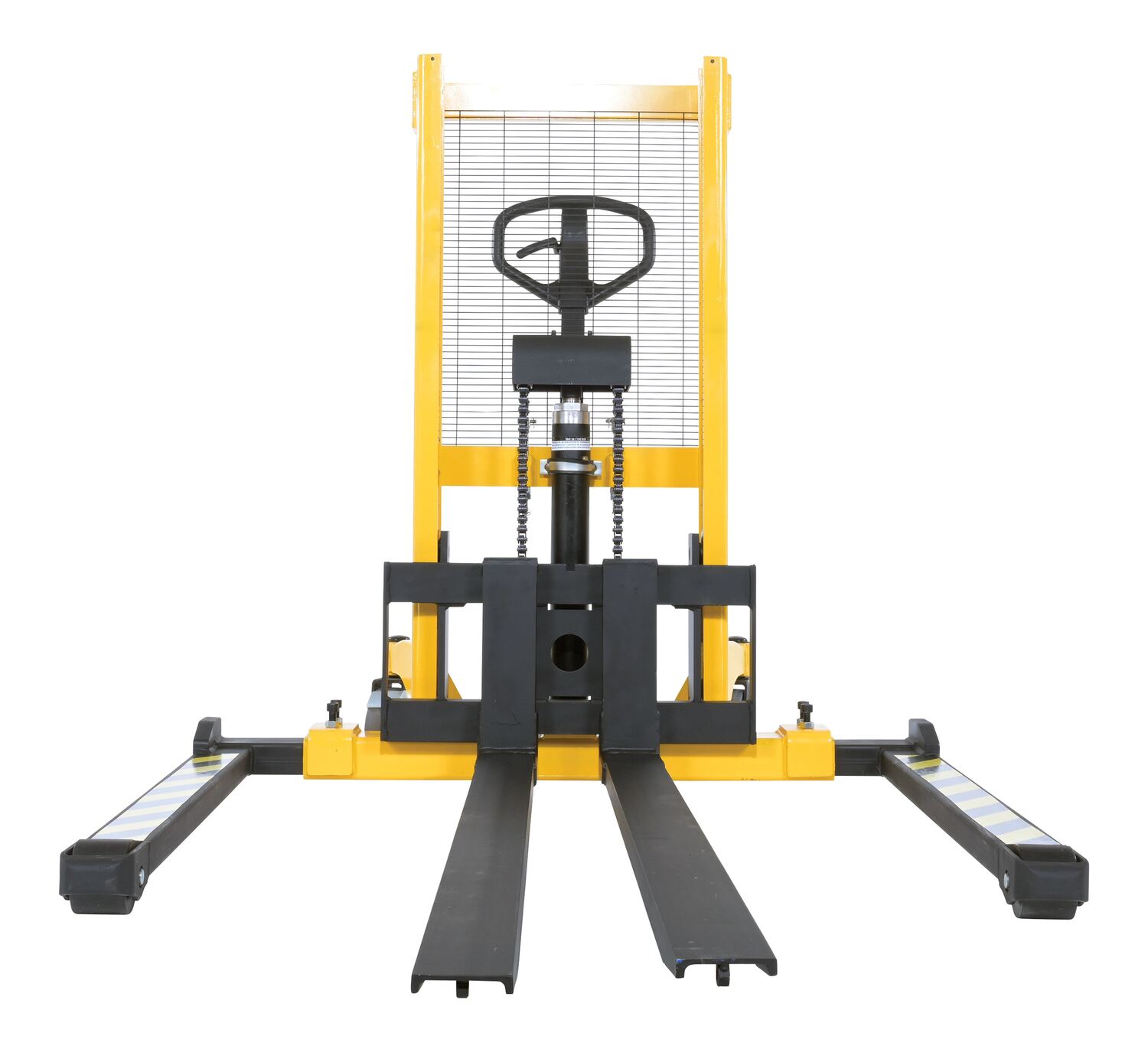

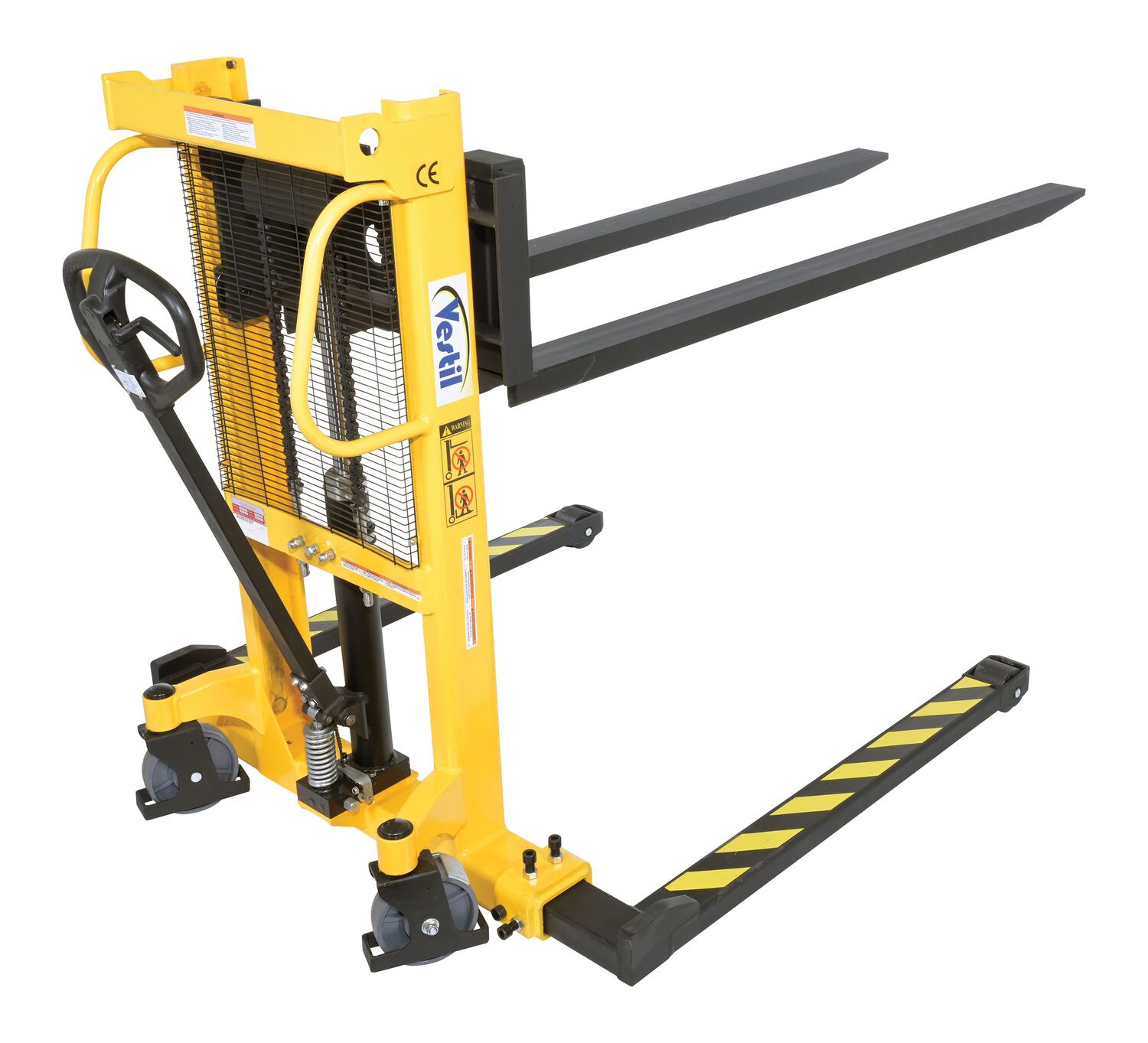

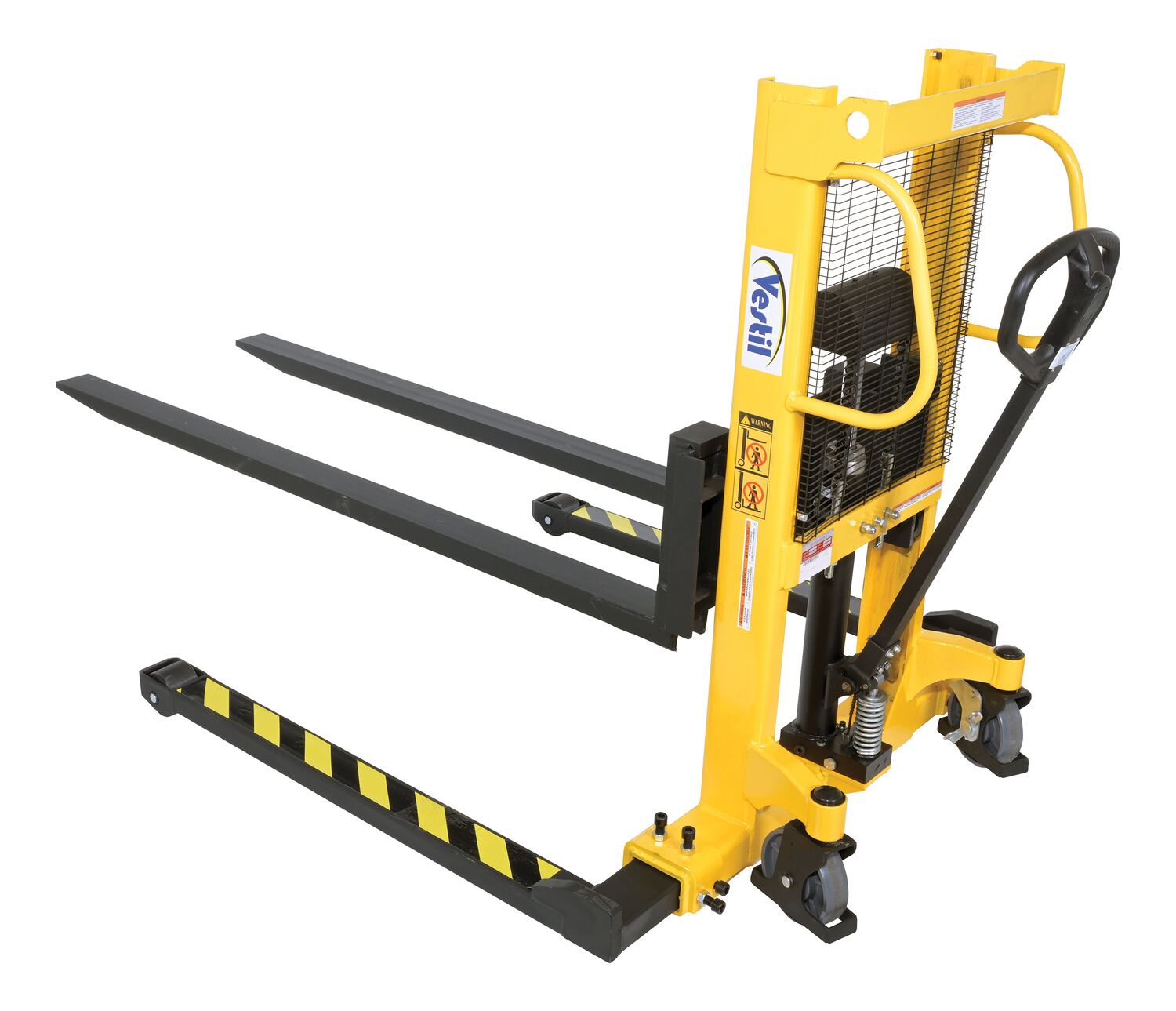

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

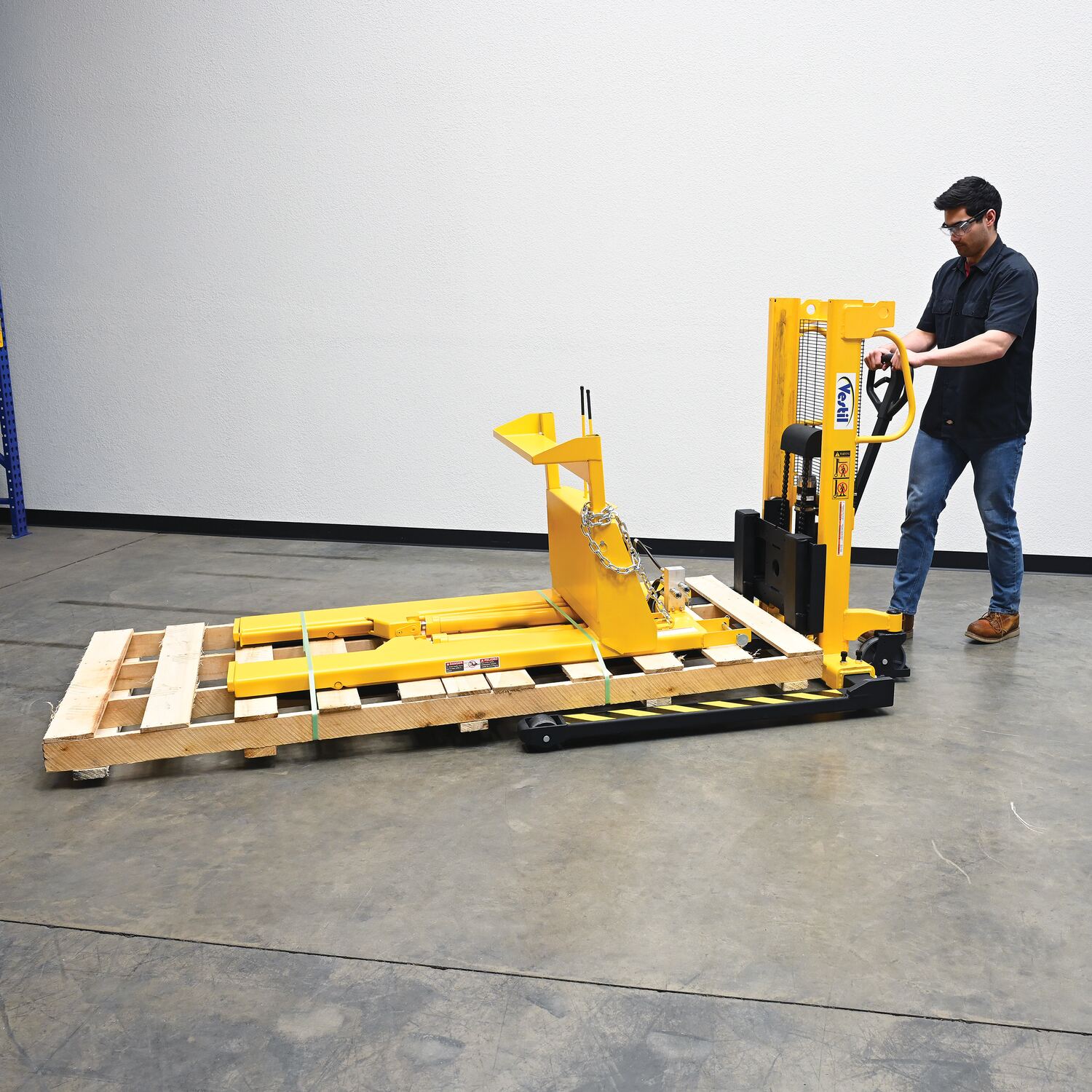

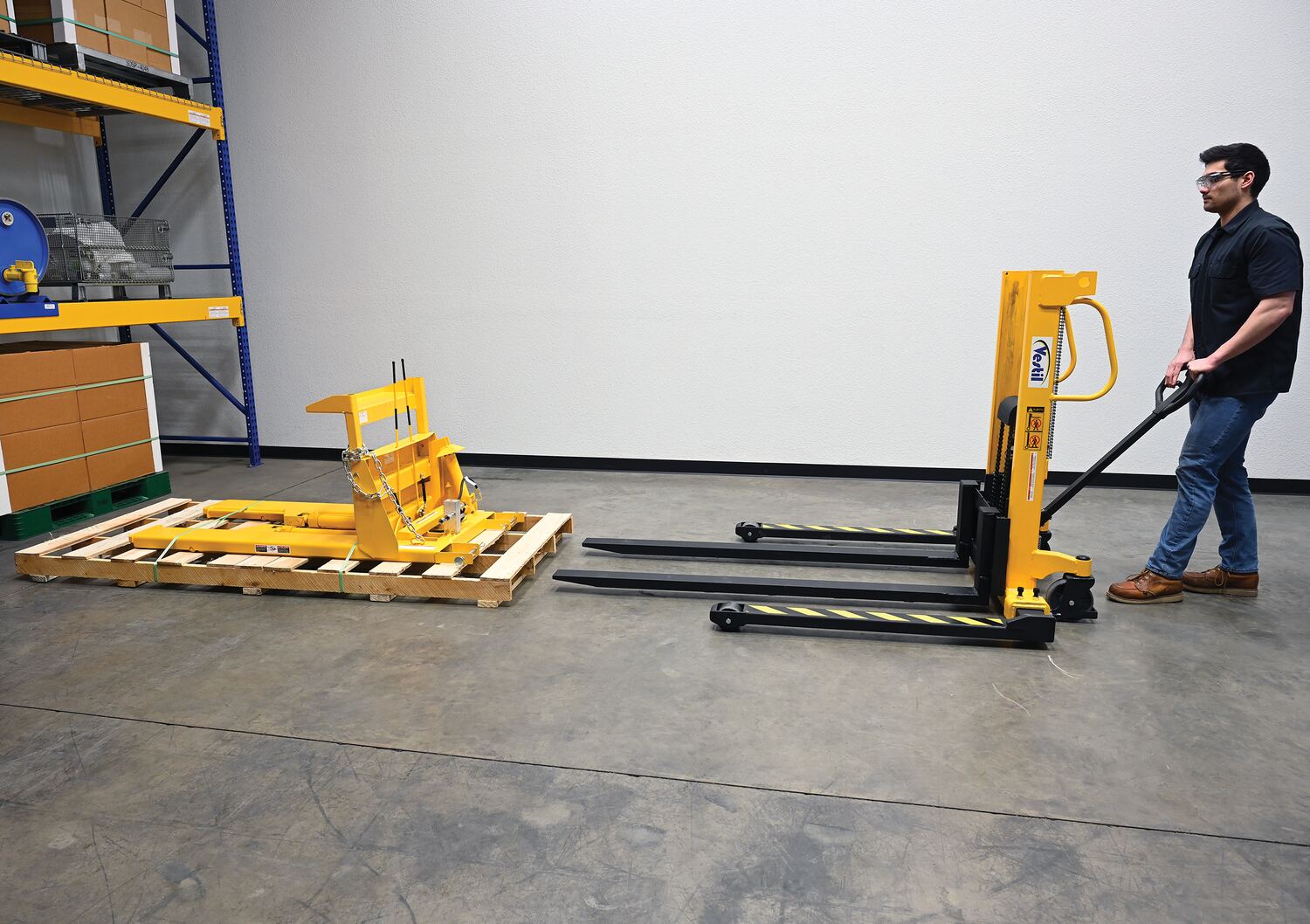

Adjustable Manual Pallet Stacker for Moving Loads Through Warehouses and Production Areas, 550 lb. Capacity

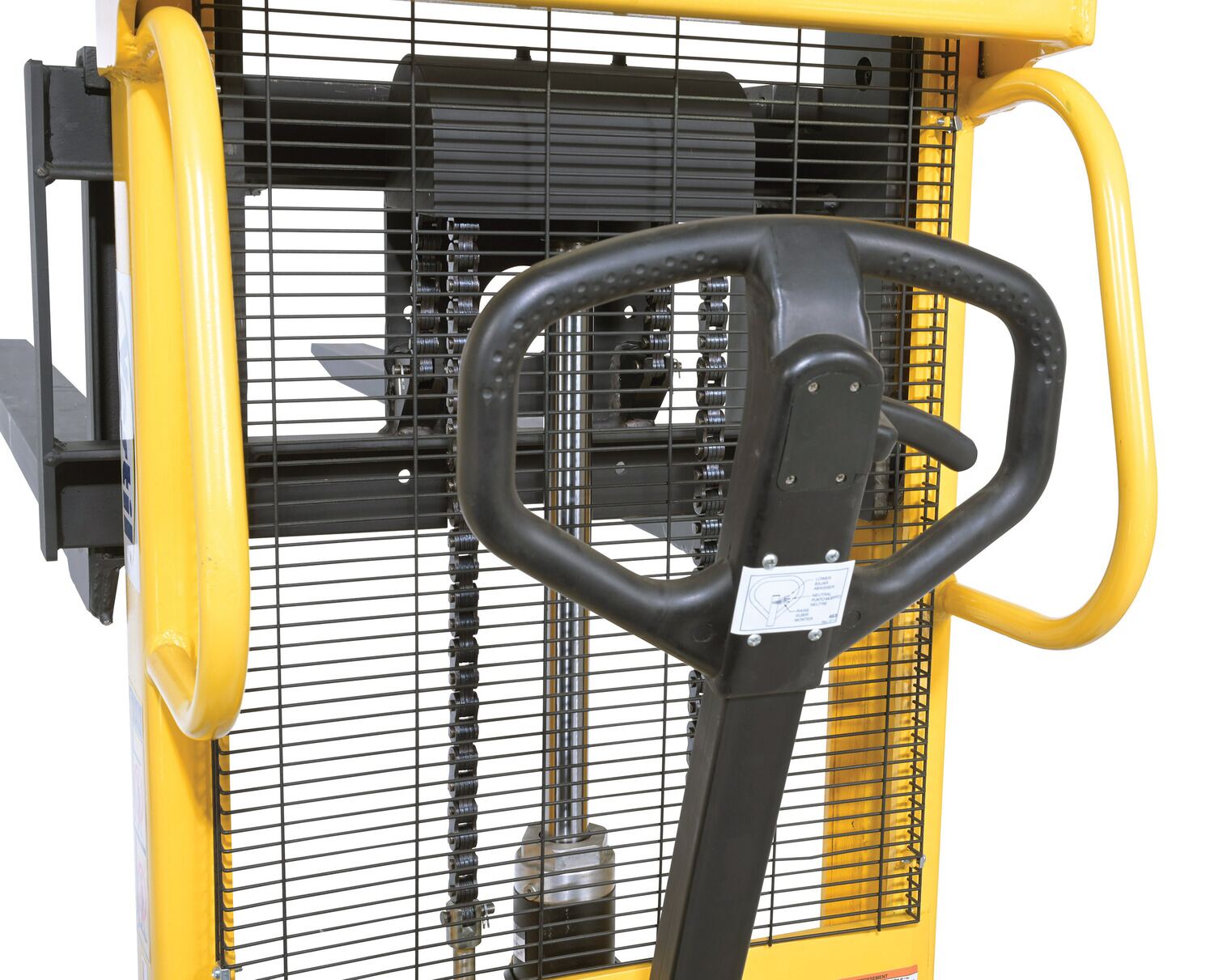

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.
Product Status
Available QuickShip
Key Features
  • Single mast structure

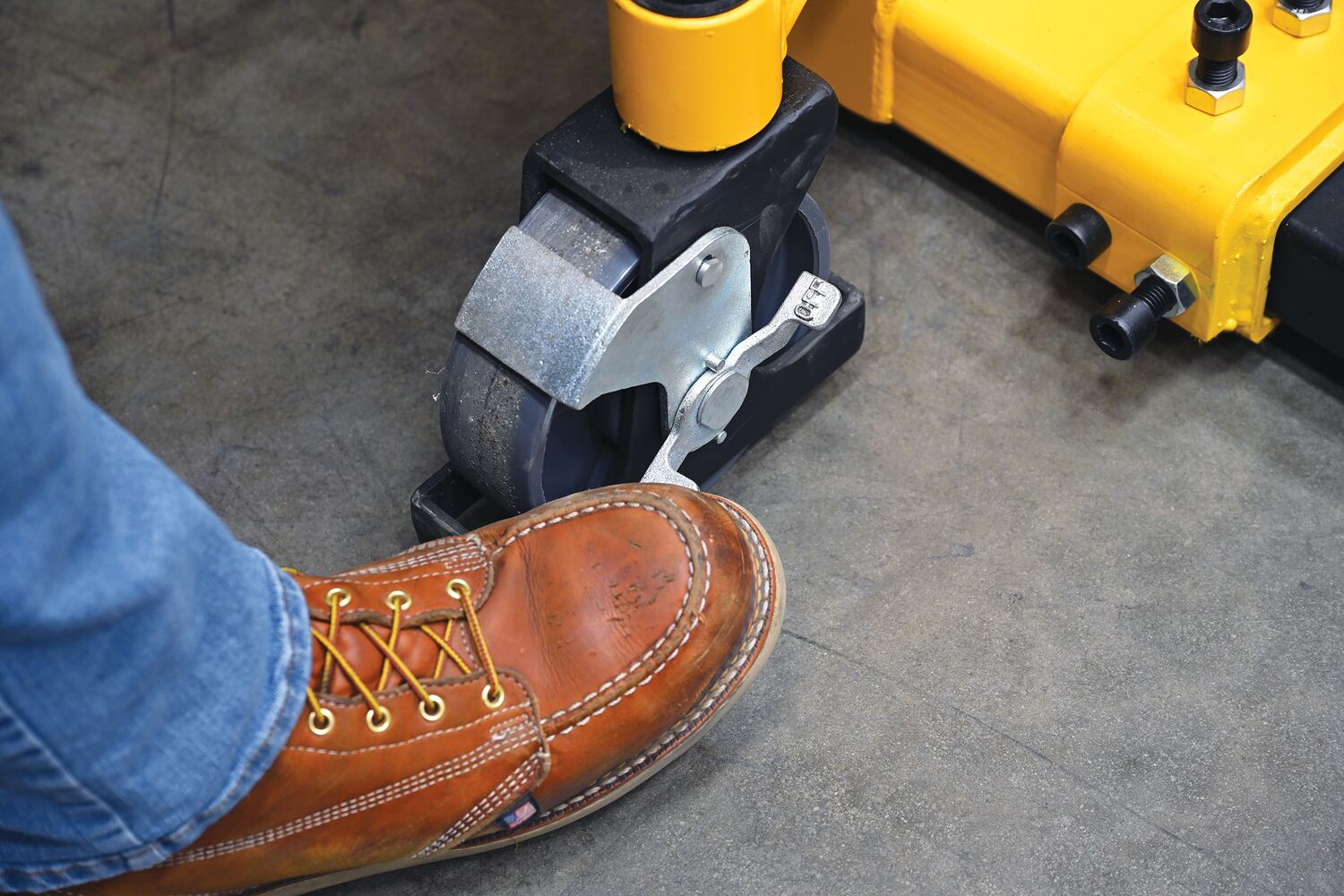

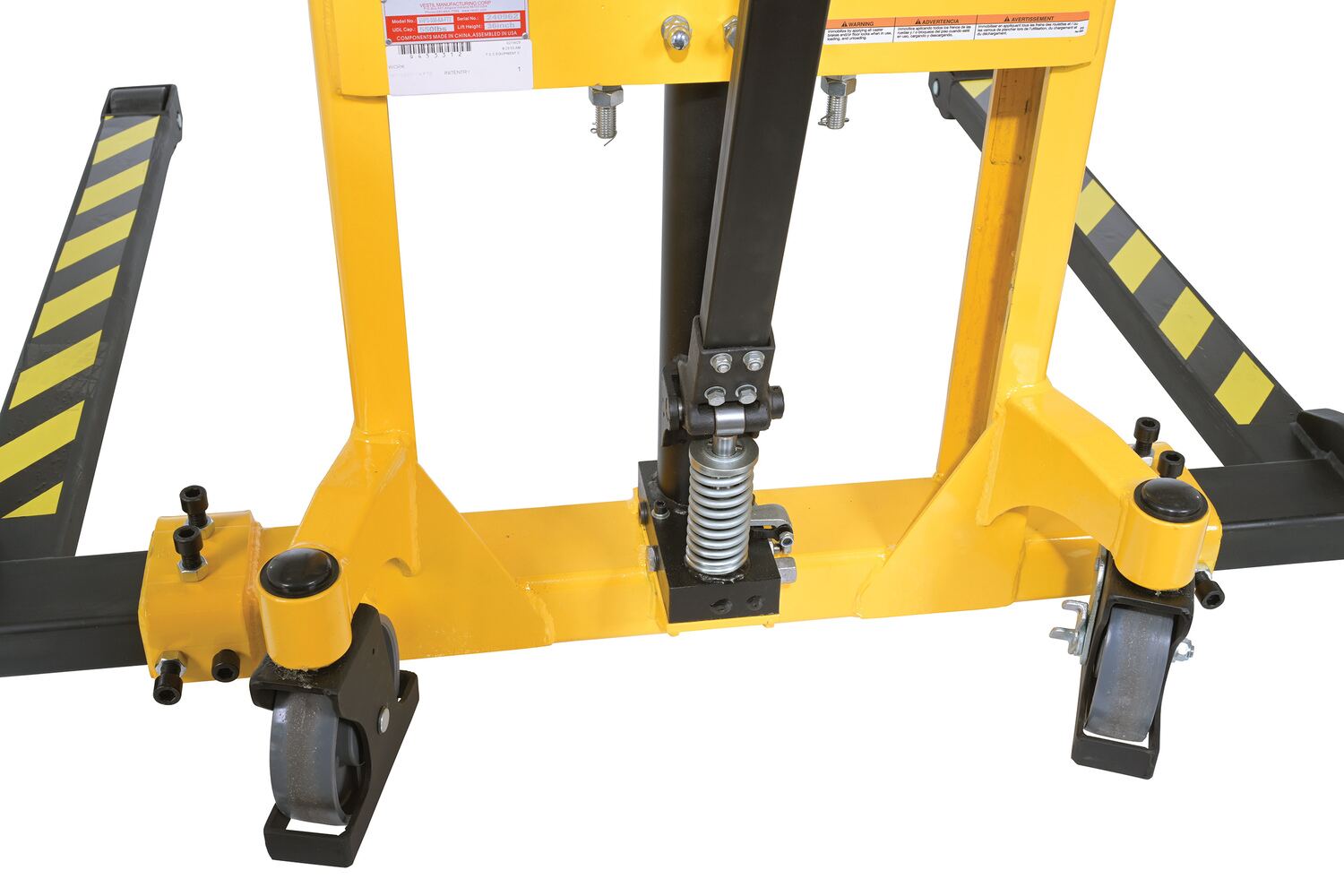

  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design
  • Adjustable forks and legs
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 840 lbs
Assembled Size 50"W x 93"L x 55"H
Total Ship Weight 885 lbs
Package 1 Size 40"W x 96"D x 60"H
Color / Finish Black/Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 550
Fork Length (in.) 72
Power Source Manual
Adjustable Fork Spacing (in.) 7-7/8 to 26-3/4
Service Range (in.) 3-1/8 to 35-1/2
Adjustable Leg Spacing (in.) 40-1/8 to 50
Straddle Leg Length x Width (in.) 52-1/2 x 4
Caster Material Nylon
Rear Caster Diameter (in.) 7
Front Caster Diameter (in.) 4
Straddle Leg Height (in.) 4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VHPS-550-AA-F72
Product Name
Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow
UPC
691215379014
GTIN
00691215379014
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Manual
Assembled Depth (in.)
93
Assembled Width(in.)
50
Assembled Height(in.)
55
Assembled Weight(lbs.)
840
Color/Finish
Black/Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
96
Package Width (in.)
40
Package Height (in.)
60
Package Weight (in.)
885
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
No
Certification Indicator
No
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHPS-550-AA-F72

VHPS-550-AA-F72

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.

  • Single mast structure
  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design
  • Adjustable forks and legs

Core Data

Assembled Weight: 840 Assembled Size: 50"W x 93"L x 55"H Color: Black/Yellow
Total Ship Weight: 885 Package 1 Size: 40"W x 96"D x 60"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 550
Fork Length (in.): 72
Power Source: Manual
Adjustable Fork Spacing (in.): 7-7/8 to 26-3/4
Service Range (in.): 3-1/8 to 35-1/2
Adjustable Leg Spacing (in.): 40-1/8 to 50
Straddle Leg Length x Width (in.): 52-1/2 x 4
Caster Material: Nylon
Rear Caster Diameter (in.): 7
Front Caster Diameter (in.): 4
Straddle Leg Height (in.): 4
