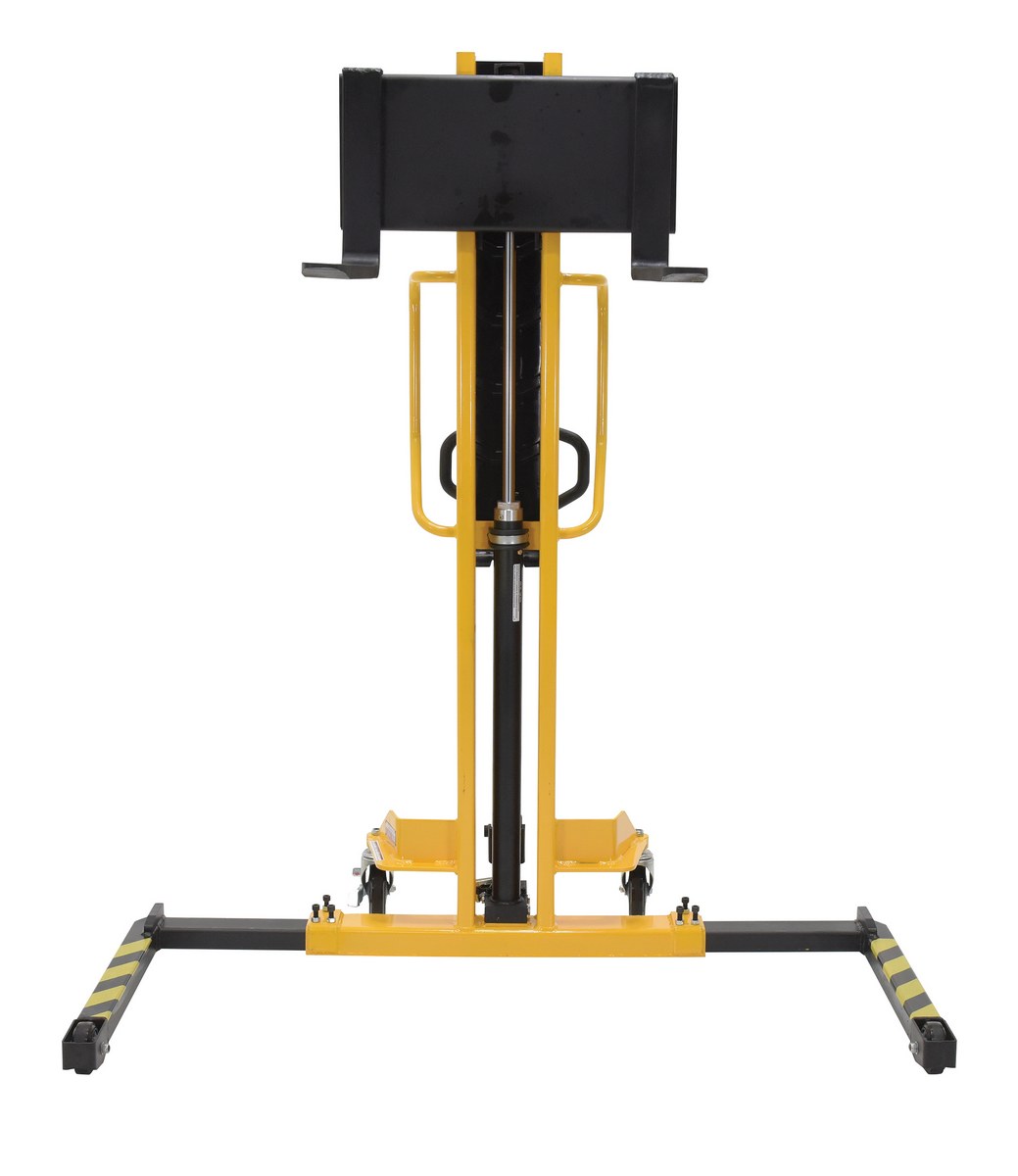

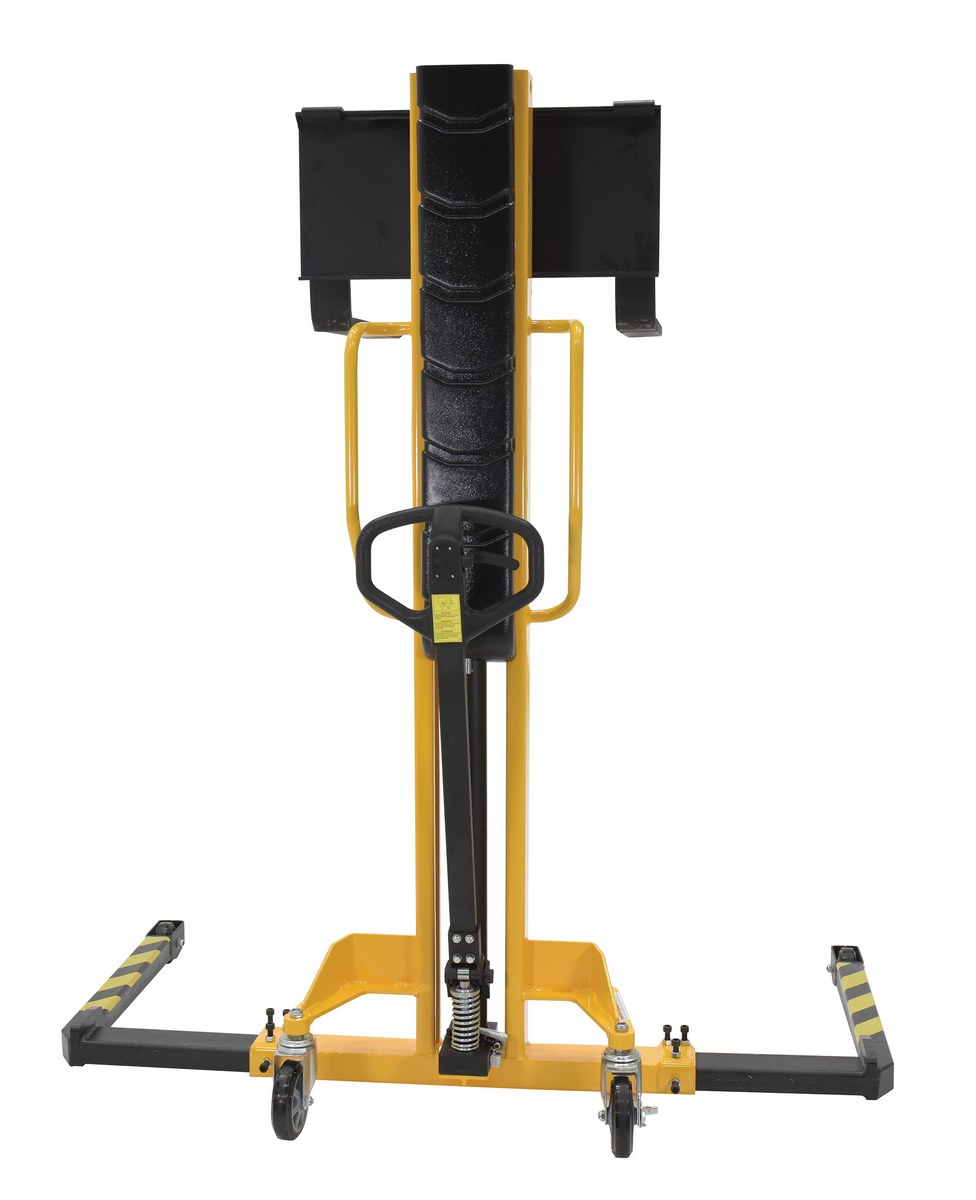

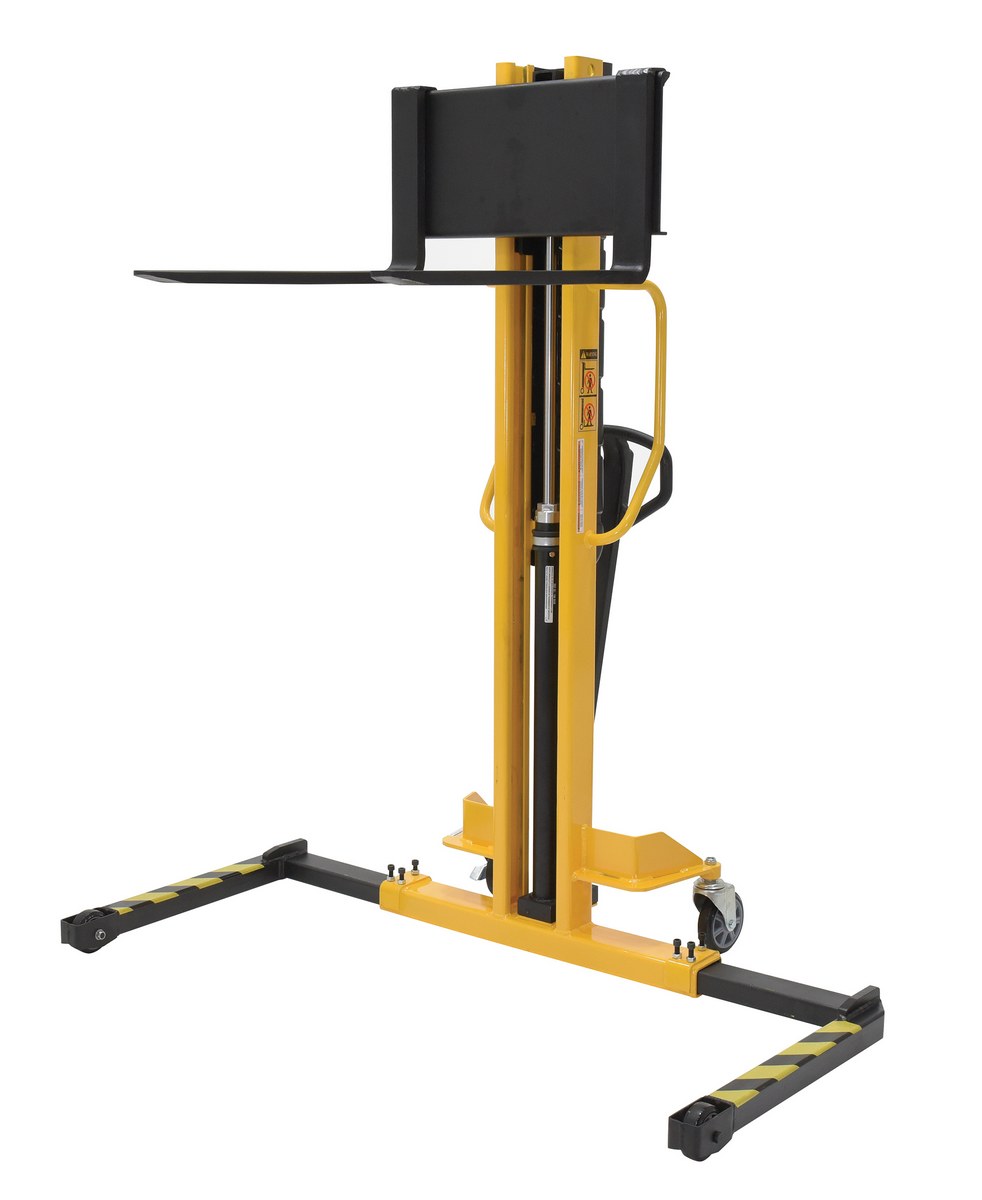

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Adjustable Manual Pallet Stacker for Moving Loads Through Warehouses and Production Areas, 1,000 lb. Capacity
Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 7/8" lift per handle pump. Two rigid and two swivel wheels standard.
Product Status
Out of Stock QuickShip
Key Features
  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 590 lbs

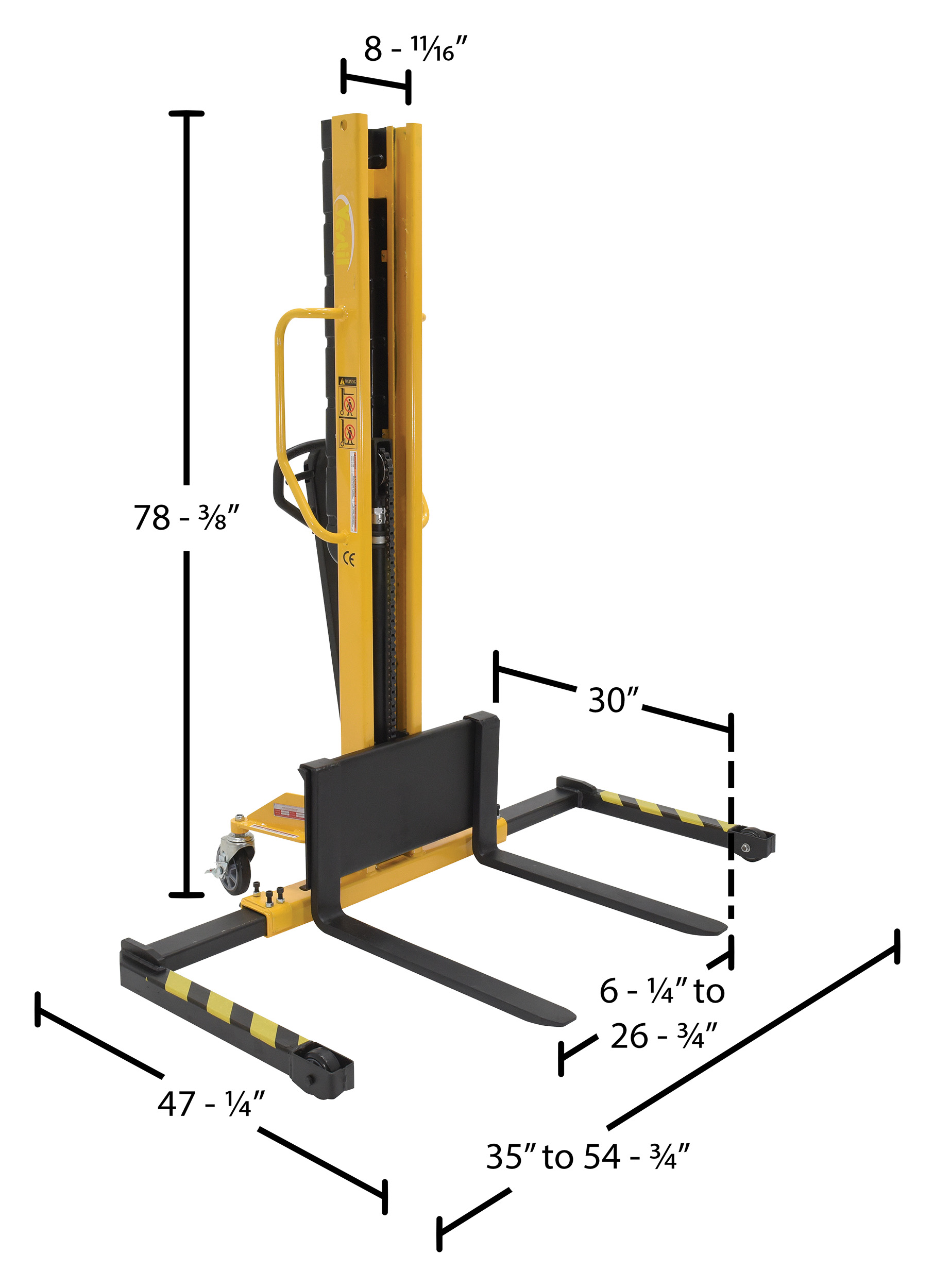

Assembled Size 54.75"W x 47.25"L x 78.375"H
Total Ship Weight 472 lbs
Package 1 Size 64"W x 65"D x 84"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Service Range (in.) 2-1/8 to 62
Fork Length (in.) 30
Fork Width (in.) 3-1/8
Leg Width (in.) 2-3/8
Adjustable Straddle Leg Spacing (in.) 35-7/16 to 50 (ID)
Adjustable Fork Spacing (in.) 6-1/4 to 26-3/4 (OD)
Mast Single
Operation Hand Pump
Rear Caster Quantity/Diameter/Width (in.) (2) 5-9/10 x 1-9/16
Rear Caster Material Poly on Steel
Front Caster Quantity/Diameter/Width (in.) (2) 4 x 2
Front Caster Material Poly on Steel
Pumps to Raise to Max Height (qty.) 74
Stroke per Pump (in.) 7/8
Time to Lower w/o Load (sec.) 18
Time to Lower w/ Load (sec.) 20
Overall Mast Height (in.) 78
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VHPS-NM-1000-AA
Product Name
Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow
UPC
691215230995
GTIN
00691215230995
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Manual
Assembled Depth (in.)
47.25
Assembled Width(in.)
54.75
Assembled Height(in.)
78.375
Assembled Weight(lbs.)
590
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
VHPS-DK

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
64
Package Height (in.)
84
Package Weight (in.)
472
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHPS-NM-1000-AA

VHPS-NM-1000-AA

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 7/8" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting

Core Data

Assembled Weight: 590 Assembled Size: 54.75"W x 47.25"L x 78.375"H Color: Black / Yellow
Total Ship Weight: 472 Package 1 Size: 64"W x 65"D x 84"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62
Fork Length (in.): 30
Fork Width (in.): 3-1/8
Leg Width (in.): 2-3/8
Adjustable Straddle Leg Spacing (in.): 35-7/16 to 50 (ID)
Adjustable Fork Spacing (in.): 6-1/4 to 26-3/4 (OD)
Mast: Single
Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-9/16
Rear Caster Material: Poly on Steel
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2
Front Caster Material: Poly on Steel
Pumps to Raise to Max Height (qty.): 74
Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 18
Time to Lower w/ Load (sec.): 20
Overall Mast Height (in.): 78
