Steel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / Black

Hydraulic Hand Pump Positioner Lifter for Commercial and Industrial Tote/ Skid Lifters Use, 800 lb. Capacity
A single fork skid positioner lifter is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Smooth rolling a variety of surfaces
  • Brightly colored for clear visibility
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   1 Year Warranty
Product Data

Core Data

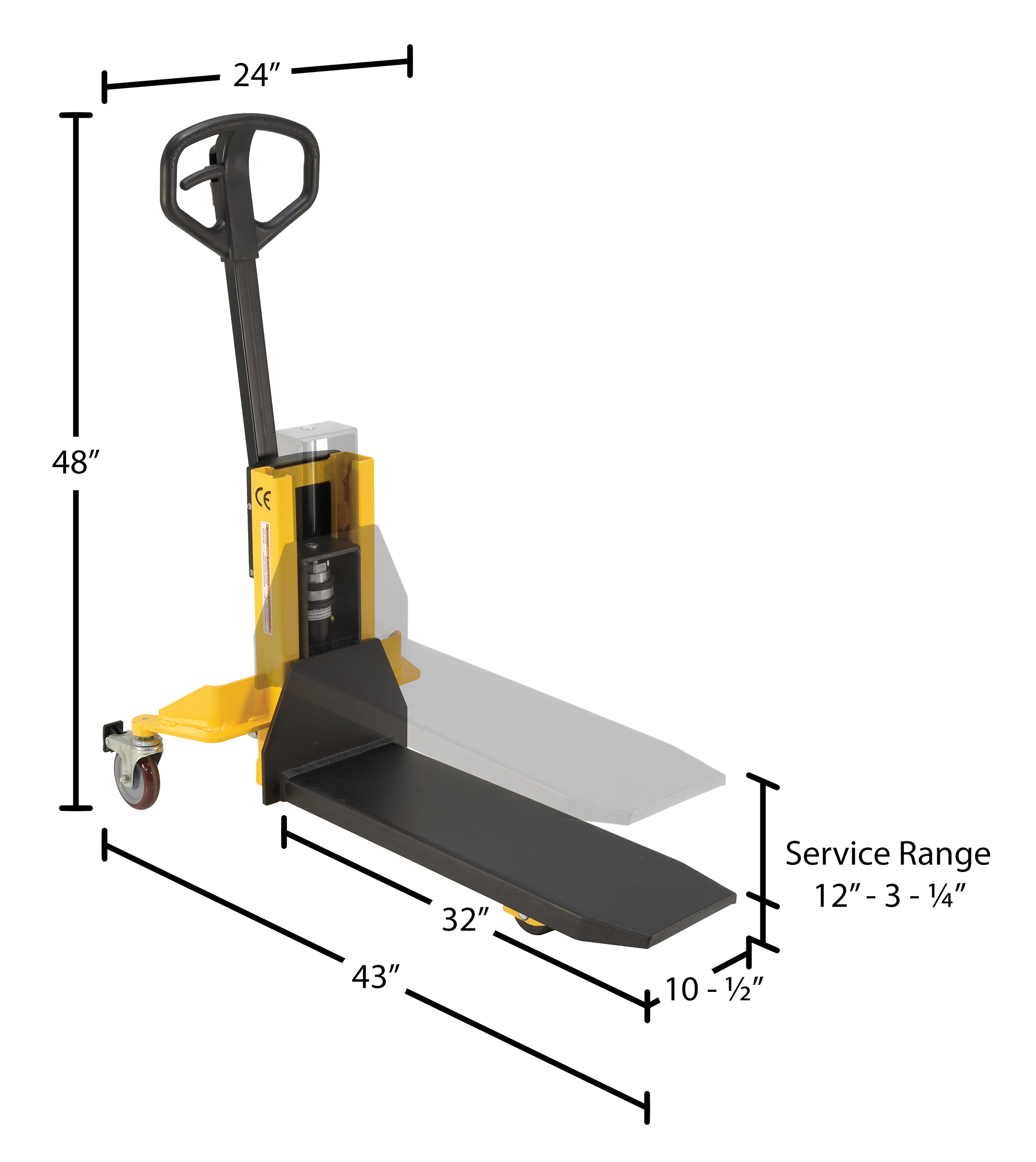

Assembled Weight 146 lbs
Assembled Size 24"W x 43"L x 48"H
Total Ship Weight 232 lbs
Package 1 Size 40"W x 48"D x 61"H
Color / Finish Yellow / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 800
Service Range (in.) 3-1/4 to 12
Fork Width/Length (in.) 10-1/2 x 32
Steer Wheel Quantity/Diameter/Width (in.) (2) 5 x 1/4
Steer Wheel Material Poly-on-Poly
Load Wheel Quantity/Diameter/Width (in.) 3-1/8 x 1-3/8
Load Wheel Material Poly-on-Steel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
VHPS-NM-800-11
Product Name
Steel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / Black
UPC
691215320948
GTIN
00691215320948
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Manual
Assembled Depth (in.)
43
Assembled Width(in.)
24
Assembled Height(in.)
48
Assembled Weight(lbs.)
146
Color/Finish
Yellow / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
61
Package Weight (in.)
232
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHPS-NM-800-11

VHPS-NM-800-11

Steel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / Black

A single fork skid positioner lifter is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.

  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Smooth rolling a variety of surfaces
  • Brightly colored for clear visibility

Core Data

Assembled Weight: 146 Assembled Size: 24"W x 43"L x 48"H Color: Yellow / Black
Total Ship Weight: 232 Package 1 Size: 40"W x 48"D x 61"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 800
Service Range (in.): 3-1/4 to 12
Fork Width/Length (in.): 10-1/2 x 32
Steer Wheel Quantity/Diameter/Width (in.): (2) 5 x 1/4
Steer Wheel Material: Poly-on-Poly
Load Wheel Quantity/Diameter/Width (in.): 3-1/8 x 1-3/8
Load Wheel Material: Poly-on-Steel
