  All Products   Loading Dock Equipment   Loading Dock Equipment   Premium Truck Scissor Dock Lifts WL-AR8
Product Image

Visual Reference

WL-AR8
WL-AR8
WL-AR8
WL-AR8
WL-AR8
WL-AR8

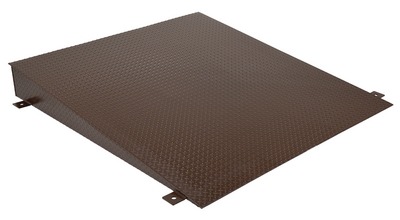

Steel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. Brown

Scissor Dock Lift Ramp for Ergonomic Load Lifting and Workstation Positioning, 8 in. x 60 in.
Optional approach ramp for a 8 (in.) Lowered height truck scissor dock lift. Must be anchored to the floor.
Product Status
Available
Key Features
  • Optional approach ramp must be anchored to the floor for ideal operation
  • Ideal for a 8" lowered height truck scissor dock lift for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Truck Scissor Dock model WL-100   WL-100 Wheel Kit   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 397 lbs
Assembled Size 66"W x 65"L x 8"H
Total Ship Weight 435 lbs
Package 1 Size 66"W x 67"D x 14"H
Color / Finish Brown
Freight Type LTL Palletized

Additional Attributes

Ramp Angle (degree) 7
Usable Length (in.) 65
Usable Width (in.) 60
Use For Lowered Height Lifts (in.) 8
Overall Width (in.) 66
Overall Length (in.) 64-9/16
Overall Height (in.) 8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WL-AR8
Product Name
Steel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. Brown
UPC
691215047326
GTIN
00691215047326
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Lifts, Jacks, & Supports
Taxonomy 4
Vehicle
Taxonomy 5
Vehicle Lifts
Taxonomy 6
Lift Accessories & Components
Taxonomy 7
Approach Ramps
Assembled Depth (in.)
65
Assembled Width(in.)
66
Assembled Height(in.)
8
Assembled Weight(lbs.)
397
Color/Finish
Brown
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
WL-100-5-48, WL-100-5-68, WL-100-5-78 ,WL-100-5-88, WL-100-5-610, WL-100-5-710, WL-100-5-810

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
67
Package Width (in.)
66
Package Height (in.)
14
Package Weight (in.)
435
Subclass
1
Freight Class
60
NMFC Code
Ramps (Dockboards) freight dock hinged type
NMFC Number
128140
LTL Freight
LTL Palletized
UNSPSC
24000000
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WL-AR8

WL-AR8

Steel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. Brown

Optional approach ramp for a 8 (in.) Lowered height truck scissor dock lift. Must be anchored to the floor.

  • Optional approach ramp must be anchored to the floor for ideal operation
  • Ideal for a 8" lowered height truck scissor dock lift for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 397 Assembled Size: 66"W x 65"L x 8"H Color: Brown
Total Ship Weight: 435 Package 1 Size: 66"W x 67"D x 14"H Freight: LTL Palletized

Specifications

Ramp Angle (degree): 7
Usable Length (in.): 65
Usable Width (in.): 60
Use For Lowered Height Lifts (in.): 8
Overall Width (in.): 66
Overall Length (in.): 64-9/16
Overall Height (in.): 8
