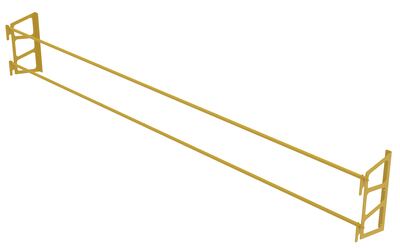

WMRD-20-160
WMRD-20-160
WMRD-20-160

Steel Wall Mounted Roll Dispenser 20 In. Max Diameter 160 In. Usable 500 Lb. Capacity Yellow

Wall Mounted Roll Dispenser for Securing Palletized Loads for Storage and Shipment, 500 lb. Capacity with 20 in., Yellow Finish – Model WMRD-20-160
A wall mounted stretch wrap dispenser is a worthy addition to shipping and distributing warehouses. With the dispenser maintaining a fixed position, wrapping product is now a more efficient process! And the vast size of this dispenser allows for items both large and small to be wrapped quickly! Hardware is not included.
Product Status
Available QuickShip
Key Features
  • Wall mounted design
  • Holds up to a 20" diameter roll
  • Built of 3/16" thick steel
  • Bar has an outside diameter of 1.315"
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Wall Mounted Roll Dispenser   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 50 lbs
Assembled Size 163.09375"W x 13.3125"L x 24"H
Total Ship Weight 42 lbs
Package 1 Size 3"W x 164"D x 1.5"H
Color / Finish YELLOW
Freight Type Parcel

Additional Attributes

Maximum Roll Diameter (in.) 20
Usable Width (in.) 160
Overall Width (in.) 163-3/32
Overall Height (in.) 24
Overall Depth (in.) 13-5/16
Steel Thickness (in.) 3/16
Distance Between Bars (in.) 14-1/8
Minimum Roll Core Diameter (in.) 1-1/4
Maximum Capacity (lbs.) 500
Maximum Capacity per Bar (lbs.) 250
Ships Knockdown? Yes
Assembly Required? Yes
Wall Anchoring Hardware Included? No
Wall Anchoring Holes (qty.) 6
Wall Anchoring Hole Diameter (in.) 3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WMRD-20-160
Product Name
Steel Wall Mounted Roll Dispenser 20 In. Max Diameter 160 In. Usable 500 Lb. Capacity Yellow
UPC
691215377997
GTIN
00691215377997
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Reel Racks
Taxonomy 5
Stationary
Assembled Depth (in.)
13.3125
Assembled Width(in.)
163.09375
Assembled Height(in.)
24
Assembled Weight(lbs.)
50
Color/Finish
YELLOW
Material
STEEL
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
164
Package Width (in.)
3
Package Height (in.)
1.5
Package Weight (in.)
24
Freight Class
150
NMFC Code
stretch wrapping machines designed to be used to unitize products or packaged commodities to shipping pallets, platforms or racks.
NMFC Number
130530
Package 2 Depth (in.)
25
Package 2 Width (in.)
14
Package 2 Height (in.)
3
Package 2 Weight (lbs.)
18
Package 2 Freight Class
150
Package2 NMFC Number
130530
LTL Freight
Parcel
UNSPSC
24102201
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WMRD-20-160

WMRD-20-160

Steel Wall Mounted Roll Dispenser 20 In. Max Diameter 160 In. Usable 500 Lb. Capacity Yellow

A wall mounted stretch wrap dispenser is a worthy addition to shipping and distributing warehouses. With the dispenser maintaining a fixed position, wrapping product is now a more efficient process! And the vast size of this dispenser allows for items both large and small to be wrapped quickly! Hardware is not included.

  • Wall mounted design
  • Holds up to a 20" diameter roll
  • Built of 3/16" thick steel
  • Bar has an outside diameter of 1.315"

Core Data

Assembled Weight: 50 Assembled Size: 163.09375"W x 13.3125"L x 24"H Color: YELLOW
Total Ship Weight: 42 Package 1 Size: 3"W x 164"D x 1.5"H Freight: Parcel

Specifications

Maximum Roll Diameter (in.): 20
Usable Width (in.): 160
Overall Width (in.): 163-3/32
Overall Height (in.): 24
Overall Depth (in.): 13-5/16
Steel Thickness (in.): 3/16
Distance Between Bars (in.): 14-1/8
Minimum Roll Core Diameter (in.): 1-1/4
Maximum Capacity (lbs.): 500
Maximum Capacity per Bar (lbs.): 250
Ships Knockdown?: Yes
Assembly Required?: Yes
Wall Anchoring Hardware Included?: No
Wall Anchoring Holes (qty.): 6
Wall Anchoring Hole Diameter (in.): 3/8
