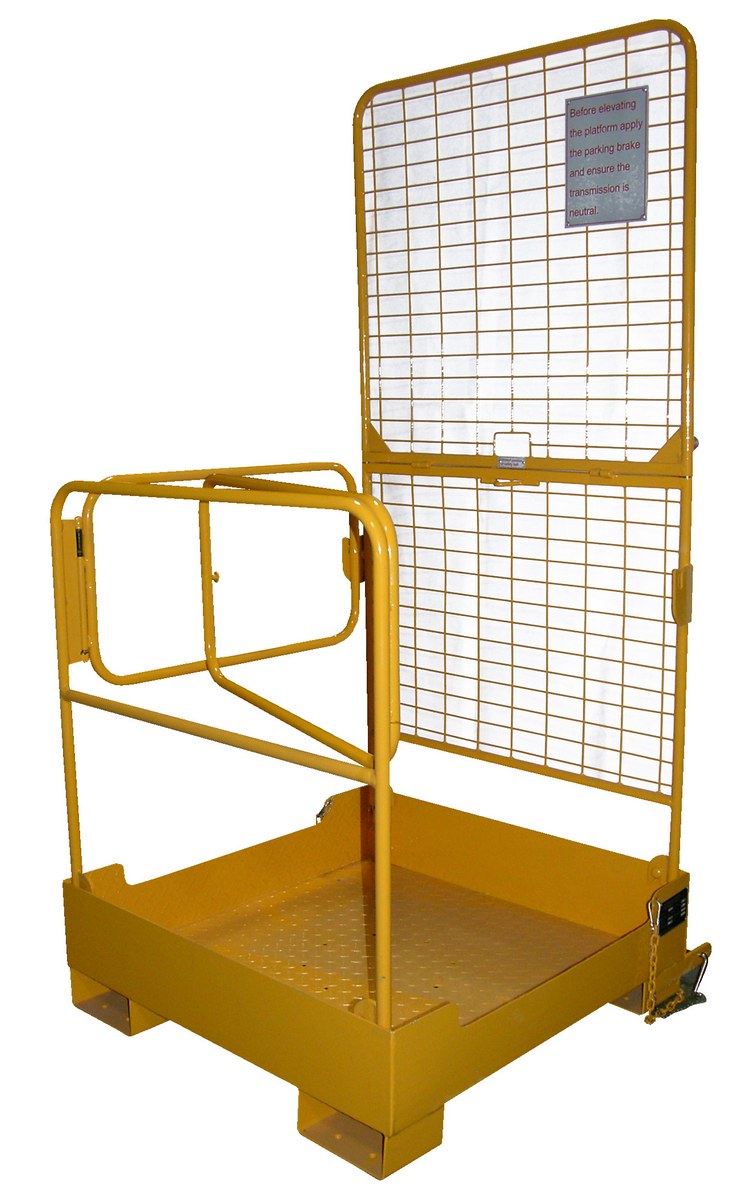

Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow

Fork Lift Work Platform for Safer Elevated Access in Industrial Work Areas, 600 lb. Capacity with 37 in. x 37 in., Yellow Finish – Model WP-3737-FD-84B
Elevate personnel to overhead racks and shelving for safe and convenient access with a fold down work platform. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a bottom base. Dual handrails on three sides. High expanded metal backing on fourth side. Meets California OSHA specifications. Includes checker floor plate platform, tine lock, and a safety restraint to attach platform to fork truck. Powder coat yellow finish. Steel construction.
Product Status
Available QuickShip
Key Features
  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip

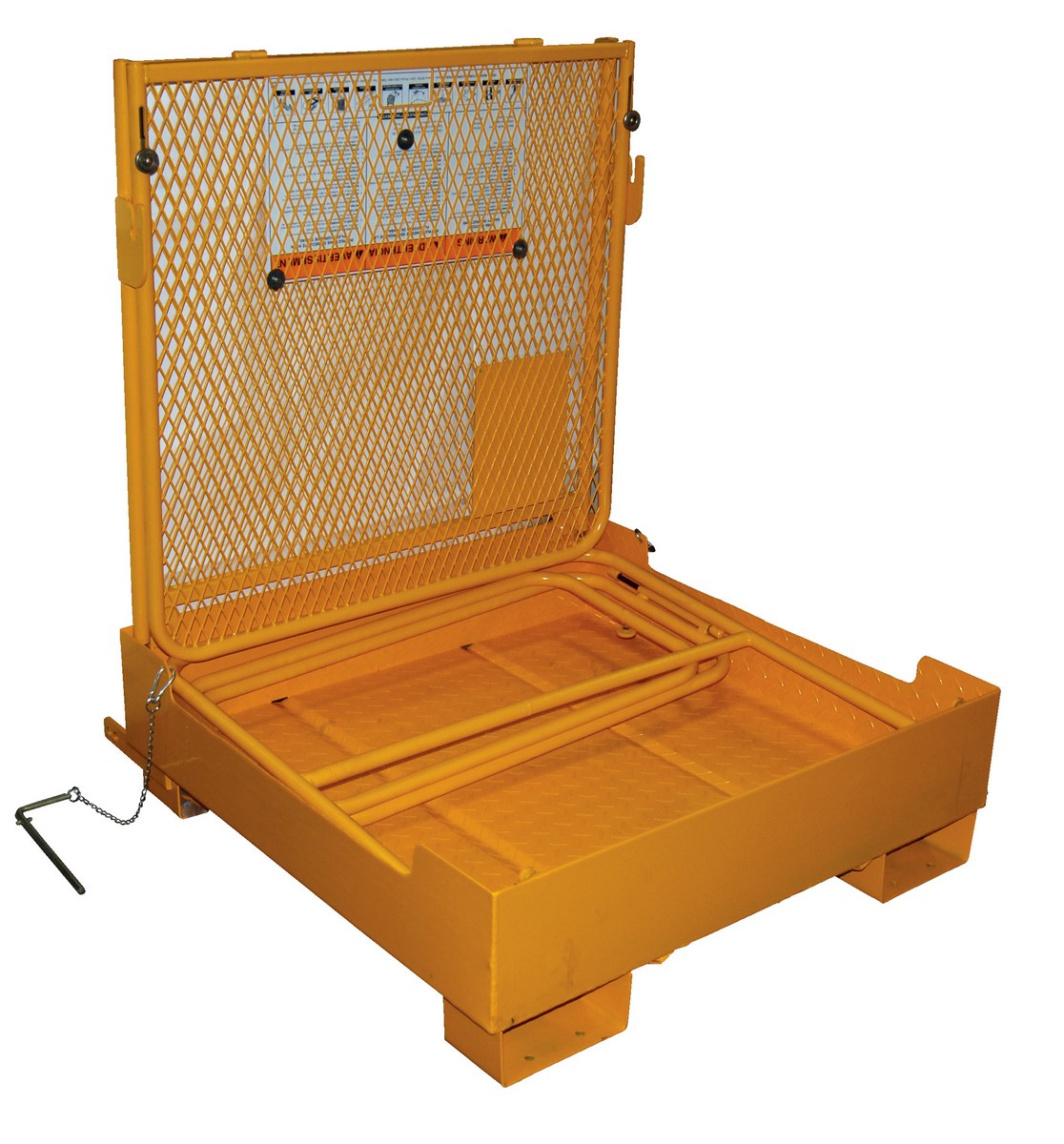

  • Unique folds-down design takes up little storage space when not in use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Fold Down Work Platform model WP-3737-FD Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 195 lbs
Assembled Size 38"W x 38"L x 89.5"H
Total Ship Weight 245 lbs
Package 1 Size 55"W x 40"D x 52"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 600
Base Depth for Storage (in.) 4
Top Rail Height (in.) 38
Mid Rail Height (in.) 23-1/2
Fork Pocket Width (in.) 7-7/8
Fork Pocket Height (in.) 3-3/8
Fork Pocket Center (in.) 27-3/4
Folded Width (in.) 38
Folded Length (in.) 38
Folded Height (in.) 11-5/8
Handrail Design Fixed
Door Width (in.) 35
Platform Width (in.) 37
Platform Length (in.) 37
High Back Height (in.) 84
Anchor Point Capacity (lbs.) 350
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WP-3737-FD-84B
Product Name
Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow
UPC
691215096805
GTIN
00691215096805
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Work Platforms
Assembled Depth (in.)
38
Assembled Width(in.)
38
Assembled Height(in.)
89.5
Assembled Weight(lbs.)
195
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
40
Package Width (in.)
55
Package Height (in.)
52
Package Weight (in.)
245
Subclass
1
Freight Class
200
NMFC Code
Buckets Baskets Cages or Platforms
NMFC Number
115425
LTL Freight
LTL Palletized
UNSPSC
22101802
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WP-3737-FD-84B

WP-3737-FD-84B

Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow

Elevate personnel to overhead racks and shelving for safe and convenient access with a fold down work platform. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a bottom base. Dual handrails on three sides. High expanded metal backing on fourth side. Meets California OSHA specifications. Includes checker floor plate platform, tine lock, and a safety restraint to attach platform to fork truck. Powder coat yellow finish. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip
  • Unique folds-down design takes up little storage space when not in use

Core Data

Assembled Weight: 195 Assembled Size: 38"W x 38"L x 89.5"H Color: Yellow
Total Ship Weight: 245 Package 1 Size: 55"W x 40"D x 52"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 600
Base Depth for Storage (in.): 4
Top Rail Height (in.): 38
Mid Rail Height (in.): 23-1/2
Fork Pocket Width (in.): 7-7/8
Fork Pocket Height (in.): 3-3/8
Fork Pocket Center (in.): 27-3/4
Folded Width (in.): 38
Folded Length (in.): 38
Folded Height (in.): 11-5/8
Handrail Design: Fixed
Door Width (in.): 35
Platform Width (in.): 37
Platform Length (in.): 37
High Back Height (in.): 84
Anchor Point Capacity (lbs.): 350
