Product Data Sheet

  Print to PDF
  All Products   Overhead Lifting   Engine Hoists & Floor Cranes   Winch Operated Truck Jib Cranes WTJ-2-SS
Product Image

Visual Reference

WTJ-2-SS
WTJ-2-SS
WTJ-2-SS
WTJ-2-SS
WTJ-2-SS
WTJ-2-SS
WTJ-2-SS

Stainless Steel Winch Truck Jib Crane 550 Lb. Extended Capacity Silver

Stainless Steel Power Jib Crane Lift for Overhead Load Lifting and Controlled Positioning, 500 lb. Capacity
This Stainless Steel winch operated truck Jib crane lifts items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Quick Actions

Product Resources

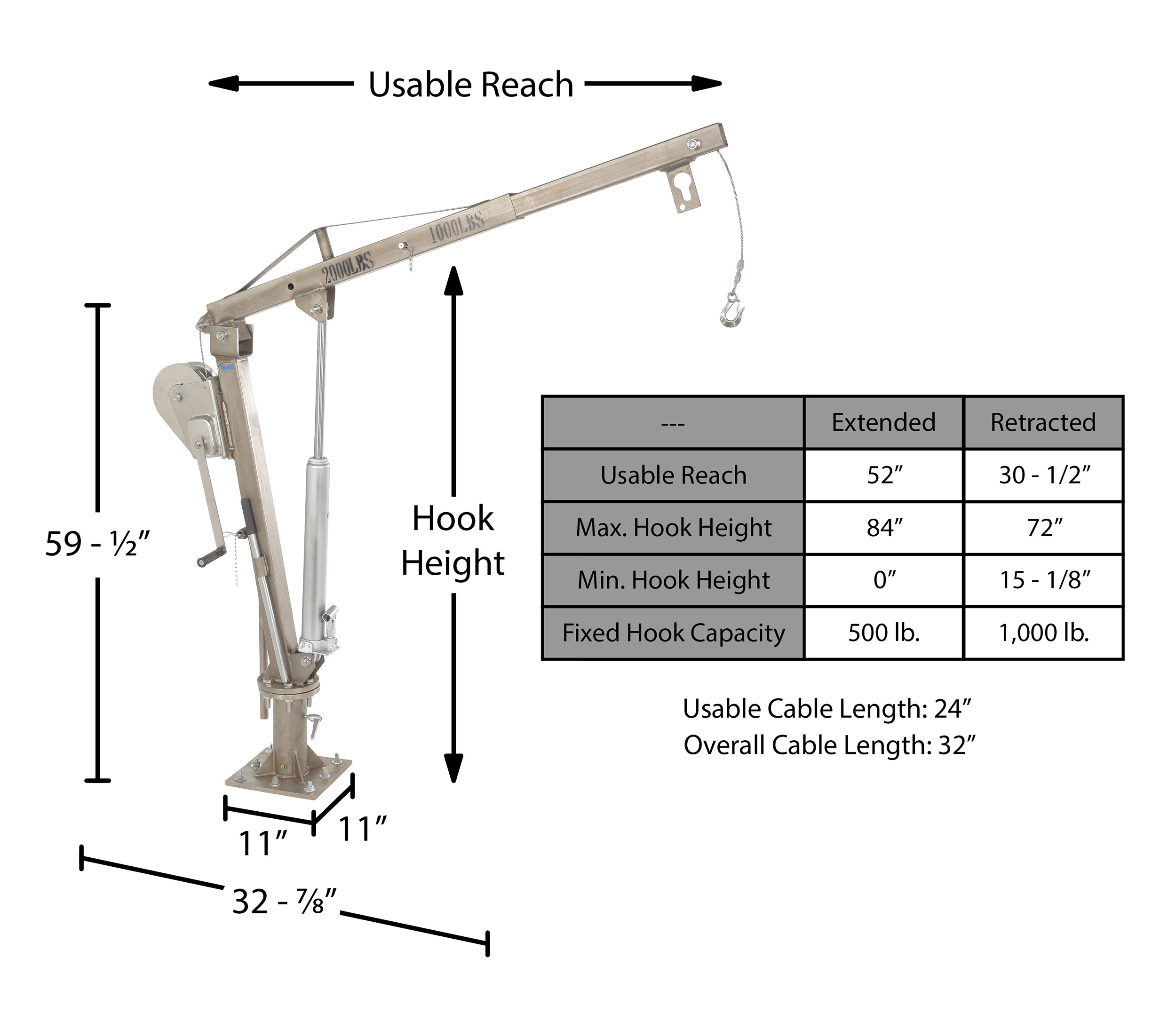

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   WTJ-2 Vehicle Mounted Jib Cranes Instruction Manual   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 125 lbs
Assembled Size 32.875"W x 11"L x 59.5"H
Total Ship Weight 134 lbs
Package 1 Size 12"W x 65"D x 17"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Cable Winch Capacity (lb.) 500
Extended Fixed Hook Capacity (lb.) 500
Extended Usable Reach (in.) 52
Extended Maximum Hook Height (in.) 86
Extended Minimum Hook Height (in.) Zero
Retracted Fixed Hook Capacity (lb.) 1,000
Retracted Usable Reach (in.) 30-1/2
Retracted Maximum Hook Height (in.) 72
Retracted Minimum Hook Height (in.) 15-1/8
Overall Cable Length (ft.) 32
Usable Cable Length (ft.) 24
Cable Diameter (in.) 3/16
Mounting Plate Length (in.) 11
Mounting Plate Width (in.) 11
Base Height (in.) 11-1/2
Rotation (degrees) 360
Piston Stroke (in.) 16-3/8
Piston Stroke Per Pump (in.) 1/16
Cable Retracts/Extension Per Crank (in.) 1-1/2
Number of Cranks to Retract/Extend Cable 72
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-2-SS
Product Name
Stainless Steel Winch Truck Jib Crane 550 Lb. Extended Capacity Silver
UPC
691215129534
GTIN
00691215129534
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
11
Assembled Width(in.)
32.875
Assembled Height(in.)
59.5
Assembled Weight(lbs.)
125
Color/Finish
Silver
Material
Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
12
Package Height (in.)
17
Package Weight (in.)
134
Subclass
10
Freight Class
77.5
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.91.0000
USMCA HS
8426.91
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning
