  All Products   Overhead Lifting   Engine Hoists & Floor Cranes   Power Lift Jib Cranes WTJ-20-3-AC-CSA-GAL
Product Image

Visual Reference

WTJ-20-3-AC-CSA-GAL
WTJ-20-3-AC-CSA-GAL
WTJ-20-3-AC-CSA-GAL

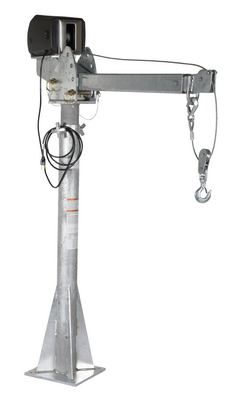

Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray

Galvanized AC-Powered Power Jib Crane Lift for Overhead Load Lifting and Controlled Positioning, 2,000 lb. Capacity, Gray Finish – Model WTJ-20-3-AC-CSA-GAL
The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
New Product Images Coming Soon - Design change on base
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   WTJ-20 Series Power Lift Jib Cranes Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 275 lbs
Assembled Size 18.6875"W x 63.5"L x 73"H
Total Ship Weight 284 lbs
Package 1 Size 30"W x 67"D x 18"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2000
Boom Reach (in.) 39-1/4 to 63-1/4
Boom Height (in.) 59-9/16 to 96-1/8
Rotation Degree 360
Boom Adjustment Increments (in.) 12
Cable Length (ft.) 25
Cable Diameter (in.) 7/32
AC (volts) 115
Horsepower (HP) 1/3
Mounting Plate Length (in.) 12
Mounting Plate Width (in.) 12
Capacity at 59-9/16" Fully Retracted (lbs.) 650
Capacity at 59-9/16" Mid-Position (lbs.) 400
Capacity at 59-9/16" Fully Extended (lbs.) 250
Capacity at 74-1/4" Fully Retracted (lbs.) 1,000
Capacity at 74-1/4" Mid-Position (lbs.) 770
Capacity at 74-1/4" Fully Extended (lbs.) 600
Capacity at 86-13/16" Fully Retracted (lbs.) 1,250
Capacity at 86-13/16" Mid-Position (lbs.) 950
Capacity at 86-13/16" Fully Extended (lbs.) 780
Capacity at 96-1/8" Fully Retracted (lbs.) 2,000
Capacity at 96-1/8" Mid-Position (lbs.) 1,500
Capacity at 96-1/8" Fully Extended (lbs.) 1,200
Compliant CSA
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-20-3-AC-CSA-GAL
Product Name
Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray
UPC
691215131605
GTIN
00691215131605
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
63.5
Assembled Width(in.)
18.6875
Assembled Height(in.)
73
Assembled Weight(lbs.)
275
Color/Finish
Gray
Material
Galvanized Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
67
Package Width (in.)
30
Package Height (in.)
18
Package Weight (in.)
284
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.91.0000
USMCA HS
8426.91
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WTJ-20-3-AC-CSA-GAL

WTJ-20-3-AC-CSA-GAL

Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray

The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Core Data

Assembled Weight: 275 Assembled Size: 18.6875"W x 63.5"L x 73"H Color: Gray
Total Ship Weight: 284 Package 1 Size: 30"W x 67"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
Boom Height (in.): 59-9/16 to 96-1/8
Rotation Degree: 360
Boom Adjustment Increments (in.): 12
Cable Length (ft.): 25
Cable Diameter (in.): 7/32
AC (volts): 115
Horsepower (HP): 1/3
Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12
Capacity at 59-9/16" Fully Retracted (lbs.): 650
Capacity at 59-9/16" Mid-Position (lbs.): 400
Capacity at 59-9/16" Fully Extended (lbs.): 250
Capacity at 74-1/4" Fully Retracted (lbs.): 1,000
Capacity at 74-1/4" Mid-Position (lbs.): 770
Capacity at 74-1/4" Fully Extended (lbs.): 600
Capacity at 86-13/16" Fully Retracted (lbs.): 1,250
Capacity at 86-13/16" Mid-Position (lbs.): 950
Capacity at 86-13/16" Fully Extended (lbs.): 780
Capacity at 96-1/8" Fully Retracted (lbs.): 2,000
Capacity at 96-1/8" Mid-Position (lbs.): 1,500
Capacity at 96-1/8" Fully Extended (lbs.): 1,200
Compliant: CSA
